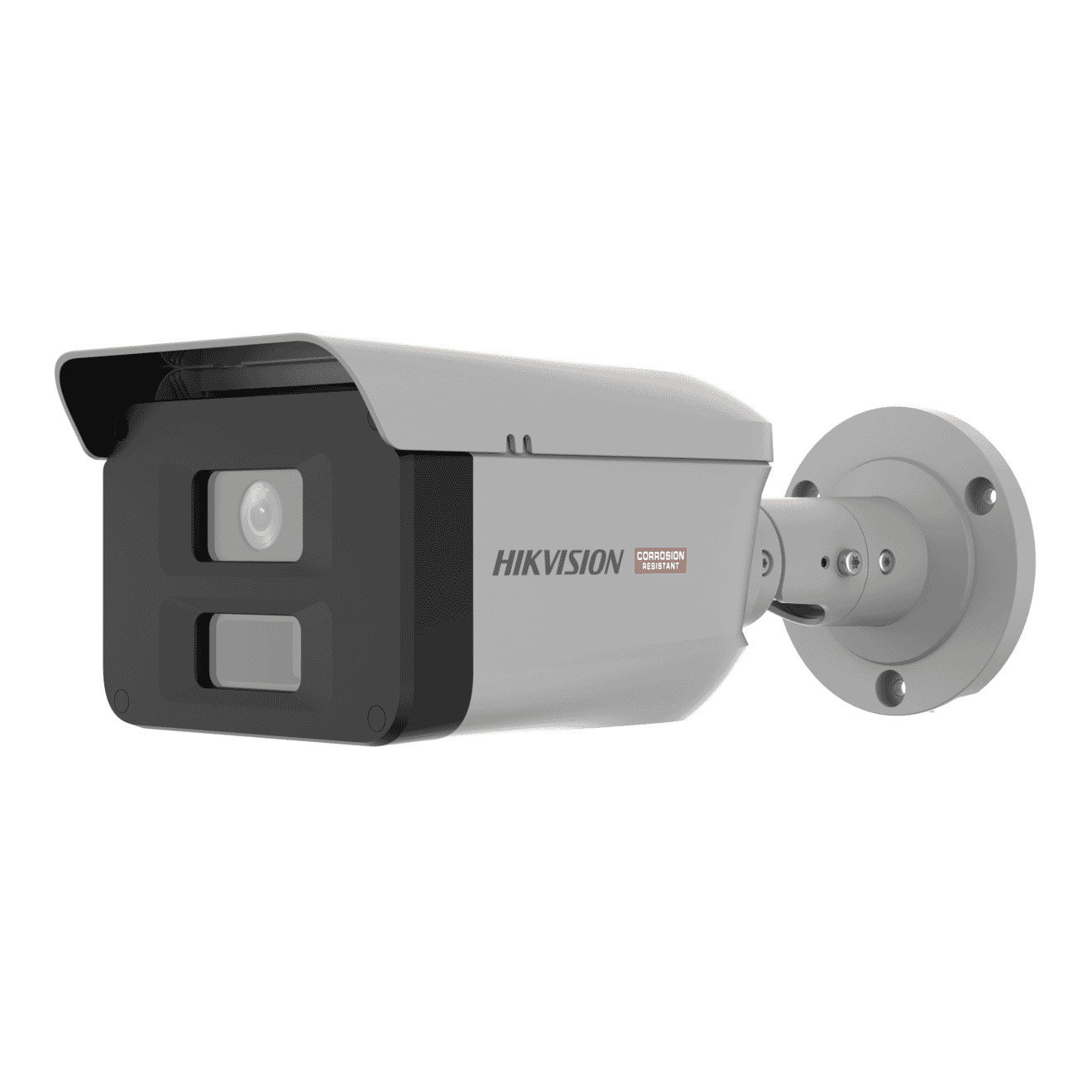

Hikvision DS-2XC6047G0-LS(2.8mm) 4MP ColorVu Fixed Bullet Anti-Corrosion Camera

Hikvision DS-2XC6047G0-LS(2.8mm) 4MP ColorVu Fixed Bullet Anti-Corrosion Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2XC6047G0-LS(2.8mm) 4MP ColorVu Fixed Bullet Anti-Corrosion Camera
Login to View Price

Specifications

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light
  • Shutter Time: 1 s to 1/100,000 s
  • Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Focal Length & FOV: 2.8 mm, horizontal FOV 101.73°, vertical FOV 55.12°, diagonal FOV 120.84°
  • Iris Type: Fixed
  • Aperture: F1.0
  • DORI: 2.8 mm: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes
  • Main Stream: 50 Hz: 25 fps (2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (704 x 576, 640 x 480)60 Hz: 30 fps (704 x 480, 640 x 480)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)
  • Video Compression: Main stream: H.265/H.264 /H.265+/H.264+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.265 and H.264 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface, ISAPI, SDK, ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger (-S)
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 50 dB
  • Image Enhancement: BLC,HLC,3D DNR, Defog
  • Privacy Mask: 8 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 100 M Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB,*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. The memory card needs to be installed before leaving the factory.
  • Reset Key: Yes
  • Basic Event: Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, trigger capture, white light flashing
  • Power: DC: 9 to 36 V, 0.8 A, max. 7.2 W,PoE: IEEE 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 7.2 W
  • Dimension: 250.5 mm x 105.6 mm x 91.9 mm (9.86" x 4.16" x 3.62")
  • Package Dimension: 315 mm x 137 mm x 141 mm (12.41" x 5.40" x 5.56")
  • Weight: Appox. 0.76 kg (1.68 lb.)
  • With Package Weight: Appox. 1.12 kg (2.47 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
  • EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP68: IEC 60529-2013
  • Open Resources: Memory: 60 MB,Smart RAM: 350 MB,eMMC: 2 GB
  • Computing Power: 1.5 TOPS
  • Deep Learning Structure: Caffe, PyTorch, TensorFlow
  • Programming Language: C,C++
  • Fourth Stream: 50 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)
  • Target Cropping: Yes
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Type: Mono sound
  • Picture Overlay: LOGO picture can be overlaid on video with 128 x 128 24 bit bmp format.
  • Audio: -S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium-S: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: -S: 1 input, 1 output (max. 12 VDC, 30 mA)
  • RS-485: -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Material: Front cover: PA* + 50% GF, body: PA* + 50% GF, bracket: ADC12
  • Anti-Corrosion Protection: C5,NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light
  • Shutter Time: 1 s to 1/100,000 s
  • Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV 101.73°, vertical FOV 55.12°, diagonal FOV 120.84°
  • Iris Type: Fixed
  • Aperture: F1.0

DORI
  • DORI: 2.8 mm: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

Illuminator
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes

Video
  • Main Stream: 50 Hz: 25 fps (2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (704 x 576, 640 x 480)60 Hz: 30 fps (704 x 480, 640 x 480)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)
  • Video Compression: Main stream: H.265/H.264 /H.265+/H.264+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.265 and H.264 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface, ISAPI, SDK, ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger (-S)
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 50 dB
  • Image Enhancement: BLC,HLC,3D DNR, Defog
  • Privacy Mask: 8 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 100 M Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB,*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. The memory card needs to be installed before leaving the factory.
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, trigger capture, white light flashing

General
  • Power: DC: 9 to 36 V, 0.8 A, max. 7.2 W,PoE: IEEE 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 7.2 W
  • Dimension: 250.5 mm x 105.6 mm x 91.9 mm (9.86" x 4.16" x 3.62")
  • Package Dimension: 315 mm x 137 mm x 141 mm (12.41" x 5.40" x 5.56")
  • Weight: Appox. 0.76 kg (1.68 lb.)
  • With Package Weight: Appox. 1.12 kg (2.47 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Approval
  • EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP68: IEC 60529-2013

Other
  • Open Resources: Memory: 60 MB,Smart RAM: 350 MB,eMMC: 2 GB
  • Computing Power: 1.5 TOPS
  • Deep Learning Structure: Caffe, PyTorch, TensorFlow
  • Programming Language: C,C++
  • Fourth Stream: 50 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)
  • Target Cropping: Yes
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Type: Mono sound
  • Picture Overlay: LOGO picture can be overlaid on video with 128 x 128 24 bit bmp format.
  • Audio: -S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium-S: 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: -S: 1 input, 1 output (max. 12 VDC, 30 mA)
  • RS-485: -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Material: Front cover: PA* + 50% GF, body: PA* + 50% GF, bracket: ADC12
  • Anti-Corrosion Protection: C5,NEMA 4X (NEMA 250-2018)
