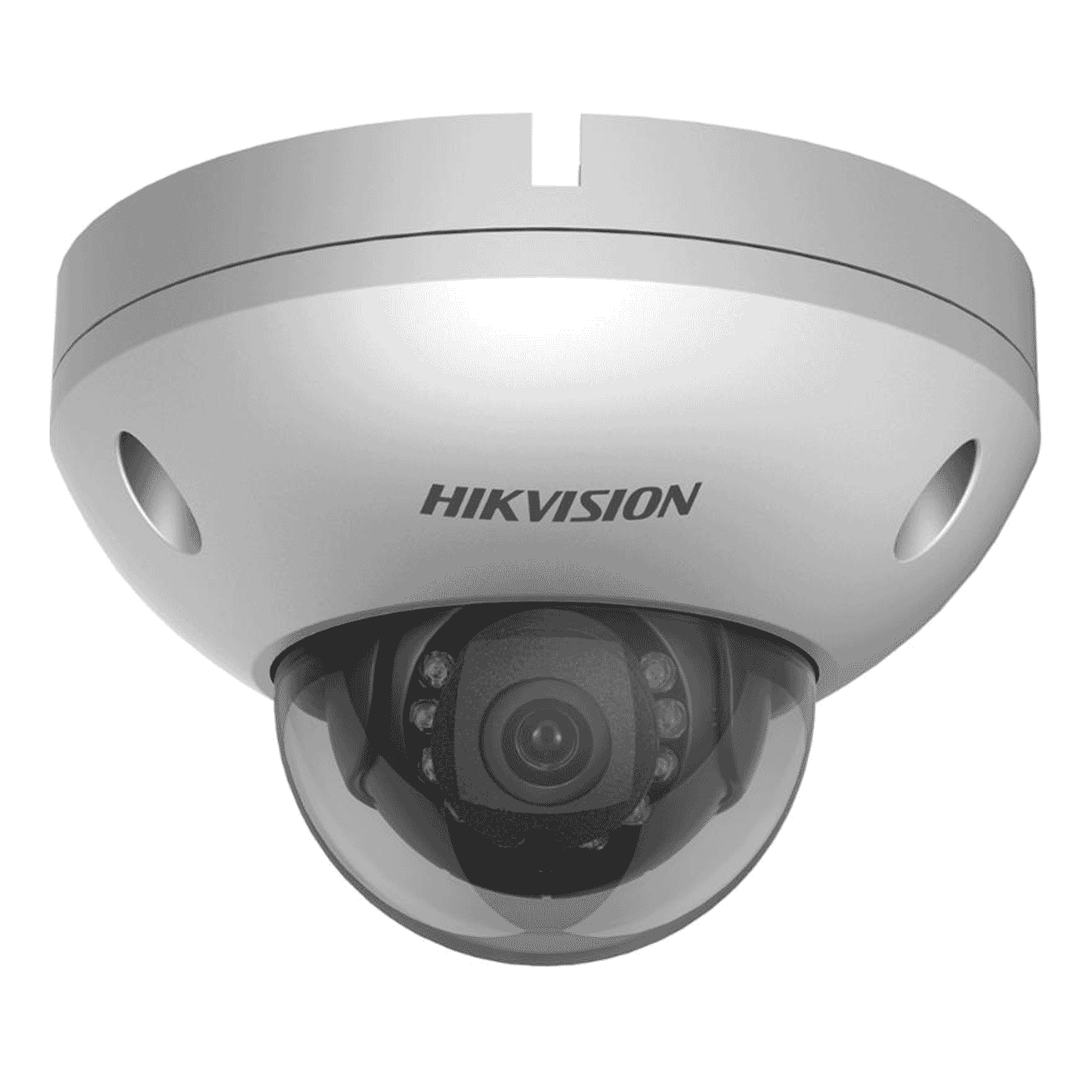

Hikvision DS-2XC6142FWD-IS (C) (2.8mm) 4MP Fixed Dome Camera Stainless Steel Mic Speaker

Hikvision DS-2XC6142FWD-IS (C) (2.8mm) 4MP Fixed Dome Camera Stainless Steel Mic Speaker

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2XC6142FWD-IS (C) (2.8mm) 4MP Fixed Dome Camera Stainless Steel Mic Speaker
Login to View Price

Specifications

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IRB/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens Type: Fixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 98.5°, vertical FOV 52.8°, diagonal FOV 116.2°4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 92.8°6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2°
  • Lens Mount: M12
  • Aperture: F1.6
  • DORI: 2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 15 m
  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 5 fixed regions for each stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface, ISAPI, ISUP 5.0
  • User/Host: Up to 32 users3 levels: Administrator, Operator and User
  • Network Storage: NAS (NFS, SMB/CIFS), ANR
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Plug-in required live view: IE10, IE11Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC, HLC, 3D DNR, defog
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection, unattended baggage detection, object removal detection
  • Power: 12 VDC, 0.4 A, max. 5 W, two-core terminal blockPoE (802.3af, Class 3, 36 V to 57 V), 0.1 A
  • Dimension: Ø113 mm × 77.3 mm (4.45" × 3.04")
  • Package Dimension: 257 mm × 167 mm × 145 mm (10.12" × 6.57" × 5.71")
  • Weight: Approx. 1500 g (3.3 lb.)
  • With Package Weight: Approx. 1900 g (4.2 lb.)
  • Startup and Operating Conditions: -30°C to +60 °C (-22 °F to +140 °F). Humidity less than 95% (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, password protection, privacy mask, watermark, IP address filter, mirror
  • EMC: FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015IC: IC-VoC (ICES-003 Issue 7:2020)KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
  • Safety: UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014CB: IEC 62368-1:2014BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015LOA: SANS IEC60950-1
  • Environment: CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
  • Protection: IP67 (IEC 60529-2013)
  • Alarm: 1 alarm input, 1 alarm output
  • Material: 316L and anti-corrosion coating
  • Anti-Corrosion Protection: WF2, NEMA-4XC5-M: 720H neutral salt spray, 480H water condensation;Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;Interior environments: buildings or areas with almost permanent condensation and with high pollution.

Camera
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IRB/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
  • Lens Type: Fixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 98.5°, vertical FOV 52.8°, diagonal FOV 116.2°4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 92.8°6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2°
  • Lens Mount: M12
  • Aperture: F1.6

DORI
  • DORI: 2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 15 m

Video
  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 5 fixed regions for each stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface, ISAPI, ISUP 5.0
  • User/Host: Up to 32 users3 levels: Administrator, Operator and User
  • Network Storage: NAS (NFS, SMB/CIFS), ANR
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Plug-in required live view: IE10, IE11Local service: Chrome 57.0+, Firefox 52.0+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC, HLC, 3D DNR, defog

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Event
  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection, unattended baggage detection, object removal detection

General
  • Power: 12 VDC, 0.4 A, max. 5 W, two-core terminal blockPoE (802.3af, Class 3, 36 V to 57 V), 0.1 A
  • Dimension: Ø113 mm × 77.3 mm (4.45" × 3.04")
  • Package Dimension: 257 mm × 167 mm × 145 mm (10.12" × 6.57" × 5.71")
  • Weight: Approx. 1500 g (3.3 lb.)
  • With Package Weight: Approx. 1900 g (4.2 lb.)
  • Startup and Operating Conditions: -30°C to +60 °C (-22 °F to +140 °F). Humidity less than 95% (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, password protection, privacy mask, watermark, IP address filter, mirror

Approval
  • EMC: FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015IC: IC-VoC (ICES-003 Issue 7:2020)KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
  • Safety: UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014CB: IEC 62368-1:2014BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015LOA: SANS IEC60950-1
  • Environment: CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
  • Protection: IP67 (IEC 60529-2013)

Other
  • Alarm: 1 alarm input, 1 alarm output
  • Material: 316L and anti-corrosion coating
  • Anti-Corrosion Protection: WF2, NEMA-4XC5-M: 720H neutral salt spray, 480H water condensation;Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;Interior environments: buildings or areas with almost permanent condensation and with high pollution.
