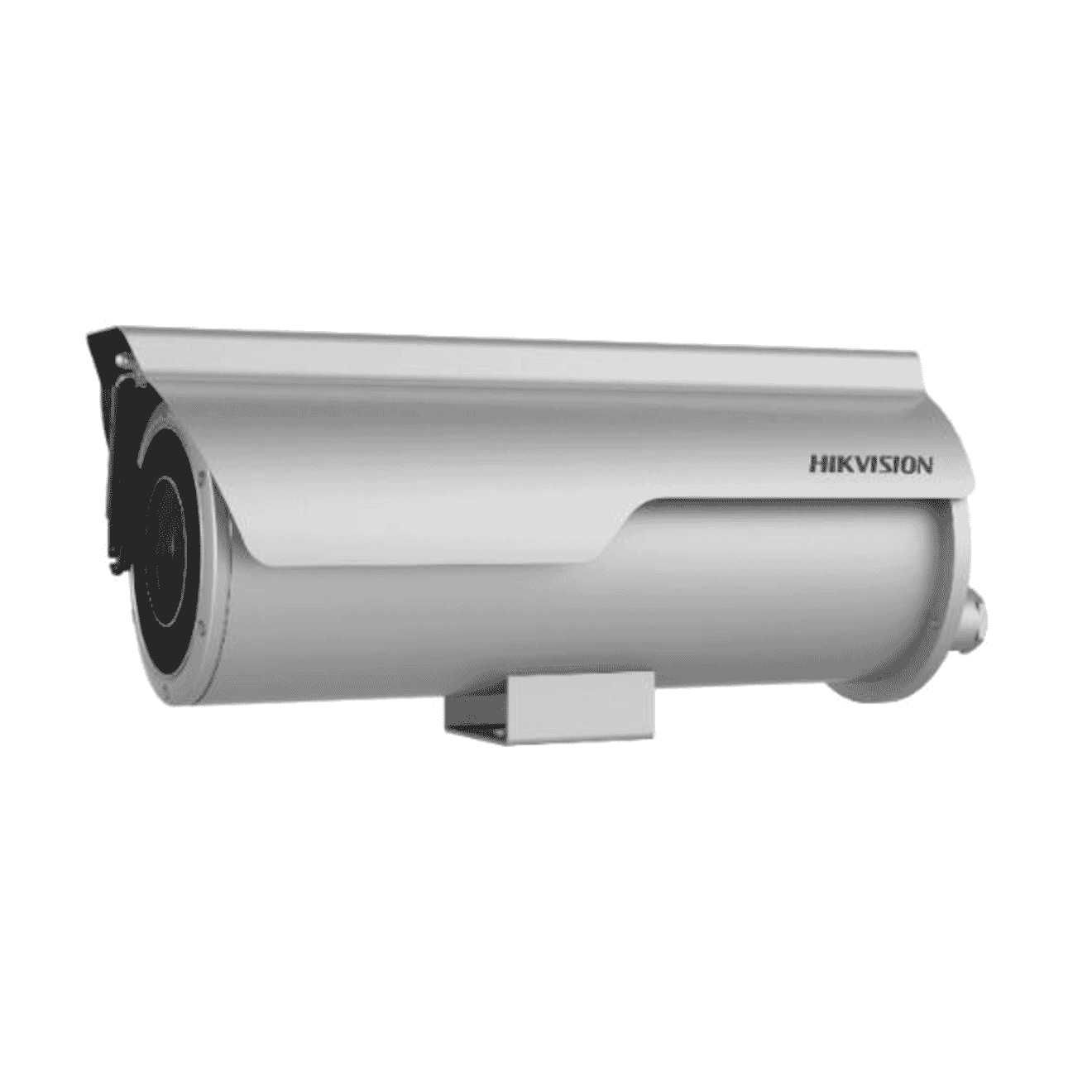

Hikvision DS-2XC6625G0-IZHRS (2.8-12mm) (D) 2MP Varifocal Bullet Camera Stainless Steel

Hikvision DS-2XC6625G0-IZHRS (2.8-12mm) (D) 2MP Varifocal Bullet Camera Stainless Steel

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2XC6625G0-IZHRS (2.8-12mm) (D) 2MP Varifocal Bullet Camera Stainless Steel
Login to View Price

Specifications

  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.0005 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 94.2° to 38.1°8 to 32 mm, horizontal FOV 42.2° to 15.1°
  • Aperture: 2.8 to 12 mm: F1.48 to 32 mm: F1.7
  • DORI: 2.8 to 12 mm:D: 44.1 to 151.7 m, O: 17.5 to 60.2 m, R: 8.8 to 30.3 m, I: 4.4 to 15.2 m8 to 32 mm:D: 150.3 to 400 m, O: 59.7 to 158.7 m, R: 30.1 to 80 m, I: 15 to 40 m
  • Supplement Light Type: IR
  • Supplement Light Range: 2.8 to 12 mm: 80 m, 8 to 32 mm: 150 m
  • Smart Supplement Light: Yes
  • IR Wavelength: Up to 850 nm
  • Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: BaseLine Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR, VBR
  • Scalable Video Coding (SVC): H.265 and H.264 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface, ISAPI, SDK, Ehome
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11Plug-in free live view: Chrome 45.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+Not recommended: Safari 11+, Edge
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 50 dB
  • Image Enhancement: BLC, HLC, 3D DNR, Defog
  • Privacy Mask: 8 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
  • Reset Key: Yes
  • Basic Event: Exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection,Scene change detection, defocus detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
  • Power: 24 VAC ± 20%, 24V~, 1.7 A, 50/60 Hz, 23.5 W;PoE: 802.3at, 42.5 V to 57 V, 0.57 A to 0.43 A, max. 24 W
  • Dimension: 179.9 mm × 203.2 mm × 468 mm (7.1" × 8" × 18.4")
  • Package Dimension: 606 mm × 270 mm × 335 mm (23.9" × 10.6" × 13.2")
  • Weight: Approx. 9.01 kg (19.86 lb.)
  • With Package Weight: Approx. 10.96 kg (24.16 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, flash log, password reset via email, pixel counter
  • EMC: FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7);KC (KN32: 2015, KN35: 2015)
  • Safety: UL (UL 62368-1);CB (IEC 62368-1: 2014+A11);CE-LVD (EN 62368-1: 2014/A11: 2017);BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)
  • Focus: Auto, semi-auto, manual
  • Target Cropping: Yes
  • Audio Type: Mono sound
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Video Output: 1 Vp-p composite output (75 O/BNC)
  • Alarm: 1 input, 1 output (max. 24 VDC, 1 A or 110 VAC, 500 mA)
  • Material: 316L and anti-corrosion coating
  • Heater: Yes
  • Wiper: Yes
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)C5-M: 720H neutral salt spray, 480H water condensation;Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;Interior environments: buildings or areas with almost permanent condensation and with high pollution.

Camera
  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.0005 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter

Lens
  • Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 94.2° to 38.1°8 to 32 mm, horizontal FOV 42.2° to 15.1°
  • Aperture: 2.8 to 12 mm: F1.48 to 32 mm: F1.7

DORI
  • DORI: 2.8 to 12 mm:D: 44.1 to 151.7 m, O: 17.5 to 60.2 m, R: 8.8 to 30.3 m, I: 4.4 to 15.2 m8 to 32 mm:D: 150.3 to 400 m, O: 59.7 to 158.7 m, R: 30.1 to 80 m, I: 15 to 40 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: 2.8 to 12 mm: 80 m, 8 to 32 mm: 150 m
  • Smart Supplement Light: Yes
  • IR Wavelength: Up to 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: BaseLine Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR, VBR
  • Scalable Video Coding (SVC): H.265 and H.264 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface, ISAPI, SDK, Ehome
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11Plug-in free live view: Chrome 45.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+Not recommended: Safari 11+, Edge

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 50 dB
  • Image Enhancement: BLC, HLC, 3D DNR, Defog
  • Privacy Mask: 8 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
  • Reset Key: Yes

Event
  • Basic Event: Exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection,Scene change detection, defocus detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

General
  • Power: 24 VAC ± 20%, 24V~, 1.7 A, 50/60 Hz, 23.5 W;PoE: 802.3at, 42.5 V to 57 V, 0.57 A to 0.43 A, max. 24 W
  • Dimension: 179.9 mm × 203.2 mm × 468 mm (7.1" × 8" × 18.4")
  • Package Dimension: 606 mm × 270 mm × 335 mm (23.9" × 10.6" × 13.2")
  • Weight: Approx. 9.01 kg (19.86 lb.)
  • With Package Weight: Approx. 10.96 kg (24.16 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, flash log, password reset via email, pixel counter

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7);KC (KN32: 2015, KN35: 2015)
  • Safety: UL (UL 62368-1);CB (IEC 62368-1: 2014+A11);CE-LVD (EN 62368-1: 2014/A11: 2017);BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)

Other
  • Focus: Auto, semi-auto, manual
  • Target Cropping: Yes
  • Audio Type: Mono sound
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Video Output: 1 Vp-p composite output (75 O/BNC)
  • Alarm: 1 input, 1 output (max. 24 VDC, 1 A or 110 VAC, 500 mA)
  • Material: 316L and anti-corrosion coating
  • Heater: Yes
  • Wiper: Yes
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)C5-M: 720H neutral salt spray, 480H water condensation;Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;Interior environments: buildings or areas with almost permanent condensation and with high pollution.
