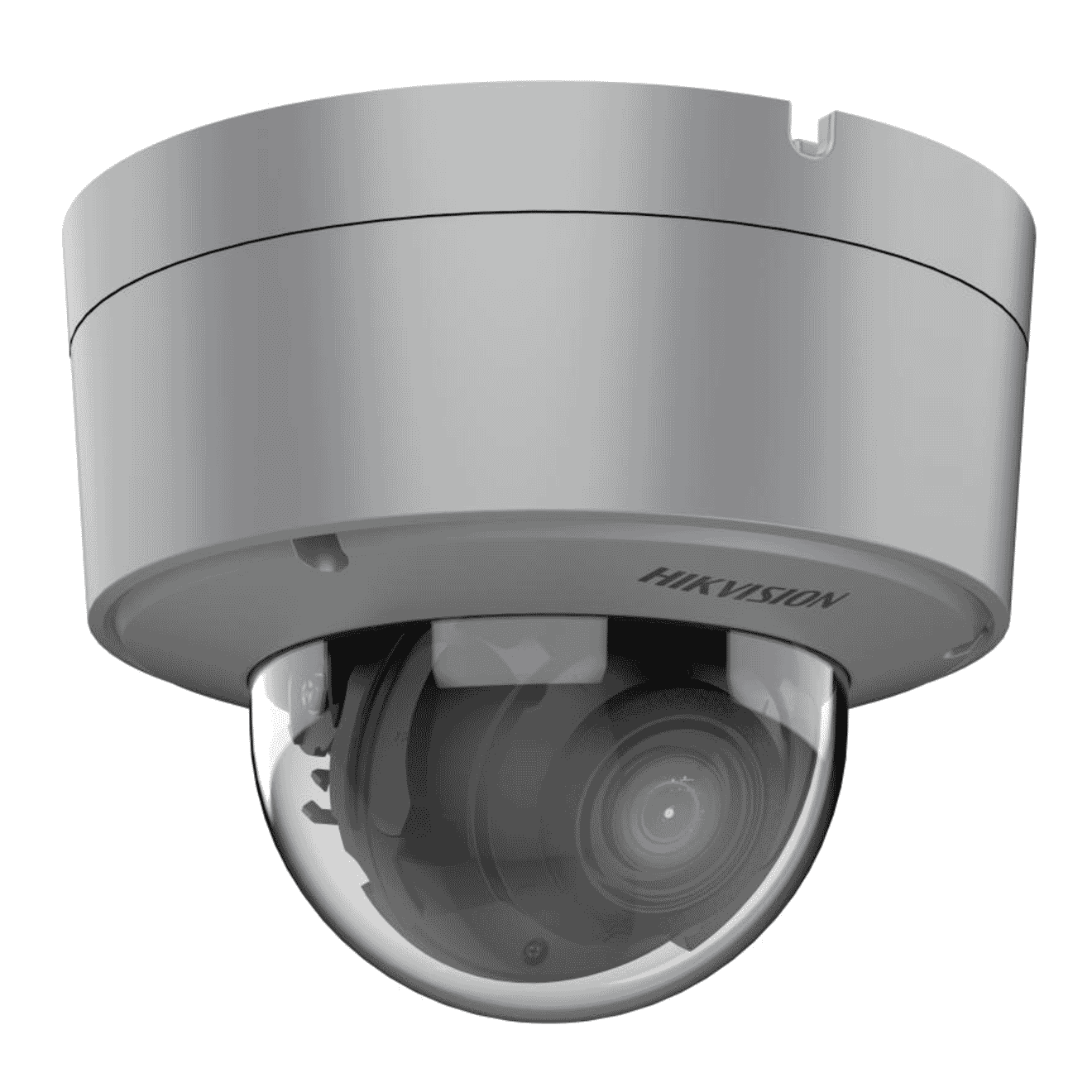

Hikvision DS-2XC6745G0-IZHS 4MP EXIR Dome – 2.8–12mm, IP68, IK10, 316L Anti-Corrosion

Hikvision DS-2XC6745G0-IZHS 4MP EXIR Dome – 2.8–12mm, IP68, IK10, 316L Anti-Corrosion

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2XC6745G0-IZHS 4MP EXIR Dome – 2.8–12mm, IP68, IK10, 316L Anti-Corrosion
Login to View Price

Specifications

  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0.001 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
  • Aperture: Max. F1.3
  • DORI: Wide: D: 60 m, O: 23.8 m, R: 12 m, I: 6 mTele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 50 m
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1280 × 960, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 704 × 576)60 Hz: 30 fps (640 × 480, 704 × 480)
  • Third Stream: Independent with Main Stream and Sub Stream, up to:50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 704 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 704 × 480)
  • Video Compression: H.264/H.265/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 5 fixed regions for each stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • API: ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+,Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR,Defog
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Reset Key: Yes
  • Basic Event: Motion detection,video tampering alarm,alarm input and output,exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), unattended baggage detection,object removal detection, scene change detection,audio exception detection,defocus detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning
  • Power: 12 VDC ± 10%, 1 A, max. 10 W,24 VAC ± 10%, 0.7 A, max. 10 W,PoE: IEEE 802.3af, Class 3
  • Dimension: Ø166.7 mm × 133.2 mm (Ø6.6" × 5.2")
  • Package Dimension: 245 mm × 215 mm × 230 mm (9.6" × 8.5" × 9.1")
  • Weight: Approx. 3995 g (8.8 lb.)
  • With Package Weight: Approx. 4944 g (10.9 lb.)
  • Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function: Heartbeat,mirror,flash log,password reset via email,password protection,one-key reset
  • EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,UKCA: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU
  • Protection: IK10: IEC 62262:2002,IP68: IEC 60529-2013
  • Target Cropping: Yes
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Video Output: 1 Vp-p Composite Output (75 O/CVBS) (Only for debugging)
  • Audio: 1 input (line in), 1 output (line out)
  • Alarm: 1 input, 1 output (max. 24 VDC, 1 A/110 VAC, 500 mA)
  • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Material: 316L and anti-corrosion coating
  • Heater: Yes
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018),C5

Camera
  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0.001 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
  • Aperture: Max. F1.3

DORI
  • DORI: Wide: D: 60 m, O: 23.8 m, R: 12 m, I: 6 mTele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 50 m
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1280 × 960, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 704 × 576)60 Hz: 30 fps (640 × 480, 704 × 480)
  • Third Stream: Independent with Main Stream and Sub Stream, up to:50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 704 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 704 × 480)
  • Video Compression: H.264/H.265/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 5 fixed regions for each stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • API: ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+,Local service: Chrome 57.0+, Firefox 52.0+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR,Defog

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection,video tampering alarm,alarm input and output,exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), unattended baggage detection,object removal detection, scene change detection,audio exception detection,defocus detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning

General
  • Power: 12 VDC ± 10%, 1 A, max. 10 W,24 VAC ± 10%, 0.7 A, max. 10 W,PoE: IEEE 802.3af, Class 3
  • Dimension: Ø166.7 mm × 133.2 mm (Ø6.6" × 5.2")
  • Package Dimension: 245 mm × 215 mm × 230 mm (9.6" × 8.5" × 9.1")
  • Weight: Approx. 3995 g (8.8 lb.)
  • With Package Weight: Approx. 4944 g (10.9 lb.)
  • Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function: Heartbeat,mirror,flash log,password reset via email,password protection,one-key reset

Approval
  • EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,UKCA: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU
  • Protection: IK10: IEC 62262:2002,IP68: IEC 60529-2013

Other
  • Target Cropping: Yes
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Video Output: 1 Vp-p Composite Output (75 O/CVBS) (Only for debugging)
  • Audio: 1 input (line in), 1 output (line out)
  • Alarm: 1 input, 1 output (max. 24 VDC, 1 A/110 VAC, 500 mA)
  • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Material: 316L and anti-corrosion coating
  • Heater: Yes
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018),C5
