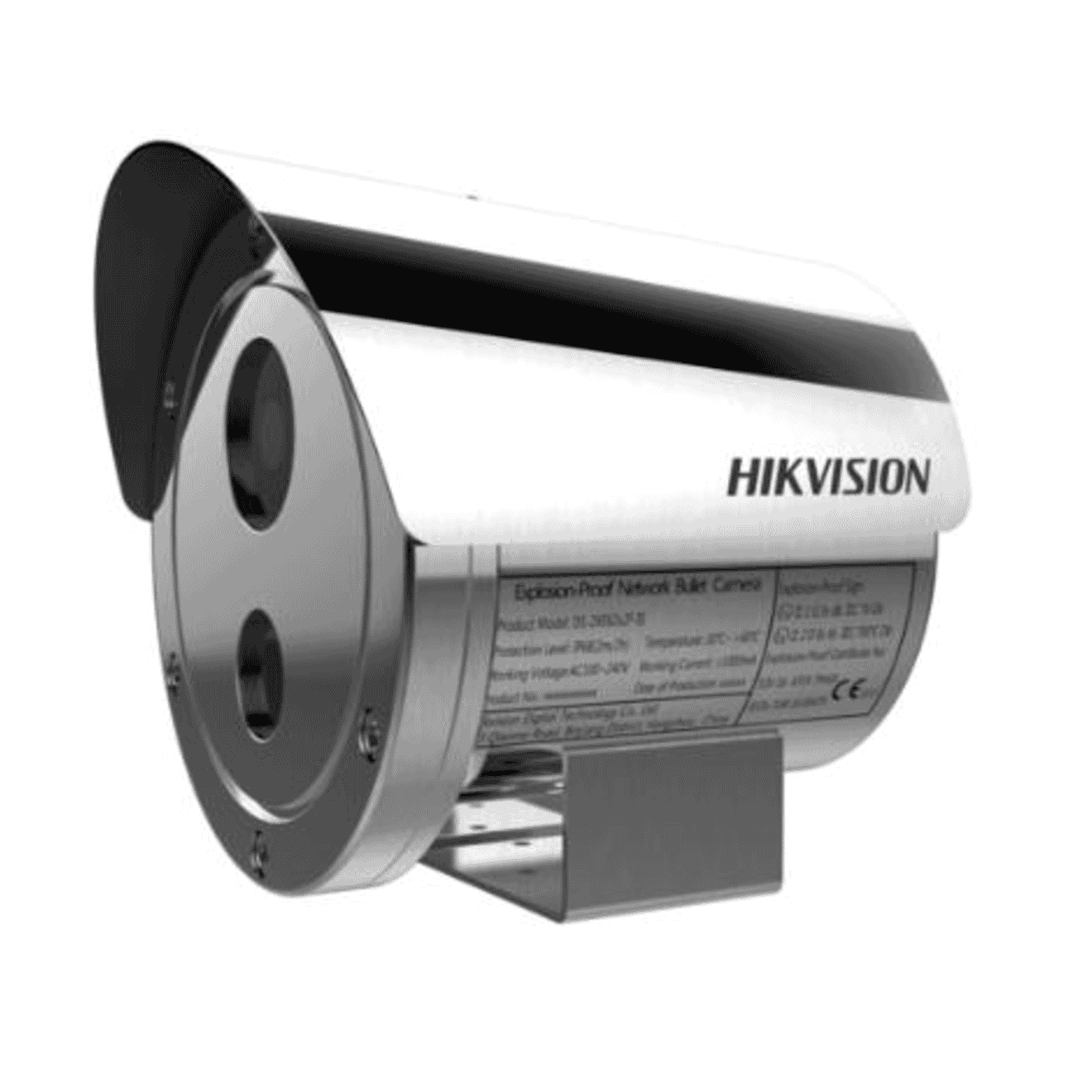

Hikvision DS-2XE6242F-IS (4mm) (D) 4MP Fixed Bullet Camera Stainless Steel 316L Explosion-Proof

Hikvision DS-2XE6242F-IS (4mm) (D) 4MP Fixed Bullet Camera Stainless Steel 316L Explosion-Proof

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2XE6242F-IS (4mm) (D) 4MP Fixed Bullet Camera Stainless Steel 316L Explosion-Proof
Login to View Price

Specifications

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1440
  • Min. Illumination: Color: 0.01 lux @ (F1.2, AGC ON), B/W: 0.001 lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Lens Type: Fixed focal lens, 4, 6, 8, and 12 mm optional
  • Focal Length & FOV: 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 60°8 mm, horizontal FOV 39°, vertical FOV 22°, diagonal FOV 46°12 mm, horizontal FOV 25°, vertical FOV 14°, diagonal FOV 28°
  • Lens Mount: M12
  • Aperture: F1.6
  • DORI: 4 mm:D: 80 m, O: 31.7 m, R: 16 m, I: 8 m6 mm:D: 128 m, O: 50.8 m, R: 25.6 m, I: 12.8 m8 mm:D: 160 m, O: 63.5 m, R: 32 m, I: 16 m12 mm:D: 248 m, O: 98.4 m, R: 49.6 m, I: 24.8 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • IR Wavelength: Up to 850 nm
  • Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)60 Hz: 1 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline profile/main profile/high profile
  • H.265 Type: Main profile
  • Region of Interest (ROI): 5 customized regions for each stream, and face dynamic tracking
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G), PSIA, CGI, ISAPI
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11Plug-in free live view: Chrome 45.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+Not recommended: Safari 11+, Edge
  • Image Settings: Rotate mode, saturation, brightness, contrast adjustable by client software or web browser
  • Day/Night Switch: Auto/Schedule/Alarm Trigger
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC/3D DNR
  • Privacy Mask: 8 programmable polygon privacy mask
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
  • Basic Event: Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))Scene change detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
  • Power: 100 VAC to 240 VAC, 0.15 A, 50/60 Hz, max. 7 W, terminal blockPoE: 802.3af, Class 3, 36 to 57 V, 0.3 to 0.2 A
  • Dimension: 202 mm × 174 mm × 172 mm (8.0"× 6.9" × 6.8")
  • Package Dimension: 435 mm × 255 mm × 285 mm (17.1" × 10" × 11.2")
  • Weight: Approx. 6.18 kg (13.62 lb.)
  • With Package Weight: Approx. 7.21 kg (15.90 lb.)
  • Storage Conditions: -40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask
  • EMC: FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013)IC: IC-VoC (ICES-003 Issue 7: 2020)KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
  • Safety: CB (IEC 60950-1)CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013)
  • Protection: IK08 (IEC 62262:2002), IP68 (IEC 60529-2013)
  • Target Cropping: Yes
  • Audio Type: Mono sound
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Audio: 1 line in, 1 line out
  • Alarm: 1 alarm input, 1 alarm output
  • Material: Stainless steel 316L
  • Cable Length: 1.41 m (4.63 ft.)
  • Explosion-Proof Protection: ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68For explosive gas atmospheres, the maximum surface temperature is 85°C;For flammable dust atmospheres, the maximum surface temperature is 80°C;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1440
  • Min. Illumination: Color: 0.01 lux @ (F1.2, AGC ON), B/W: 0.001 lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1 s to 1/100,000 s
  • Day & Night: IR cut filter

Lens
  • Lens Type: Fixed focal lens, 4, 6, 8, and 12 mm optional
  • Focal Length & FOV: 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 60°8 mm, horizontal FOV 39°, vertical FOV 22°, diagonal FOV 46°12 mm, horizontal FOV 25°, vertical FOV 14°, diagonal FOV 28°
  • Lens Mount: M12
  • Aperture: F1.6

DORI
  • DORI: 4 mm:D: 80 m, O: 31.7 m, R: 16 m, I: 8 m6 mm:D: 128 m, O: 50.8 m, R: 25.6 m, I: 12.8 m8 mm:D: 160 m, O: 63.5 m, R: 32 m, I: 16 m12 mm:D: 248 m, O: 98.4 m, R: 49.6 m, I: 24.8 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • IR Wavelength: Up to 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)60 Hz: 1 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline profile/main profile/high profile
  • H.265 Type: Main profile
  • Region of Interest (ROI): 5 customized regions for each stream, and face dynamic tracking
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G), PSIA, CGI, ISAPI
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11Plug-in free live view: Chrome 45.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+Not recommended: Safari 11+, Edge

  • Image Settings: Rotate mode, saturation, brightness, contrast adjustable by client software or web browser
  • Day/Night Switch: Auto/Schedule/Alarm Trigger
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC/3D DNR
  • Privacy Mask: 8 programmable polygon privacy mask

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Event
  • Basic Event: Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))Scene change detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

General
  • Power: 100 VAC to 240 VAC, 0.15 A, 50/60 Hz, max. 7 W, terminal blockPoE: 802.3af, Class 3, 36 to 57 V, 0.3 to 0.2 A
  • Dimension: 202 mm × 174 mm × 172 mm (8.0"× 6.9" × 6.8")
  • Package Dimension: 435 mm × 255 mm × 285 mm (17.1" × 10" × 11.2")
  • Weight: Approx. 6.18 kg (13.62 lb.)
  • With Package Weight: Approx. 7.21 kg (15.90 lb.)
  • Storage Conditions: -40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask

Approval
  • EMC: FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013)IC: IC-VoC (ICES-003 Issue 7: 2020)KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
  • Safety: CB (IEC 60950-1)CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013)
  • Protection: IK08 (IEC 62262:2002), IP68 (IEC 60529-2013)

Other
  • Target Cropping: Yes
  • Audio Type: Mono sound
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Audio: 1 line in, 1 line out
  • Alarm: 1 alarm input, 1 alarm output
  • Material: Stainless steel 316L
  • Cable Length: 1.41 m (4.63 ft.)
  • Explosion-Proof Protection: ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68For explosive gas atmospheres, the maximum surface temperature is 85°C;For flammable dust atmospheres, the maximum surface temperature is 80°C;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
