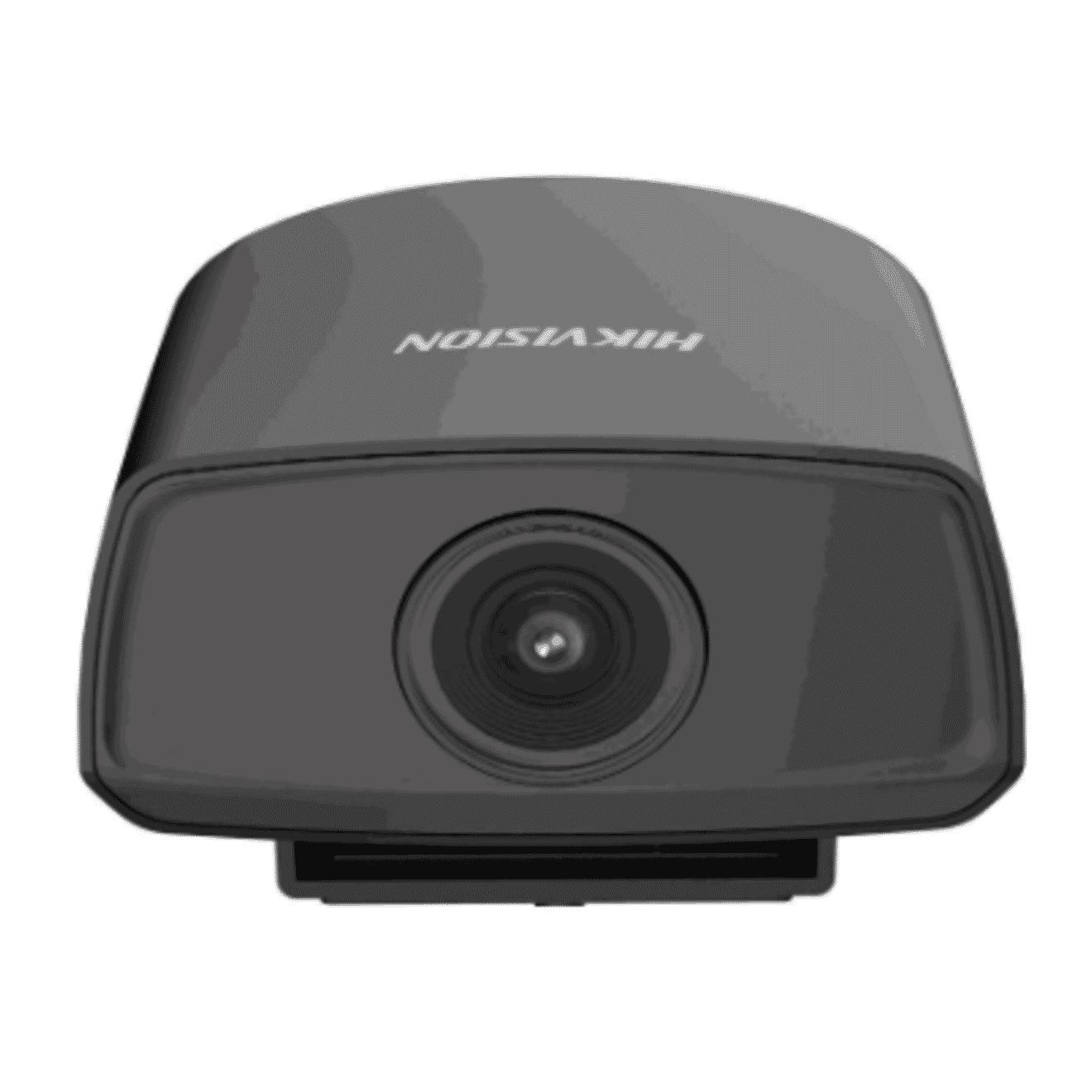

Hikvision DS-2XM6222G1-IM/ND(2.8mm)(AE) Mobile IP Dome Camera 2MP CCTV Security

Hikvision DS-2XM6222G1-IM/ND(2.8mm)(AE) Mobile IP Dome Camera 2MP CCTV Security

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2XM6222G1-IM/ND(2.8mm)(AE) Mobile IP Dome Camera 2MP CCTV Security
Login to View Price

Specifications

  • Max. Resolution: 1920 x 1080
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: -20° to 0°, Tilt: -15° to 25°
  • Focal Length & FOV: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
  • Lens Mount: M12
  • Supplement Light Type: Infrared fill light lamp
  • Smart Supplement Light: Support
  • IR Wavelength: 850 nm
  • Main Stream: 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
  • Sub-Stream: 50Hz: 25 fps (704 x 576, 640 x 480, 352 x 288, 320 x 240)60Hz: 30 fps (704 x 576, 640 x 480, 320 x 240)
  • Third Stream: 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
  • Video Compression: Main stream: H.264, H.265, H.264+, H.265+Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+Third stream: H.264, H.265 ,H.264+, H.265+
  • Video Bit Rate: Main Stream: 256 Kbps to 12288KbpsSub-Stream: 256 Kbps to 4096KbpsThird Stream: 256 Kbps to 12288Kbps
  • H.264 Type: BaseLine Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: Constant Bit Rate, Variable Bit Rate
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Protocols: TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS , RTSP, SNMP, QOS, ISUP5.0, ISUP2.0
  • Simultaneous Live View: Up to 8 channels
  • API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • Web Browser: IE8+, Chrome45+, Edge41+, Firefox45+
  • Image Settings: Support rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
  • Day/Night Switch: Day/Night/Auto/Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: > 50 dB
  • Image Enhancement: BLC,HLC, 3D DNR
  • Privacy Mask: Enables configuration, and supports drawing of up to 4 areas
  • Ethernet Interface: 1 four-core M12 aviation plug
  • Reset Key: Support
  • Basic Event: Motion detection, video tampering alarm
  • Smart Event: Line crossing detection,Intrusion detection,Region entrance detection,Region exiting detection,Unattended baggage detection,Object removal detection,Object detection: detects faces and upload imagesScene change detection, defocus detection
  • Power: PoE: 0.30 A to 0.20 A, max: 7.5 WDC: 0.83 A to 0.21 A, max: 7.5 W
  • Package Dimension: 174 mm x 111 mm x 101mm (6.85€³ x 4.37€³ x 3.98€³)
  • Startup and Operating Conditions: -30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
  • Language: English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
  • General Function: Anti-flicker, heartbeat, mirror
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
  • Environment: CE-RoHS (2011/65/EU);
  • Shutter Speed: 1/3 s to 1/100,000 s
  • P/N: PAL: 25fpsNTSC: 30fps
  • White Balance: Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;Support manual/automatic white balance adjustment.
  • Focal Length: 2.8mm
  • Focus: Manual focus
  • Max. Aperture: F1.6
  • IR Range: Up to 10 m
  • Stream Type: Main stream, sub stream, third stream
  • Region Of Interest (ROI): Support 2 fixed region for (main/sub) stream
  • User Management: Up to 16 users, 3 levels: Administrator, Operator and User
  • Picture Overlay: Support image overlay, uploading images, enabling, coordinates, etc.
  • Target Cropping: Support (only the third stream)
  • Backlight Compensation(BLC): Support up, down, left, right, centre and custom backlight compensation adjustment
  • Video Output: Not supported
  • Interface Type: Interpolate
  • TF Card Storage: Built-in Micro TF Slot, up to 256 GB (not for baseline. Note the Micro-TF card capacity when ordering)
  • Linkage Method: Upload to FTP, notify monitoring centre, send email, trigger recording
  • Product Dimension: Camera: Φ 78.8 mm x 81.6mm x 63.8 mm (3.1€³ x 3.2€³ x 2.5€³)
  • Product Weight: Approx. 330 g (0.7 lb.)
  • Software Reset: Support
  • Power Supply: PoE (802.3af, 36 V to 57 V)
  • Power Interface: four-core M12 aviation plug, PoE power supply
  • Cable Length: 50 cm
  • Class: Class B
  • Electrical Safety Protection: IP68 (IEC 60529-2013)
  • Automotive and Railway: EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)

Camera
  • Max. Resolution: 1920 x 1080
  • Day & Night: IR Cut Filter
  • Angle Adjustment: Pan: -20° to 0°, Tilt: -15° to 25°

Lens
  • Focal Length & FOV: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
  • Lens Mount: M12

Illuminator
  • Supplement Light Type: Infrared fill light lamp
  • Smart Supplement Light: Support
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
  • Sub-Stream: 50Hz: 25 fps (704 x 576, 640 x 480, 352 x 288, 320 x 240)60Hz: 30 fps (704 x 576, 640 x 480, 320 x 240)
  • Third Stream: 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
  • Video Compression: Main stream: H.264, H.265, H.264+, H.265+Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+Third stream: H.264, H.265 ,H.264+, H.265+
  • Video Bit Rate: Main Stream: 256 Kbps to 12288KbpsSub-Stream: 256 Kbps to 4096KbpsThird Stream: 256 Kbps to 12288Kbps
  • H.264 Type: BaseLine Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: Constant Bit Rate, Variable Bit Rate
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Protocols: TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS , RTSP, SNMP, QOS, ISUP5.0, ISUP2.0
  • Simultaneous Live View: Up to 8 channels
  • API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • Web Browser: IE8+, Chrome45+, Edge41+, Firefox45+

  • Image Settings: Support rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
  • Day/Night Switch: Day/Night/Auto/Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: > 50 dB
  • Image Enhancement: BLC,HLC, 3D DNR
  • Privacy Mask: Enables configuration, and supports drawing of up to 4 areas

Interface
  • Ethernet Interface: 1 four-core M12 aviation plug
  • Reset Key: Support

Event
  • Basic Event: Motion detection, video tampering alarm
  • Smart Event: Line crossing detection,Intrusion detection,Region entrance detection,Region exiting detection,Unattended baggage detection,Object removal detection,Object detection: detects faces and upload imagesScene change detection, defocus detection

General
  • Power: PoE: 0.30 A to 0.20 A, max: 7.5 WDC: 0.83 A to 0.21 A, max: 7.5 W
  • Package Dimension: 174 mm x 111 mm x 101mm (6.85€³ x 4.37€³ x 3.98€³)
  • Startup and Operating Conditions: -30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
  • Language: English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
  • General Function: Anti-flicker, heartbeat, mirror

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
  • Environment: CE-RoHS (2011/65/EU);

Other
  • Shutter Speed: 1/3 s to 1/100,000 s
  • P/N: PAL: 25fpsNTSC: 30fps
  • White Balance: Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;Support manual/automatic white balance adjustment.
  • Focal Length: 2.8mm
  • Focus: Manual focus
  • Max. Aperture: F1.6
  • IR Range: Up to 10 m
  • Stream Type: Main stream, sub stream, third stream
  • Region Of Interest (ROI): Support 2 fixed region for (main/sub) stream
  • User Management: Up to 16 users, 3 levels: Administrator, Operator and User
  • Picture Overlay: Support image overlay, uploading images, enabling, coordinates, etc.
  • Target Cropping: Support (only the third stream)
  • Backlight Compensation(BLC): Support up, down, left, right, centre and custom backlight compensation adjustment
  • Video Output: Not supported
  • Interface Type: Interpolate
  • TF Card Storage: Built-in Micro TF Slot, up to 256 GB (not for baseline. Note the Micro-TF card capacity when ordering)
  • Linkage Method: Upload to FTP, notify monitoring centre, send email, trigger recording
  • Product Dimension: Camera: Φ 78.8 mm x 81.6mm x 63.8 mm (3.1€³ x 3.2€³ x 2.5€³)
  • Product Weight: Approx. 330 g (0.7 lb.)
  • Software Reset: Support
  • Power Supply: PoE (802.3af, 36 V to 57 V)
  • Power Interface: four-core M12 aviation plug, PoE power supply
  • Cable Length: 50 cm
  • Class: Class B
  • Electrical Safety Protection: IP68 (IEC 60529-2013)
  • Automotive and Railway: EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
