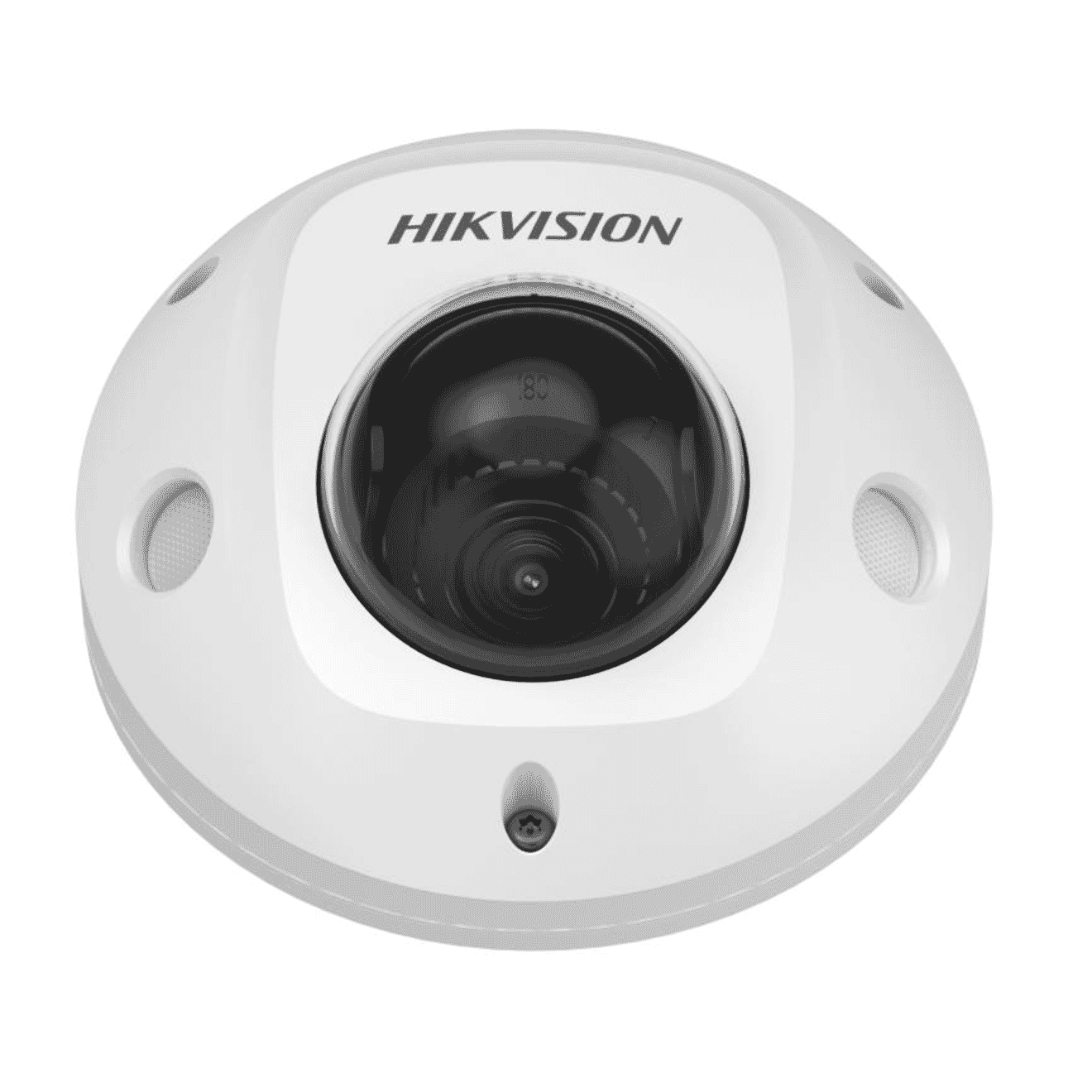

Hikvision DS-2XM6726G1-IM/ND 2MP Mobile Dome – 2mm Lens, IP67, IK10, WDR
Hikvision DS-2XM6726G1-IM/ND 2MP Mobile Dome – 2mm Lens, IP67, IK10, WDR
- IP CCTV
- 2MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2XM6726G1-IM/ND 2MP Mobile Dome – 2mm Lens, IP67, IK10, WDR
Specifications
- Image Sensor: 1/2.8" CMOS Progressive Scan
- Max. Resolution: 1920 × 1080
- Min. Illumination: 0.002Lux @ (F1.6, AGC ON), 0lux with IR
- Day & Night: IR Cut Filter
- Angle Adjustment: Pan:-30°~+30°, Tilt: 0°~75°, Rotate: 0°~ 360°
- Focal Length & FOV: 2 mm, horizontal FOV 132°, vertical FOV 77°, diagonal FOV 152°2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°4 mm, horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
- Lens Mount: M12
- Supplement Light Type: Infrared fill light lamp
- Smart Supplement Light: Support
- IR Wavelength: 850 nm
- Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)60Hz: 30fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
- Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Video Compression: Main stream: H.264, H.265, H.264+, H.265+Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+Third stream: H.264, H.265, H.264+, H.265+
- Video Bit Rate: Main Stream: 256 Kbps to 12288KbpsSub-Stream: 256 Kbps to 4096KbpsThird Stream: 256 Kbps to 12288Kbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: Constant Bit Rate, Variable Bit Rate
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Protocols: TCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS ,RTSP,SNMP,QOS,FTP,RTCP,NTP,UPNP,SMTP,IGMP,ICMP,IPV6,UDP,SSL/TLS
- Simultaneous Live View: Up to 8 channels
- API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Web Browser: IE8+, Chrome45+, Edge41+, Firefox45+
- Image Settings: Support rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
- Day/Night Switch: Day/Night/Auto/Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: > 50 dB
- Image Enhancement: BLC, HLC, 2DNR ,3DNR
- Privacy Mask: Enables configuration, and supports drawing of up to 4 areas
- Ethernet Interface: -ID: 1 RJ45 10M/100M self-adaptive Ethernet port-IM/ND, IDM: 1 four-core M12 aviation plug
- Reset Key: Support
- Basic Event: Motion detection, video tampering alarm
- Smart Event: Line crossing detection,Intrusion detection,Region entrance detection,Region exiting detection,Unattended baggage detection,Object removal detection,Object detection: detects faces and upload imagesScene change detection,defocus detection,Loitering Detection,People Gathering Detection,Fast Moving Detection,Parking Detection,
- Power: PoE: 0.30 A to 0.20 A, max: 7.5 WDC: 0.83 A to 0.21 A, max:7.5 W
- Package Dimension: 252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
- With Package Weight: 252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
- Startup and Operating Conditions: -30 °C to 75°C (-22 °F to 167°F), humidity 95% or less (non-condensing)
- Language: English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
- General Function: Anti-flicker, heartbeat, mirror
- EMC: FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B)CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013)RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015IC: ICES-003 Issue 7:2020KC: KN32:2015,KN35:2015
- Safety: UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014CB: IEC 60950-1CE:CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)LOA: SANS IEC60950-1BIS: IS 13252(Part 1)2010+A1:2013+A2:2015
- Environment: CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)WEEE: 2012/19/EUReach SVHC: Regulation (EC) No 1907/2006Reach SVHC: Regulation (EC) No 1907/2006
- Protection: IP67, IK10
- Resolution: 2MP
- Shutter Speed: 1/3 s to 1/100,000 s
- P/N: PAL: 25fpsNTSC: 30fps
- White Balance: Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;Support manual/automatic white balance adjustment.
- Focal Length: 2mm/2.8mm/4mm/6mm
- Focus: Manual focus
- Max. Aperture: 2mm: F2.252.8mm/4mm/6mm: F1.6
- IR Range: Up to 30 m
- Stream Type: Main stream, sub stream, third stream
- Region Of Interest (ROI): Support 2 fixed region for (main/sub) stream
- Audio Compression: G711U, G711A, G726, AAC, G722, PCM, AAC
- Audio Bit Rate: Raw data PCM:256kbpsG711U, G711A, G726_A, AAC,G722.1:=64kbps
- Audio Sampling Rate: 16 kHz
- Environment Noise Filtering: Support
- User Management: Up to 16 users, 3 levels: Administrator, Operator and User
- Picture Overlay: Support image overlay, uploading images, enabling, coordinates, etc.
- Target Cropping: Support (only the third stream)
- Backlight Compensation(BLC): Support up, down, left, right, center and custom backlight compensation adjustment
- Video Output: Not supported
- Audio: 1 built-in mic, mono sound
- Interface Type: Interpolate
- TF Card Storage: Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)
- People Density: Support the detection of passenger congestion in carriages.
- Detection: Support the detection of articles and personnel left behind in the carriage.
- Linkage Method: Upload to FTP, notify monitoring center, send email, trigger recording
- Product Dimension: 110 mm × 57.4 mm (4.3" × 2.26")
- Product Weight: Approx. 452 g (1 lb.)
- Camera Material: Metal
- Software Reset: Support
- Power Supply: -ID: 9-36V& PoE (802.3af, 36 V to 57 V)-IDM: 9-36V& PoE (802.3af, 36 V to 57 V)-IM/ND: PoE (802.3af, 36 V to 57 V)
- Power Interface: -ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply-IM/ND: four-core M12 aviation plug, PoE power supply
- Cable Length: 50 cm
- Class: Class B
- Electrical Safety Protection: IK10(IEC 62262:2002)
- Automotive and Railway: EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010);EN45545 (EN 45545-2:2013+A1:2015);E-MARK (ECE R10)
