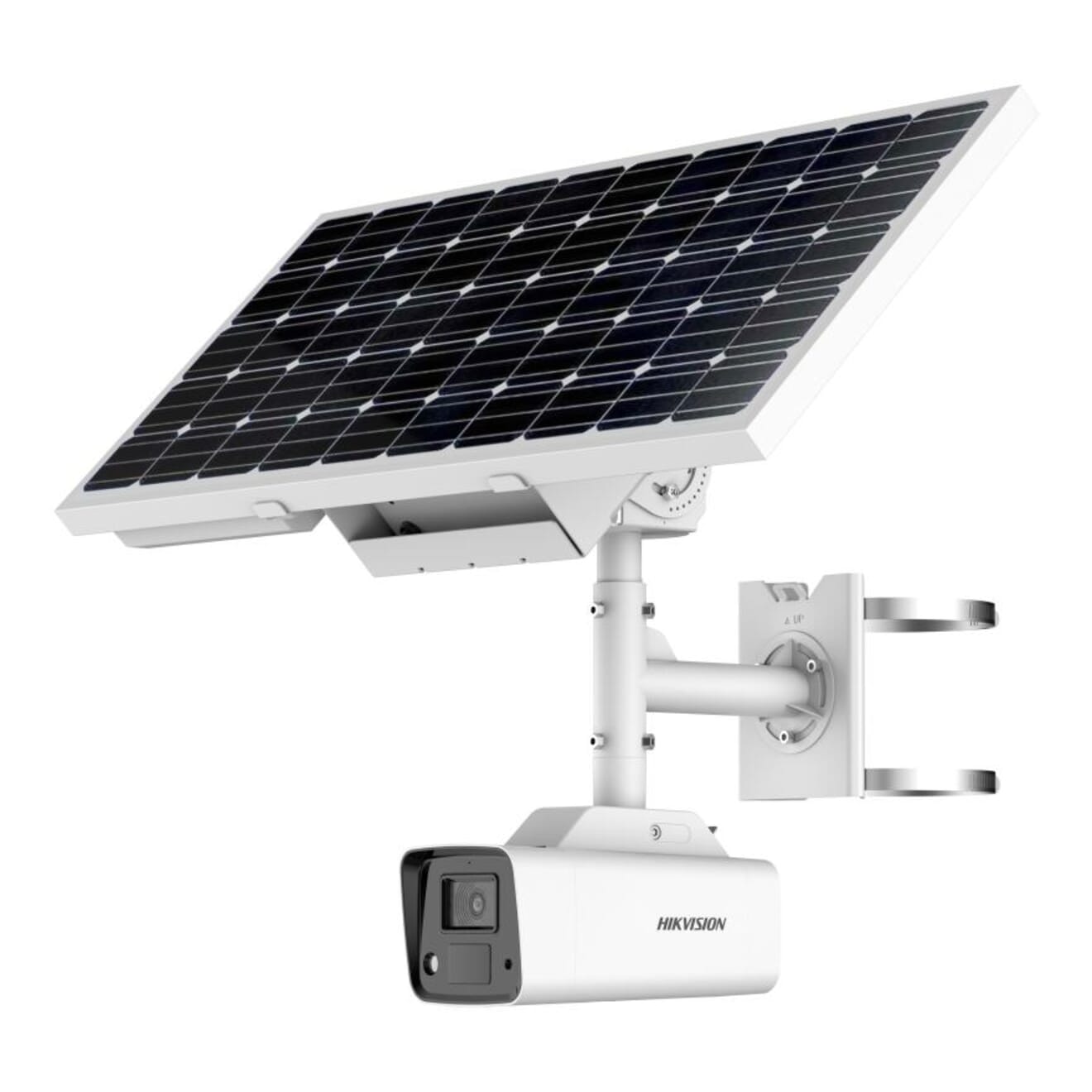

Hikvision DS-2XS2T47G1-LDH/4G/C18S40(4mm) 4MP Solar 4G IP Security Camera CCTV

Hikvision DS-2XS2T47G1-LDH/4G/C18S40(4mm) 4MP Solar 4G IP Security Camera CCTV

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2XS2T47G1-LDH/4G/C18S40(4mm) 4MP Solar 4G IP Security Camera CCTV
Login to View Price

Specifications

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2560 x 1440
  • Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: 24/7 colour imaging
  • Angle Adjustment: Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 360°, tilt: -60° to 0°
  • Lens Type: Fixed focal lens, 4mm
  • Focal Length & FOV: 4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.0
  • DORI: 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
  • Supplement Light Type: White Light
  • Supplement Light Range: Performance mode: up to 30 m, proactive mode: up to 10 m
  • Smart Supplement Light: Yes
  • Main Stream: 50 Hz: 12.5 fps (2560 x 1440, 1920 x 1080, 1280 x 720)60 Hz: 15 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 12.5 fps (1280 x 720:640 x 480, 640 x 360)60 Hz: 15 fps (1280 x 720, 640 x 480, 640 x 360)
  • Video Compression: Main stream: H.265/ H.264,Sub-stream: H.265/H.264/MJPEG,H.264+ and H.265+: main stream supports under performance mode
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region(s) for main stream
  • Protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP,OTAP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: Auto Network Replenishment (ANR)
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10+,Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Local service: Chrome 57.0+, Firefox 52.0+
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): Digital WDR
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • On-Board Storage: Built-in eMMC storage, up to 64 GB,Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, For eMMC storage, 50 GB is available for recording.
  • Reset Key: Yes
  • Basic Event: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Linkage: Upload to NAS/memory card, notify surveillance centre, trigger recording, trigger capture, audible warning
  • Power: Power Consumption and Current:Typical power scenarios: 1.85 W (4G working)Standby scenarios: 40 mWMax. power consumption: 6 WPower Supply:12 VDC ± 25%*For debugging only40 W (deviation: ± 2 W) Solar panelsPower Interface:Power supply interface: Ø5.5 mm coaxial power plugExtended solar panel: four-core aviation connector
  • Dimension: 679 mm x 443 mm x 760 mm (26.7" x 17.4" x 29.9")
  • Package Dimension: 910 mm x 350 mm x 450 mm (35.8" x 13.8" x 17.7")
  • Weight: Approx. 11.570 kg (25.5 lb.)
  • With Package Weight: Approx. 16.21 kg (35.7 lb.)
  • Storage Conditions: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Language: English, Ukrainian
  • General Function: Heartbeat, mirror, flash log
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,*FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.
  • Safety: CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1,*CE and LOA certifications are only for the device sold in the European region.
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006,*CE certification is only for the device sold in the European region.
  • Protection: IP67: IEC 60529-2013
  • Depth of Field: 4 mm: 2.7 m to 8
  • Audio Sampling Rate: 8 kHZ/16 kHz
  • Environment Noise Filtering: Yes
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • SIM Card Type: Micro SIM
  • Uplink and Downlink Data Rate: Cat 4, uplink: 50 Mbps, downlink: 150 Mbps
  • Frequency: NL668-EU:LTE-TDD: B38/B40/B41LTE-FDD: B1/B3/B5/B7/B8/B20/B28WCDMA: B1/B5/B8GSM: B3/B5/B8NL668-LA:LTE-TDD: B38/B40LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66WCDMA:B1/B2/B3/B4/B5/B8GSM: B2/B3/B5/B8NL668-US:LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71WCDMA: B2/B4/B5
  • Standard: LTE-TDD,LTE-FDD,WCDMA,GSM
  • Built-in Microphone: Yes
  • Built-in Speaker: Yes
  • Material: ADC12
  • Battery Type: Ternary Lithium
  • Capacity: 8.4 Ah x 2 packs
  • Max. Charging Voltage: 12.6 V
  • Operating Temperature: Charging: -20 °C to 45 °C (-4 °F to 113 °F)Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
  • Battery Voltage: 9 V to 12.6 V
  • Battery Life: More than 500 cycles
  • Cycle Lifetime: Performance mode: 3.6 days,Proactive mode: 6 days,Standby mode: 30 days
  • Battery Weight: Approx. 1400 g (3.1 lb.)
  • RF: FCC ID: FCC Part 15.247 (BT or 2.4G),IC ID (RSS-247(BT or 2.4G)),CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)*FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region.

Camera
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2560 x 1440
  • Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: 24/7 colour imaging
  • Angle Adjustment: Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 360°, tilt: -60° to 0°

Lens
  • Lens Type: Fixed focal lens, 4mm
  • Focal Length & FOV: 4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.0

DORI
  • DORI: 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator
  • Supplement Light Type: White Light
  • Supplement Light Range: Performance mode: up to 30 m, proactive mode: up to 10 m
  • Smart Supplement Light: Yes

Video
  • Main Stream: 50 Hz: 12.5 fps (2560 x 1440, 1920 x 1080, 1280 x 720)60 Hz: 15 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 12.5 fps (1280 x 720:640 x 480, 640 x 360)60 Hz: 15 fps (1280 x 720, 640 x 480, 640 x 360)
  • Video Compression: Main stream: H.265/ H.264,Sub-stream: H.265/H.264/MJPEG,H.264+ and H.265+: main stream supports under performance mode
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region(s) for main stream
  • Protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP,OTAP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: Auto Network Replenishment (ANR)
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10+,Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Local service: Chrome 57.0+, Firefox 52.0+

  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): Digital WDR
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR

Interface
  • On-Board Storage: Built-in eMMC storage, up to 64 GB,Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, For eMMC storage, 50 GB is available for recording.
  • Reset Key: Yes

Event
  • Basic Event: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Linkage: Upload to NAS/memory card, notify surveillance centre, trigger recording, trigger capture, audible warning

General
  • Power: Power Consumption and Current:Typical power scenarios: 1.85 W (4G working)Standby scenarios: 40 mWMax. power consumption: 6 WPower Supply:12 VDC ± 25%*For debugging only40 W (deviation: ± 2 W) Solar panelsPower Interface:Power supply interface: Ø5.5 mm coaxial power plugExtended solar panel: four-core aviation connector
  • Dimension: 679 mm x 443 mm x 760 mm (26.7" x 17.4" x 29.9")
  • Package Dimension: 910 mm x 350 mm x 450 mm (35.8" x 13.8" x 17.7")
  • Weight: Approx. 11.570 kg (25.5 lb.)
  • With Package Weight: Approx. 16.21 kg (35.7 lb.)
  • Storage Conditions: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Language: English, Ukrainian
  • General Function: Heartbeat, mirror, flash log

Approval
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,*FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.
  • Safety: CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1,*CE and LOA certifications are only for the device sold in the European region.
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006,*CE certification is only for the device sold in the European region.
  • Protection: IP67: IEC 60529-2013

Other
  • Depth of Field: 4 mm: 2.7 m to 8
  • Audio Sampling Rate: 8 kHZ/16 kHz
  • Environment Noise Filtering: Yes
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • SIM Card Type: Micro SIM
  • Uplink and Downlink Data Rate: Cat 4, uplink: 50 Mbps, downlink: 150 Mbps
  • Frequency: NL668-EU:LTE-TDD: B38/B40/B41LTE-FDD: B1/B3/B5/B7/B8/B20/B28WCDMA: B1/B5/B8GSM: B3/B5/B8NL668-LA:LTE-TDD: B38/B40LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66WCDMA:B1/B2/B3/B4/B5/B8GSM: B2/B3/B5/B8NL668-US:LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71WCDMA: B2/B4/B5
  • Standard: LTE-TDD,LTE-FDD,WCDMA,GSM
  • Built-in Microphone: Yes
  • Built-in Speaker: Yes
  • Material: ADC12
  • Battery Type: Ternary Lithium
  • Capacity: 8.4 Ah x 2 packs
  • Max. Charging Voltage: 12.6 V
  • Operating Temperature: Charging: -20 °C to 45 °C (-4 °F to 113 °F)Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
  • Battery Voltage: 9 V to 12.6 V
  • Battery Life: More than 500 cycles
  • Cycle Lifetime: Performance mode: 3.6 days,Proactive mode: 6 days,Standby mode: 30 days
  • Battery Weight: Approx. 1400 g (3.1 lb.)
  • RF: FCC ID: FCC Part 15.247 (BT or 2.4G),IC ID (RSS-247(BT or 2.4G)),CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)*FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region.
