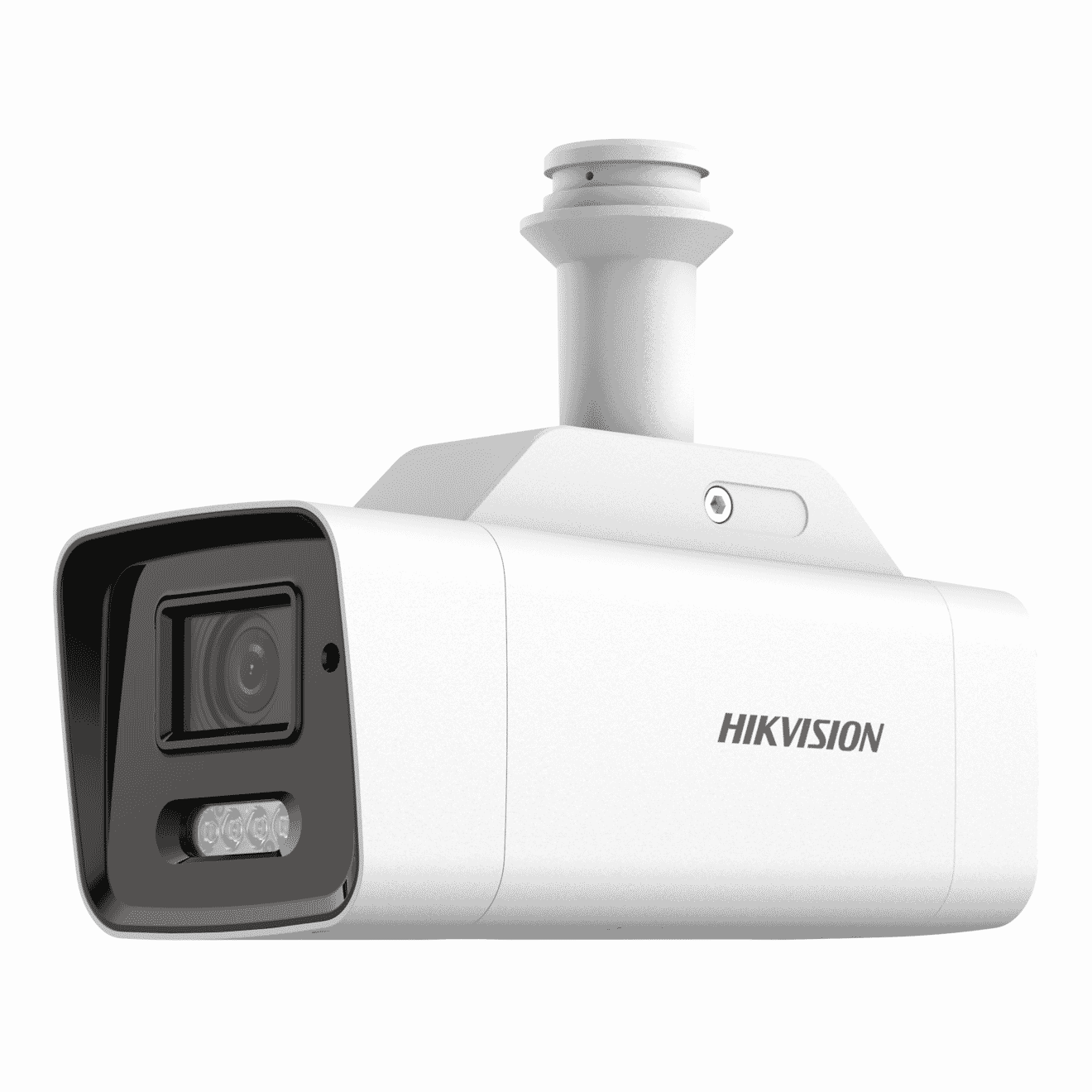

Hikvision DS-2XS6A87G1-LS/4G (2.8mm) 8MP Solar-Powered Bullet Camera ColorVu 4G IR

Hikvision DS-2XS6A87G1-LS/4G (2.8mm) 8MP Solar-Powered Bullet Camera ColorVu 4G IR

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 8MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2XS6A87G1-LS/4G (2.8mm) 8MP Solar-Powered Bullet Camera ColorVu 4G IR
Login to View Price

Specifications

  • Image Sensor: 1/1.2" Progressive Scan CMOS
  • Max. Resolution: 3840 × 2160
  • Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
  • Shutter Time: 1 s to 1/100,000 s
  • Lens Type: Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°4 mm, horizontal FOV: 88.0°, vertical FOV: 47.0°, diagonal FOV: 104.3°
  • Lens Mount: M22
  • Iris Type: Fixed
  • Aperture: F1.0
  • DORI: 2.8 mm: D: 96 m, O: 38 m, R: 19m, I: 9.5 m4 mm: D: 107 m, O: 42 m, R: 21 m, I: 10 m
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • Main Stream: 50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 12.5 fps (640 × 480, 640 × 360)60 Hz: 15 fps (640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 1 fps (1280 × 720, 640 × 480)60 Hz: 1 fps (1280 × 720, 640 × 480)
  • Video Compression: Main stream: H.265Sub-stream: H.265/MJPEGThird Stream: H.265*Performance mode: main stream supports H.265+
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.265 encoding
  • Region of Interest (ROI): 4 fixed regions for main stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: Hik-Connect (proactive mode also supports), Hik-central Professional
  • Web Browser: Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 130 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR, Defog
  • Privacy Mask: 4 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB;Built-in 64 GB eMMC storage
  • Reset Key: Yes
  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
  • Power: 12 VDC ± 20%, Ø5.5 mm coaxial power plug1. Standby power consumption: 53 mW2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).3. The max. power consumption: 3.2 W
  • Dimension: 263.5 × 224.3 × 128.7 mm (10.4" × 8.8" × 5.1")
  • Package Dimension: 405 × 260 × 177 mm (15.9" × 10.2" × 7.0")
  • Weight: Approx. 2.2 kg (4.9 lb.)
  • With Package Weight: Approx. 3.4 kg (7.5 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
  • EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);FCC (47 CFR Part 15, Subpart B);IC (ICES-003: Issue 7)
  • Safety: CB (IEC 62368-1:2014+A11)CE-LVD (EN 62368-1:2014/A11:2017)LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: Camera: IP67 (IEC 60529-2013)
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • SIM Card Type: MicroSIM
  • Frequency: DS-2XS6A87G1-L/4G:LTE-TDD: Band38/40/41LTE-FDD: Band1/3/5/7/8/20/28WCDMA: Band1/5/8GSM: 850/900/1800MHzDS-2XS6A87G1-L/4G (US):LTE-FDD: Band2/4/5/12/13/66/71WCDMA: Band2/4/5DS-2XS6A87G1-L/4G (LA):LTE-TDD: Band38/40LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66WCDMA: Band1/2/3/4/5/8GSM: 850/900/1800/1900MHzDS-2XS6A87G1-L/4G (JP):LTE-TDD: Band41LTE-FDD: Band1/3/8/11/18/19/21/26/28WCDMA: Band1/6/8/19
  • Standard: DS-2XS6A87G1-L/4G: LTE-TDD/LTE-FDD/WCDMA/GSMDS-2XS6A87G1-L/4G (US): LTE-FDD/WCDMADS-2XS6A87G1-L/4G (LA): LTE-TDD/LTE-FDD/WCDMA/GSMDS-2XS6A87G1-L/4G (JP): LTE-TDD/LTE-FDD/WCDMA
  • RS-485: 1 RS-485 (half duplex, connect to external battery)
  • Audio: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium
  • Alarm: 1 input(s), 1 output(s) (max. 12 VDC, 1 A)
  • Power Output: 12 VDC, max. 1000 mA
  • Material: Front cover: metal, body: metal, bracket: metal
  • RF: CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);ICASA: same as CE-REDFCC ID (47 CFR Part15 Subpart C);IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

Camera
  • Image Sensor: 1/1.2" Progressive Scan CMOS
  • Max. Resolution: 3840 × 2160
  • Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
  • Shutter Time: 1 s to 1/100,000 s

Lens
  • Lens Type: Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°4 mm, horizontal FOV: 88.0°, vertical FOV: 47.0°, diagonal FOV: 104.3°
  • Lens Mount: M22
  • Iris Type: Fixed
  • Aperture: F1.0

DORI
  • DORI: 2.8 mm: D: 96 m, O: 38 m, R: 19m, I: 9.5 m4 mm: D: 107 m, O: 42 m, R: 21 m, I: 10 m

Illuminator
  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes

Video
  • Main Stream: 50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 12.5 fps (640 × 480, 640 × 360)60 Hz: 15 fps (640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 1 fps (1280 × 720, 640 × 480)60 Hz: 1 fps (1280 × 720, 640 × 480)
  • Video Compression: Main stream: H.265Sub-stream: H.265/MJPEGThird Stream: H.265*Performance mode: main stream supports H.265+
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.265 encoding
  • Region of Interest (ROI): 4 fixed regions for main stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: Hik-Connect (proactive mode also supports), Hik-central Professional
  • Web Browser: Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+

  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 130 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR, Defog
  • Privacy Mask: 4 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB;Built-in 64 GB eMMC storage
  • Reset Key: Yes

Event
  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

General
  • Power: 12 VDC ± 20%, Ø5.5 mm coaxial power plug1. Standby power consumption: 53 mW2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).3. The max. power consumption: 3.2 W
  • Dimension: 263.5 × 224.3 × 128.7 mm (10.4" × 8.8" × 5.1")
  • Package Dimension: 405 × 260 × 177 mm (15.9" × 10.2" × 7.0")
  • Weight: Approx. 2.2 kg (4.9 lb.)
  • With Package Weight: Approx. 3.4 kg (7.5 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Approval
  • EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);FCC (47 CFR Part 15, Subpart B);IC (ICES-003: Issue 7)
  • Safety: CB (IEC 62368-1:2014+A11)CE-LVD (EN 62368-1:2014/A11:2017)LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: Camera: IP67 (IEC 60529-2013)

Other
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • SIM Card Type: MicroSIM
  • Frequency: DS-2XS6A87G1-L/4G:LTE-TDD: Band38/40/41LTE-FDD: Band1/3/5/7/8/20/28WCDMA: Band1/5/8GSM: 850/900/1800MHzDS-2XS6A87G1-L/4G (US):LTE-FDD: Band2/4/5/12/13/66/71WCDMA: Band2/4/5DS-2XS6A87G1-L/4G (LA):LTE-TDD: Band38/40LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66WCDMA: Band1/2/3/4/5/8GSM: 850/900/1800/1900MHzDS-2XS6A87G1-L/4G (JP):LTE-TDD: Band41LTE-FDD: Band1/3/8/11/18/19/21/26/28WCDMA: Band1/6/8/19
  • Standard: DS-2XS6A87G1-L/4G: LTE-TDD/LTE-FDD/WCDMA/GSMDS-2XS6A87G1-L/4G (US): LTE-FDD/WCDMADS-2XS6A87G1-L/4G (LA): LTE-TDD/LTE-FDD/WCDMA/GSMDS-2XS6A87G1-L/4G (JP): LTE-TDD/LTE-FDD/WCDMA
  • RS-485: 1 RS-485 (half duplex, connect to external battery)
  • Audio: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium
  • Alarm: 1 input(s), 1 output(s) (max. 12 VDC, 1 A)
  • Power Output: 12 VDC, max. 1000 mA
  • Material: Front cover: metal, body: metal, bracket: metal
  • RF: CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);ICASA: same as CE-REDFCC ID (47 CFR Part15 Subpart C);IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
