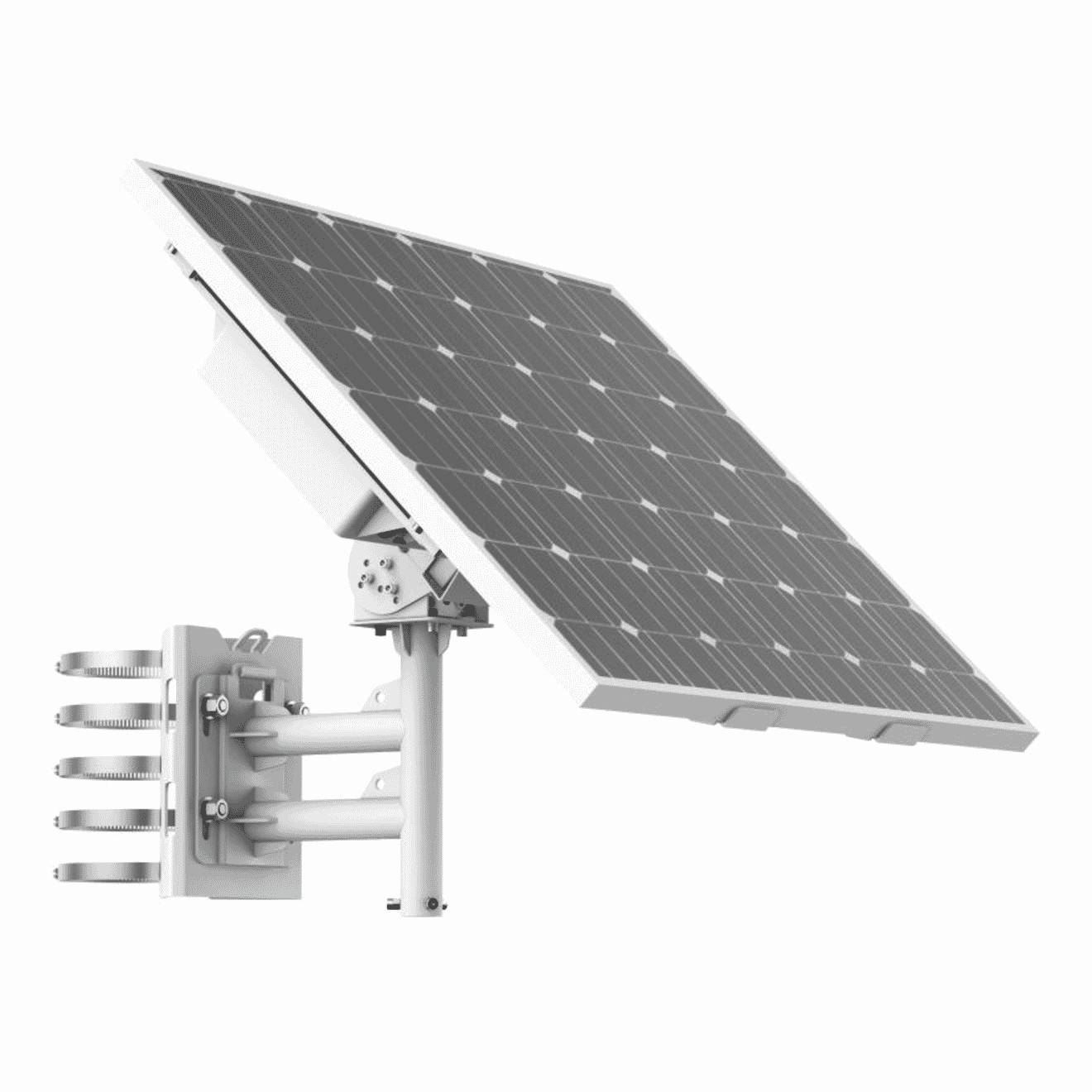

Hikvision DS-2XS6K01-C36S80 Solar Power Kit for Hikvision Cameras

Hikvision DS-2XS6K01-C36S80 Solar Power Kit for Hikvision Cameras

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2XS6K01-C36S80 Solar Power Kit for Hikvision Cameras
Login to View Price

Specifications

  • Dimension: 640.4 mm × 735.9 mm × 760 mm (25.21" × 28.97" × 29.92") (Max. size after it is completely assembled)
  • Package Dimension: 862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30")
  • Weight: Approx. 24 kg (52.9 lb.)
  • With Package Weight: Approx. 30.005 kg (66.1 lb.)
  • EMC: CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7)
  • Safety: CB (IEC 62368-1:2014+A11)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: Camera: IP66 (IEC 60529-2013)Wind resistance 12 level, up to 40 m/s wind speed resistance
  • RS-485: 1 RS-485 (half duplex, connect to Solar Power 4G Network Camera Kit )
  • Power Output: 9 to 12.6 VDC, max. 30 W, 2 × Ø5.5 mm coaxial power plugs
  • Battery Type: Lithium
  • Capacity: 360 Wh (90 Wh for each battery)
  • Battery Voltage: 10.8 V
  • Operating Temperature: Charging: -20 °C to 45 °C (-4 °F to 113 °F)Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
  • Battery Life: More than 500 cycles
  • Battery Weight: Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

General
  • Dimension: 640.4 mm × 735.9 mm × 760 mm (25.21" × 28.97" × 29.92") (Max. size after it is completely assembled)
  • Package Dimension: 862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30")
  • Weight: Approx. 24 kg (52.9 lb.)
  • With Package Weight: Approx. 30.005 kg (66.1 lb.)

Approval
  • EMC: CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7)
  • Safety: CB (IEC 62368-1:2014+A11)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Protection: Camera: IP66 (IEC 60529-2013)Wind resistance 12 level, up to 40 m/s wind speed resistance

Other
  • RS-485: 1 RS-485 (half duplex, connect to Solar Power 4G Network Camera Kit )
  • Power Output: 9 to 12.6 VDC, max. 30 W, 2 × Ø5.5 mm coaxial power plugs
  • Battery Type: Lithium
  • Capacity: 360 Wh (90 Wh for each battery)
  • Battery Voltage: 10.8 V
  • Operating Temperature: Charging: -20 °C to 45 °C (-4 °F to 113 °F)Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
  • Battery Life: More than 500 cycles
  • Battery Weight: Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
