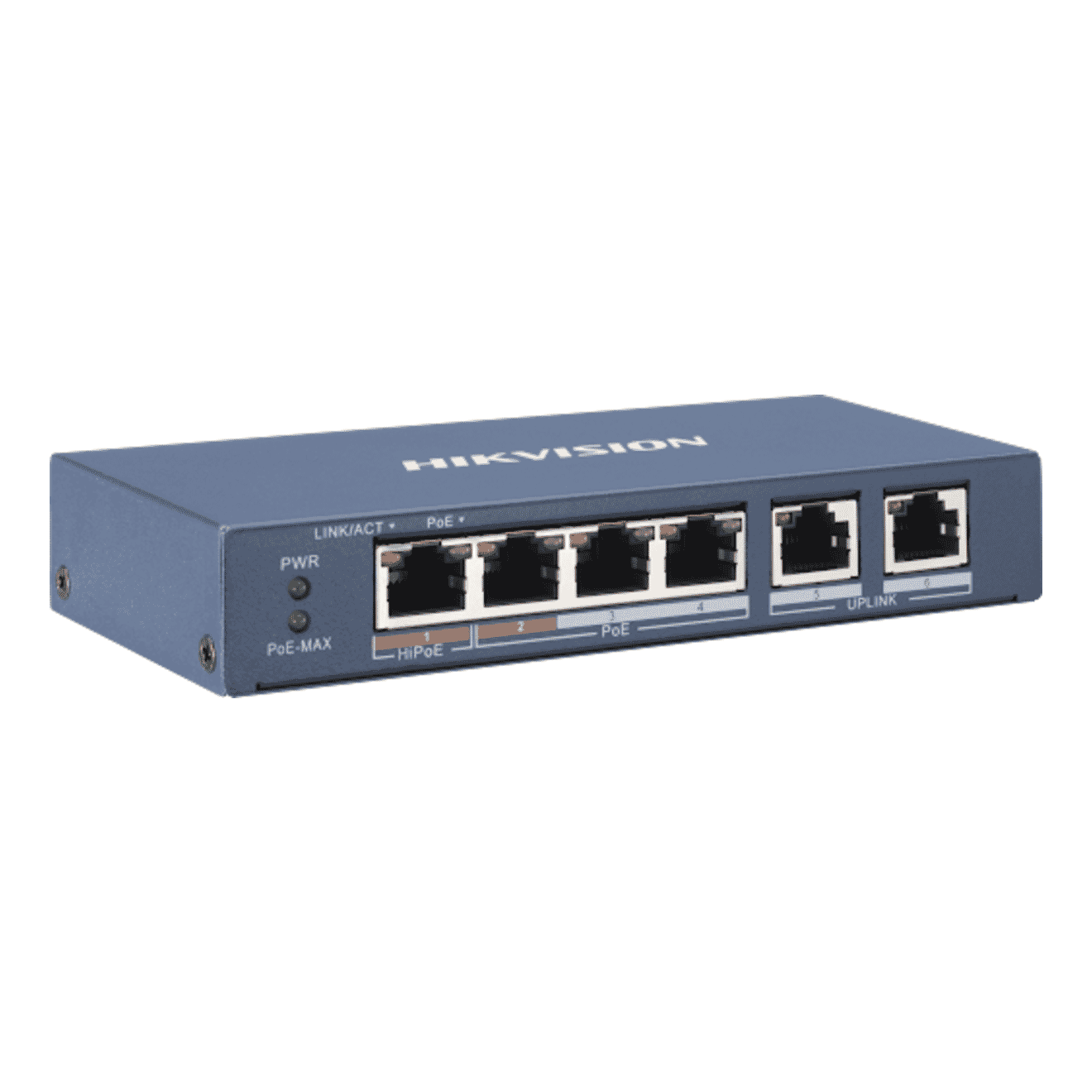

Hikvision DS-3E0106HP-E 6-Port PoE Ethernet Switch

Hikvision DS-3E0106HP-E 6-Port PoE Ethernet Switch

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-3E0106HP-E 6-Port PoE Ethernet Switch
Login to View Price

Specifications

  • EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Shell: Metal material, fan-free design
  • Net Weight: 0.24 kg (0.53 lb)
  • Gross Weight: 0.77 kg (1.70 lb)
  • Dimensions (W × H × D): 145 mm × 25.6 mm × 68.45 mm (5.7'' × 1.0'' × 2.7'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 48 VDC, 1.35 A
  • Max. Power Consumption: 65 W
  • Power Consumption in Idle: 5 W
  • Installation Mode: Desk-Mounted,Wall-Mounted
  • Surge Protection: 6 KV
  • Ports: 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
  • MAC Address Table: 2 K
  • Switching Capacity: 1.20 Gbps
  • Packet Forwarding Rate: 0.89 Mpps
  • Internal Cache: 768 Kbits
  • PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
  • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: Hi-PoE: Port 1PoE: Ports 2 to 4
  • Max. Port Power: Port 1: 60 WPorts 2 to 4: 30 W
  • PoE Power Budget: 60 W
  • Long Range: Ports 1 to 4: up to 300 mLong range performance may vary depend on camera model or cable condition.
  • VIP Port: Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
  • Chemistry: CE-RoHS (2011/65/EU)

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Other
  • Shell: Metal material, fan-free design
  • Net Weight: 0.24 kg (0.53 lb)
  • Gross Weight: 0.77 kg (1.70 lb)
  • Dimensions (W × H × D): 145 mm × 25.6 mm × 68.45 mm (5.7'' × 1.0'' × 2.7'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 48 VDC, 1.35 A
  • Max. Power Consumption: 65 W
  • Power Consumption in Idle: 5 W
  • Installation Mode: Desk-Mounted,Wall-Mounted
  • Surge Protection: 6 KV
  • Ports: 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
  • MAC Address Table: 2 K
  • Switching Capacity: 1.20 Gbps
  • Packet Forwarding Rate: 0.89 Mpps
  • Internal Cache: 768 Kbits
  • PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
  • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: Hi-PoE: Port 1PoE: Ports 2 to 4
  • Max. Port Power: Port 1: 60 WPorts 2 to 4: 30 W
  • PoE Power Budget: 60 W
  • Long Range: Ports 1 to 4: up to 300 mLong range performance may vary depend on camera model or cable condition.
  • VIP Port: Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
  • Chemistry: CE-RoHS (2011/65/EU)
