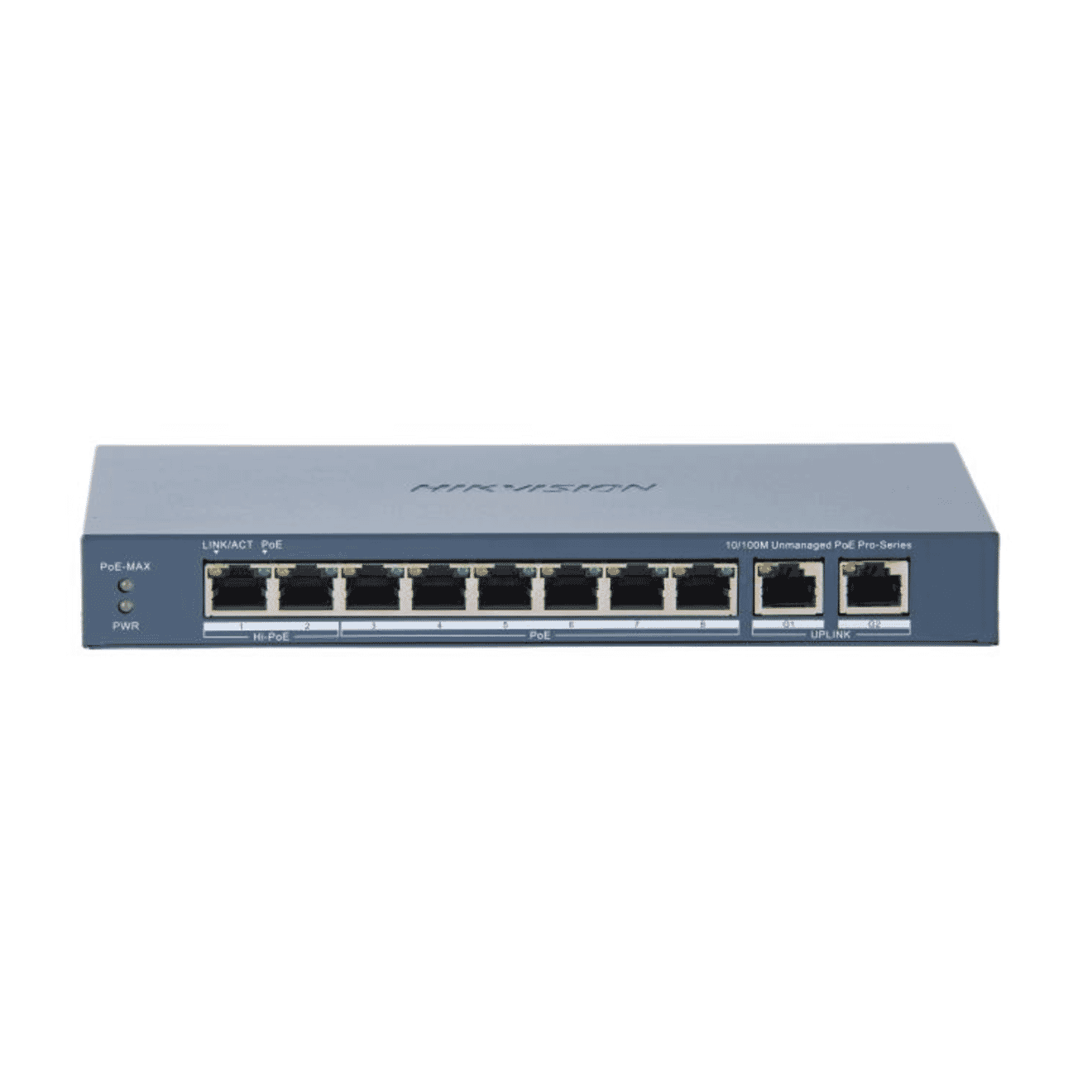

Hikvision DS-3E0310HP-E(C) 8 PORT FAST ETHERNET UNMANAGED POESWITCH

Hikvision DS-3E0310HP-E(C) 8 PORT FAST ETHERNET UNMANAGED POESWITCH

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-3E0310HP-E(C) 8 PORT FAST ETHERNET UNMANAGED POESWITCH
Login to View Price

Specifications

  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2029)
  • Shell: Metal material, fan-free design
  • Net Weight: 0.56 kg (1.23 lb)
  • Gross Weight: 1.27 kg (2.79 lb)
  • Dimensions (W × H × D): 217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 54 VDC,2.22 A
  • Max. Power Consumption: 120 W
  • Power Consumption in Idle: < 10 W
  • Installation Mode: Desk-Mounted
  • Surge Protection: 6 KV
  • Ports: 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
  • MAC Address Table: 4 K
  • Switching Capacity: 5.6 Gbps
  • Packet Forwarding Rate: 4.17Mpps
  • Internal Cache: 2Mbits
  • PoE Standard: Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3btPorts 3 to 8: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)Ports 3 to 8: End-span: 1/2(-), 3/6(+)
  • PoE Port: Hi-PoE: Ports 1 to 2PoE: Ports 3 to 8
  • Max. Port Power: Ports 1 and 2 : 90 WPorts 3 to 8: 30 W
  • PoE Power Budget: 110 W
  • Long Range: Ports 1 to 8: up to 300 m.Long range performance may vary depend on camera model or cable condition.
  • Port Isolation: Ports 1 to 8: port isolation mode to improve network security.
  • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond.
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)

Approval
  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2029)

Other
  • Shell: Metal material, fan-free design
  • Net Weight: 0.56 kg (1.23 lb)
  • Gross Weight: 1.27 kg (2.79 lb)
  • Dimensions (W × H × D): 217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 54 VDC,2.22 A
  • Max. Power Consumption: 120 W
  • Power Consumption in Idle: < 10 W
  • Installation Mode: Desk-Mounted
  • Surge Protection: 6 KV
  • Ports: 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
  • MAC Address Table: 4 K
  • Switching Capacity: 5.6 Gbps
  • Packet Forwarding Rate: 4.17Mpps
  • Internal Cache: 2Mbits
  • PoE Standard: Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3btPorts 3 to 8: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)Ports 3 to 8: End-span: 1/2(-), 3/6(+)
  • PoE Port: Hi-PoE: Ports 1 to 2PoE: Ports 3 to 8
  • Max. Port Power: Ports 1 and 2 : 90 WPorts 3 to 8: 30 W
  • PoE Power Budget: 110 W
  • Long Range: Ports 1 to 8: up to 300 m.Long range performance may vary depend on camera model or cable condition.
  • Port Isolation: Ports 1 to 8: port isolation mode to improve network security.
  • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond.
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
