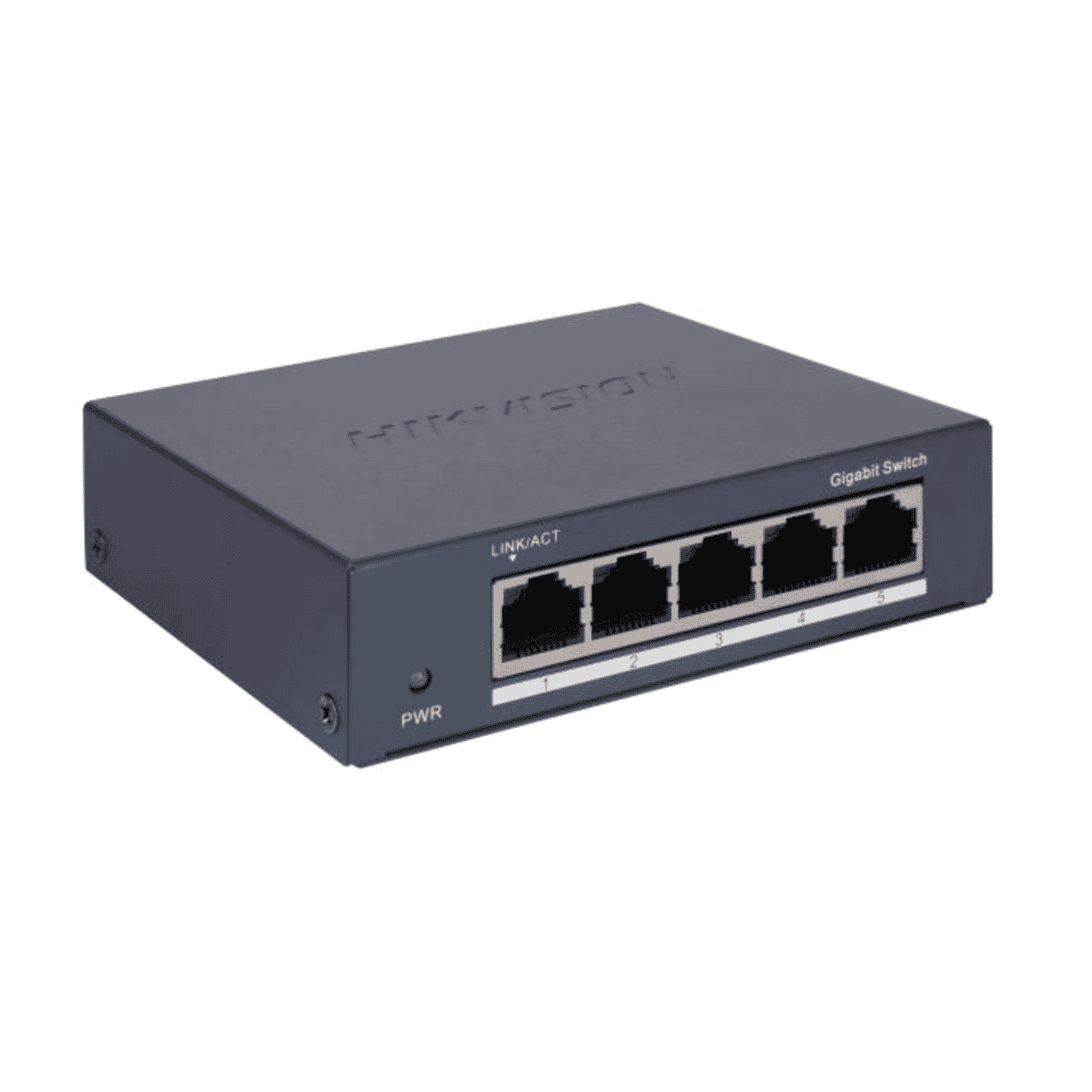

Hikvision DS-3E0505-O(O-STD) 5-Port Gigabit Unmanaged Network Switch CCTV

Hikvision DS-3E0505-O(O-STD) 5-Port Gigabit Unmanaged Network Switch CCTV

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-3E0505-O(O-STD) 5-Port Gigabit Unmanaged Network Switch CCTV
Login to View Price

Specifications

  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Shell: Metal material, fan-free design
  • Net Weight: 0.17 kg (0.37 lb)
  • Gross Weight: 0.35 kg (0.77 lb)
  • Dimensions (W × H × D): 105.00 mm × 27.60 mm × 83.10 mm (4.13'' × 1.09'' × 3.27'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 5VDC, 0.6A
  • Max. Power Consumption: 3 W
  • Power Consumption in Idle: 0.25 W
  • Installation Mode: Desk-Mounted,Wall-Mounted
  • Surge Protection: 6 KV
  • Ports: 5 × Gigabit RJ45 port
  • MAC Address Table: 2 K
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • Internal Cache: 3 Mbits
  • PoE Standard: /
  • PoE Power Pin: /
  • PoE Port: /
  • Max. Port Power: /
  • PoE Power Budget: /
  • Long Range: /
  • Port Isolation: /
  • PoE Watchdog: /
  • Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Approval
  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Other
  • Shell: Metal material, fan-free design
  • Net Weight: 0.17 kg (0.37 lb)
  • Gross Weight: 0.35 kg (0.77 lb)
  • Dimensions (W × H × D): 105.00 mm × 27.60 mm × 83.10 mm (4.13'' × 1.09'' × 3.27'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 5VDC, 0.6A
  • Max. Power Consumption: 3 W
  • Power Consumption in Idle: 0.25 W
  • Installation Mode: Desk-Mounted,Wall-Mounted
  • Surge Protection: 6 KV
  • Ports: 5 × Gigabit RJ45 port
  • MAC Address Table: 2 K
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • Internal Cache: 3 Mbits
  • PoE Standard: /
  • PoE Power Pin: /
  • PoE Port: /
  • Max. Port Power: /
  • PoE Power Budget: /
  • Long Range: /
  • Port Isolation: /
  • PoE Watchdog: /
  • Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
