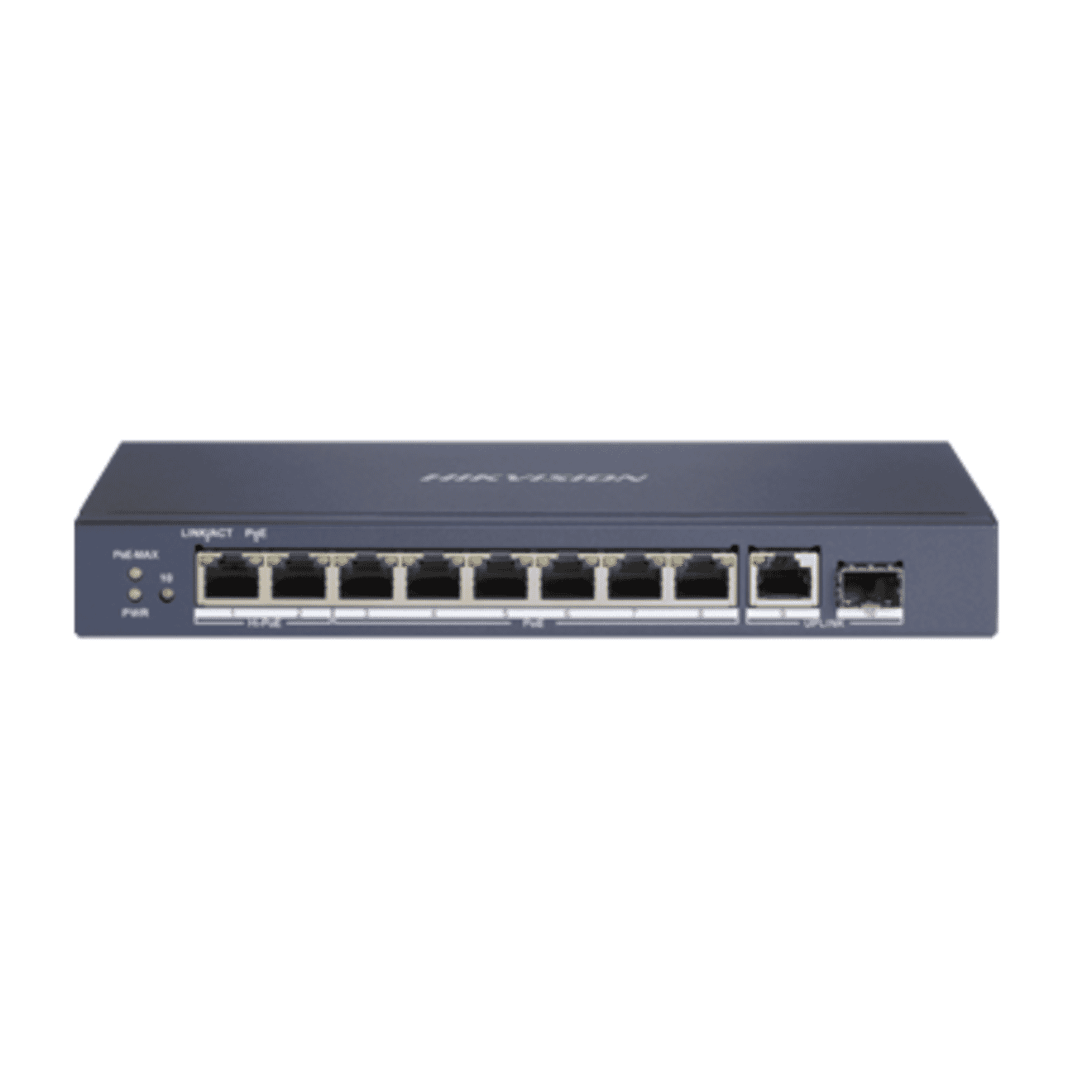

Hikvision DS-3E0510HP-E 10-Port Gigabit PoE Ethernet Switch

Hikvision DS-3E0510HP-E 10-Port Gigabit PoE Ethernet Switch

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-3E0510HP-E 10-Port Gigabit PoE Ethernet Switch
Login to View Price

Specifications

  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • Ports: 6 x Gigabit PoE ports2 x Gigabit Hi-PoE ports1 x Gigabit RJ45 port1 x Gigabit fiber optical port
  • Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
  • Working Mode: Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Forwarding Mode: Store-and-forward switching
  • MAC Address Table: 4 K
  • Switching Capacity: 20 Gbps
  • Packet Forwarding Rate: 14.88 Mpps
  • Internal Cache: 1.5 Mbits
  • Ports for Long-Distance Transmission: Ports 7 and 8
  • PoE Standard: Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3btPorts 3 to 8: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: Ports 1 to 2 and 7 to 8: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)Ports 3 to 6: End-span: 1/2(-), 3/6(+)
  • PoE Port: Ports 1 to 8
  • Max. Port Power: Ports 1 and 2: 90 WPorts 3 to 8: 30 W
  • PoE Power Budget: 110 W
  • Long Range: Ports 7 and 8: up to 300 m.
  • Port Isolation: Ports 1 to 8: port isolation mode to improve network security.
  • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond.
  • Dimensions (W x H x D): 217.6 mm x 108.55 mm x 27.8 mm (8.57€ x 4.27€ x 1.09€)
  • Shell: Metal material, fan-free design
  • Gross Weight: 1.410 kg (3.11 lb)
  • Net Weight: 0.59 kg (1.30 lb)
  • Operating Temperature: -10 °C to 40 °C (14 °F to 104 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity: 5% to 95% (no condensation)
  • Power Supply: 54 VDC, 2.22 A
  • Power Consumption in Idle: < 10 W
  • Max. Power Consumption: 120 W
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Other
  • Ports: 6 x Gigabit PoE ports2 x Gigabit Hi-PoE ports1 x Gigabit RJ45 port1 x Gigabit fiber optical port
  • Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
  • Working Mode: Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Forwarding Mode: Store-and-forward switching
  • MAC Address Table: 4 K
  • Switching Capacity: 20 Gbps
  • Packet Forwarding Rate: 14.88 Mpps
  • Internal Cache: 1.5 Mbits
  • Ports for Long-Distance Transmission: Ports 7 and 8
  • PoE Standard: Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3btPorts 3 to 8: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: Ports 1 to 2 and 7 to 8: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)Ports 3 to 6: End-span: 1/2(-), 3/6(+)
  • PoE Port: Ports 1 to 8
  • Max. Port Power: Ports 1 and 2: 90 WPorts 3 to 8: 30 W
  • PoE Power Budget: 110 W
  • Long Range: Ports 7 and 8: up to 300 m.
  • Port Isolation: Ports 1 to 8: port isolation mode to improve network security.
  • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond.
  • Dimensions (W x H x D): 217.6 mm x 108.55 mm x 27.8 mm (8.57€ x 4.27€ x 1.09€)
  • Shell: Metal material, fan-free design
  • Gross Weight: 1.410 kg (3.11 lb)
  • Net Weight: 0.59 kg (1.30 lb)
  • Operating Temperature: -10 °C to 40 °C (14 °F to 104 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity: 5% to 95% (no condensation)
  • Power Supply: 54 VDC, 2.22 A
  • Power Consumption in Idle: < 10 W
  • Max. Power Consumption: 120 W
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
