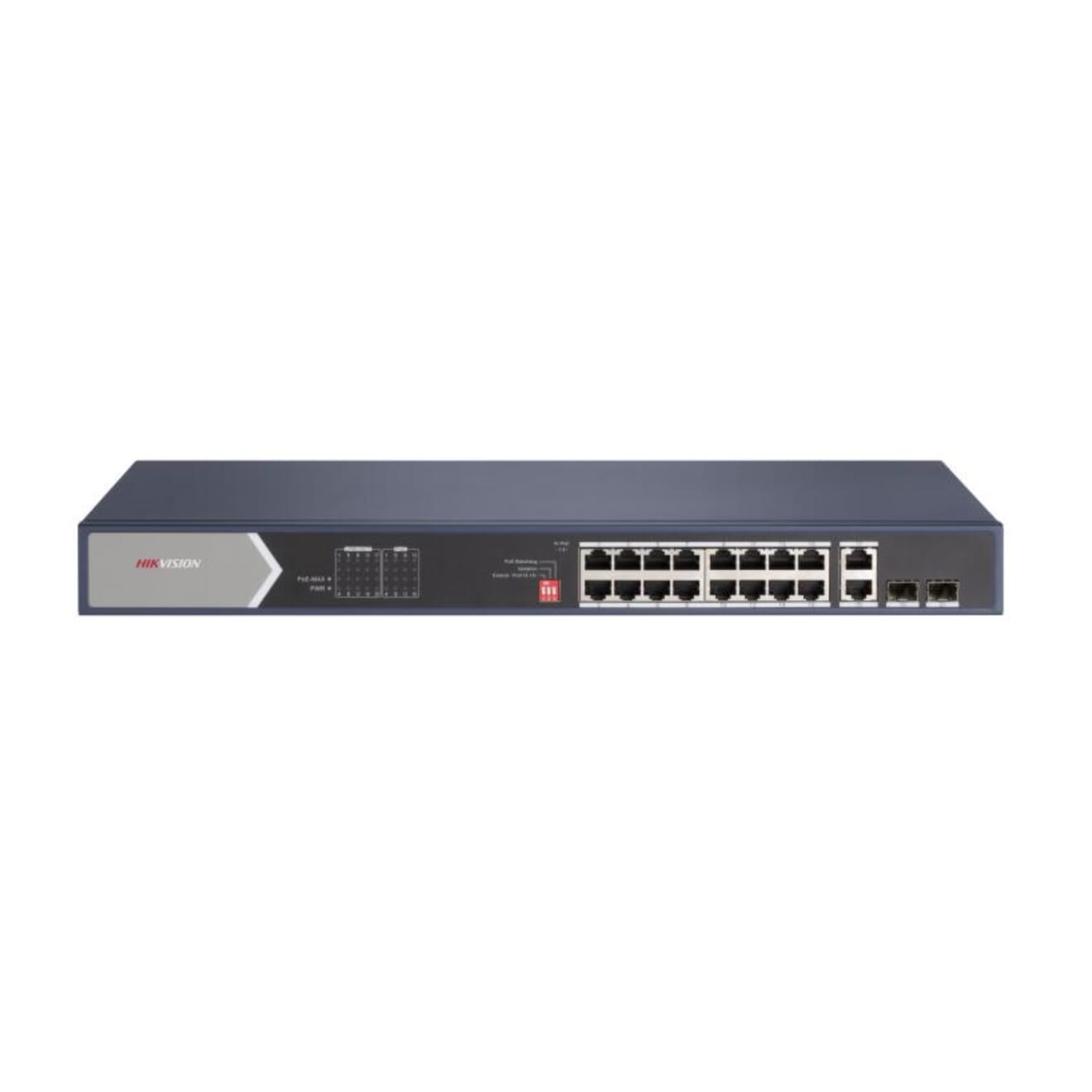

Hikvision DS-3E0520HP-E 20-Port PoE Ethernet Switch

Hikvision DS-3E0520HP-E 20-Port PoE Ethernet Switch

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-3E0520HP-E 20-Port PoE Ethernet Switch
Login to View Price

Specifications

  • EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Shell: Metal material
  • Net Weight: 2.79 kg (6.15 lb)
  • Gross Weight: 3.60 kg (7.94 lb)
  • Dimensions (W × H × D): 440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
  • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 100~240 VAC, 50/60 Hz, Max. 4 A
  • Max. Power Consumption: 250 W
  • Power Consumption in Idle: 25 W
  • Installation Mode: Rack (equipped with mounting ears)
  • Surge Protection: 6 KV
  • Ports: 16 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
  • MAC Address Table: 8 K
  • Switching Capacity: 40 Gbps
  • Packet Forwarding Rate: 29.76 Mpps
  • Internal Cache: 4.10 Mbits
  • PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
  • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: Hi-PoE: Ports 1 to 4PoE: Ports 5 to 16;
  • Max. Port Power: 90 W
  • PoE Power Budget: 225 W
  • Long Range: Ports 13 to 16: up to 300 mLong range performance may vary depend on camera model or cable condition.
  • Port Isolation: Ports 1 to 16: port isolation mode to improve network security.Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • PoE Watchdog: Ports 1  to 16: auto detect and restart the cameras that do not respond.
  • Chemistry: CE-RoHS (2011/65/EU)

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Other
  • Shell: Metal material
  • Net Weight: 2.79 kg (6.15 lb)
  • Gross Weight: 3.60 kg (7.94 lb)
  • Dimensions (W × H × D): 440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
  • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 100~240 VAC, 50/60 Hz, Max. 4 A
  • Max. Power Consumption: 250 W
  • Power Consumption in Idle: 25 W
  • Installation Mode: Rack (equipped with mounting ears)
  • Surge Protection: 6 KV
  • Ports: 16 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
  • MAC Address Table: 8 K
  • Switching Capacity: 40 Gbps
  • Packet Forwarding Rate: 29.76 Mpps
  • Internal Cache: 4.10 Mbits
  • PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
  • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: Hi-PoE: Ports 1 to 4PoE: Ports 5 to 16;
  • Max. Port Power: 90 W
  • PoE Power Budget: 225 W
  • Long Range: Ports 13 to 16: up to 300 mLong range performance may vary depend on camera model or cable condition.
  • Port Isolation: Ports 1 to 16: port isolation mode to improve network security.Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • PoE Watchdog: Ports 1  to 16: auto detect and restart the cameras that do not respond.
  • Chemistry: CE-RoHS (2011/65/EU)
