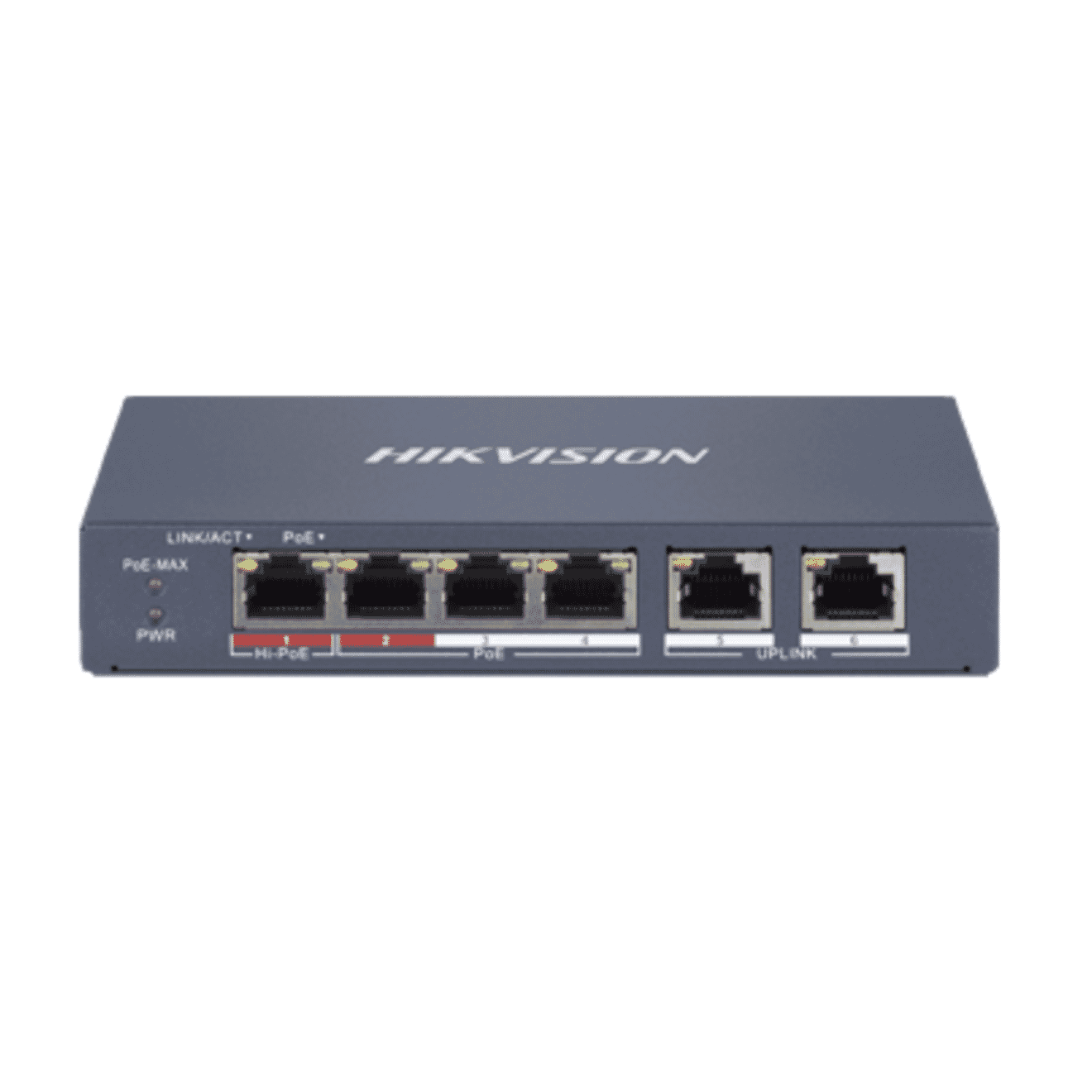

Hikvision DS-3E1106HP-EI 6-Port Ethernet Switch with Intelligent Management

Hikvision DS-3E1106HP-EI 6-Port Ethernet Switch with Intelligent Management

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-3E1106HP-EI 6-Port Ethernet Switch with Intelligent Management
Login to View Price

Specifications

  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
  • Ports: 4 x 10/100 Mbps PoE port,2 x 10/100 Mbps RJ45 port
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • High Priority Ports: Ports 1 to 2
  • Forwarding Mode: Store-and-forward switching
  • Working Mode: Standard mode (default), Extend mode
  • MAC Address Table: 2 K
  • Switching Capacity: 1.2 Gbps
  • Packet Forwarding Rate: 0.8928 Mpps
  • Internal Cache: 768 Kbits
  • PoE Standard: Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt; Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(-), 3/6(+)Mid-span: 4/5(+), 7/8(-)8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: Hi-PoE: Port 1, PoE: Ports 2 to 4
  • Max. Port Power: Port 1: 60 W, Ports 2 to 4: 30 W
  • PoE Power Budget: 60 W
  • Device Maintenance: Support remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration.
  • Port Configuration: Support port rate configuration, flow control, and ports enabling.
  • Shell: Metal material, IP40
  • Net Weight: 0.245 kg (0.54 lb)
  • Gross Weight: 0.645 kg (1.42 lb)
  • Dimensions (W x H x D): 145.00 mm x 25.60 mm x 68.45 mm (5.71'' x 1.00'' x 2.69'')
  • Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 48 VDC, 1.35 A
  • Max. Power Consumption: 65 W
  • Power Consumption in Idle: 2 W
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

Other
  • Ports: 4 x 10/100 Mbps PoE port,2 x 10/100 Mbps RJ45 port
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • High Priority Ports: Ports 1 to 2
  • Forwarding Mode: Store-and-forward switching
  • Working Mode: Standard mode (default), Extend mode
  • MAC Address Table: 2 K
  • Switching Capacity: 1.2 Gbps
  • Packet Forwarding Rate: 0.8928 Mpps
  • Internal Cache: 768 Kbits
  • PoE Standard: Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt; Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(-), 3/6(+)Mid-span: 4/5(+), 7/8(-)8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: Hi-PoE: Port 1, PoE: Ports 2 to 4
  • Max. Port Power: Port 1: 60 W, Ports 2 to 4: 30 W
  • PoE Power Budget: 60 W
  • Device Maintenance: Support remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration.
  • Port Configuration: Support port rate configuration, flow control, and ports enabling.
  • Shell: Metal material, IP40
  • Net Weight: 0.245 kg (0.54 lb)
  • Gross Weight: 0.645 kg (1.42 lb)
  • Dimensions (W x H x D): 145.00 mm x 25.60 mm x 68.45 mm (5.71'' x 1.00'' x 2.69'')
  • Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 48 VDC, 1.35 A
  • Max. Power Consumption: 65 W
  • Power Consumption in Idle: 2 W
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
