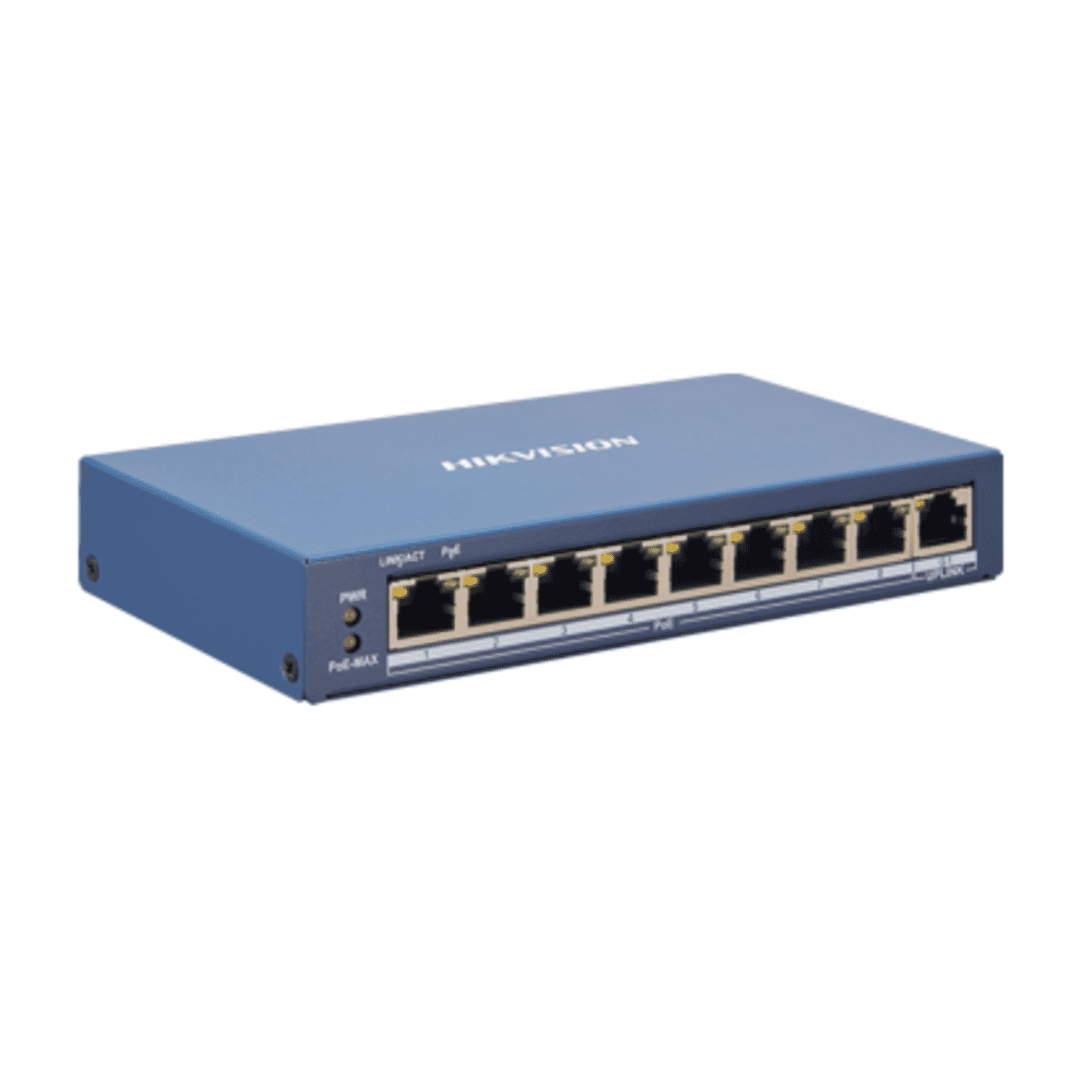

Hikvision DS-3E1309P-EI(B) 8-Port 100Mbps Smart PoE Switch – 1 Gigabit Uplink, 110W

Hikvision DS-3E1309P-EI(B) 8-Port 100Mbps Smart PoE Switch – 1 Gigabit Uplink, 110W

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-3E1309P-EI(B) 8-Port 100Mbps Smart PoE Switch – 1 Gigabit Uplink, 110W
Login to View Price

Specifications

  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Shell: Metal material, fan-free design
  • Net Weight: 0.35 kg (0.77 lb)
  • Gross Weight: 1.114 kg (2.45 lb)
  • Dimensions (W x H x D): 170.00 mm x 27.60 mm x 93.10 mm (6.69'' x 1.09'' x 3.67'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 54VDC:2.22A
  • Installation Mode: Desk-MountedWall-Mounted
  • Max. Power Consumption: 120 W
  • Power Consumption in Idle: 10 W
  • Surge Protection: 6 kV
  • Ports: 8 x 10/100 Mbps PoE port,1 x Gigabit RJ45 port
  • MAC Address Table: 8 K
  • Packet Forwarding Rate: Whole-Device Performance: 4.17 MppsPort Performance: 2.68 Mpps
  • Internal Cache: 4 Mbits
  • Switching Capacity: Whole-Device Performance: 5.6 GbpsPort Performance: 3.6 Gbps
  • PoE Standard: IEEE 802.3af,IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(-), 3/6(+)
  • PoE Port: PoE: Ports 1 to 8
  • Max. Port Power: 30 W
  • PoE Power Budget: 110 W
  • Long Range: Ports 1 to 8: up to 300 m.Long range performance may vary depend on camera model or cable condition.
  • Port Isolation: Ports 1 to 8: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond.
  • Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Support 802.1w RSTP.
  • VLAN: VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 4094 VLAN.
  • HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
  • System Maintenance: Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support management via Hik-Central Pro.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
  • Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Approval
  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Other
  • Shell: Metal material, fan-free design
  • Net Weight: 0.35 kg (0.77 lb)
  • Gross Weight: 1.114 kg (2.45 lb)
  • Dimensions (W x H x D): 170.00 mm x 27.60 mm x 93.10 mm (6.69'' x 1.09'' x 3.67'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 54VDC:2.22A
  • Installation Mode: Desk-MountedWall-Mounted
  • Max. Power Consumption: 120 W
  • Power Consumption in Idle: 10 W
  • Surge Protection: 6 kV
  • Ports: 8 x 10/100 Mbps PoE port,1 x Gigabit RJ45 port
  • MAC Address Table: 8 K
  • Packet Forwarding Rate: Whole-Device Performance: 4.17 MppsPort Performance: 2.68 Mpps
  • Internal Cache: 4 Mbits
  • Switching Capacity: Whole-Device Performance: 5.6 GbpsPort Performance: 3.6 Gbps
  • PoE Standard: IEEE 802.3af,IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(-), 3/6(+)
  • PoE Port: PoE: Ports 1 to 8
  • Max. Port Power: 30 W
  • PoE Power Budget: 110 W
  • Long Range: Ports 1 to 8: up to 300 m.Long range performance may vary depend on camera model or cable condition.
  • Port Isolation: Ports 1 to 8: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond.
  • Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Support 802.1w RSTP.
  • VLAN: VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 4094 VLAN.
  • HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
  • System Maintenance: Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support management via Hik-Central Pro.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
  • Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
