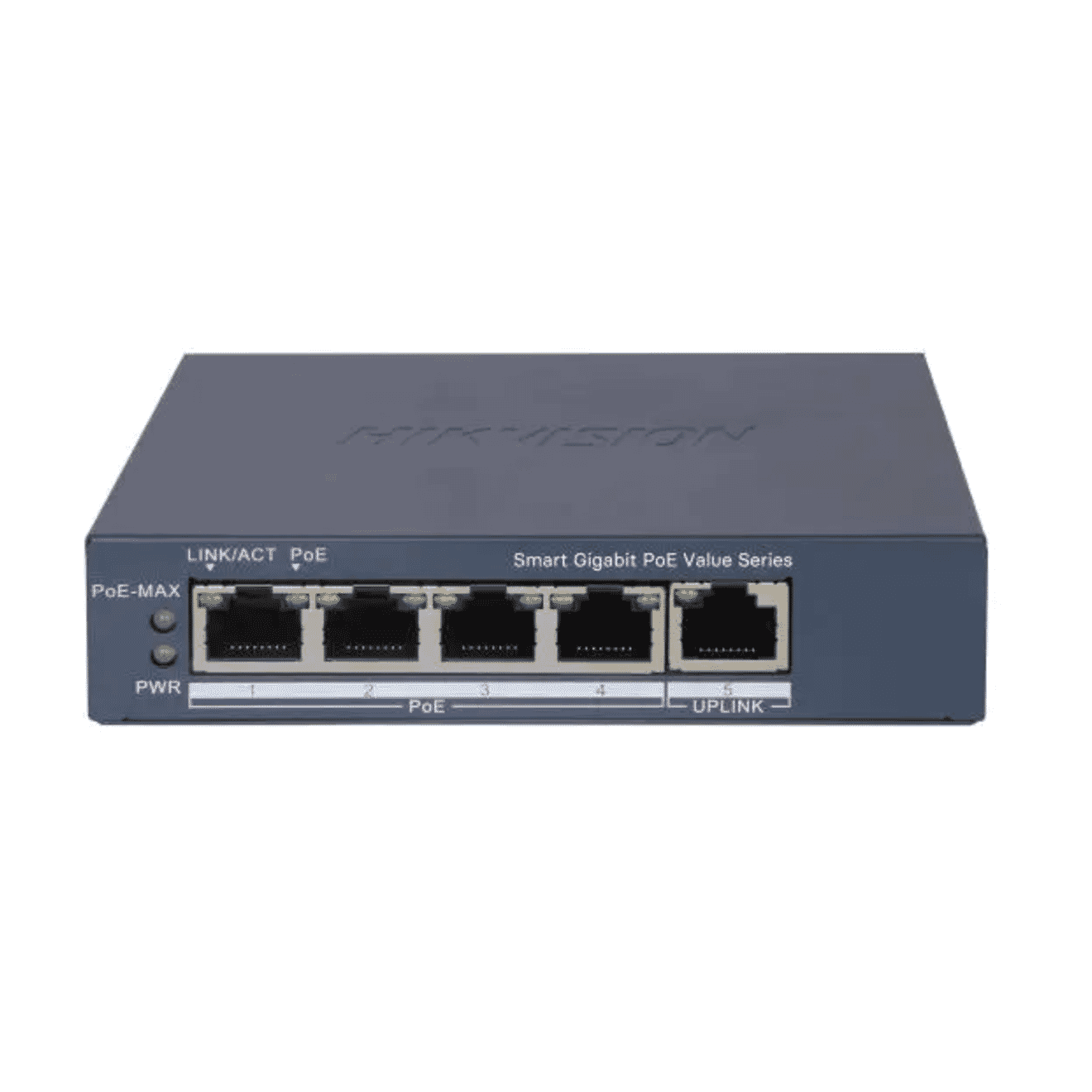

Hikvision DS-3E1505P-EI 4-Port Gigabit Smart Managed PoE Switch with 1 Uplink Port
Login to View Price

Specifications

  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety: CE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
  • Shell: Metal material
  • Net Weight: 0.26 kg (0.573 lb)
  • Gross Weight: 0.75 kg (1.65 lb)
  • Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 54VDC, 1.2A
  • Installation Mode: Desk-Mounted,Wall-Mounted
  • Max. Power Consumption: 65 W
  • Power Consumption in Idle: 0.9 W
  • Surge Protection: 6 KV
  • Ports: 4 × Gigabit PoE port,1 × Gigabit RJ45 port
  • MAC Address Table: 2 K
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • Internal Cache: 1 Mbits
  • PoE Standard: IEEE 802.3af,IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(-), 3/6(+)
  • PoE Port: PoE: Ports 1 to 4
  • Max. Port Power: 30 W
  • PoE Power Budget: 60 W
  • Long Range: Ports 1 to 4: up to 300 m.Long range performance may vary depend on camera model or cable condition.
  • Port Isolation: Ports 1 to 4: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • PoE Watchdog: Ports 1 to 4: auto detect and restart the cameras that do not respond.
  • Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 1 aggregation groups.
  • Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP.
  • VLAN: VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 32 VLAN.
  • HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
  • System Maintenance: Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support management via Hik-Central Pro.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
  • Chemistry: CE-RoHS (2011/65/EU),Reach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU)

Approval
  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety: CE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)

Other
  • Shell: Metal material
  • Net Weight: 0.26 kg (0.573 lb)
  • Gross Weight: 0.75 kg (1.65 lb)
  • Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 54VDC, 1.2A
  • Installation Mode: Desk-Mounted,Wall-Mounted
  • Max. Power Consumption: 65 W
  • Power Consumption in Idle: 0.9 W
  • Surge Protection: 6 KV
  • Ports: 4 × Gigabit PoE port,1 × Gigabit RJ45 port
  • MAC Address Table: 2 K
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • Internal Cache: 1 Mbits
  • PoE Standard: IEEE 802.3af,IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(-), 3/6(+)
  • PoE Port: PoE: Ports 1 to 4
  • Max. Port Power: 30 W
  • PoE Power Budget: 60 W
  • Long Range: Ports 1 to 4: up to 300 m.Long range performance may vary depend on camera model or cable condition.
  • Port Isolation: Ports 1 to 4: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • PoE Watchdog: Ports 1 to 4: auto detect and restart the cameras that do not respond.
  • Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 1 aggregation groups.
  • Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP.
  • VLAN: VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 32 VLAN.
  • HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
  • System Maintenance: Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support management via Hik-Central Pro.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
  • Chemistry: CE-RoHS (2011/65/EU),Reach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU)
