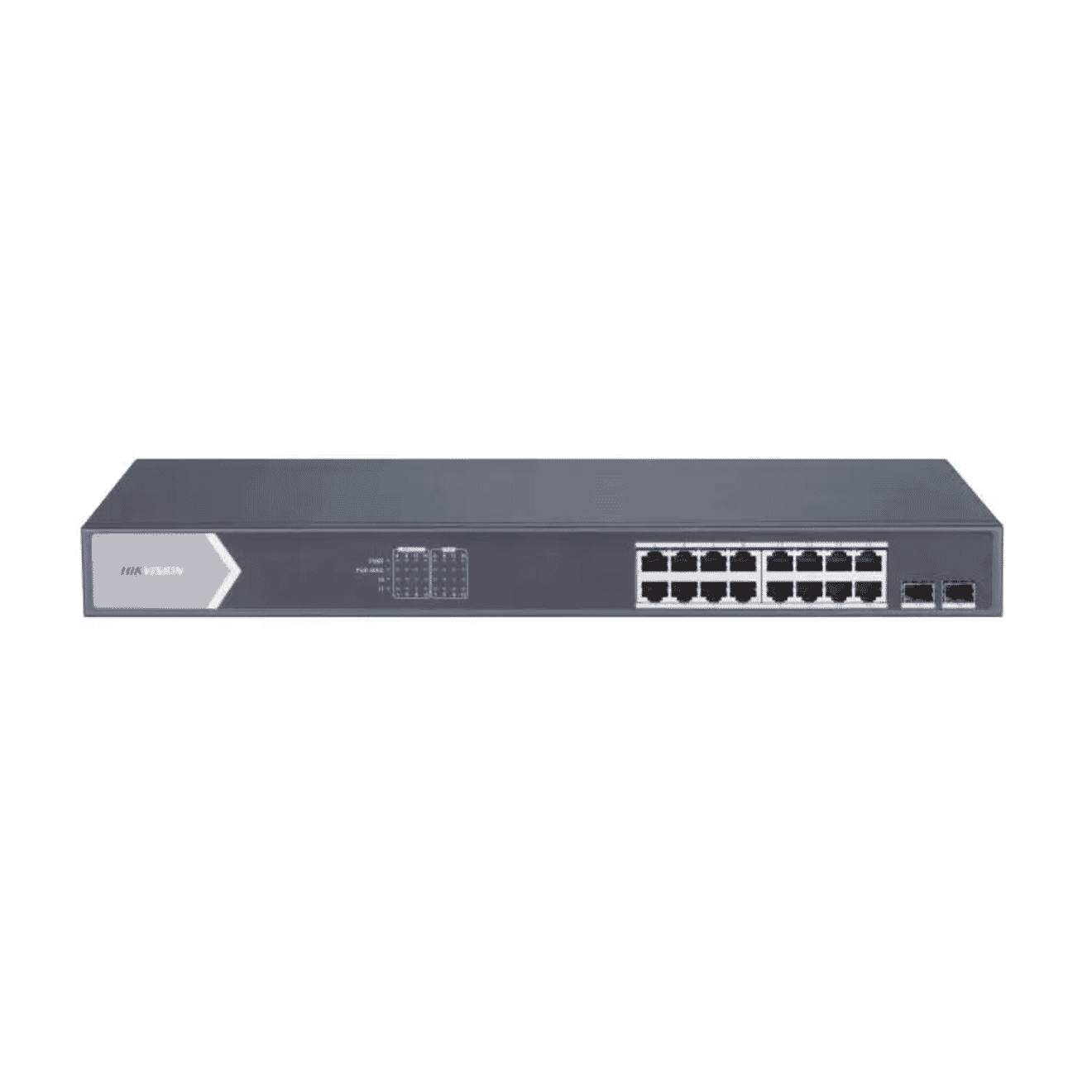

Hikvision DS-3E1518P-SI 16-Port Smart PoE Ethernet Switch

Hikvision DS-3E1518P-SI 16-Port Smart PoE Ethernet Switch

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-3E1518P-SI 16-Port Smart PoE Ethernet Switch
Login to View Price

Specifications

  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
  • Ports: 16 x 1 Gigabit PoE port,2 x 1 Gigabit fiber optical port
  • Port Type: RJ45 port, full duplex, MDIMDI-X adaptive
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Forwarding Mode: Store-and-forward switching
  • Working Mode: Standard mode (default), Extend mode
  • MAC Address Table: 8 K
  • Switching Capacity: 36 Gbps
  • Packet Forwarding Rate: 26.784 Mpps
  • Internal Cache: 4.1 Mbits
  • PoE Standard: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(-), 3/6(+)
  • PoE Port: PoE: Ports 1 to 16
  • Max. Port Power: 30 W
  • PoE Power Budget: 225 W
  • Device Maintenance: Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
  • Port Configuration: Support port rate configuration, flow control, and ports enabling.
  • Long Range: Up to 300 m transmission
  • PoE Configuration: PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond.PoE enabling: supported
  • Port Rate-Limiting: Rate-limiting for ingress and egress ports
  • Storm Control: Storm control of unknown unicast, multicast, and broadcast
  • Port Mirroring: Supported
  • Link Aggregation: Support static link aggregation.
  • Port Isolation: Ports in an isolation group cannot communicate with each other.
  • QoS: WRR and SP scheduling and port priority
  • VLAN: 4094 VLANs
  • STP: STP and RSTP
  • SNMP: SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
  • LLDP: LLDP supported for port configuration, global configuration, and neighbor discovery
  • DHCP: Supported
  • Shell: Metal material
  • Net Weight: 2.735 kg (6.03 lb)
  • Gross Weight: 3.31 kg (7.30 lb)
  • Dimensions (W x H x D): 440.00 mm x 44.00 mm x 220.80 mm (17.32'' x 1.73'' x 8.69'')
  • Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 100-240 VAC, 50/60 Hz, Max. 4 A, 250 W
  • Max. Power Consumption: 250 W
  • Power Consumption in Idle: 25 W
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

Other
  • Ports: 16 x 1 Gigabit PoE port,2 x 1 Gigabit fiber optical port
  • Port Type: RJ45 port, full duplex, MDIMDI-X adaptive
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Forwarding Mode: Store-and-forward switching
  • Working Mode: Standard mode (default), Extend mode
  • MAC Address Table: 8 K
  • Switching Capacity: 36 Gbps
  • Packet Forwarding Rate: 26.784 Mpps
  • Internal Cache: 4.1 Mbits
  • PoE Standard: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: End-span: 1/2(-), 3/6(+)
  • PoE Port: PoE: Ports 1 to 16
  • Max. Port Power: 30 W
  • PoE Power Budget: 225 W
  • Device Maintenance: Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
  • Port Configuration: Support port rate configuration, flow control, and ports enabling.
  • Long Range: Up to 300 m transmission
  • PoE Configuration: PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond.PoE enabling: supported
  • Port Rate-Limiting: Rate-limiting for ingress and egress ports
  • Storm Control: Storm control of unknown unicast, multicast, and broadcast
  • Port Mirroring: Supported
  • Link Aggregation: Support static link aggregation.
  • Port Isolation: Ports in an isolation group cannot communicate with each other.
  • QoS: WRR and SP scheduling and port priority
  • VLAN: 4094 VLANs
  • STP: STP and RSTP
  • SNMP: SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
  • LLDP: LLDP supported for port configuration, global configuration, and neighbor discovery
  • DHCP: Supported
  • Shell: Metal material
  • Net Weight: 2.735 kg (6.03 lb)
  • Gross Weight: 3.31 kg (7.30 lb)
  • Dimensions (W x H x D): 440.00 mm x 44.00 mm x 220.80 mm (17.32'' x 1.73'' x 8.69'')
  • Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 100-240 VAC, 50/60 Hz, Max. 4 A, 250 W
  • Max. Power Consumption: 250 W
  • Power Consumption in Idle: 25 W
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
