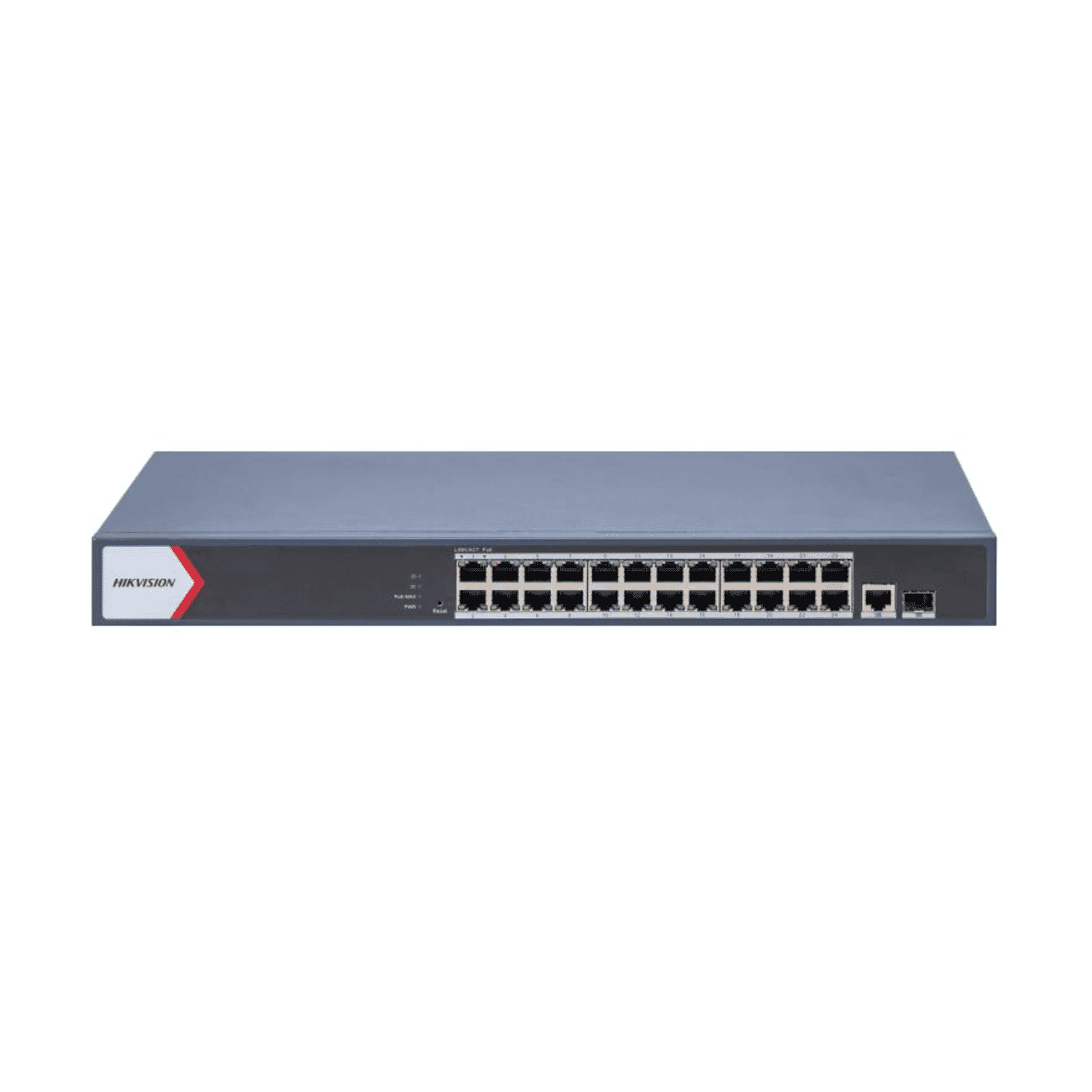

Hikvision DS-3E1526P-EI 24-Port Gigabit PoE Smart Managed Switch CCTV Security

Hikvision DS-3E1526P-EI 24-Port Gigabit PoE Smart Managed Switch CCTV Security

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-3E1526P-EI 24-Port Gigabit PoE Smart Managed Switch CCTV Security
Login to View Price

Specifications

  • EMC: CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
  • Shell: Metal material
  • Net Weight: 3.1 kg (6.83 lb)
  • Gross Weight: 3.3 kg (7.27 lb)
  • Dimensions (W × H × D): 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
  • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 100~240 V AC, 50/60 Hz, Max. 6.3 A
  • Installation Mode: Rack (equipped with mounting ears)
  • Max. Power Consumption: 400 W
  • Power Consumption in Idle: 30 W
  • Surge Protection: 6 KV
  • Ports: 24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
  • MAC Address Table: 8 K
  • Switching Capacity: 56 Gbps
  • Packet Forwarding Rate: 41.66 Mpps
  • Internal Cache: 4.1 Mbits
  • PoE Standard: IEEE 802.3af,IEEE 802.3at
  • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: PoE: Ports 1 to 24
  • Max. Port Power: 30 W
  • PoE Power Budget: 370 W
  • Long Range: Ports 1 to 24: up to 300 m.Long range performance may vary depend on camera model or cable condition.
  • PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond.
  • Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 8 aggregation group(s).
  • Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP.
  • VLAN: VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 32 VLAN.
  • Port Isolation: Ports 1 to 24: port isolation mode to improve network security.Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • System Maintenance: Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Support 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
  • HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Approval
  • EMC: CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

Other
  • Shell: Metal material
  • Net Weight: 3.1 kg (6.83 lb)
  • Gross Weight: 3.3 kg (7.27 lb)
  • Dimensions (W × H × D): 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
  • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 100~240 V AC, 50/60 Hz, Max. 6.3 A
  • Installation Mode: Rack (equipped with mounting ears)
  • Max. Power Consumption: 400 W
  • Power Consumption in Idle: 30 W
  • Surge Protection: 6 KV
  • Ports: 24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
  • MAC Address Table: 8 K
  • Switching Capacity: 56 Gbps
  • Packet Forwarding Rate: 41.66 Mpps
  • Internal Cache: 4.1 Mbits
  • PoE Standard: IEEE 802.3af,IEEE 802.3at
  • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: PoE: Ports 1 to 24
  • Max. Port Power: 30 W
  • PoE Power Budget: 370 W
  • Long Range: Ports 1 to 24: up to 300 m.Long range performance may vary depend on camera model or cable condition.
  • PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond.
  • Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 8 aggregation group(s).
  • Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP.
  • VLAN: VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 32 VLAN.
  • Port Isolation: Ports 1 to 24: port isolation mode to improve network security.Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • System Maintenance: Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Support 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
  • HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
