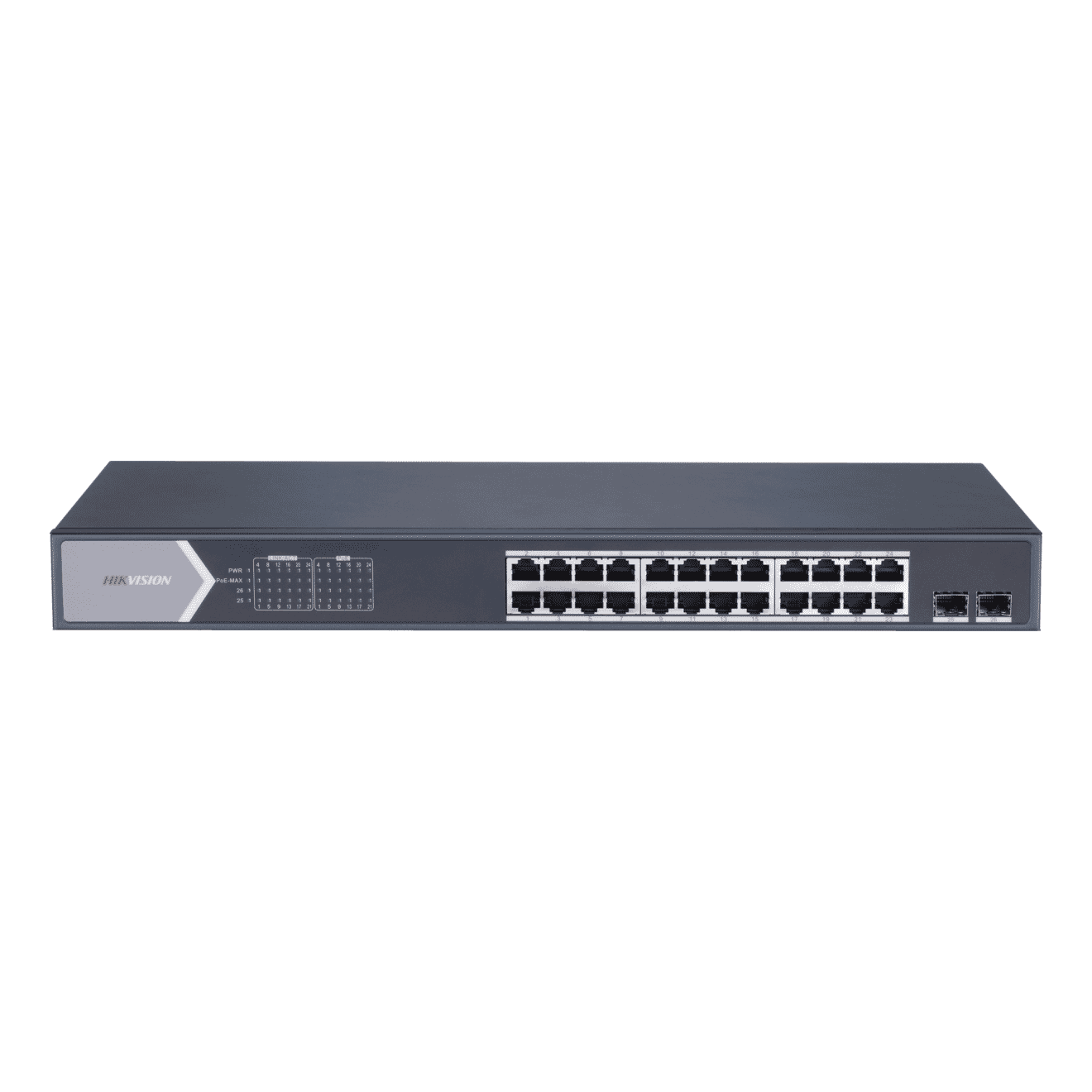

HIKVISION DS-3E1528P-SI-24P4F 24 Port Gigabit Smart POE Switch

HIKVISION DS-3E1528P-SI-24P4F 24 Port Gigabit Smart POE Switch

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HIKVISION DS-3E1528P-SI-24P4F 24 Port Gigabit Smart POE Switch
Login to View Price

Specifications

  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Shell: Metal material
  • Net Weight: 2.59 kg (5.71 lb)
  • Gross Weight: 3.68 kg (8.11 lb)
  • Dimensions (W × H × D): 440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
  • Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 100-240 VAC, 50/60 Hz, Max. 4 A
  • Installation Mode: Rack (equipped with mounting ears)
  • Max. Power Consumption: 250 W
  • Power Consumption in Idle: 20 W
  • Surge Protection: 6 kV
  • Ports: 16 × 10/100 Mbps PoE port,2 × Gigabit combo
  • MAC Address Table: 16 K
  • Switching Capacity: Whole-Device Performance: 9.2 GbpsPort Performance: 7.2 Gbps
  • Packet Forwarding Rate: Whole-Device Performance: 6.84 MppsPort Performance: 5.36 Mpps
  • Internal Cache: 4 Mbits
  • PoE Standard: IEEE 802.3af,IEEE 802.3at
  • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: PoE: Ports 1 to 16
  • Max. Port Power: 30 W
  • PoE Power Budget: 230 W
  • Long Range: Ports 1 to 16: up to 300 m.Long range performance may vary depend on camera model or cable condition.
  • VIP Port: Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
  • Port Isolation: Ports 1 to 16: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • PoE Watchdog: Ports 1 to 16: auto detect and restart the cameras that do not respond.
  • Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 1 aggregation groups.
  • Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP.
  • VLAN: VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 4094 VLAN.
  • HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
  • System Maintenance: Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support management via Hik-Central Pro.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
  • Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Approval
  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)

Other
  • Shell: Metal material
  • Net Weight: 2.59 kg (5.71 lb)
  • Gross Weight: 3.68 kg (8.11 lb)
  • Dimensions (W × H × D): 440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
  • Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 100-240 VAC, 50/60 Hz, Max. 4 A
  • Installation Mode: Rack (equipped with mounting ears)
  • Max. Power Consumption: 250 W
  • Power Consumption in Idle: 20 W
  • Surge Protection: 6 kV
  • Ports: 16 × 10/100 Mbps PoE port,2 × Gigabit combo
  • MAC Address Table: 16 K
  • Switching Capacity: Whole-Device Performance: 9.2 GbpsPort Performance: 7.2 Gbps
  • Packet Forwarding Rate: Whole-Device Performance: 6.84 MppsPort Performance: 5.36 Mpps
  • Internal Cache: 4 Mbits
  • PoE Standard: IEEE 802.3af,IEEE 802.3at
  • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: PoE: Ports 1 to 16
  • Max. Port Power: 30 W
  • PoE Power Budget: 230 W
  • Long Range: Ports 1 to 16: up to 300 m.Long range performance may vary depend on camera model or cable condition.
  • VIP Port: Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
  • Port Isolation: Ports 1 to 16: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • PoE Watchdog: Ports 1 to 16: auto detect and restart the cameras that do not respond.
  • Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 1 aggregation groups.
  • Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP.
  • VLAN: VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 4094 VLAN.
  • HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
  • System Maintenance: Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support management via Hik-Central Pro.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
  • Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
