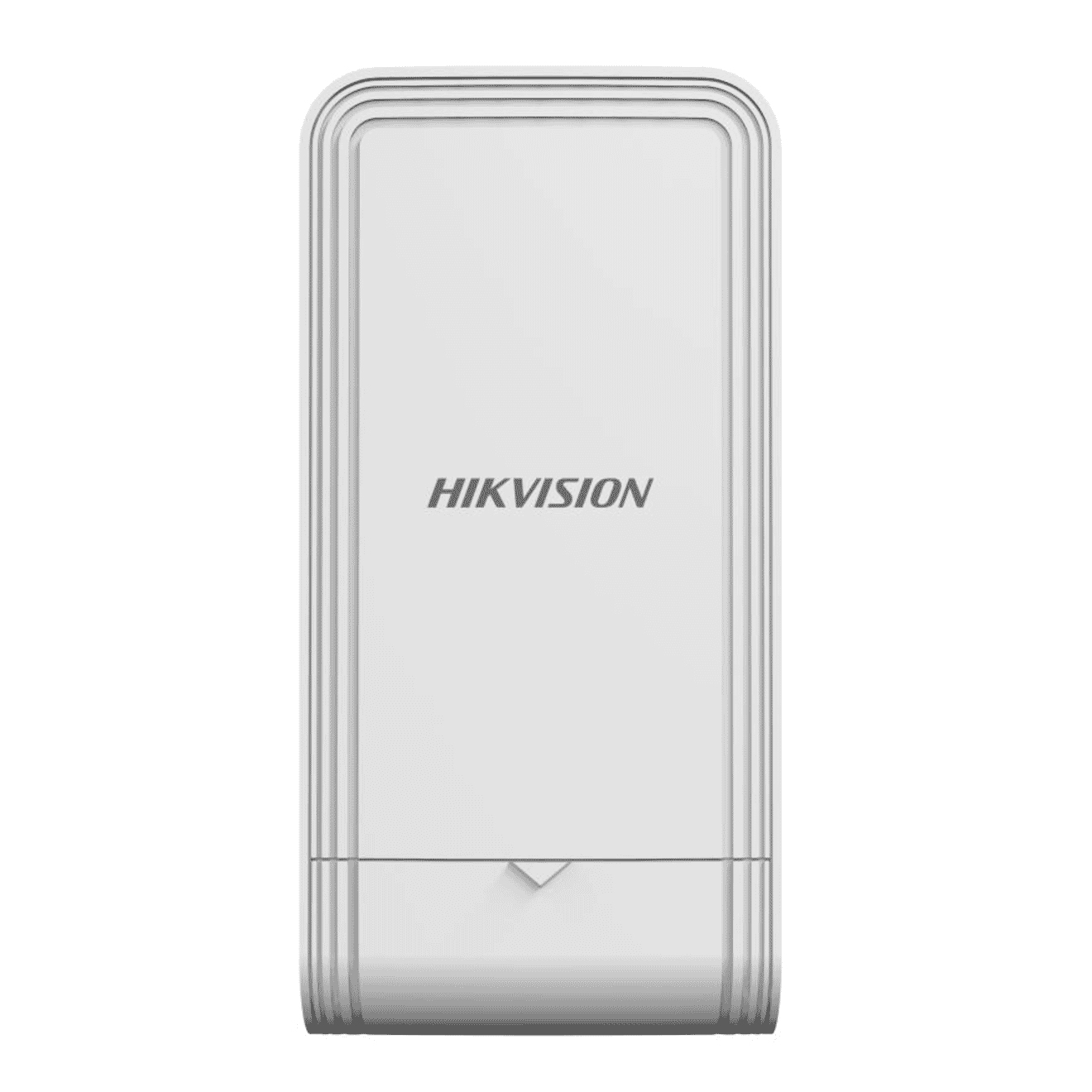

HIKVISION DS-3WF02C-5AC/O(V3) 5Ghz 867Mbps 5km Outdoor Wireless CPE AP

HIKVISION DS-3WF02C-5AC/O(V3) 5Ghz 867Mbps 5km Outdoor Wireless CPE AP

Category: Switches
|
Brand: Hikvision
  • Switches
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HIKVISION DS-3WF02C-5AC/O(V3) 5Ghz 867Mbps 5km Outdoor Wireless CPE AP
Login to View Price

Specifications

  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Product Dimensions (W x H x D): 92 mm x 187 mm x 58 mm (3.62'' x 7.36'' x 2.28'')
  • Package Dimensions (W x H x D): 132 mm x 228 mm x 91 mm (5.19" x 8.97" x 3.58")
  • Net Weight: 0.307 kg (0.677 lb)
  • Gross Weight: 0.807 kg (1.779 lb)
  • Packing List: Wireless Bridge x 1,Power Adapter (12 VDC, 1 A) x 1,Binding Tape x 2,Quick Start Guide x1
  • Packing Method: Single unit packing
  • Working Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
  • Working Humidity: 5% to 95% (no condensation)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity: 5% to 95% (no condensation)
  • Installation Mode: Pole Mounting
  • Ingress Protection: IP55
  • Power Consumption: 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W
  • Max. Transmission Rate of Air Interface: = 867 Mbps
  • Wireless Standard: IEEE 802.11/a/n/ac
  • Working Frequency Band: 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
  • Antenna Gain: 12 dBi
  • Antenna Angle: (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
  • Transmitting Power: 22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
  • Receiving Sensitivity: -84±2dBm@AC80-MCS0
  • Throughput Rate: PTP: ,230 Mbps/0.5 KM(AC80),200 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 8): ,80 Mbps/1 KM(AC80)
  • Network Interface: 2 x 1000 Mbps RJ45 ports
  • LED Indicator: Power indicator, LAN indicator, Signal intensity indicator
  • Reset: Hardware resetting button
  • Power Supply: 12 VDC/1 A Passive PoE
  • Application Function: TDMA,DFS,TPC,IFM,IPM
  • Channel Width: 20/40/80 MHz
  • Channel Selection: Auto/manual selection
  • Network Protocol: NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
  • Security Mode: WPA2-PSK
  • Security Mechanism: Wireless network name hidden
  • Management Method: Web,iVMS-4200,HCP
  • Upgrade: Web,iVMS-4200,HCP
  • System Log: Syslog, Control centre information
  • Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • Radio: EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247

Approval
  • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Other
  • Product Dimensions (W x H x D): 92 mm x 187 mm x 58 mm (3.62'' x 7.36'' x 2.28'')
  • Package Dimensions (W x H x D): 132 mm x 228 mm x 91 mm (5.19" x 8.97" x 3.58")
  • Net Weight: 0.307 kg (0.677 lb)
  • Gross Weight: 0.807 kg (1.779 lb)
  • Packing List: Wireless Bridge x 1,Power Adapter (12 VDC, 1 A) x 1,Binding Tape x 2,Quick Start Guide x1
  • Packing Method: Single unit packing
  • Working Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
  • Working Humidity: 5% to 95% (no condensation)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity: 5% to 95% (no condensation)
  • Installation Mode: Pole Mounting
  • Ingress Protection: IP55
  • Power Consumption: 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W
  • Max. Transmission Rate of Air Interface: = 867 Mbps
  • Wireless Standard: IEEE 802.11/a/n/ac
  • Working Frequency Band: 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
  • Antenna Gain: 12 dBi
  • Antenna Angle: (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
  • Transmitting Power: 22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
  • Receiving Sensitivity: -84±2dBm@AC80-MCS0
  • Throughput Rate: PTP: ,230 Mbps/0.5 KM(AC80),200 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 8): ,80 Mbps/1 KM(AC80)
  • Network Interface: 2 x 1000 Mbps RJ45 ports
  • LED Indicator: Power indicator, LAN indicator, Signal intensity indicator
  • Reset: Hardware resetting button
  • Power Supply: 12 VDC/1 A Passive PoE
  • Application Function: TDMA,DFS,TPC,IFM,IPM
  • Channel Width: 20/40/80 MHz
  • Channel Selection: Auto/manual selection
  • Network Protocol: NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
  • Security Mode: WPA2-PSK
  • Security Mechanism: Wireless network name hidden
  • Management Method: Web,iVMS-4200,HCP
  • Upgrade: Web,iVMS-4200,HCP
  • System Log: Syslog, Control centre information
  • Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • Radio: EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247
