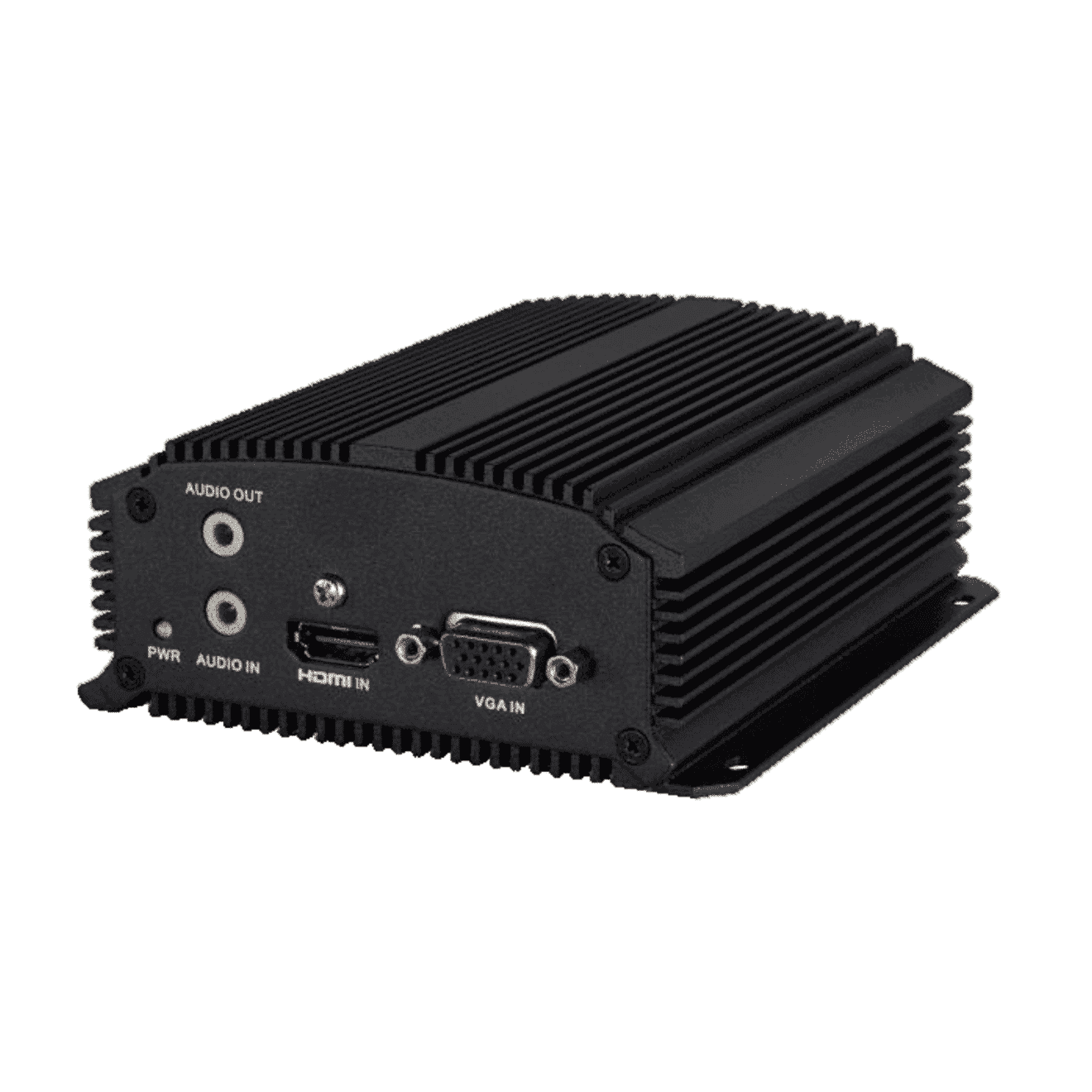

Hikvision DS-6701HUHI Video Encoder

Hikvision DS-6701HUHI Video Encoder

Category: Accessories
|
Brand: Hikvision
  • Accessories
  • Encoders and Decoders
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-6701HUHI Video Encoder
Login to View Price

Specifications

  • Video Compression: MJPEG (sub-stream)/H.265+/H.265/H.264+/H.264
  • Weight: = 1.5 kg (3.3 lb)
  • Frame Rate: Main stream:5 MP@12fps/4 MP@15fps/3 MP@18fps1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF/CIF@25fps (P)/30fps (N)
  • Encoding Resolution: 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Video Bitrate: 32 Kbps to 10 Mbps
  • Dual-stream: Support
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • Analog Video Input: 1-chBNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
  • HDTVI Input: 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  • AHD Input: 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
  • CVBS Input: PAL/NTSC
  • Audio Input: 1-ch, 3.5mm interface (2.0 Vp-p, 1 kO) (LINE IN)
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (using the 1st audio input)
  • Synchronous Playback: 1-ch
  • Network Protocol: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP„¢, HTTPS, ONVIF profile S
  • Network Interface: 1, RJ45 10M/100Mself-adaptive Ethernet interface
  • SD Card: 1 Micro SD card slot, support Micro SD card
  • Capacity: 8G Up to 128 GB
  • Serial Interface: RS-485 (half-duplex); RS-232
  • Alarm In/Out: 1/1
  • Power Supply: 12 VDC, 1.25 A
  • Consumption: = 15W
  • Working Temperature: -10 °C to +55 °C (+144 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 162.5 x 114 x 47.5 mm (6.4 x 4.5 x 1.9 inch)

Video
  • Video Compression: MJPEG (sub-stream)/H.265+/H.265/H.264+/H.264

General
  • Weight: = 1.5 kg (3.3 lb)

Other
  • Frame Rate: Main stream:5 MP@12fps/4 MP@15fps/3 MP@18fps1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF/CIF@25fps (P)/30fps (N)
  • Encoding Resolution: 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Video Bitrate: 32 Kbps to 10 Mbps
  • Dual-stream: Support
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps
  • Analog Video Input: 1-chBNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
  • HDTVI Input: 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  • AHD Input: 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
  • CVBS Input: PAL/NTSC
  • Audio Input: 1-ch, 3.5mm interface (2.0 Vp-p, 1 kO) (LINE IN)
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (using the 1st audio input)
  • Synchronous Playback: 1-ch
  • Network Protocol: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP„¢, HTTPS, ONVIF profile S
  • Network Interface: 1, RJ45 10M/100Mself-adaptive Ethernet interface
  • SD Card: 1 Micro SD card slot, support Micro SD card
  • Capacity: 8G Up to 128 GB
  • Serial Interface: RS-485 (half-duplex); RS-232
  • Alarm In/Out: 1/1
  • Power Supply: 12 VDC, 1.25 A
  • Consumption: = 15W
  • Working Temperature: -10 °C to +55 °C (+144 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 162.5 x 114 x 47.5 mm (6.4 x 4.5 x 1.9 inch)
