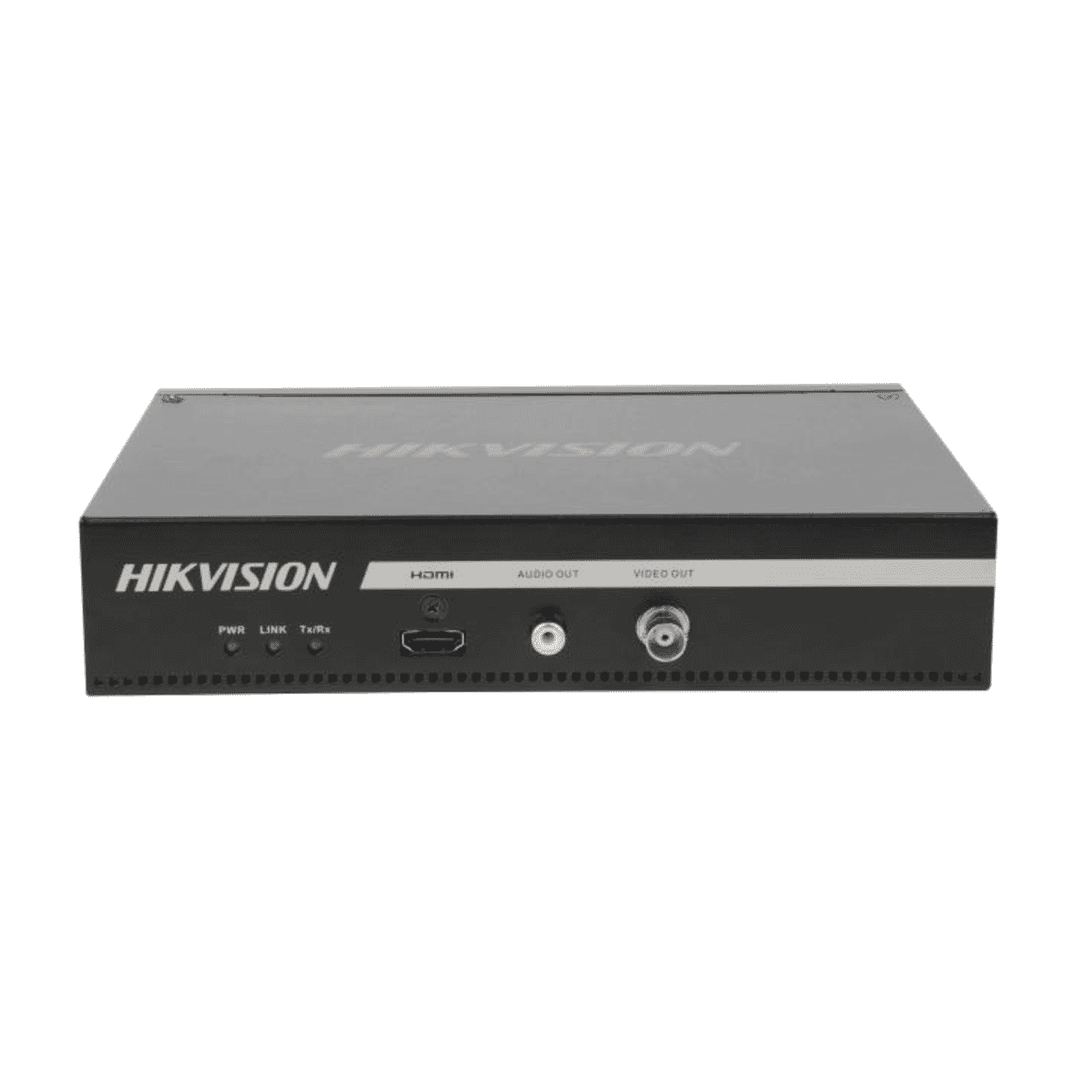

Hikvision DS-6901UDI(C)(STD) HD Video Decoder Single-Channel Display CCTV

Hikvision DS-6901UDI(C)(STD) HD Video Decoder Single-Channel Display CCTV

Category: Accessories
|
Brand: Hikvision
  • Accessories
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-6901UDI(C)(STD) HD Video Decoder Single-Channel Display CCTV
Login to View Price

Specifications

  • Weight: = 1.12 kg (2.47 lb)
  • Network Interface: 1 (10/100/1000 Mbps self-adaptive Ethernet interface)
  • Two-way Audio Out: 1 (3.5 mm connector, 2.0 Vp-p, 1 KO)
  • Serial Interface: RS-232 (RJ45) x 1, RS-485 x 1
  • Two-way Audio In: 1 (3.5 mm connector, 2.0 Vp-p, 1 KO)
  • Audio Output: 1
  • Alarm In: 8
  • Alarm Out: 8
  • Power Supply: 12 VDC
  • Power Consumption: = 15 W
  • Dimensions (W x D x H): 220 mm x 148 mm x 45 mm (8.66 inch x 5.83 inch x 1.77 inch)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Decoding Resolution: Up to 24MP (only for 3 encoder tracks mode)
  • Decoding Channel: 16-ch
  • Decoding Capability: 24MP@30fps: 1-ch, 12MP@20fps: 2-ch, 8MP@30fps: 4-ch, 5MP@30fps: 6-ch, 3MP@30fps: 10-ch, 1080p@30fps: 16-ch,
  • Split Screen: 1/4/6/8/9/12/16
  • Output: HDMI x 1, VGA x 1, BNC x 1
  • Output Resolution: HDMI:4K: 3840 x 2160@30 Hz (for odd interface only), 1080p: 1920 x 1080@50/60 Hz, 720p: 1280 x 720@50 Hz/60 HzBNC:PAL: 704 x 576, NTSC: 704 x 480

General
  • Weight: = 1.12 kg (2.47 lb)

Other
  • Network Interface: 1 (10/100/1000 Mbps self-adaptive Ethernet interface)
  • Two-way Audio Out: 1 (3.5 mm connector, 2.0 Vp-p, 1 KO)
  • Serial Interface: RS-232 (RJ45) x 1, RS-485 x 1
  • Two-way Audio In: 1 (3.5 mm connector, 2.0 Vp-p, 1 KO)
  • Audio Output: 1
  • Alarm In: 8
  • Alarm Out: 8
  • Power Supply: 12 VDC
  • Power Consumption: = 15 W
  • Dimensions (W x D x H): 220 mm x 148 mm x 45 mm (8.66 inch x 5.83 inch x 1.77 inch)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Decoding Resolution: Up to 24MP (only for 3 encoder tracks mode)
  • Decoding Channel: 16-ch
  • Decoding Capability: 24MP@30fps: 1-ch, 12MP@20fps: 2-ch, 8MP@30fps: 4-ch, 5MP@30fps: 6-ch, 3MP@30fps: 10-ch, 1080p@30fps: 16-ch,
  • Split Screen: 1/4/6/8/9/12/16
  • Output: HDMI x 1, VGA x 1, BNC x 1
  • Output Resolution: HDMI:4K: 3840 x 2160@30 Hz (for odd interface only), 1080p: 1920 x 1080@50/60 Hz, 720p: 1280 x 720@50 Hz/60 HzBNC:PAL: 704 x 576, NTSC: 704 x 480
