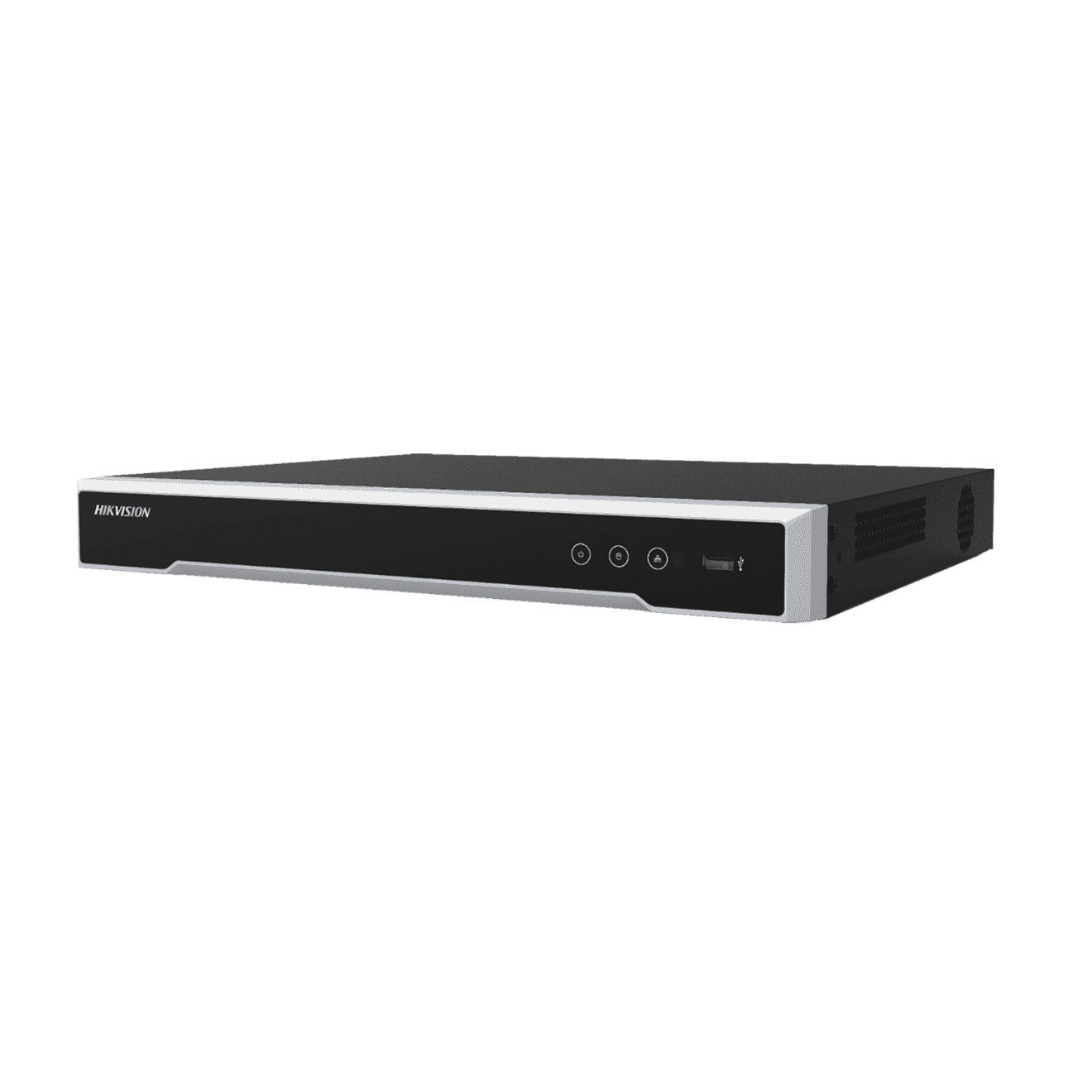

Hikvision DS-7608NI-M2/8P 8-Channel PoE NVR

Hikvision DS-7608NI-M2/8P 8-Channel PoE NVR

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • NVR
  • 8CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-7608NI-M2/8P 8-Channel PoE NVR
Login to View Price

Specifications

  • Power: = 120 W
  • Weight: = 3 kg (without HDD, 2.2 lb.)
  • IP Video Input: 8-chUp to 32 MP resolution*: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Incoming Bandwidth: 128 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • HDMI Output: 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA Output: 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Video Output Mode: HDMI/VGA independent output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input)
  • Dual-Stream Recording: Support
  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)
  • Synchronous Playback: 8-ch
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF*: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Standard: IEEE 802.3 af/at
  • SATA: 2 SATA interfaces
  • Capacity: Up to 14 TB capacity for each HDD
  • Alarm In/Out: 4/1
  • USB Interface: Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 15 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 385 x 315x 52 mm (15.2" x 12.4" x 2.0")
  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

General
  • Power: = 120 W
  • Weight: = 3 kg (without HDD, 2.2 lb.)

Other
  • IP Video Input: 8-chUp to 32 MP resolution*: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Incoming Bandwidth: 128 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • HDMI Output: 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA Output: 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Video Output Mode: HDMI/VGA independent output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input)
  • Dual-Stream Recording: Support
  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)
  • Synchronous Playback: 8-ch
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF*: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Standard: IEEE 802.3 af/at
  • SATA: 2 SATA interfaces
  • Capacity: Up to 14 TB capacity for each HDD
  • Alarm In/Out: 4/1
  • USB Interface: Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 15 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 385 x 315x 52 mm (15.2" x 12.4" x 2.0")
  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
