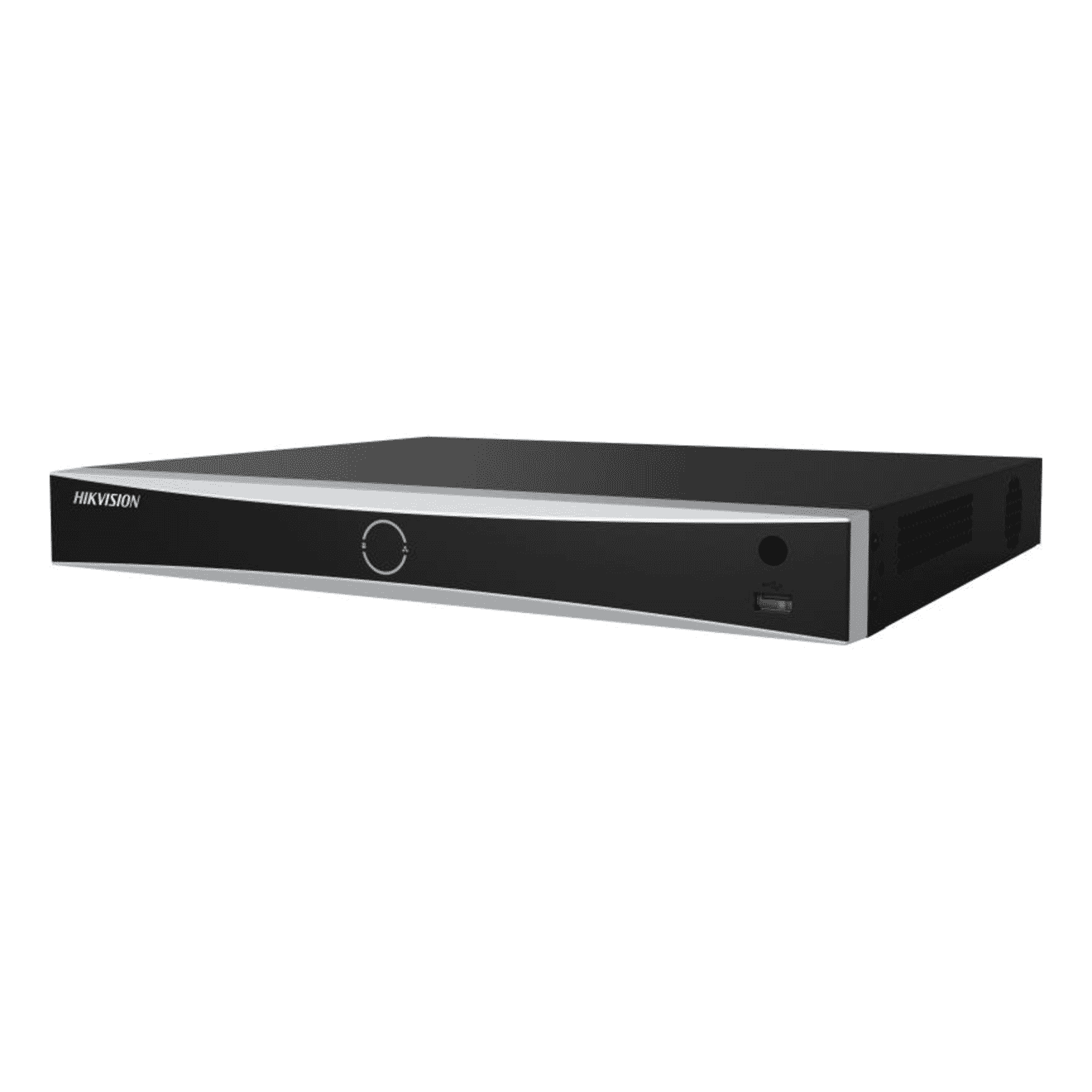

Hikvision DS-7608NXI-I2/8P/S(STD)(E) 8-Ch 4K NVR AcuSense 8-Port PoE

Hikvision DS-7608NXI-I2/8P/S(STD)(E) 8-Ch 4K NVR AcuSense 8-Port PoE

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • NVR
  • 8CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-7608NXI-I2/8P/S(STD)(E) 8-Ch 4K NVR AcuSense 8-Port PoE
Login to View Price

Specifications

  • Power: = 120W
  • Weight: = 3 kg (6.6 lb)
  • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture = 512 KB, total capacity = 150 MB)
  • Face Picture Comparison: 4-ch face picture comparison alarm
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
  • Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • IP Video Input: 8
  • Incoming Bandwidth: 80 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • HDMI Output: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Video Output Mode: HDMI/VGA independent output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO)
  • Decoding Format: H.265, H.265+, H.264, H.264+, MPEG4
  • Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Playback Mode: Normal/Smart, Event, Tag, Eternal File
  • Synchronous playback: 8-ch
  • Live View Window Division: 1/4/6/8/9/16
  • Aux Port Window Division: 1/4/6/8/9/16
  • Decoding Capability: 16-ch @ 1080p (30 fps)
  • Audio Compression: G.711ulaw, G.711alaw, G.722, G.726, MP2L2
  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Standard: IEEE 802.3 af/at
  • SATA: 2 SATA interfaces
  • Capacity: Up to 8 TB capacity for each disk
  • Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
  • Alarm In/Out: 4/1
  • USB Interface: Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0
  • Power Supply: = 180 W
  • Consumption: = 15W
  • Working Temperature: -10„ƒ~＋55„ƒ
  • Working Humidity: 10ï¼…~90ï¼…
  • Chassis: 1U
  • Dimension (W x D x H): 385 x 315 x52 mm (11.6"x 9.5" x 1.6")

General
  • Power: = 120W
  • Weight: = 3 kg (6.6 lb)

Other
  • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture = 512 KB, total capacity = 150 MB)
  • Face Picture Comparison: 4-ch face picture comparison alarm
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
  • Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • IP Video Input: 8
  • Incoming Bandwidth: 80 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • HDMI Output: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Video Output Mode: HDMI/VGA independent output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO)
  • Decoding Format: H.265, H.265+, H.264, H.264+, MPEG4
  • Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Playback Mode: Normal/Smart, Event, Tag, Eternal File
  • Synchronous playback: 8-ch
  • Live View Window Division: 1/4/6/8/9/16
  • Aux Port Window Division: 1/4/6/8/9/16
  • Decoding Capability: 16-ch @ 1080p (30 fps)
  • Audio Compression: G.711ulaw, G.711alaw, G.722, G.726, MP2L2
  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Standard: IEEE 802.3 af/at
  • SATA: 2 SATA interfaces
  • Capacity: Up to 8 TB capacity for each disk
  • Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
  • Alarm In/Out: 4/1
  • USB Interface: Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0
  • Power Supply: = 180 W
  • Consumption: = 15W
  • Working Temperature: -10„ƒ~＋55„ƒ
  • Working Humidity: 10ï¼…~90ï¼…
  • Chassis: 1U
  • Dimension (W x D x H): 385 x 315 x52 mm (11.6"x 9.5" x 1.6")
