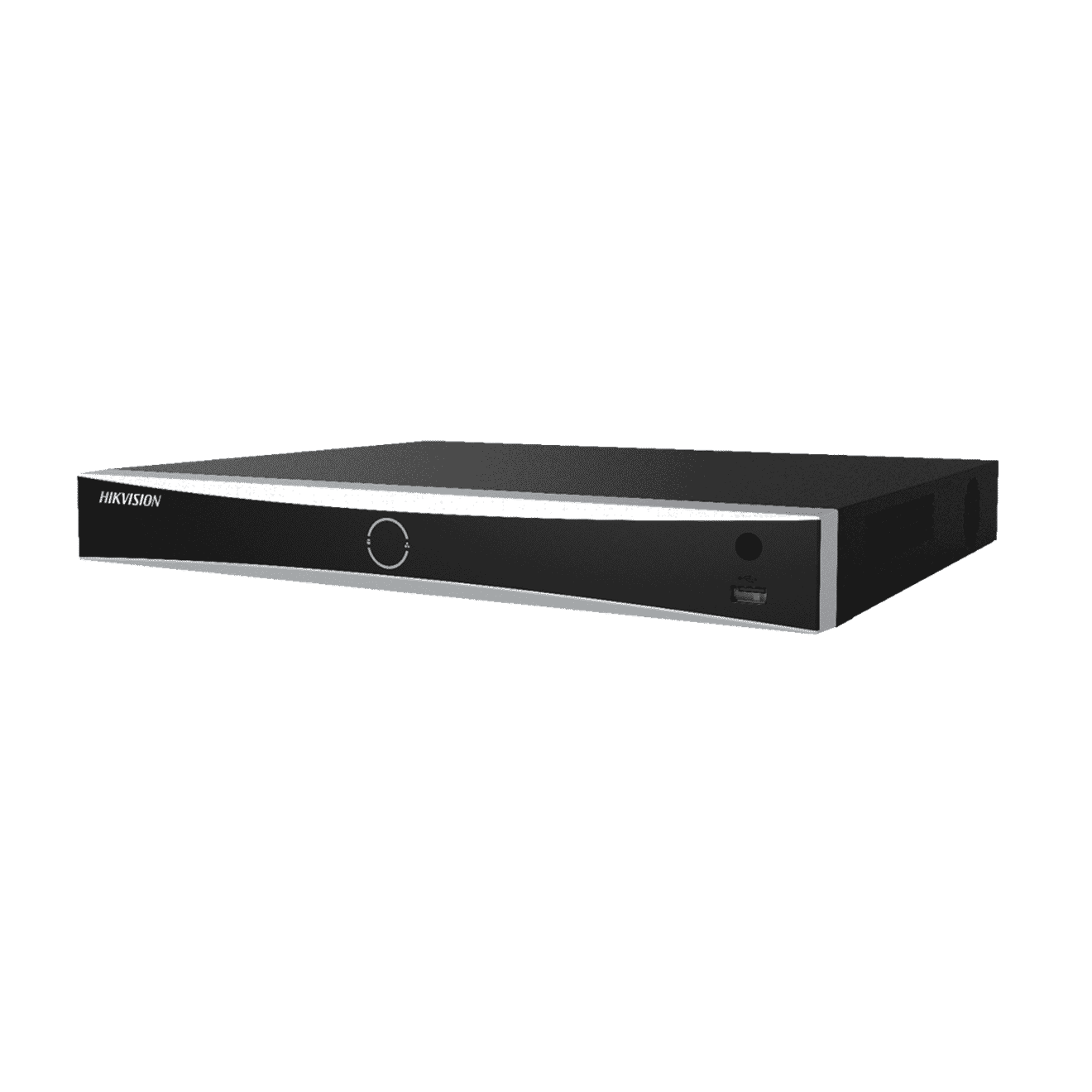

HIKVISION DS-7616NXI-K2/16P(D) 16CH ACUSENSE NVR, 16 X POE

HIKVISION DS-7616NXI-K2/16P(D) 16CH ACUSENSE NVR, 16 X POE

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • NVR
  • 16CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HIKVISION DS-7616NXI-K2/16P(D) 16CH ACUSENSE NVR, 16 X POE
Login to View Price

Specifications

  • API: ONVIF (profile S/G); SDK; ISAPI
  • Power: = 200 W
  • Weight: = 3 kg (without HDD, 6.6 lb.)
  • AI by Device: Facial recognition, perimeter protection, motion detection 2.0
  • AI by Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture = 4 MB, total capacity = 1 GB)
  • Facial Detection and Analytics Performance: 1-ch, 8 MP
  • Face Picture Comparison: 4-ch
  • By Camera: All channels
  • By Device: 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • IP Video Input: 16-ch
  • Incoming Bandwidth: 160 Mbps
  • Outgoing Bandwidth: 160 Mbps
  • HDMI Output: 1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • VGA Output: 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
  • Video Output Mode: HDMI/VGA independent output
  • CVBS Output: N/A
  • Audio Output: 1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input)
  • Two-Way Audio: 1-ch, RCA (Linear, 1 KO)
  • Decoding Format: H.265/H.265+/H.264+/H.264
  • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback: 16-ch
  • Decoding Capability: AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
  • Remote Connection: 128
  • Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Standard: IEEE 802.3af/at
  • SATA: 2 SATA interfaces
  • Capacity: Up to 16 TB capacity for each HDD
  • USB Interface: Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
  • Alarm In/Out: 4/1
  • GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 15 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 385 mm x 315 mm x 52 mm (15.2"x 12.4" x 2.0")
  • CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
  • Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
