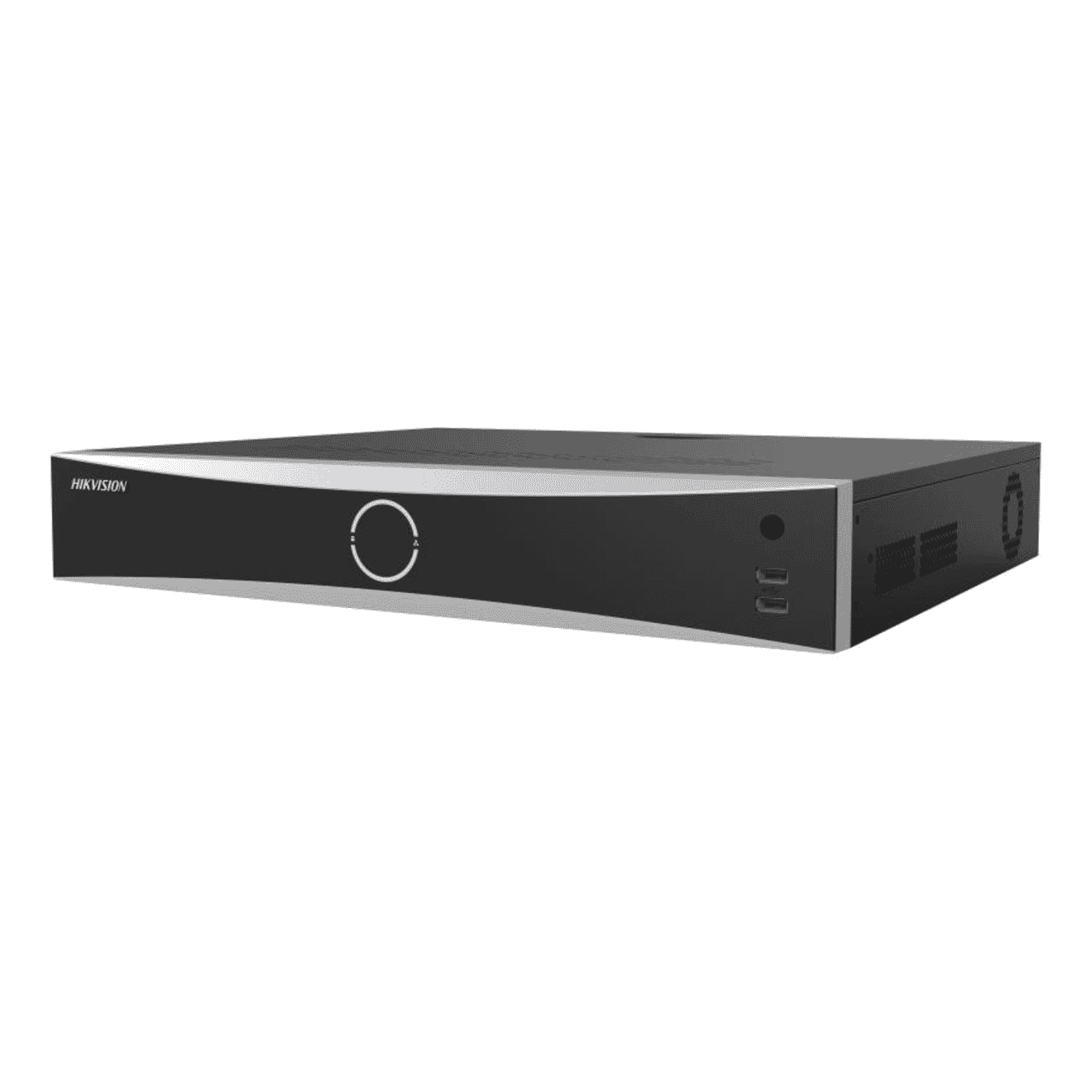

Hikvision DS-7716NXI-I4/S(STD)(E) 16-Ch 4K NVR AcuSense

Hikvision DS-7716NXI-I4/S(STD)(E) 16-Ch 4K NVR AcuSense

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • NVR
  • 16CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-7716NXI-I4/S(STD)(E) 16-Ch 4K NVR AcuSense
Login to View Price

Specifications

  • Weight: = 5.6 kg (12.3 lb)
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture = 512 KB, total capacity = 150 MB)
  • Face Picture Comparison: 4-ch face picture comparison alarm
  • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
  • Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;Up to 12 rules in total
  • IP Video Input: 16-chUp to 12 MP resolution*: 32 MP and 24 MP is only available for channel 1 when ultra-HD resolution mode is enabled.
  • Incoming Bandwidth: 160 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • HDMI 1 Output: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI1/VGA simultaneous output
  • HDMI 2 Output: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI2/VGA independent output
  • VGA Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz,HDMI1/VGA simultaneous output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO)
  • Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF*: 32 MP and 24 MP is only available for channel 1 when ultra-HD resolution mode is enabled.
  • Playback Mode: Normal/Smart, Event, Tag, Eternal File
  • Synchronous Playback: 16-ch
  • Live View Window Division: 1/2/4/6/8/9/16
  • Aux Port Window Division: 1/2/4/6/8/9/16
  • Decoding Capability: 16-ch @ 1080p (30 fps)
  • Dual-Stream Recording: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2
  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
  • SATA: 4 SATA interfaces supporting hot-plug
  • Capacity: Up to 10 TB capacity for each disk
  • eSATA: 1 eSATA interface
  • Alarm In/Out: 16/4
  • USB Interface: Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 30 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Chassis: 19-inch rack-mounted 1.5U chassis
  • Dimension (W x D x H): 445 x 400 x75 mm (17.5"x 15.7" x 3.0")
  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

General
  • Weight: = 5.6 kg (12.3 lb)

Other
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture = 512 KB, total capacity = 150 MB)
  • Face Picture Comparison: 4-ch face picture comparison alarm
  • Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
  • Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;Up to 12 rules in total
  • IP Video Input: 16-chUp to 12 MP resolution*: 32 MP and 24 MP is only available for channel 1 when ultra-HD resolution mode is enabled.
  • Incoming Bandwidth: 160 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • HDMI 1 Output: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI1/VGA simultaneous output
  • HDMI 2 Output: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI2/VGA independent output
  • VGA Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz,HDMI1/VGA simultaneous output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO)
  • Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF*: 32 MP and 24 MP is only available for channel 1 when ultra-HD resolution mode is enabled.
  • Playback Mode: Normal/Smart, Event, Tag, Eternal File
  • Synchronous Playback: 16-ch
  • Live View Window Division: 1/2/4/6/8/9/16
  • Aux Port Window Division: 1/2/4/6/8/9/16
  • Decoding Capability: 16-ch @ 1080p (30 fps)
  • Dual-Stream Recording: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/MP2L2
  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
  • SATA: 4 SATA interfaces supporting hot-plug
  • Capacity: Up to 10 TB capacity for each disk
  • eSATA: 1 eSATA interface
  • Alarm In/Out: 16/4
  • USB Interface: Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 30 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Chassis: 19-inch rack-mounted 1.5U chassis
  • Dimension (W x D x H): 445 x 400 x75 mm (17.5"x 15.7" x 3.0")
  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
