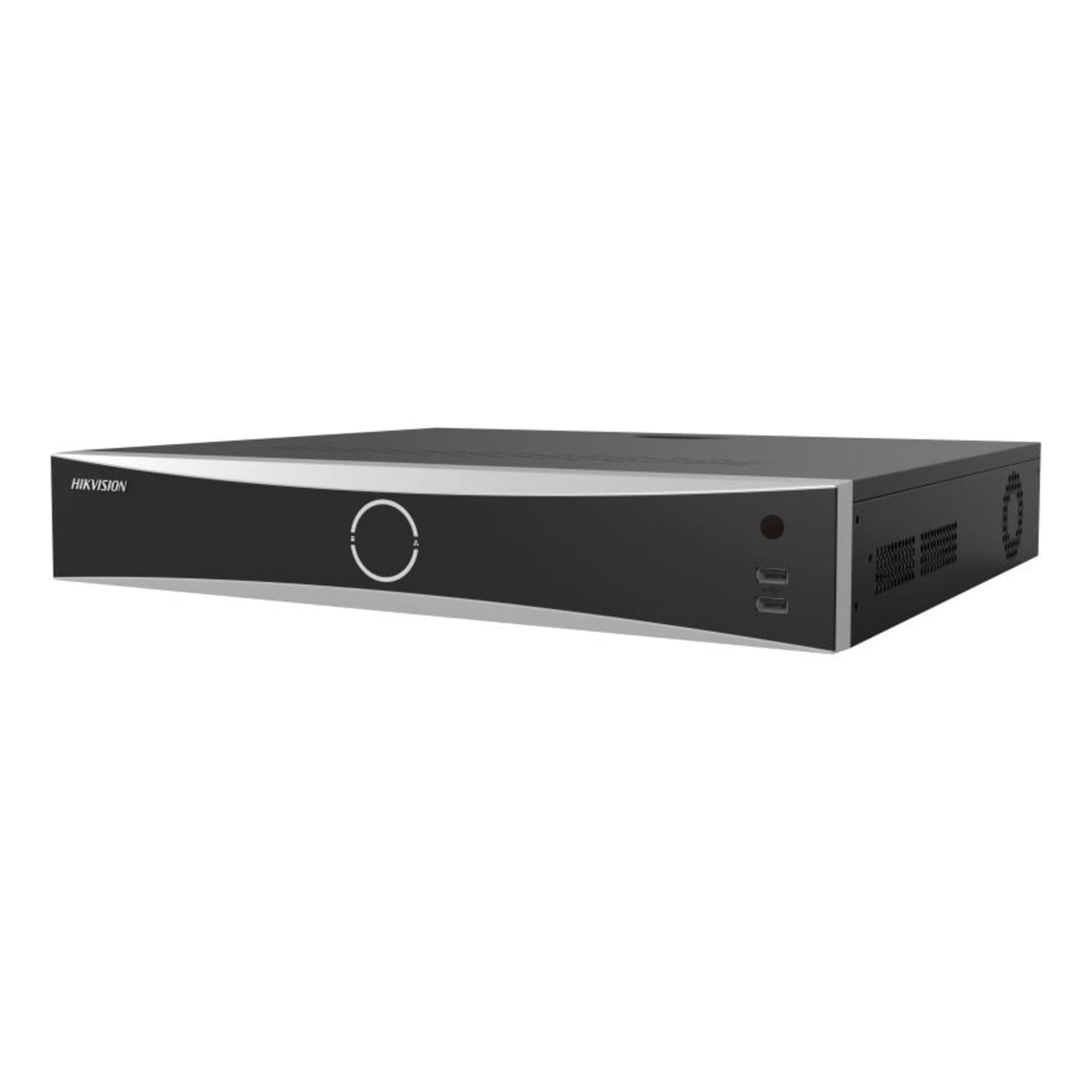

Hikvision DS-7732NXI-I4/16P/S(E) 32-Channel 4K NVR 16-Port PoE AcuSense CCTV

Hikvision DS-7732NXI-I4/16P/S(E) 32-Channel 4K NVR 16-Port PoE AcuSense CCTV

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • NVR
  • 32CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-7732NXI-I4/16P/S(E) 32-Channel 4K NVR 16-Port PoE AcuSense CCTV
Login to View Price

Specifications

  • API: ONVIF (profile S/G); SDK; ISAPI
  • Power: = 200 W
  • Weight: = 3.6 kg (without HDD, 7.9 lb.)
  • AI by Device: Facial recognition, perimeter protection, motion detection 2.0
  • AI by Camera: Facial recognition, perimeter protection, video structurization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
  • Engine: 1, engine mode is adjustable
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Face Attributes: Wearing glasses, wearing a mask, facial expression, body temperature
  • Face Picture Library: Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture = 512 KB, total capacity = 1 GB)
  • Face Picture Comparison (Captured from Camera): 8-ch
  • Facial Detection and Analytics Performance: 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
  • By Device: 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;Up to 12 rules in total
  • By Camera: All channels
  • Vehicle Attributes: Plate number, license plate colour, license plate type
  • Plate Attributes: Vehicle brand, vehicle colour, vehicle type
  • IP Video Input: 32-ch
  • Incoming Bandwidth: 256 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • HDMI 1 Output: 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz
  • HDMI 2 Output: 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz
  • VGA Output: 1920 x 1080/60 Hz
  • Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO)
  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
  • Synchronous Playback: 16-ch
  • Decoding Capability: Enable AI by NVR: 20-ch@1080p (30 fps)Disable AI by NVR: 32-ch@1080p (30 fps)
  • Dual-Stream Recording: Support
  • Stream Type: Video, Video & Audio
  • Live View Window Division: 1/2/4/6/8/9/16/25/32/36
  • Aux Port Window Division: 1/2/4/6/8/9/16/25/32/36
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
  • Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Camera Access Protocol: ONVIF(Version 2.5), RTSP
  • Standard: IEEE 802.3 af/at
  • Serial Interface: 2 RS-485 (half-duplex), 1 RS-232
  • SATA: 4 SATA interfaces
  • eSATA: 1 eSATA interface
  • Capacity: Up to 16 TB capacity for each disk
  • Alarm In/Out: 16/9
  • USB Interface: Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
  • Ctrl 12V: Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered.*: The Ctrl 12V power is controlled by alarm output 9.
  • DC 12V: 12 VDC, 1 A power output
  • GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 30 W (without HDD and PoE off)
  • Working Temperature: -10° C to 55° C (14° F to 131° F)
  • Working Humidity: 10% to 90%
  • Chassis: 19-inch rack-mounted 1.5U chassis
  • Dimension (W x D x H): 440 x 391 x 75 mm ( 17.3"x 15.4" x 3.0")
  • Obtained Certification: CE, CB, REACH, WEEE, UKCA, LOA
  • CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Video
  • API: ONVIF (profile S/G); SDK; ISAPI

General
  • Power: = 200 W
  • Weight: = 3.6 kg (without HDD, 7.9 lb.)

Other
  • AI by Device: Facial recognition, perimeter protection, motion detection 2.0
  • AI by Camera: Facial recognition, perimeter protection, video structurization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
  • Engine: 1, engine mode is adjustable
  • Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
  • Face Attributes: Wearing glasses, wearing a mask, facial expression, body temperature
  • Face Picture Library: Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture = 512 KB, total capacity = 1 GB)
  • Face Picture Comparison (Captured from Camera): 8-ch
  • Facial Detection and Analytics Performance: 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
  • By Device: 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;Up to 12 rules in total
  • By Camera: All channels
  • Vehicle Attributes: Plate number, license plate colour, license plate type
  • Plate Attributes: Vehicle brand, vehicle colour, vehicle type
  • IP Video Input: 32-ch
  • Incoming Bandwidth: 256 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • HDMI 1 Output: 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz
  • HDMI 2 Output: 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz
  • VGA Output: 1920 x 1080/60 Hz
  • Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 1-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO)
  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
  • Synchronous Playback: 16-ch
  • Decoding Capability: Enable AI by NVR: 20-ch@1080p (30 fps)Disable AI by NVR: 32-ch@1080p (30 fps)
  • Dual-Stream Recording: Support
  • Stream Type: Video, Video & Audio
  • Live View Window Division: 1/2/4/6/8/9/16/25/32/36
  • Aux Port Window Division: 1/2/4/6/8/9/16/25/32/36
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
  • Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Camera Access Protocol: ONVIF(Version 2.5), RTSP
  • Standard: IEEE 802.3 af/at
  • Serial Interface: 2 RS-485 (half-duplex), 1 RS-232
  • SATA: 4 SATA interfaces
  • eSATA: 1 eSATA interface
  • Capacity: Up to 16 TB capacity for each disk
  • Alarm In/Out: 16/9
  • USB Interface: Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
  • Ctrl 12V: Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered.*: The Ctrl 12V power is controlled by alarm output 9.
  • DC 12V: 12 VDC, 1 A power output
  • GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 30 W (without HDD and PoE off)
  • Working Temperature: -10° C to 55° C (14° F to 131° F)
  • Working Humidity: 10% to 90%
  • Chassis: 19-inch rack-mounted 1.5U chassis
  • Dimension (W x D x H): 440 x 391 x 75 mm ( 17.3"x 15.4" x 3.0")
  • Obtained Certification: CE, CB, REACH, WEEE, UKCA, LOA
  • CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
