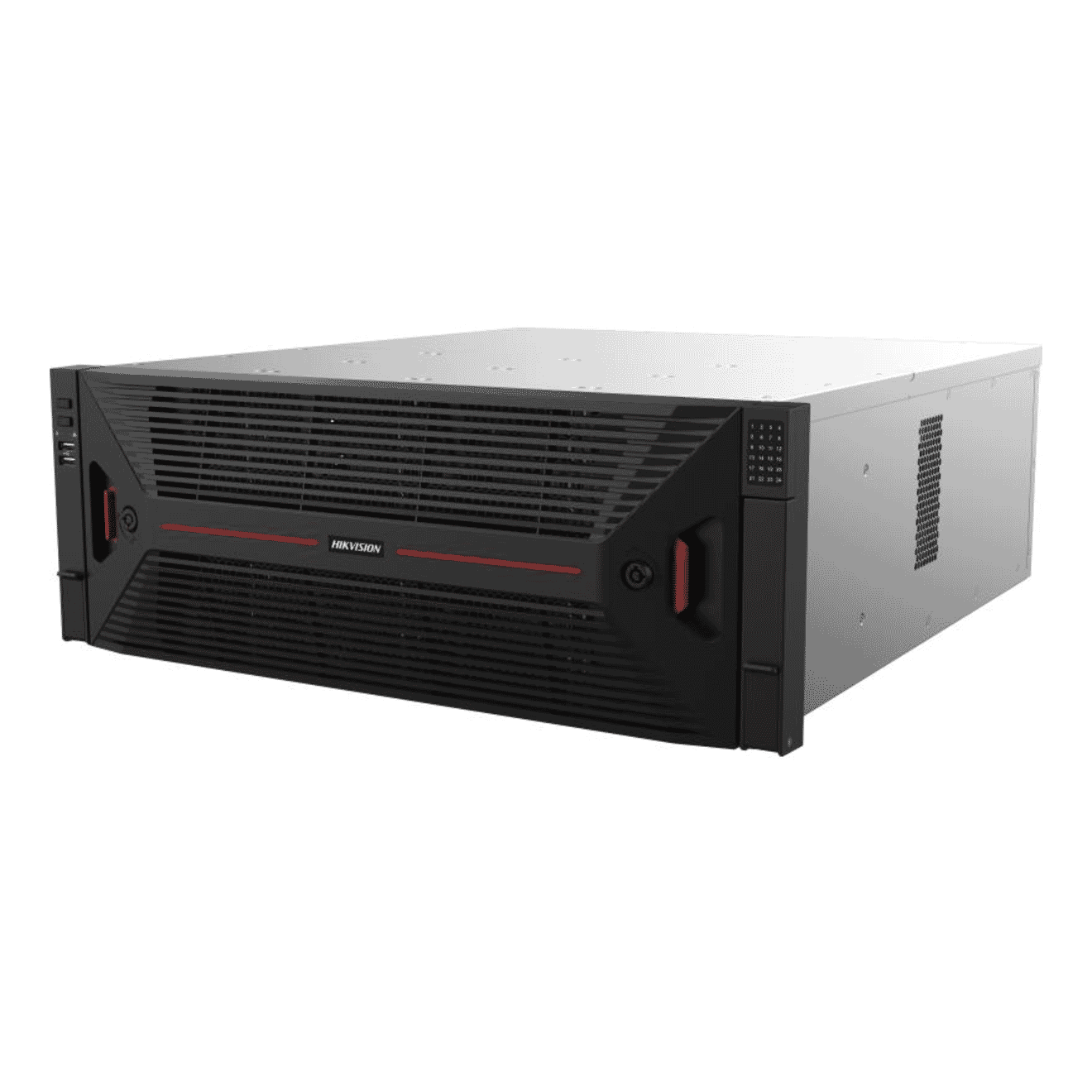

Hikvision DS-96256NI-H24R 256-Channel 4U 8K Super NVR, Advanced AI Analytics

Hikvision DS-96256NI-H24R 256-Channel 4U 8K Super NVR, Advanced AI Analytics

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • NVR
  • 256CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-96256NI-H24R 256-Channel 4U 8K Super NVR, Advanced AI Analytics
Login to View Price

Specifications

  • Weight: =25 kg (without HDD, 55.1 lb.)
  • IP Video Input: 256-ch
  • Incoming Bandwidth: 1280 Mbps
  • Outgoing Bandwidth: 1280 Mbps
  • Incoming Bandwidth (RAID Mode): 1280Mbps
  • Outgoing Bandwidth (RAID mode): 1280 Mbps
  • HDMI 1 Output: 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • HDMI 2 Output: 4K (3840 x 2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • VGA Output: 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • DP 1: 8K (7680 x 4320)/30Hz, 4K (4096x2160)/30 Hz, 4K (3840x2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • DP 2: 8K (7680 x 4320)/30Hz, 4K (4096x2160)/30 Hz, 4K (3840x2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • V-DP 1: 8K (7680 x 4320)/30Hz, 4K (4096x2160)/30 Hz, 4K (3840x2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • V-DP 2: 8K (7680 x 4320)/30Hz, 4K (4096x2160)/30 Hz, 4K (3840x2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • Video Output Mode: Provide 4 groups of video outputs. The video outputs in the same group provide simultaneous output, and the video outputs between each group provide independent output.Group 1: HDMI 1/VGA/LCDGroup 2: HDMI 2Group 3: DP 1/V-DP 1Group 4: DP 2/V-DP 2Note: After enabling DP 1/DP 2, V-DP 1/V-DP 2 would be unavailable.
  • Audio Output: 1-ch, 3.5mm
  • Two-Way Audio: 1-ch, 3.5mm
  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback: 16-ch
  • Decoding Capability: 3-ch@32 MP (30 fps)/3-ch@24 MP (30fps)/6-ch@16 MP (30fps)/12-ch@8 MP (30fps)/24-ch@4 MP (30fps)/48-ch@2 MP (30fps)*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
  • Network Interface: 4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Remote Connection: 256
  • RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
  • eSATA: 1 eSATA interface
  • SATA: 24 SATA interfaces supporting hot-plug
  • Capacity: Up to 20 TB for each HDD
  • Serial Interface: 1 RS-485 (full-duplex), 1 RS-232
  • Alarm In/Out: 16/8
  • USB Interface: Front panel: 2 x USB 2.0; Rear panel: 4 x USB 3.0
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz, redundant power supply
  • Consumption: = 75 W (without HDD)
  • Working Temperature: 0 °C to + 50 °C (32 °F to 122 °F)
  • Working Humidity: 10% to 90%
  • Chassis: 4U chassis
  • Dimension (W x D x H): 447 x 489 x 173 mm (17.6" x 19.3" x 6.8")

General
  • Weight: =25 kg (without HDD, 55.1 lb.)

Other
  • IP Video Input: 256-ch
  • Incoming Bandwidth: 1280 Mbps
  • Outgoing Bandwidth: 1280 Mbps
  • Incoming Bandwidth (RAID Mode): 1280Mbps
  • Outgoing Bandwidth (RAID mode): 1280 Mbps
  • HDMI 1 Output: 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • HDMI 2 Output: 4K (3840 x 2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • VGA Output: 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • DP 1: 8K (7680 x 4320)/30Hz, 4K (4096x2160)/30 Hz, 4K (3840x2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • DP 2: 8K (7680 x 4320)/30Hz, 4K (4096x2160)/30 Hz, 4K (3840x2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • V-DP 1: 8K (7680 x 4320)/30Hz, 4K (4096x2160)/30 Hz, 4K (3840x2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • V-DP 2: 8K (7680 x 4320)/30Hz, 4K (4096x2160)/30 Hz, 4K (3840x2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
  • Video Output Mode: Provide 4 groups of video outputs. The video outputs in the same group provide simultaneous output, and the video outputs between each group provide independent output.Group 1: HDMI 1/VGA/LCDGroup 2: HDMI 2Group 3: DP 1/V-DP 1Group 4: DP 2/V-DP 2Note: After enabling DP 1/DP 2, V-DP 1/V-DP 2 would be unavailable.
  • Audio Output: 1-ch, 3.5mm
  • Two-Way Audio: 1-ch, 3.5mm
  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback: 16-ch
  • Decoding Capability: 3-ch@32 MP (30 fps)/3-ch@24 MP (30fps)/6-ch@16 MP (30fps)/12-ch@8 MP (30fps)/24-ch@4 MP (30fps)/48-ch@2 MP (30fps)*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
  • Network Interface: 4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Remote Connection: 256
  • RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
  • eSATA: 1 eSATA interface
  • SATA: 24 SATA interfaces supporting hot-plug
  • Capacity: Up to 20 TB for each HDD
  • Serial Interface: 1 RS-485 (full-duplex), 1 RS-232
  • Alarm In/Out: 16/8
  • USB Interface: Front panel: 2 x USB 2.0; Rear panel: 4 x USB 3.0
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz, redundant power supply
  • Consumption: = 75 W (without HDD)
  • Working Temperature: 0 °C to + 50 °C (32 °F to 122 °F)
  • Working Humidity: 10% to 90%
  • Chassis: 4U chassis
  • Dimension (W x D x H): 447 x 489 x 173 mm (17.6" x 19.3" x 6.8")
