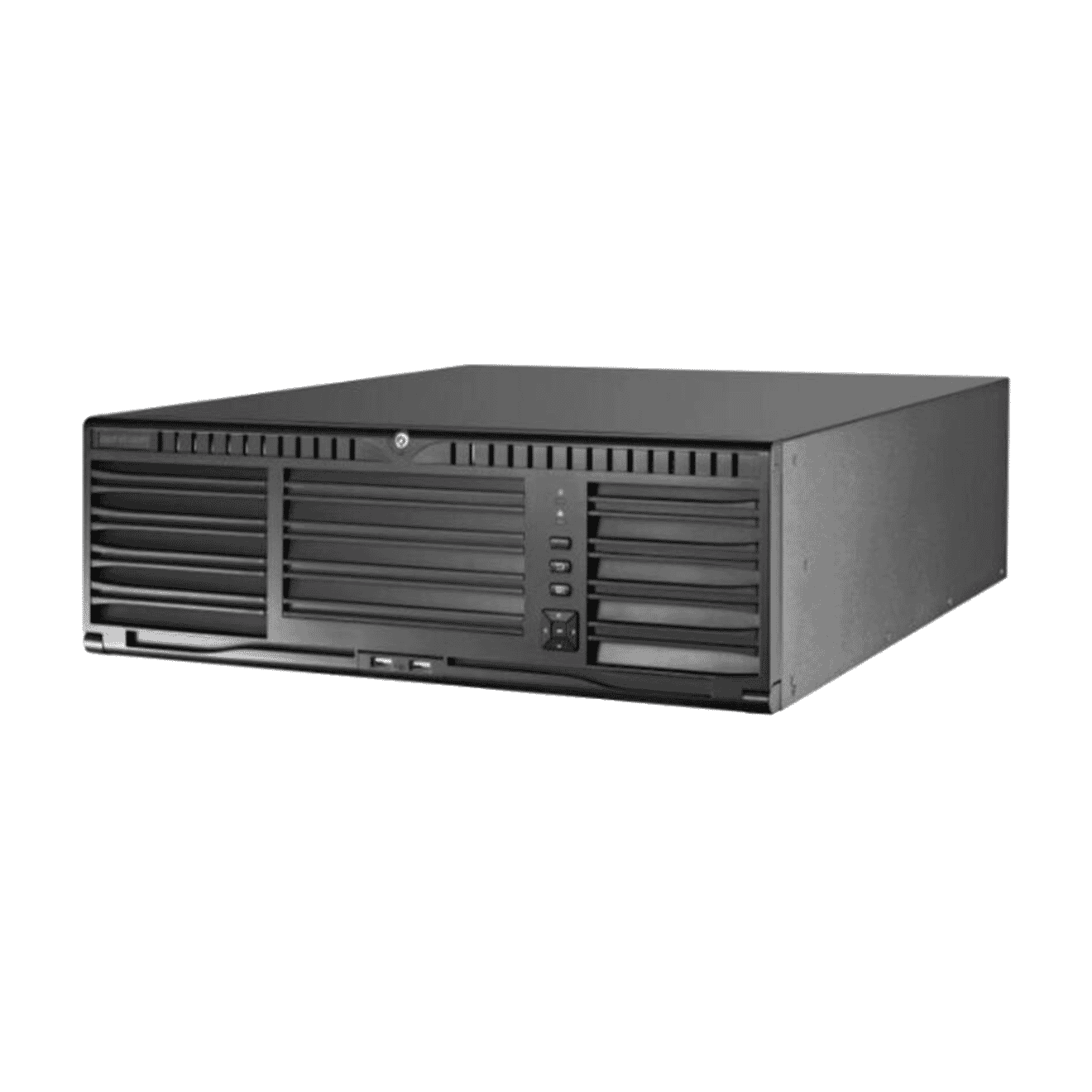

Hikvision DS-96256NI-I16 256-Channel 4K NVR, 16 HDD Bays, Enterprise-Level

Hikvision DS-96256NI-I16 256-Channel 4K NVR, 16 HDD Bays, Enterprise-Level

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • NVR
  • 256CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-96256NI-I16 256-Channel 4K NVR, 16 HDD Bays, Enterprise-Level
Login to View Price

Specifications

  • Weight: = 16 kg (35.3 lb)
  • IP Video Input: 256-ch
  • Incoming Bandwidth (RAID Mode): 768 Mbps
  • Outgoing Bandwidth: 768 Mbps
  • Incoming Bandwidth: 768 Mbps
  • Outgoing Bandwidth (RAID mode): 768 Mbps
  • TLS outgoing bandwidth: 128 Mbps, or 64 Mbps (when RAID is enabled)
  • HDMI Output: Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 x 2160), 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1080p (1920 x 1080)/60Hz, UXGA (1600 x 1200)/60Hz, SXGA (1280 x 1024)/60Hz, 720p (1280 x 720)/60Hz, XGA (1024 x 768)/60Hz
  • VGA Output: 1-ch. Resolution: 1080p (1920 x 1080)/60Hz, UXGA (1600 x 1200)/60Hz, SXGA (1280 x 1024)/60Hz, 720p (1280 x 720)/60Hz, XGA (1024 x 768)/60Hz
  • LCD Output: Optional: One 7 inch LCD
  • Audio Output: 1-ch. RCA (2.0 Vp-p, 1 K„¦)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K„¦)
  • Decoding Format: H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
  • Synchronous playback: Up to 16 channels
  • Decoding Capability: 1-ch@32 MP (8160 x 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
  • Network Protocol: IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
  • Camera Access Protocol: HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
  • Network Interface: 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • RAID Type: RAID0, RAID1, RAID5, RAID 6, and RAID10
  • SATA: 16 SATA interfaces supporting hot-plug
  • eSATA: 1 x eSATA interface
  • mini SAS: 2 x mini SAS interface (optional)
  • Capacity: Up to 10 TB for each HDD
  • Serial Interface: RS-232; RS-485; Keyboard
  • USB Interface: Front Panel: 2 x USB 2.0; Rear Panel: 2 x USB 3.0
  • Alarm In/Out: 16/8
  • Extension Board: One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
  • Power Supply: 100 to 240 VAC, 50 to 60Hz, 5 A
  • Consumption: = 140W
  • Working Temperature: 0 °C to + 50 °C (32 °F to 122 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 442 x 494 x 146 mm (17.4 x 19.4 x 5.7 inch)

General
  • Weight: = 16 kg (35.3 lb)

Other
  • IP Video Input: 256-ch
  • Incoming Bandwidth (RAID Mode): 768 Mbps
  • Outgoing Bandwidth: 768 Mbps
  • Incoming Bandwidth: 768 Mbps
  • Outgoing Bandwidth (RAID mode): 768 Mbps
  • TLS outgoing bandwidth: 128 Mbps, or 64 Mbps (when RAID is enabled)
  • HDMI Output: Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 x 2160), 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1080p (1920 x 1080)/60Hz, UXGA (1600 x 1200)/60Hz, SXGA (1280 x 1024)/60Hz, 720p (1280 x 720)/60Hz, XGA (1024 x 768)/60Hz
  • VGA Output: 1-ch. Resolution: 1080p (1920 x 1080)/60Hz, UXGA (1600 x 1200)/60Hz, SXGA (1280 x 1024)/60Hz, 720p (1280 x 720)/60Hz, XGA (1024 x 768)/60Hz
  • LCD Output: Optional: One 7 inch LCD
  • Audio Output: 1-ch. RCA (2.0 Vp-p, 1 K„¦)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K„¦)
  • Decoding Format: H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
  • Synchronous playback: Up to 16 channels
  • Decoding Capability: 1-ch@32 MP (8160 x 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
  • Network Protocol: IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
  • Camera Access Protocol: HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
  • Network Interface: 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • RAID Type: RAID0, RAID1, RAID5, RAID 6, and RAID10
  • SATA: 16 SATA interfaces supporting hot-plug
  • eSATA: 1 x eSATA interface
  • mini SAS: 2 x mini SAS interface (optional)
  • Capacity: Up to 10 TB for each HDD
  • Serial Interface: RS-232; RS-485; Keyboard
  • USB Interface: Front Panel: 2 x USB 2.0; Rear Panel: 2 x USB 3.0
  • Alarm In/Out: 16/8
  • Extension Board: One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
  • Power Supply: 100 to 240 VAC, 50 to 60Hz, 5 A
  • Consumption: = 140W
  • Working Temperature: 0 °C to + 50 °C (32 °F to 122 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W x D x H): 442 x 494 x 146 mm (17.4 x 19.4 x 5.7 inch)
