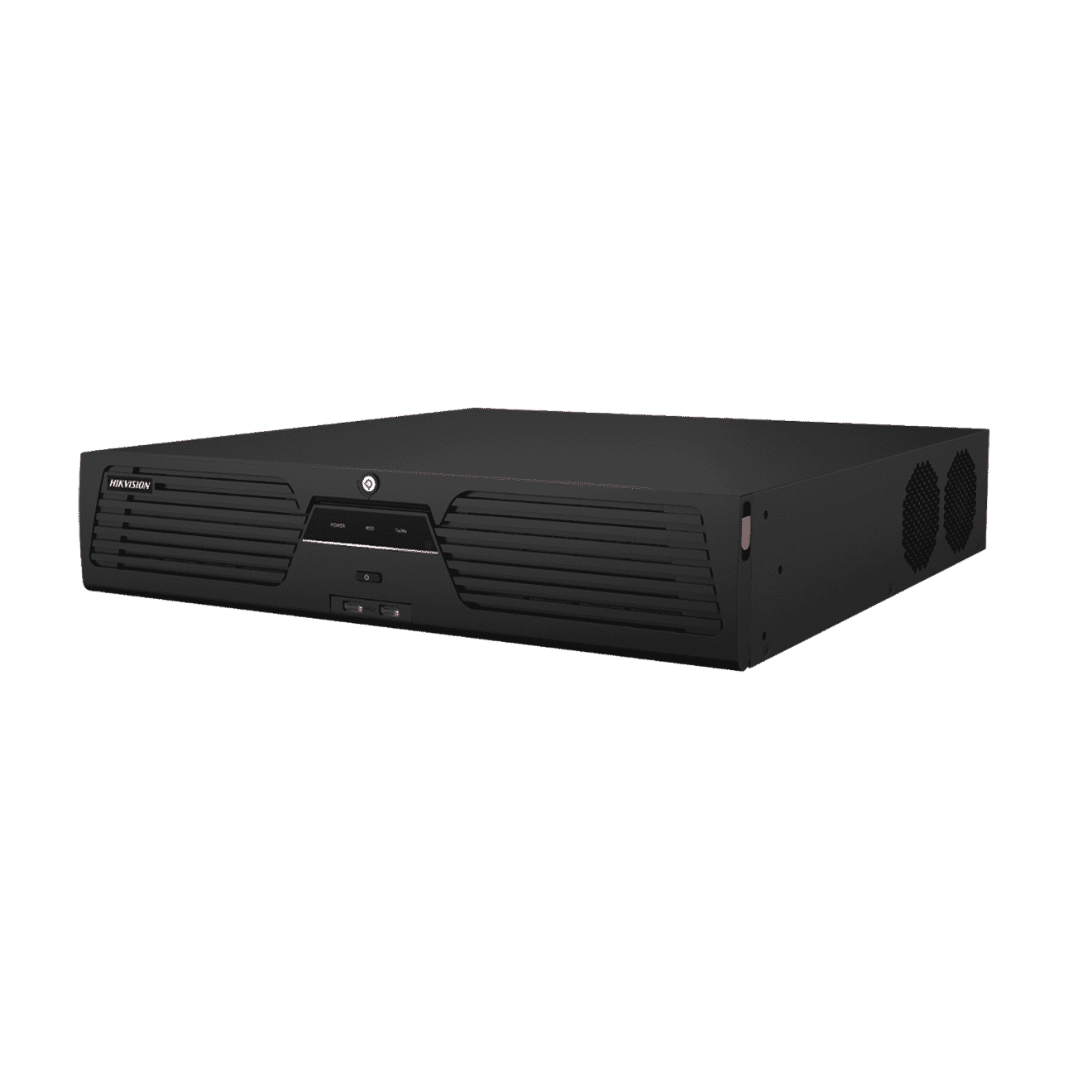

Hikvision DS-9632NI-M8 32-Channel NVR

Hikvision DS-9632NI-M8 32-Channel NVR

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • NVR
  • 32CH
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-9632NI-M8 32-Channel NVR
Login to View Price

Specifications

  • Weight: = 10 kg (without HDD, 22 lb.)
  • IP Video Input: 32-ch
  • Incoming Bandwidth: 320 Mbps
  • Outgoing Bandwidth: 400 Mbps
  • HDMI 1 Output: 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • HDMI 2 Output: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
  • VGA 1 Output: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA 2 Output: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 2-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input)
  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback: 16-ch
  • Decoding Capability: 2-ch@32 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
  • Serial Interface: 1 RS-485 (full-duplex), 1 RS-232
  • SATA: 8 SATA interfaces
  • eSATA: 1 eSATA interface
  • Capacity: Up to 14 TB capacity for each disk
  • Alarm In/Out: 16/9
  • USB Interface: Front panel: 2 x USB 2.0; Rear panel: 2 x USB 3.0
  • Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.*: The Ctrl 12V power is controlled by alarm output 9.
  • DC 12V: 12 VDC, 1 A power output
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 50 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Chassis: 2U chassis
  • Dimension (W x D x H): 445 x 465 x 92 mm (17.5"x 18.3" x 3.6")
  • Obtained Certification: CE, FCC
  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

General
  • Weight: = 10 kg (without HDD, 22 lb.)

Other
  • IP Video Input: 32-ch
  • Incoming Bandwidth: 320 Mbps
  • Outgoing Bandwidth: 400 Mbps
  • HDMI 1 Output: 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • HDMI 2 Output: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
  • VGA 1 Output: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • VGA 2 Output: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • Audio Output: 2-ch, RCA (Linear, 1 KO)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input)
  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback: 16-ch
  • Decoding Capability: 2-ch@32 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
  • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
  • Serial Interface: 1 RS-485 (full-duplex), 1 RS-232
  • SATA: 8 SATA interfaces
  • eSATA: 1 eSATA interface
  • Capacity: Up to 14 TB capacity for each disk
  • Alarm In/Out: 16/9
  • USB Interface: Front panel: 2 x USB 2.0; Rear panel: 2 x USB 3.0
  • Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.*: The Ctrl 12V power is controlled by alarm output 9.
  • DC 12V: 12 VDC, 1 A power output
  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: = 50 W (without HDD)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Chassis: 2U chassis
  • Dimension (W x D x H): 445 x 465 x 92 mm (17.5"x 18.3" x 3.6")
  • Obtained Certification: CE, FCC
  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
