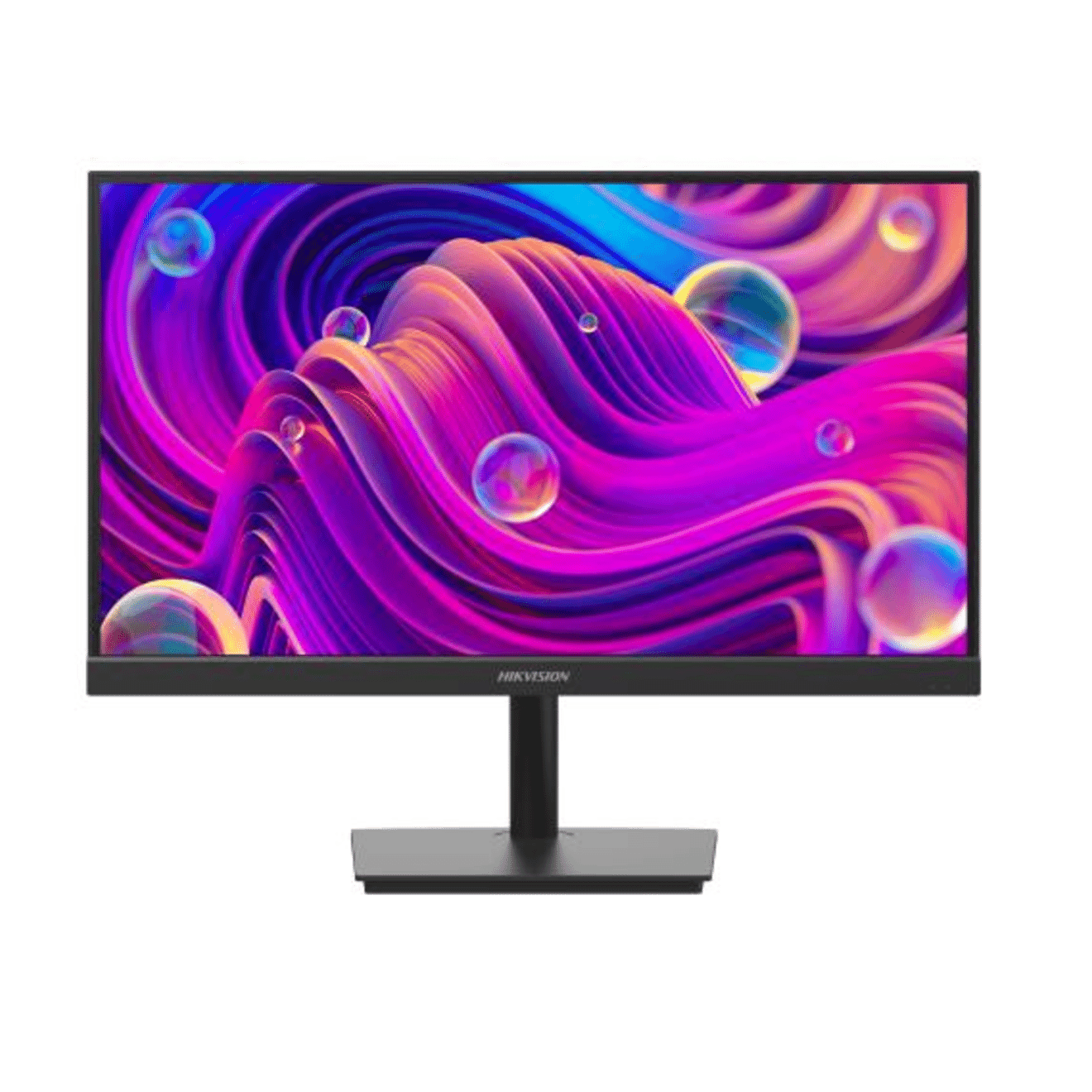

Hikvision DS-D5022F2-1V2S 22" LED Full-HD CCTV Surveillance CCTV Monitor

Hikvision DS-D5022F2-1V2S 22" LED Full-HD CCTV Surveillance CCTV Monitor

Category: Monitor
|
Brand: Hikvision
  • Monitor
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-D5022F2-1V2S 22" LED Full-HD CCTV Surveillance CCTV Monitor
Login to View Price

Specifications

  • Screen Size: 21.45 inch
  • Active Display Area: 478.656 (H) mm x 260.280 (V) mm
  • Resolution: 1920 x 1080
  • Backlight: E-LED
  • Pixel Pitch: 0.241 mm (H) x 0.241 mm (V)
  • Brightness: 250 cd/m²
  • Viewing Angle: 178° (H) / 178° (V)
  • Colour Depth: 8 bit ,16.7 M
  • Contrast Ratio: 4000 : 1
  • Response Time: 8 ms
  • Refresh Rate: Max. 100Hz , Typ. 60 Hz
  • Haze: Haze 25%, 3H
  • Reliability: 7 x 24 H
  • Colour Gamut: 72% NTSC
  • Video & Audio Input: HDMI 1.4 x 1, VGA x 1:Audio In x 1
  • Video & Audio Output: Speaker x 2 ( 4O 2W)
  • Data Transmission Interface: None
  • Control Interface: None
  • Power Supply: DC 12V, 2.0A
  • Power Consumption: = 24 W
  • Standby Consumption: = 0.5 W
  • Working Temperature: 0„ƒ to 40 „ƒ (32 „‰ to 104 „‰)
  • Working Humidity: 20% to 90% RH (Non-Condensing)
  • Storage Temperature: -20 „ƒ to 60 „ƒ (-4 „‰ to 140 „‰)
  • Storage Humidity: 10% to 90% RH (Non-Condensing)
  • Casing Material: Plastic
  • VESA: 75 mm x 75 mm (4 - M4 x 6 mm)
  • Bezel Width: 2.38 mm (top/left/right), 21.55 mm (bottom)
  • Product Dimensions (W x H x D): With base: 493.26 (W) mm x 393.45 (H) mm x 185.74 (D) mmWithout base: 493.26 (W) mm x 290.13 (H) mm x 42.35 (D) mm
  • Package Dimensions (W x H x D): 599 (W) mm x 393 (H) mm x 109 (D) mm
  • Net Weight: 2.0 ± 0.5 kg
  • Gross Weight: 3.2 ± 0.5 kg
  • Packing List: Monitor x 1, Base component x 1, Power adapter (12 V, 2.0 A) x 1, HDMI cable (1.5 m) x 1, User manual x 1, Multilingual manual x 1
  • Remarks: The base is included by default.The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information

Other
  • Screen Size: 21.45 inch
  • Active Display Area: 478.656 (H) mm x 260.280 (V) mm
  • Resolution: 1920 x 1080
  • Backlight: E-LED
  • Pixel Pitch: 0.241 mm (H) x 0.241 mm (V)
  • Brightness: 250 cd/m²
  • Viewing Angle: 178° (H) / 178° (V)
  • Colour Depth: 8 bit ,16.7 M
  • Contrast Ratio: 4000 : 1
  • Response Time: 8 ms
  • Refresh Rate: Max. 100Hz , Typ. 60 Hz
  • Haze: Haze 25%, 3H
  • Reliability: 7 x 24 H
  • Colour Gamut: 72% NTSC
  • Video & Audio Input: HDMI 1.4 x 1, VGA x 1:Audio In x 1
  • Video & Audio Output: Speaker x 2 ( 4O 2W)
  • Data Transmission Interface: None
  • Control Interface: None
  • Power Supply: DC 12V, 2.0A
  • Power Consumption: = 24 W
  • Standby Consumption: = 0.5 W
  • Working Temperature: 0„ƒ to 40 „ƒ (32 „‰ to 104 „‰)
  • Working Humidity: 20% to 90% RH (Non-Condensing)
  • Storage Temperature: -20 „ƒ to 60 „ƒ (-4 „‰ to 140 „‰)
  • Storage Humidity: 10% to 90% RH (Non-Condensing)
  • Casing Material: Plastic
  • VESA: 75 mm x 75 mm (4 - M4 x 6 mm)
  • Bezel Width: 2.38 mm (top/left/right), 21.55 mm (bottom)
  • Product Dimensions (W x H x D): With base: 493.26 (W) mm x 393.45 (H) mm x 185.74 (D) mmWithout base: 493.26 (W) mm x 290.13 (H) mm x 42.35 (D) mm
  • Package Dimensions (W x H x D): 599 (W) mm x 393 (H) mm x 109 (D) mm
  • Net Weight: 2.0 ± 0.5 kg
  • Gross Weight: 3.2 ± 0.5 kg
  • Packing List: Monitor x 1, Base component x 1, Power adapter (12 V, 2.0 A) x 1, HDMI cable (1.5 m) x 1, User manual x 1, Multilingual manual x 1
  • Remarks: The base is included by default.The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
