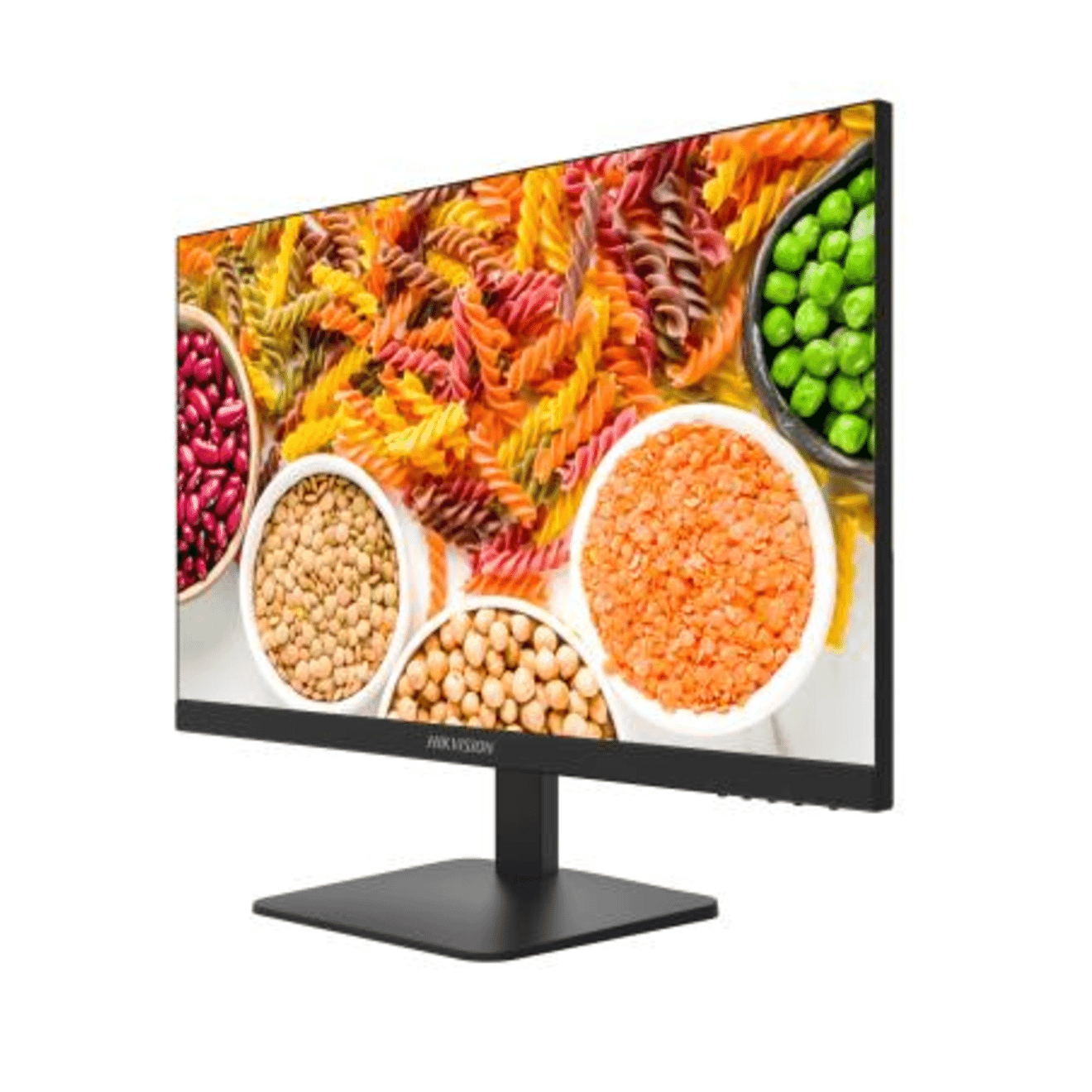

HIKVISION DS-D5024F2-1V2S 23.8 Inch FHD VA 100Hz Monitor HDMI, VGA, Speaker

HIKVISION DS-D5024F2-1V2S 23.8 Inch FHD VA 100Hz Monitor HDMI, VGA, Speaker

Category: Monitor
|
Brand: Hikvision
  • Monitor
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
HIKVISION DS-D5024F2-1V2S 23.8 Inch FHD VA 100Hz Monitor HDMI, VGA, Speaker
Login to View Price

Specifications

  • Screen Size: 23.8 inch
  • Active Display Area: 527.04 (H) mm x 296.46 (V) mm
  • Resolution: 1920 x 1080
  • Backlight: E-LED
  • Pixel Pitch: 0.2745 (H) mm x 0.2745 (V) mm
  • Brightness: 250 cd/m²
  • Viewing Angle: 178° (H) / 178° (V)
  • Colour Depth: 8 bit ,16.7 M
  • Contrast Ratio: 4000 : 1
  • Response Time: 16 (Typ) ms , 5 (OD) ms
  • Refresh Rate: Max. 100Hz , Typ. 60 Hz
  • Haze: Haze 25%, 3H
  • Reliability: 7 x 24 H
  • Colour Gamut: 72% NTSC
  • Video & Audio Input: HDMI 1.4 x 1, VGA x 1, Audio In x 1
  • Video & Audio Output: Speaker x 2
  • Power Supply: DC 12V, 2.5A
  • Power Consumption: = 24 W
  • Standby Consumption: = 0.5 W
  • Working Temperature: 0„ƒ to 40 „ƒ (32 „‰ to 104 „‰)
  • Working Humidity: 20% to 90% RH (Non-Condensing)
  • Storage Temperature: -20 „ƒ to 60 „ƒ (-4 „‰ to 140 „‰)
  • Storage Humidity: 10% to 90% RH (Non-Condensing)
  • Casing Material: Plastic
  • VESA: 100 mm x 100 mm (4 - M4 x 10 mm)
  • Bezel Width: 1.8 mm (top/left/right), 21.4 mm (bottom)
  • Product Dimensions (W x H x D): With base: 538.4 (W) mm x 408.21 (H) mm x 189.40(D) mm (21.20 (W) x 16.07 (H) x 7.46 (D) ) inchWithout base: 538.4 (W) mm x 324.79 (H) mm x 37.5 (D) mm (21.20 (W) x 12.79 (H) x 1.48 (D) ) inch
  • Package Dimensions (W x H x D): 600 (W) mm x 408 (H) mm x 94 (D) mm
  • Net Weight: 2.8 ± 0.5 kg
  • Gross Weight: 3.8 ± 0.5 kg
  • Packing List: Monitor x 1, Base component x 1, Power adapter (12 V, 2.0 A) x 1, HDMI cable (1.5 m) x 1, User manual x 1, Multilingual manual x 1
  • Remarks: The base is included by default.The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
