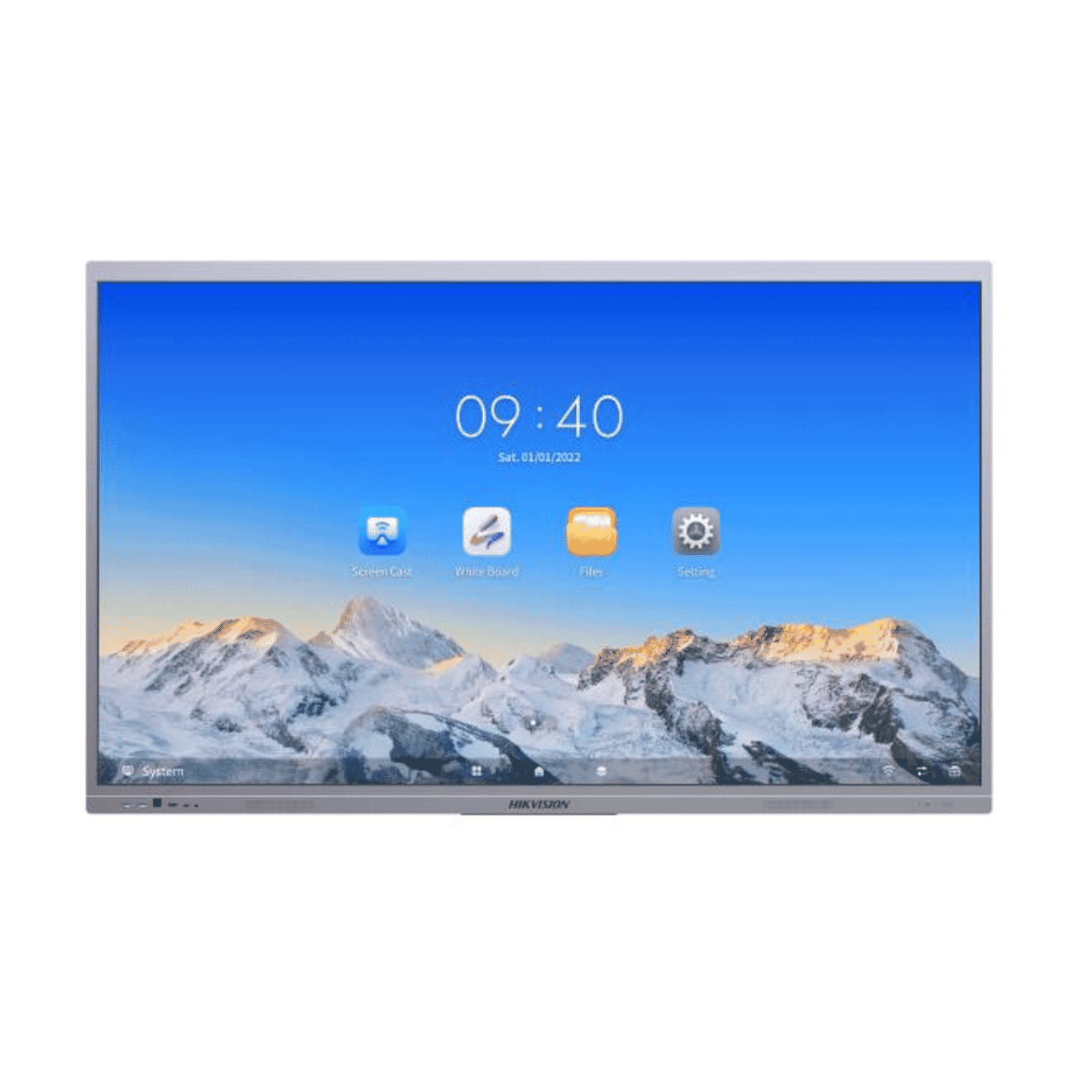

Hikvision DS-D5C86RB/A(EDLA) 86" IFP

Hikvision DS-D5C86RB/A(EDLA) 86" IFP

Category: Monitor
|
Brand: Hikvision
  • Monitor
  • Interactive Display
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-D5C86RB/A(EDLA) 86" IFP
Login to View Price

Specifications

  • Product Model: DS-D5C86RB/A
  • Screen Size: 86 inch
  • Backlight: DLED
  • Pixel Pitch: 0.1645（H）x 0.4935（V）mm
  • Resolution: 3840 x 2160 @60 Hz
  • Brightness: 400 cd/m² （Typ.）
  • Colour Depth: 10 bit
  • Display Colour: 1.07 G
  • Response Time: 5 ms
  • Panel Type: VA
  • Contrast Ratio: 5000:1 (Static)30,000:1 (Dynamic)
  • Colour Gamut: 72% NTSC (CIE1931) (Typ.)
  • Refresh Rate: 60 Hz
  • Viewing Angle: 178° (H)/178° (V)
  • Aspect Ratio: 16:9
  • Surface Hardness: 9H (Pencil)7 (Mohs)
  • Surface Glass: Anti-Glare Glass
  • Surface Haze: 25% Haze
  • Glass Bonding Method: Zero Lamination
  • Display Area: 1895.04mm x 1065.96mm
  • Working Duration: 7 x 16 H
  • Transmittance: 88% ± 3
  • Lifespan: 50,000 hours
  • Type: Infrared Touch Screen
  • Touch Point: Up to 50-point multi-touch
  • Touch Response Time: = 2 ms
  • Minimum Touch Object: = 1.5 mm (= 90% touching area)
  • Touch Precision: ± 0.5 mm (= 90% touching area)
  • Touch Resolution: 32767 x 32767
  • Operation System: Android 13.0
  • Memory: 8 GB
  • Built-in Storage: 128 GB
  • Processor: Quad-core Cortex-A76 x 4（2.4 GHz) and quad-core Cortex-A55 x 4 (1.8 GHz）
  • GPU: Mali-G610 MC4
  • HDCP Version: 2.3
  • Loudspeaker: Built-in 2 x 20 W+25W loudspeaker;
  • Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
  • NFC: Support screen mirroring by Android phones
  • Light Sensor: Yes
  • Video & Audio Input: HDMI In (HDMI 2.0) x 3, VGA In x 1, DP In (DP 1.2) x 1, Audio In x 1
  • Video & audio output: HDMI Out (HDMI 2.0) x 1, Audio Out x 1, SPDIF Out x 1
  • Control interface: TOUCH-USB 3.0 x 3, RS232 x 1
  • Network Interface: LAN (1000 Mbps) x 2WIFI AP & Station, 2.4G/5GWIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 x 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
  • Data Transmission Interface: USB 3.0 x 4, USB 2.0 x 1, Type-C x 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
  • Power Supply: 100 to 240 VAC, 50/60 Hz
  • Standby Consumption: = 0.5 W
  • Average Consumption: < 205W
  • VESA: 800 mm x 600 mm (4 x M8-25 mm）
  • Product dimensions: 1960.5 mm x 1158.2 mmx 82.5 mm
  • Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable, Bluetooth remote control.
  • Package Dimensions (W x H x D): 2197 mm x 284 mm x 1376 mm
  • Net Weight: 64.13 kg
  • Gross Weight: 81.6 kg
  • Working Temperature: 0 °C to 40 °C (32 °F to 104°F)
  • Working Humidity: 10%~90% RH

Other
  • Product Model: DS-D5C86RB/A
  • Screen Size: 86 inch
  • Backlight: DLED
  • Pixel Pitch: 0.1645（H）x 0.4935（V）mm
  • Resolution: 3840 x 2160 @60 Hz
  • Brightness: 400 cd/m² （Typ.）
  • Colour Depth: 10 bit
  • Display Colour: 1.07 G
  • Response Time: 5 ms
  • Panel Type: VA
  • Contrast Ratio: 5000:1 (Static)30,000:1 (Dynamic)
  • Colour Gamut: 72% NTSC (CIE1931) (Typ.)
  • Refresh Rate: 60 Hz
  • Viewing Angle: 178° (H)/178° (V)
  • Aspect Ratio: 16:9
  • Surface Hardness: 9H (Pencil)7 (Mohs)
  • Surface Glass: Anti-Glare Glass
  • Surface Haze: 25% Haze
  • Glass Bonding Method: Zero Lamination
  • Display Area: 1895.04mm x 1065.96mm
  • Working Duration: 7 x 16 H
  • Transmittance: 88% ± 3
  • Lifespan: 50,000 hours
  • Type: Infrared Touch Screen
  • Touch Point: Up to 50-point multi-touch
  • Touch Response Time: = 2 ms
  • Minimum Touch Object: = 1.5 mm (= 90% touching area)
  • Touch Precision: ± 0.5 mm (= 90% touching area)
  • Touch Resolution: 32767 x 32767
  • Operation System: Android 13.0
  • Memory: 8 GB
  • Built-in Storage: 128 GB
  • Processor: Quad-core Cortex-A76 x 4（2.4 GHz) and quad-core Cortex-A55 x 4 (1.8 GHz）
  • GPU: Mali-G610 MC4
  • HDCP Version: 2.3
  • Loudspeaker: Built-in 2 x 20 W+25W loudspeaker;
  • Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
  • NFC: Support screen mirroring by Android phones
  • Light Sensor: Yes
  • Video & Audio Input: HDMI In (HDMI 2.0) x 3, VGA In x 1, DP In (DP 1.2) x 1, Audio In x 1
  • Video & audio output: HDMI Out (HDMI 2.0) x 1, Audio Out x 1, SPDIF Out x 1
  • Control interface: TOUCH-USB 3.0 x 3, RS232 x 1
  • Network Interface: LAN (1000 Mbps) x 2WIFI AP & Station, 2.4G/5GWIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 x 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
  • Data Transmission Interface: USB 3.0 x 4, USB 2.0 x 1, Type-C x 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
  • Power Supply: 100 to 240 VAC, 50/60 Hz
  • Standby Consumption: = 0.5 W
  • Average Consumption: < 205W
  • VESA: 800 mm x 600 mm (4 x M8-25 mm）
  • Product dimensions: 1960.5 mm x 1158.2 mmx 82.5 mm
  • Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable, Bluetooth remote control.
  • Package Dimensions (W x H x D): 2197 mm x 284 mm x 1376 mm
  • Net Weight: 64.13 kg
  • Gross Weight: 81.6 kg
  • Working Temperature: 0 °C to 40 °C (32 °F to 104°F)
  • Working Humidity: 10%~90% RH
