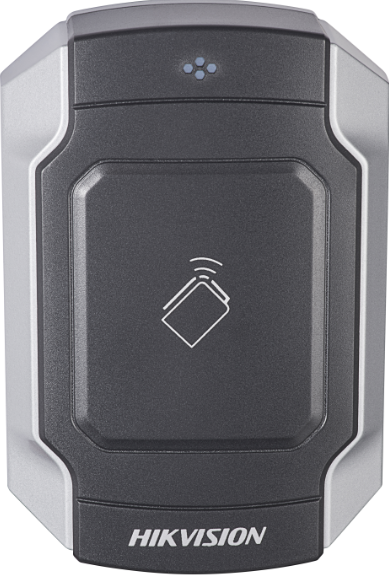

Hikvision DS-K1104MK | Card Reader

Hikvision DS-K1104MK | Card Reader

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Readers
  • Pro Series

Reads Mifare1/EM card optioanl , with keypad optional , Supports RS485 and Wiegand W26/W34 protocol;
Tamper-proof alarm, Dust-proof, IP 65, Vandal Proof, IK10, Applied for 86 & 120 Gang Box.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K1104MK | Card Reader
Login to View Price

Specifications

  • Processor: Embedded processor
  • Network protocol: RS-485
  • Card reading frequency: 13.56MHz
  • Card reading distance: ≤ 50 mm (≤ 1.97")
  • Indicator: Power supply status, working status
  • Power supply: 12 VDC, ≤ 500 mA
  • Power consumption: ≤ 2 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 10% to 90% (no condensing)
  • Protective level: IP65
  • Dimensions: 118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91")
  • Installation: Applied for 86 & 120 Gang Box
  • Weight: ≤ 0.52 kg (1.1 lb)
  • Approval: FCC, CE

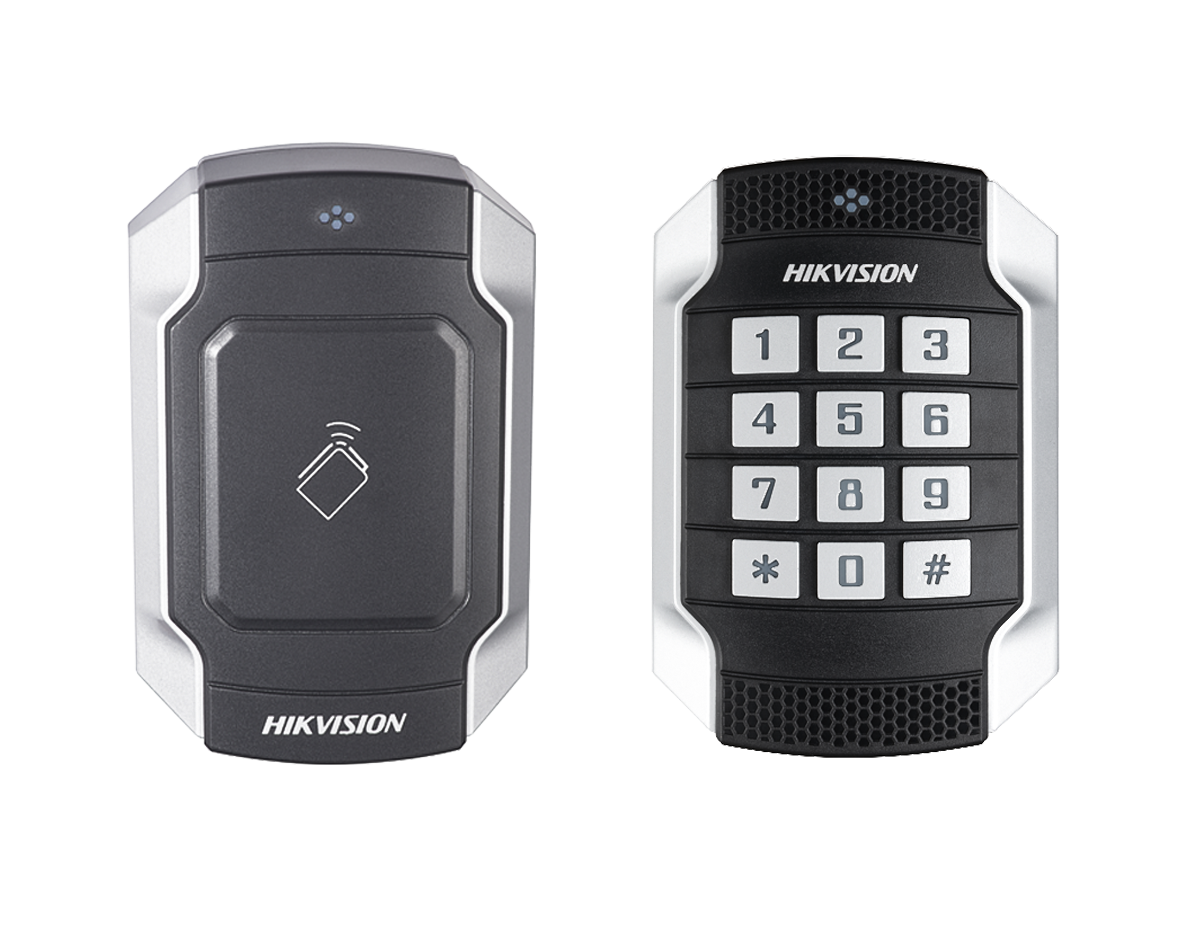

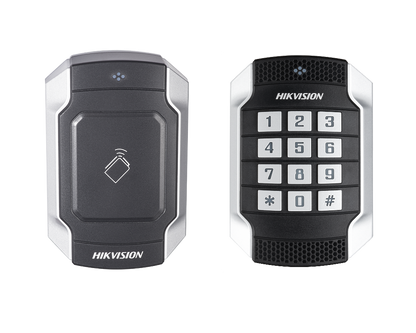

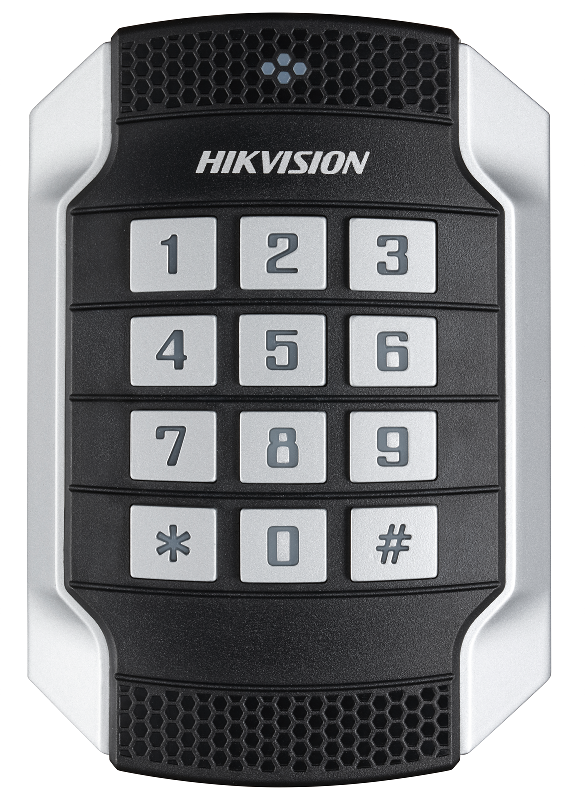

  • Keypad: DS-K1104M: No keypad DS-K1104MK: Keypad with 12 keys (0 to 9, *, #)
  • Buzzer: Support
  • ID settings: via DIP Switch

System
  • Processor: Embedded processor

Network
  • Network protocol: RS-485

Authentication
  • Card reading frequency: 13.56MHz
  • Card reading distance: ≤ 50 mm (≤ 1.97")

General
  • Indicator: Power supply status, working status
  • Power supply: 12 VDC, ≤ 500 mA
  • Power consumption: ≤ 2 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 10% to 90% (no condensing)
  • Protective level: IP65
  • Dimensions: 118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91")
  • Installation: Applied for 86 & 120 Gang Box
  • Weight: ≤ 0.52 kg (1.1 lb)
  • Approval: FCC, CE
  • Keypad: DS-K1104M: No keypad DS-K1104MK: Keypad with 12 keys (0 to 9, *, #)
  • Buzzer: Support

Function
  • ID settings: via DIP Switch
