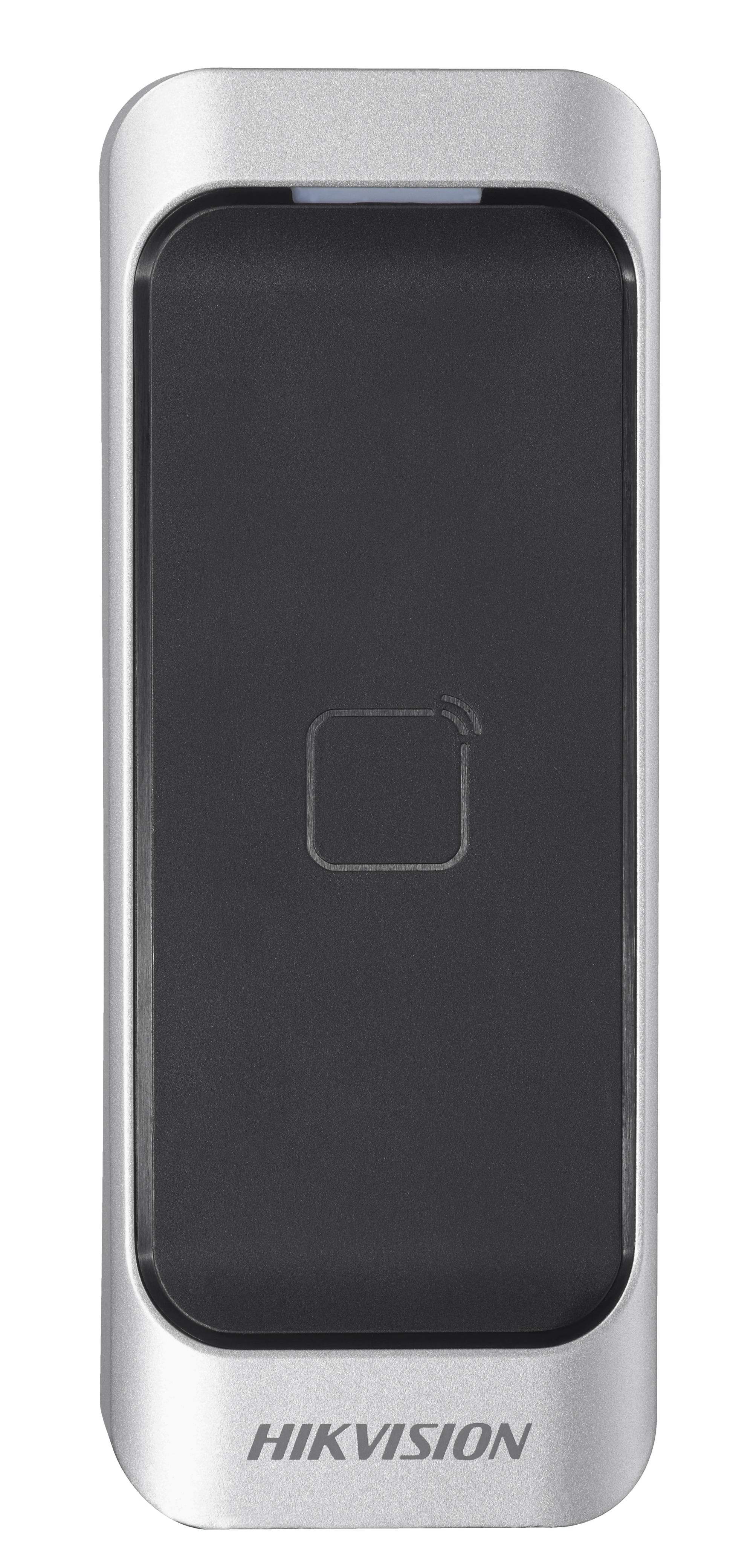

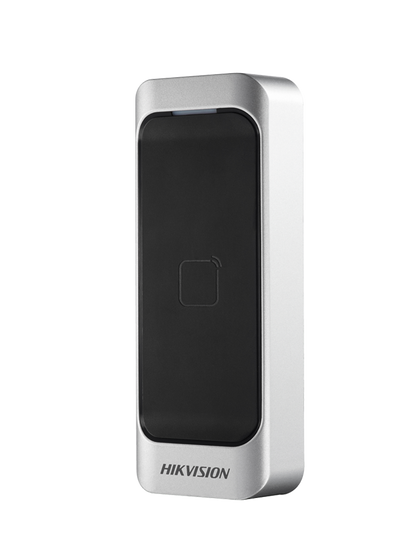

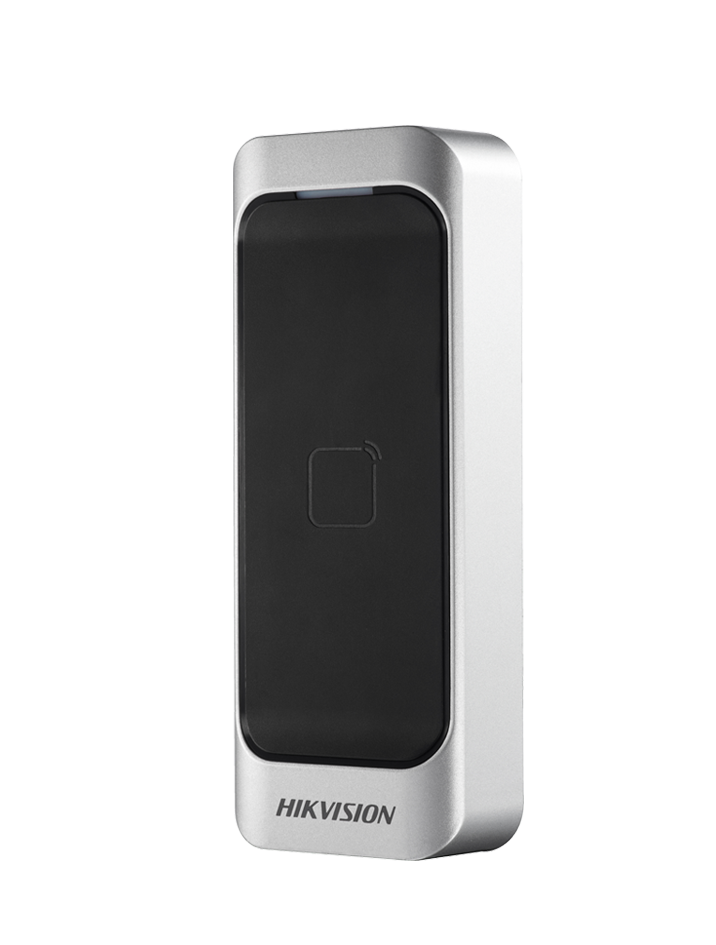

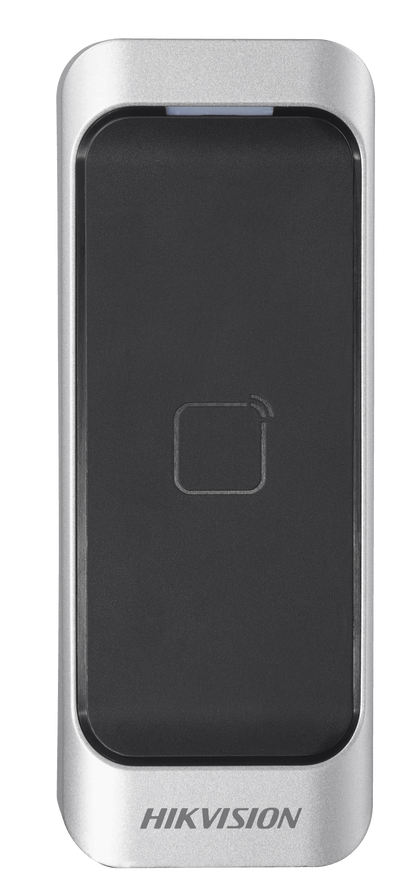

Hikvision DS-K1107AM | Card Reader

Hikvision DS-K1107AM | Card Reader

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Readers
  • Pro Series

Reads M1 card, Supports RS485 and Wiegand W26/W34 protocol;
Tamper-proof alarm, Dust-proof, IP 65.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K1107AM | Card Reader
Login to View Price

Specifications

  • Processor: 32-bit
  • TAMPER: Support
  • RS-485: Support
  • Wiegand: Support (set via DIP switch)
  • Card reading frequency: 13.56 MHz
  • Card reading distance: ≤50 mm (≤1.97")
  • Indicator: Power indicator, status indicator
  • Power supply: 12 VDC
  • Power consumption: ≤2 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 10% to 90% (Non Condensing)
  • Protective level: IP65
  • Dimensions: 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'' )
  • Installation: Wall Mounting with Screws; Do Not Support Gang Box
  • Buzzer: Support

System
  • Processor: 32-bit

Interface
  • TAMPER: Support
  • RS-485: Support
  • Wiegand: Support (set via DIP switch)

Authentication
  • Card reading frequency: 13.56 MHz
  • Card reading distance: ≤50 mm (≤1.97")

General
  • Indicator: Power indicator, status indicator
  • Power supply: 12 VDC
  • Power consumption: ≤2 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 10% to 90% (Non Condensing)
  • Protective level: IP65
  • Dimensions: 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'' )
  • Installation: Wall Mounting with Screws; Do Not Support Gang Box
  • Buzzer: Support
