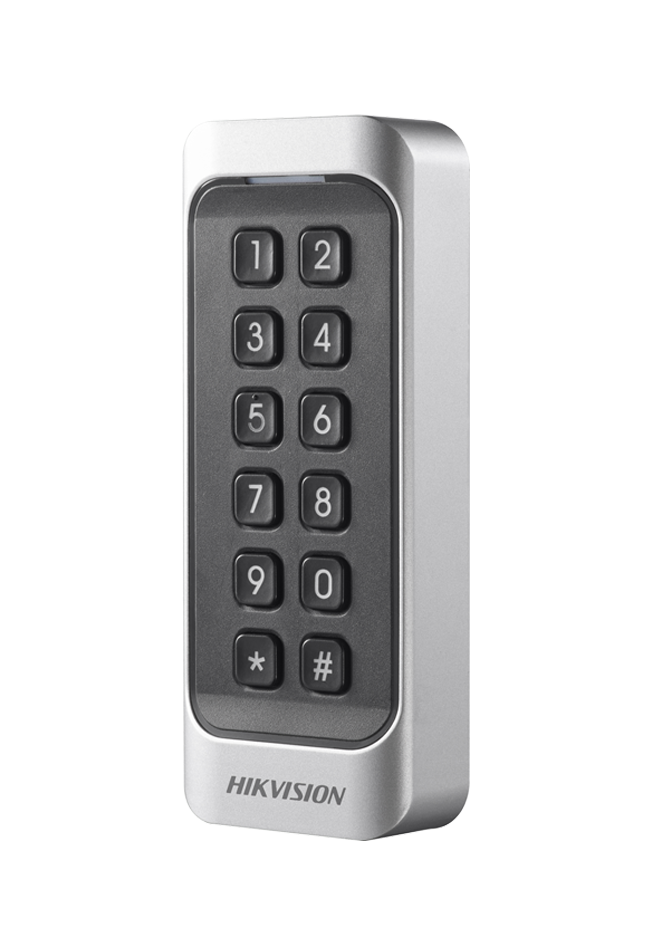

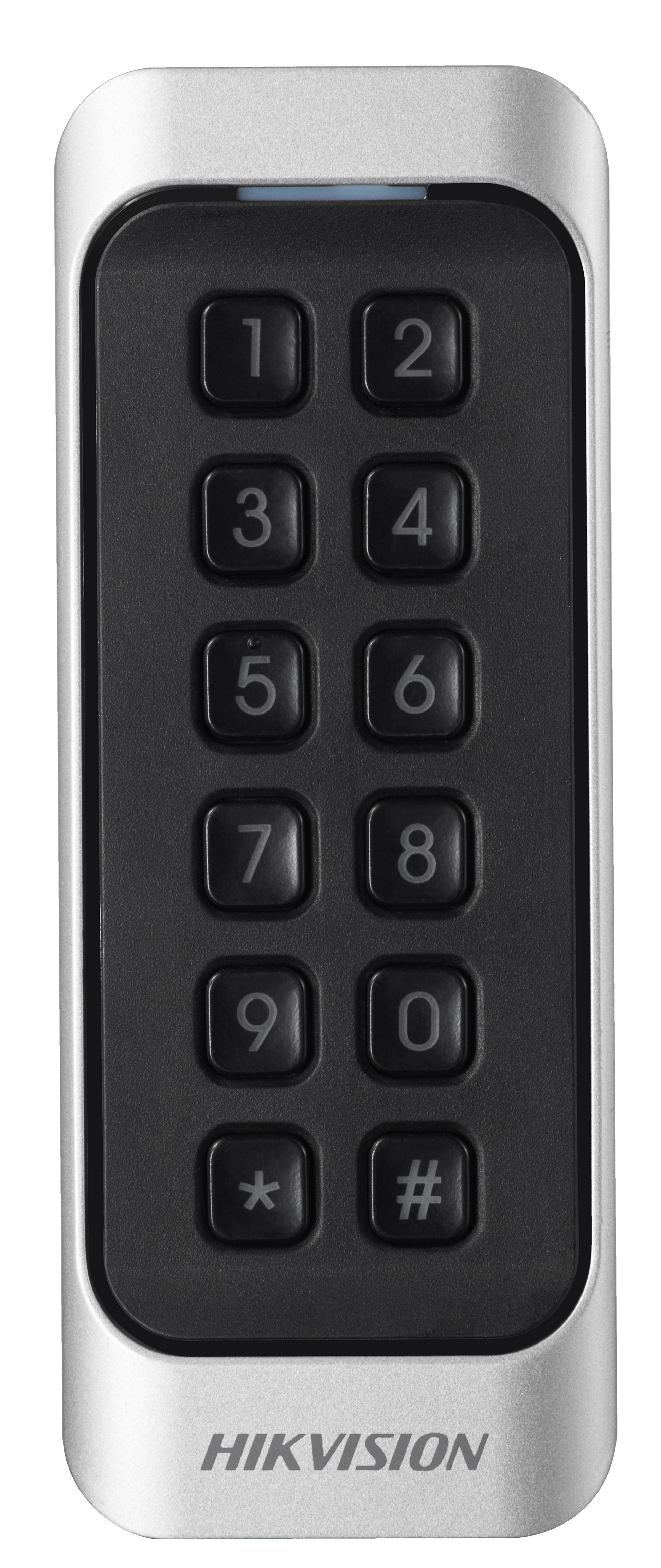

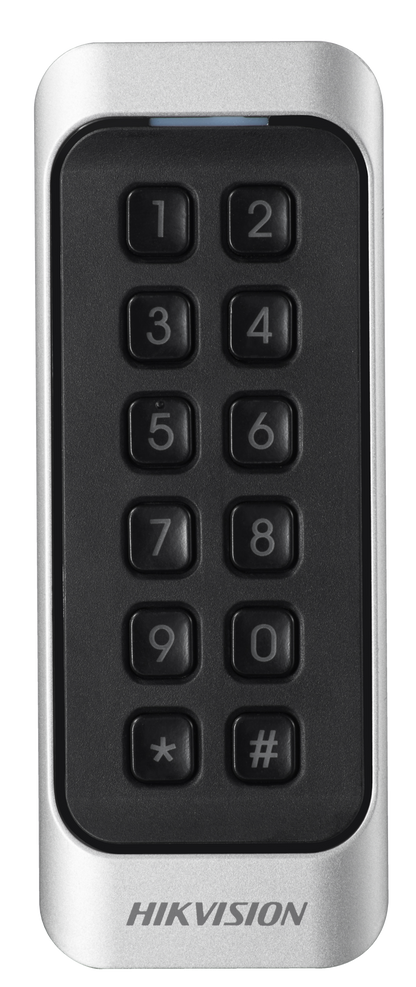

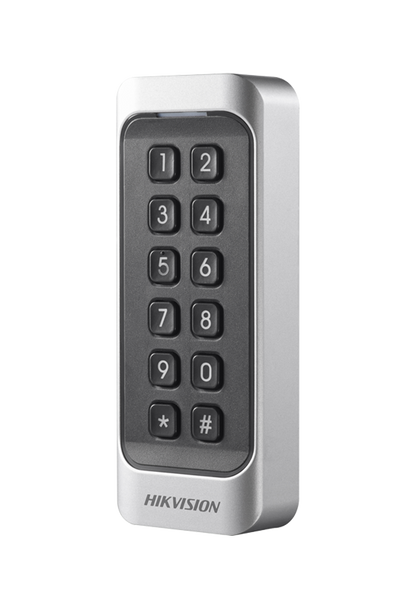

Hikvision DS-K1107AMK | Card Reader

Hikvision DS-K1107AMK | Card Reader

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Readers
  • Pro Series

Reads M1 card, with keypad, Supports RS485 and Wiegand W26/W34 protocol;
Tamper-proof alarm, Dust-proof, IP 65.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K1107AMK | Card Reader
Login to View Price

Specifications

  • Processor: Embedded processor
  • Network protocol: RS-485/Wiegand
  • TAMPER: 1
  • RS-485: 1
  • Wiegand: 1 (set via DIP switch)
  • Card reading frequency: 13.56 MHz
  • Card reading distance: ≤ 50 mm (≤ 1.97")
  • Indicator: Power supply status, working status
  • Power supply: 12 VDC
  • Power consumption: ≤ 2 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 10% to 90% (no condensing)
  • Protective level: IP65
  • Dimensions: 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
  • Installation: Wall mounting with screws; Do not support gang box
  • Weight: Gross weight: 0.25 kg (0.55 lb) Net weight: 0.16 kg (0.35 lb)
  • Keypad: 12 Keys (0 to 9, *, #)
  • Buzzer: Support

System
  • Processor: Embedded processor

Network
  • Network protocol: RS-485/Wiegand

Interface
  • TAMPER: 1
  • RS-485: 1
  • Wiegand: 1 (set via DIP switch)

Authentication
  • Card reading frequency: 13.56 MHz
  • Card reading distance: ≤ 50 mm (≤ 1.97")

General
  • Indicator: Power supply status, working status
  • Power supply: 12 VDC
  • Power consumption: ≤ 2 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 10% to 90% (no condensing)
  • Protective level: IP65
  • Dimensions: 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
  • Installation: Wall mounting with screws; Do not support gang box
  • Weight: Gross weight: 0.25 kg (0.55 lb) Net weight: 0.16 kg (0.35 lb)
  • Keypad: 12 Keys (0 to 9, *, #)
  • Buzzer: Support
