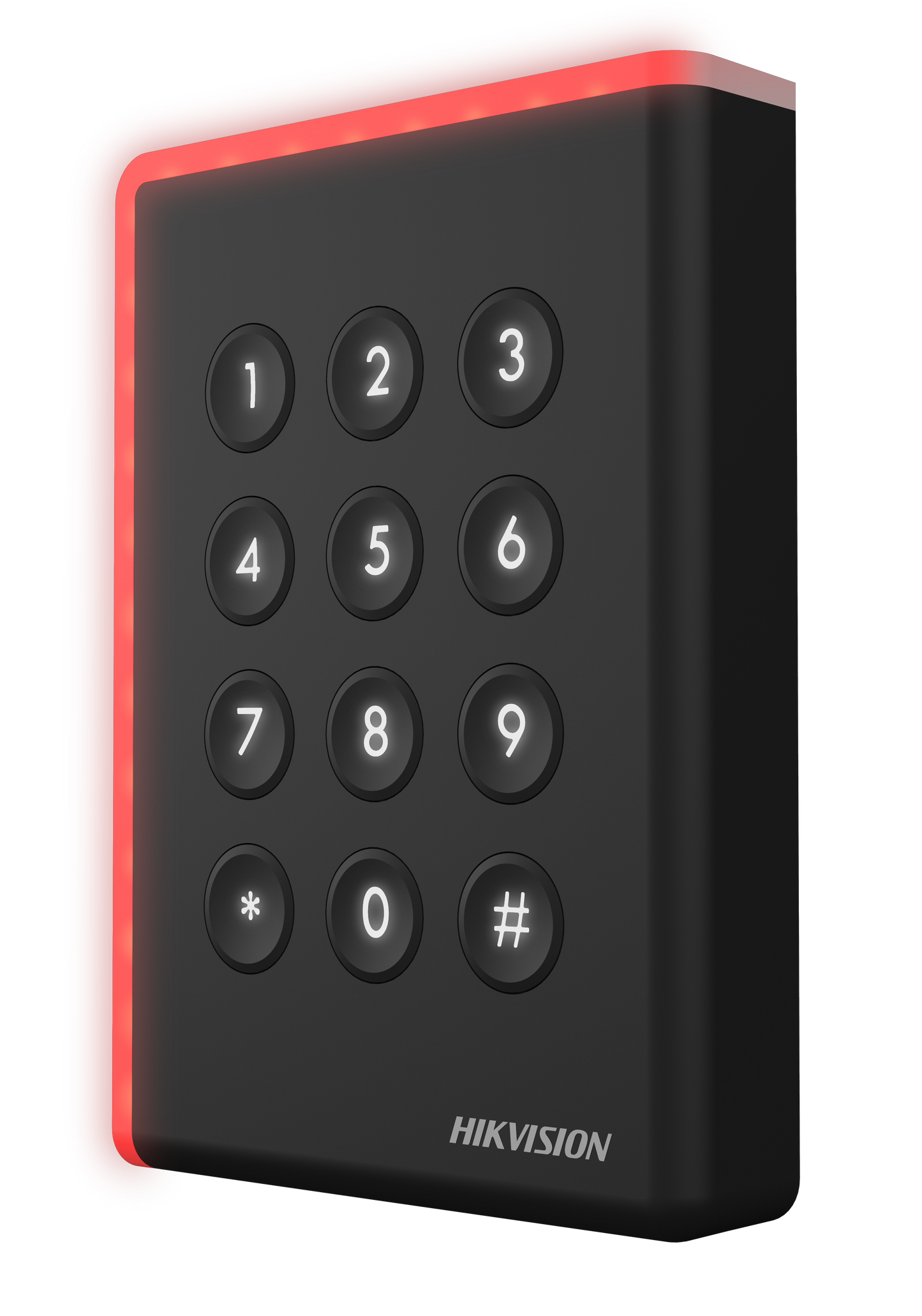

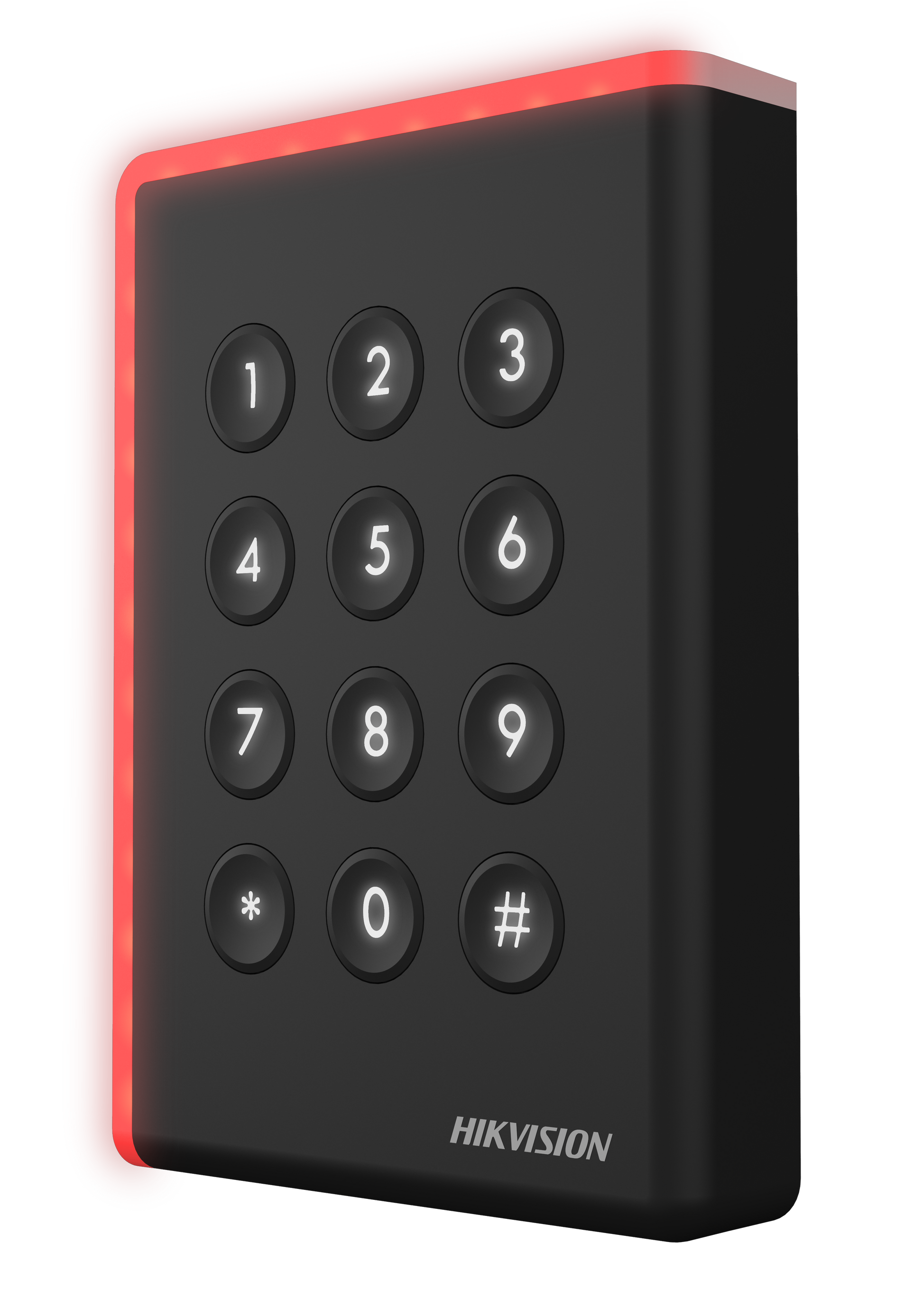

Hikvision DS-K1108AMK | Card Reader
Hikvision DS-K1108AMK | Card Reader
- Access Control
- Readers
- Pro Series
Reads M1/EM card optioanl , with keypad optional , Supports RS485 and Wiegand W26/W34 protocol;
Tamper-proof alarm, Dust-proof, IP 65, Applied for 86 & 120 Gang Box.
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K1108AMK | Card Reader
Specifications
- Processor: Embedded processor
- Network protocol: RS-485/Wiegand (Set via DIP switch)
- Card radio frequency standard: ISO 14443-A
- Card reading distance: ≤ 50 mm (1.97")
- Indicator: Power supply status, working status
- Power supply: 12 VDC, 2 W
- Power consumption: ≤ 2 W
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 10% to 90% (no condensing)
- Protective level: IP65
- Dimensions: 123 mm × 88 mm × 21 mm (4.84" × 3.46" × 0.83")
- Installation: Wall mounting
- Weight: Gross weight: 0.37 kg (0.82 lb) Net weight: 0.14 kg (0.31 lb)
- Approval: FCC, CE
- Keypad: DS-K1108AE/DS-K1108AM/DS-K1108AD: No keypad DS-K1108AEK/DS-K1108AMK/DS-K1108ADK: With keypad
- Buzzer: Beeper
- ID settings: via DIP switch
