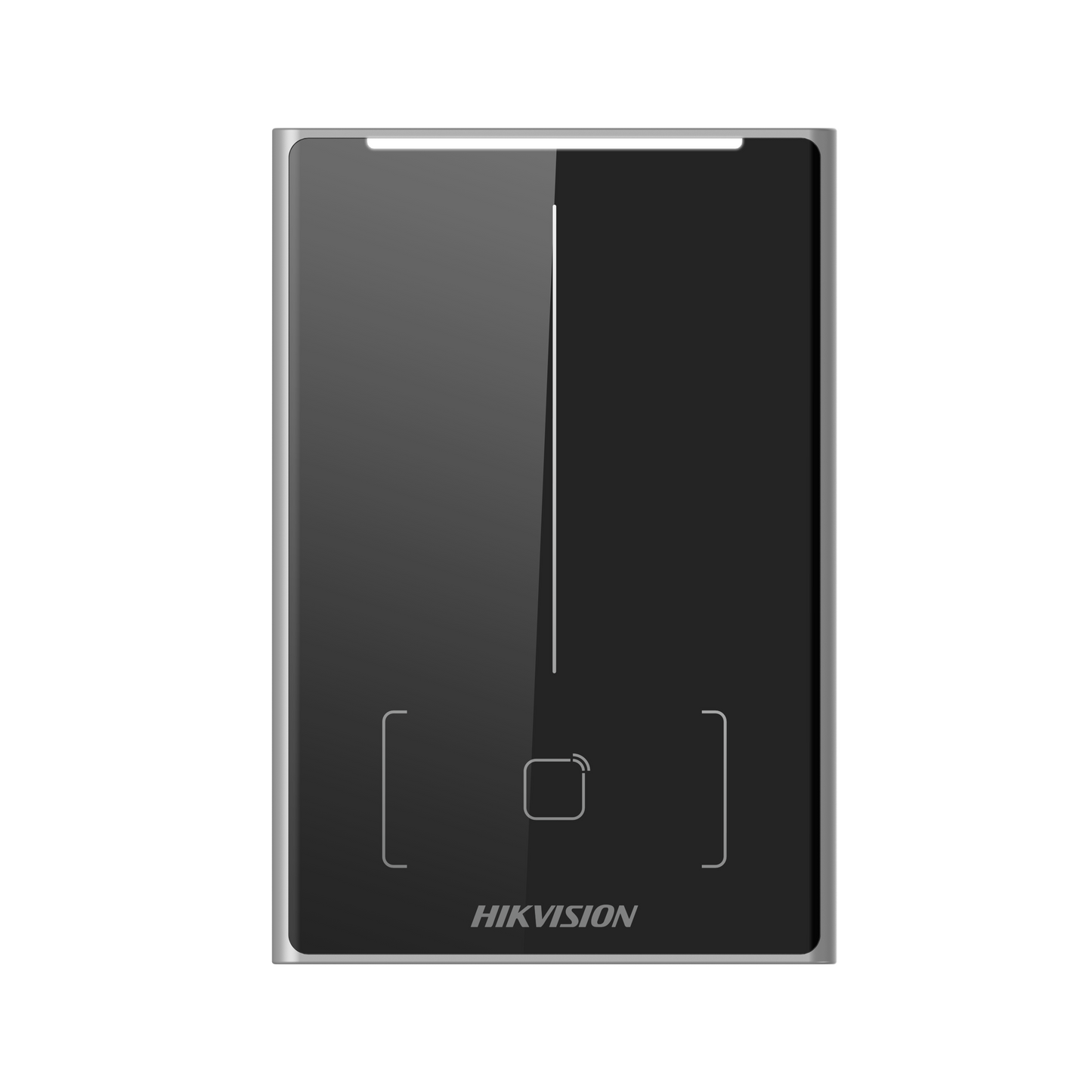

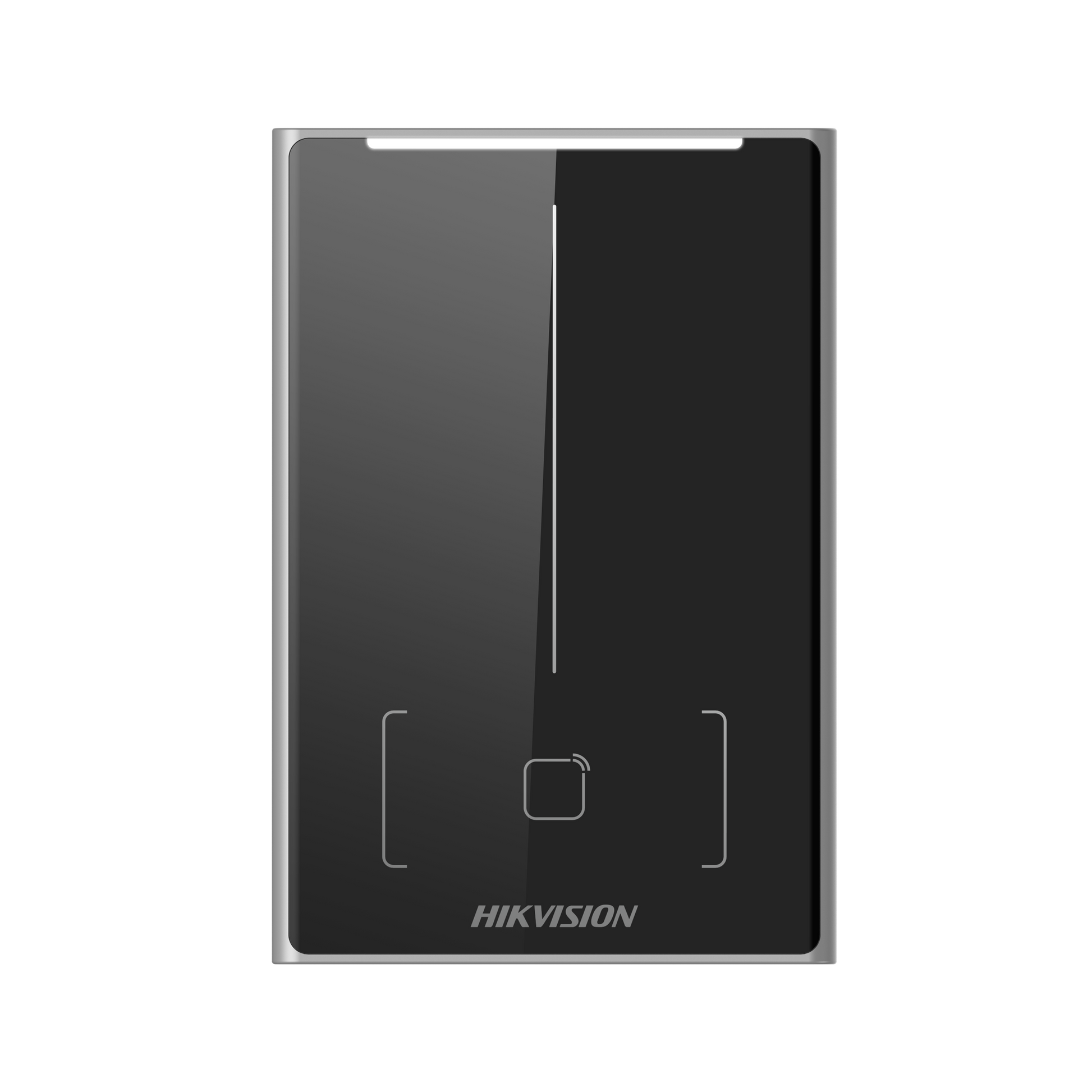

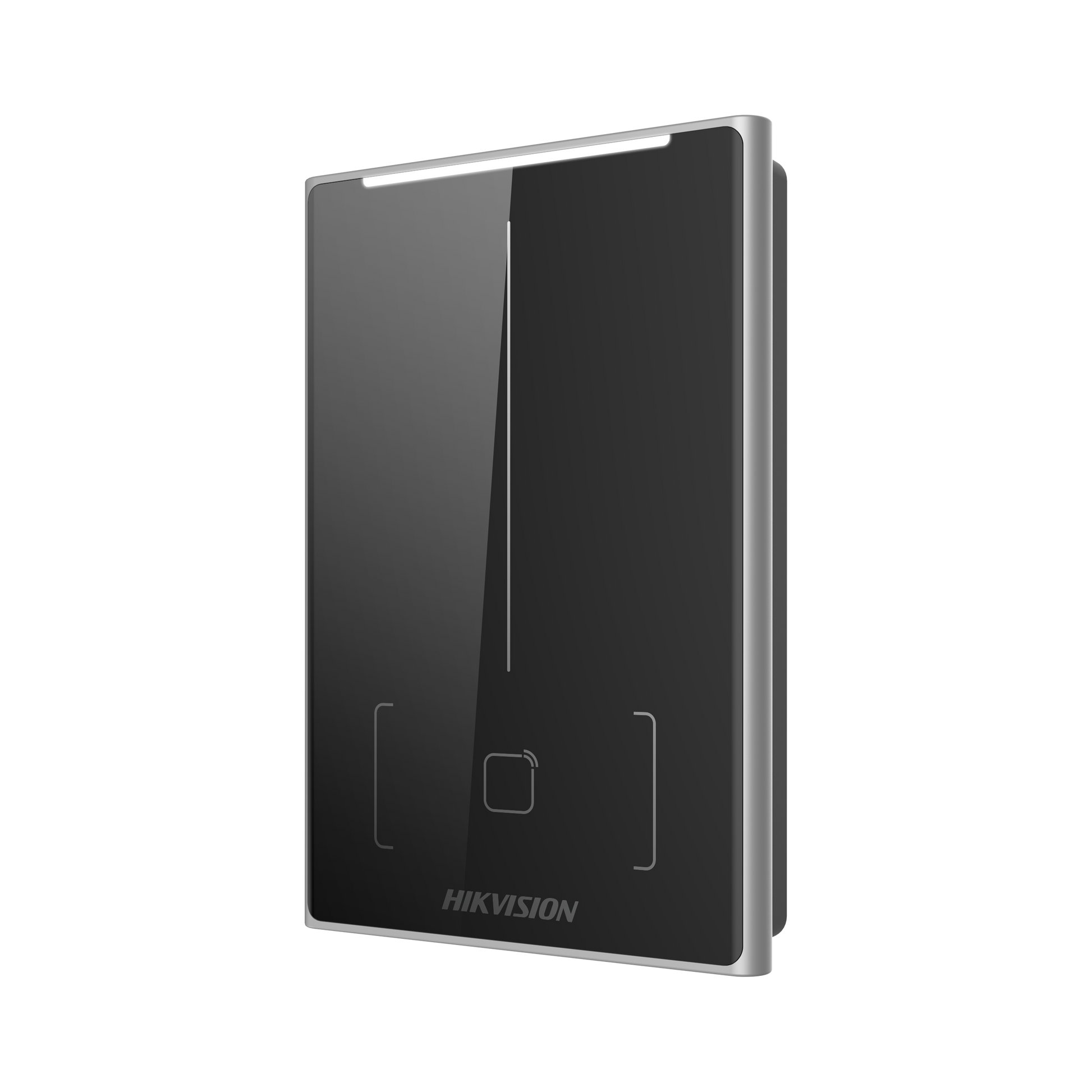

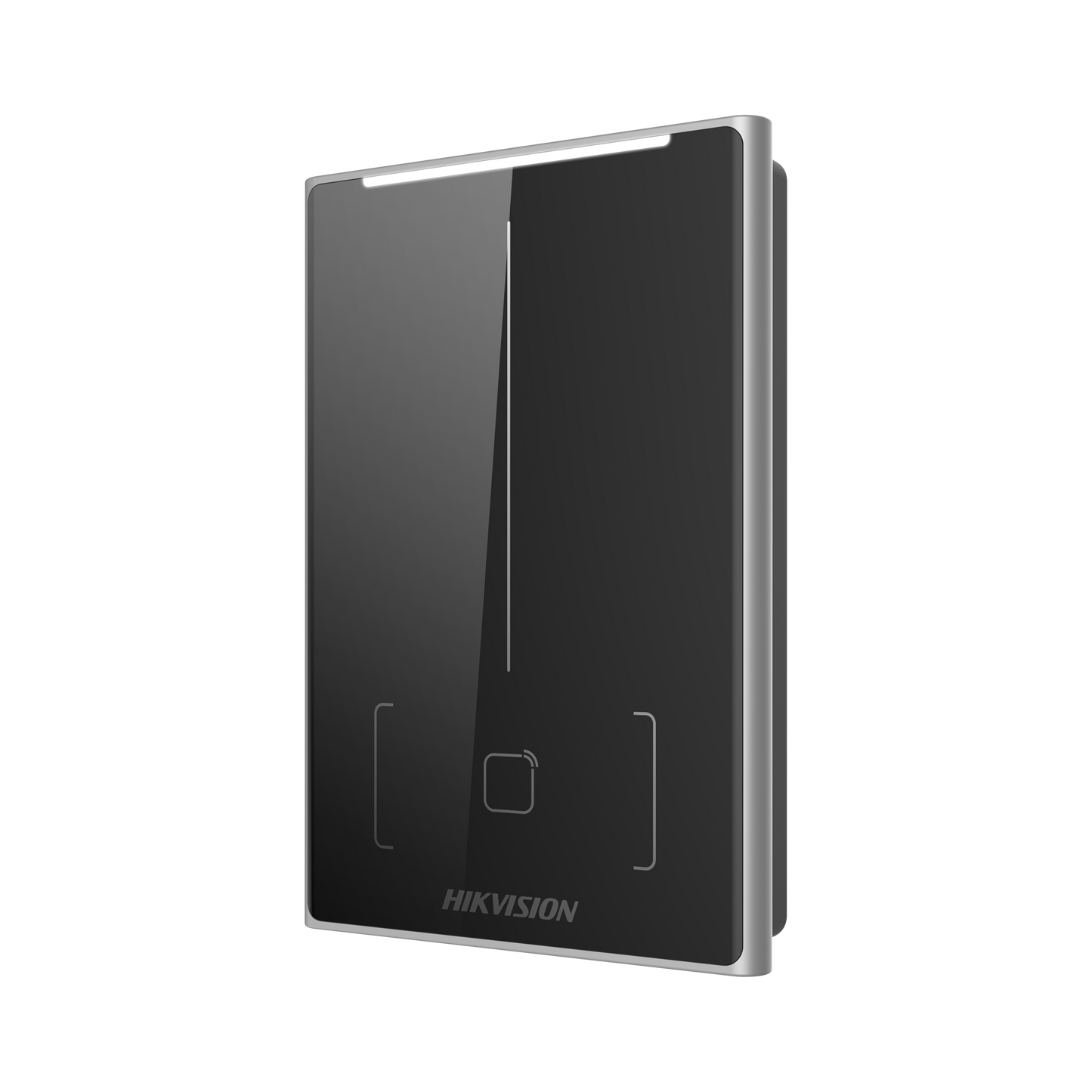

Hikvision DS-K1109DB | Card Reader

Hikvision DS-K1109DB | Card Reader

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Readers
  • Pro Series

Reads Desfire, Felica card number, M1 card,
Supports bluetooth module
Supports RS485 OSDP and Wiegand W26/W34 protocol
Tamper-proof alarm, IP 65

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K1109DB | Card Reader
Login to View Price

Specifications

  • Network protocol: RS-485, Wiegand
  • Bluetooth: Support
  • TAMPER: 1
  • RS-485: 1
  • Wiegand: 1
  • Card type: M1 card;DESfire card;Felica card
  • Card reading distance: ≤ 50 mm (≤ 1.97")
  • Card reading duration: ＜ 1 s
  • Power supply: 12 VDC
  • Power consumption: With load: ≤ 14 w Without load: ≤ 4 w
  • Working temperature: -40 °C to 65 °C (-40 °F to 149 °F)
  • Working humidity: 0 to 90% (no condensing)
  • Protective level: IP65
  • Dimensions: 125 mm × 84.5 mm × 18 mm (4.92" × 3.33" × 0.71")
  • Installation: Wall mounting
  • Weight: ≤ 1 kg (2.20 lb)
  • Approval: FCC, CE
  • Buzzer: Support

Network
  • Network protocol: RS-485, Wiegand
  • Bluetooth: Support

Interface
  • TAMPER: 1
  • RS-485: 1
  • Wiegand: 1

Authentication
  • Card type: M1 card;DESfire card;Felica card
  • Card reading distance: ≤ 50 mm (≤ 1.97")
  • Card reading duration: ＜ 1 s

General
  • Power supply: 12 VDC
  • Power consumption: With load: ≤ 14 w Without load: ≤ 4 w
  • Working temperature: -40 °C to 65 °C (-40 °F to 149 °F)
  • Working humidity: 0 to 90% (no condensing)
  • Protective level: IP65
  • Dimensions: 125 mm × 84.5 mm × 18 mm (4.92" × 3.33" × 0.71")
  • Installation: Wall mounting
  • Weight: ≤ 1 kg (2.20 lb)
  • Approval: FCC, CE
  • Buzzer: Support
