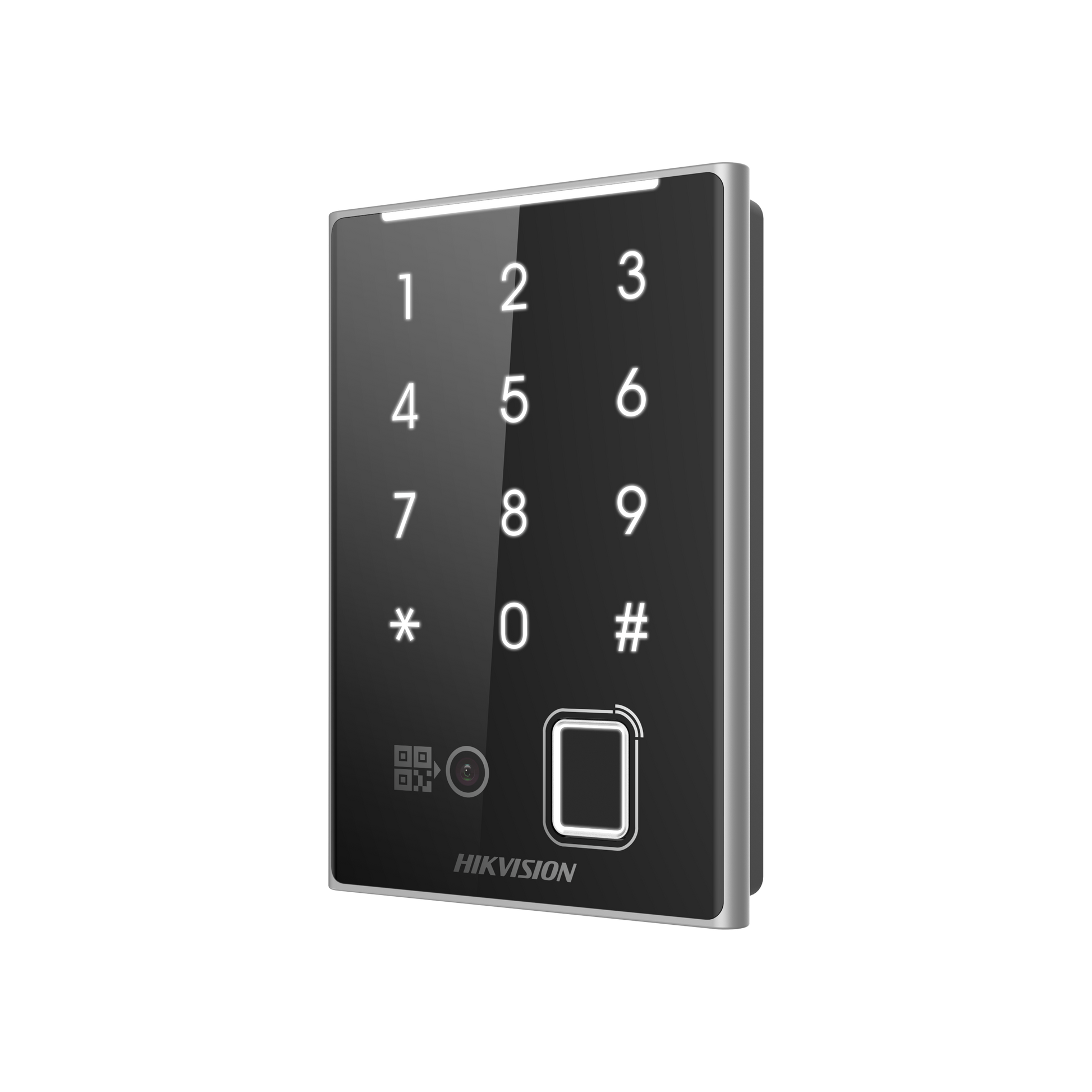

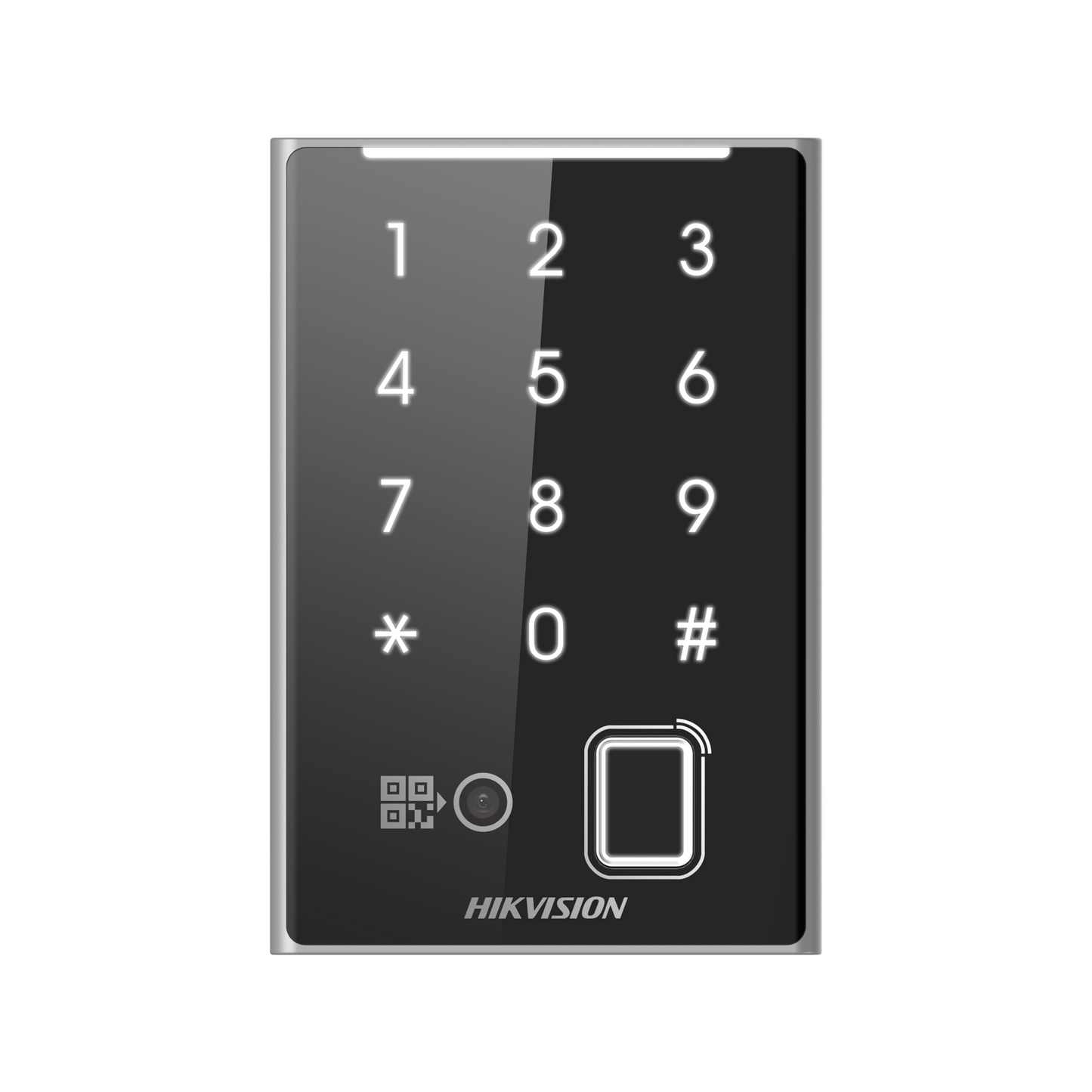

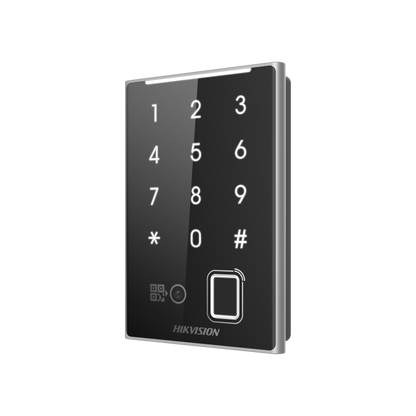

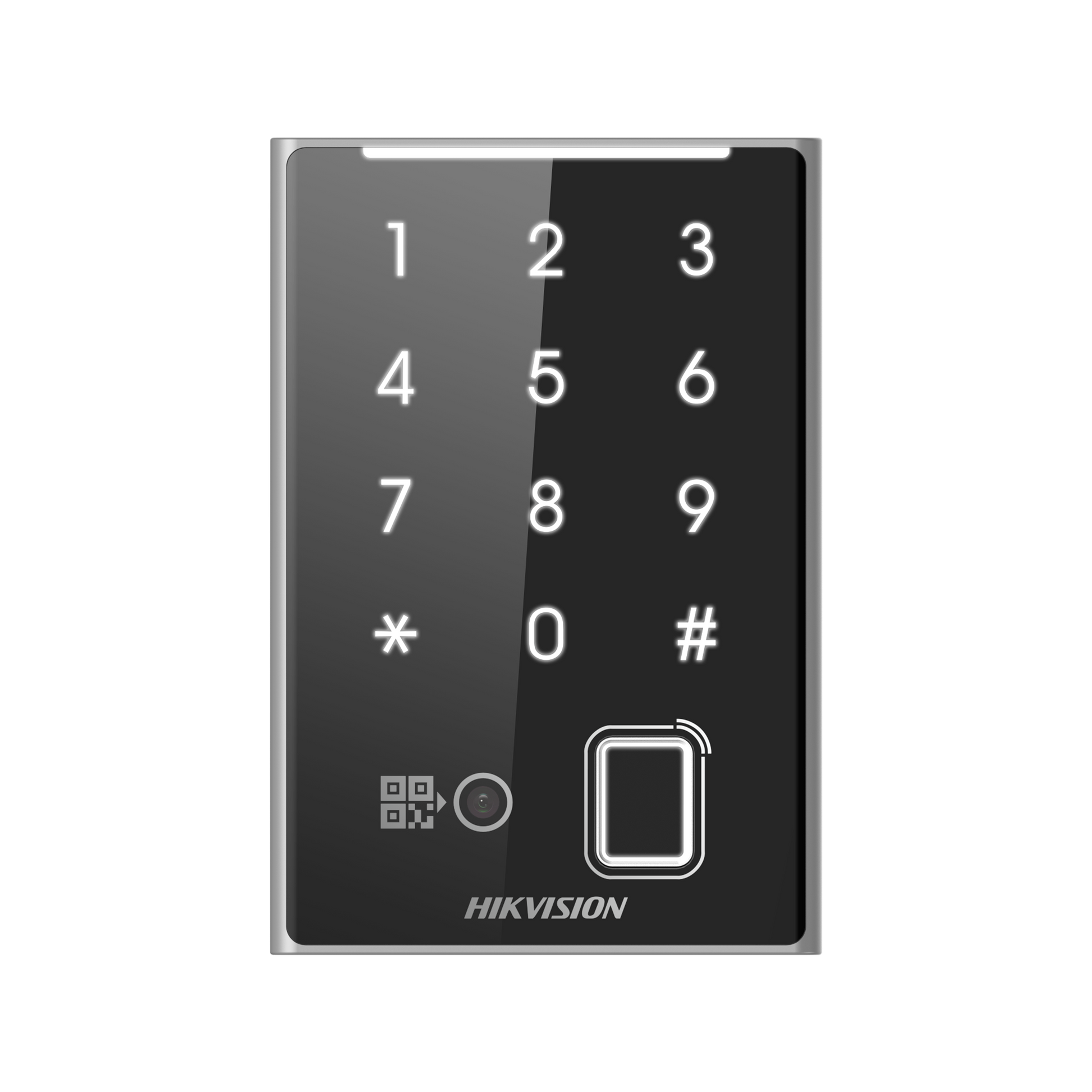

Hikvision DS-K1109DKFB-QR | Card Reader
Hikvision DS-K1109DKFB-QR | Card Reader
- Access Control
- Readers
- Pro Series
Reads Desfire, Felica card number, M1 card, with keypad
Supports fingerprint
Supports QR code
Supports bluetooth module
Supports RS485 OSDP and Wiegand W26/W34 protocol
Tamper-proof alarm, IP 65
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K1109DKFB-QR | Card Reader
Specifications
- Network protocol: RS-485, Wiegand
- Bluetooth: Support (when connecting by RS-485)
- TAMPER: 1
- RS-485: 1
- Wiegand: 1
- Fingerprint capacity: 5000
- Card type: M1 card;DESfire card;Felica card
- Card reading distance: ≤ 50 mm (≤ 1.97")
- Card reading duration: ＜ 1 s
- Power supply: 12 VDC
- Power consumption: With load: ≤ 14 w Without load: ≤ 4 w
- Working temperature: -40 °C to 65 °C (-40 °F to 149 °F)
- Working humidity: 0 to 90% (no condensing)
- Protective level: IP65
- Dimensions: 125 mm × 84.5 mm × 18 mm (4.92" × 3.33" × 0.71")
- Installation: Wall mounting
- Weight: ≤ 1 kg (2.20 lb)
- Approval: FCC, CE
- Buzzer: Support
- Barcode recognition: Support Format: Code 128, Interleaved 2 of 5, Matrix 2 of 5, Code 39, Codebar, Code 9 and UCC/EAN-128
- QR code recognition: Support (when connecting by RS-485)
