• DS-K1201AMF

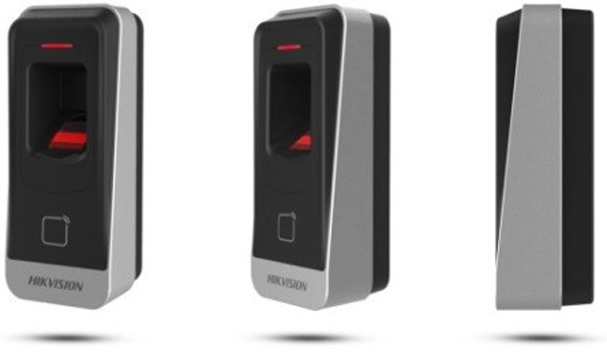

Hikvision DS-K1201AMF | Fingerprint Reader

Hikvision DS-K1201AMF | Fingerprint Reader

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Readers
  • Pro Series

Reads M1 card, Fingerpint capacity: 5000 , Supports RS485 HIK private ,IP65;
Wall mounting with screws. The Gang Box is not supported.
Fingerprint devices are recommended for using in indoor environment

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K1201AMF | Fingerprint Reader
Login to View Price

Specifications

  • Processor: Embedded processor
  • Network protocol: RS-485
  • TAMPER: 1
  • Fingerprint capacity: 5000
  • Fingerprint module: Optical fingerprint module
  • Fingerprint recognition duration: 1:1 ≤ 1 s; 1:N ≤ 1.5 s
  • Fingerprint comparing mode: 1:1/1:N
  • Fingerprint FAR: ≤ 0.001%
  • Fingerprint FRR: ≤ 0.01%
  • Card type: M1 card
  • Card reading distance: 30 mm to 100 mm
  • Indicator: Power supply status, communication
  • Power supply: 12 VDC ± 10%
  • Power consumption: ≤ 1.6 W
  • Working temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  • Working humidity: 10% to 90% (no condensing)
  • Protective level: IP65
  • Dimensions: 62 mm × 132 mm × 44 mm (2.44" × 5.20" × 1.73")
  • Installation: Surface mounting
  • Buzzer: Support

System
  • Processor: Embedded processor

Network
  • Network protocol: RS-485

Interface
  • TAMPER: 1

Capacity
  • Fingerprint capacity: 5000

Authentication
  • Fingerprint module: Optical fingerprint module
  • Fingerprint recognition duration: 1:1 ≤ 1 s; 1:N ≤ 1.5 s
  • Fingerprint comparing mode: 1:1/1:N
  • Fingerprint FAR: ≤ 0.001%
  • Fingerprint FRR: ≤ 0.01%
  • Card type: M1 card
  • Card reading distance: 30 mm to 100 mm

General
  • Indicator: Power supply status, communication
  • Power supply: 12 VDC ± 10%
  • Power consumption: ≤ 1.6 W
  • Working temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  • Working humidity: 10% to 90% (no condensing)
  • Protective level: IP65
  • Dimensions: 62 mm × 132 mm × 44 mm (2.44" × 5.20" × 1.73")
  • Installation: Surface mounting
  • Buzzer: Support

Resources

Access comprehensive documentation, installation guides, and the latest updates to get the most out of your device.

Need additional support? Visit our

documentation center or contact support
