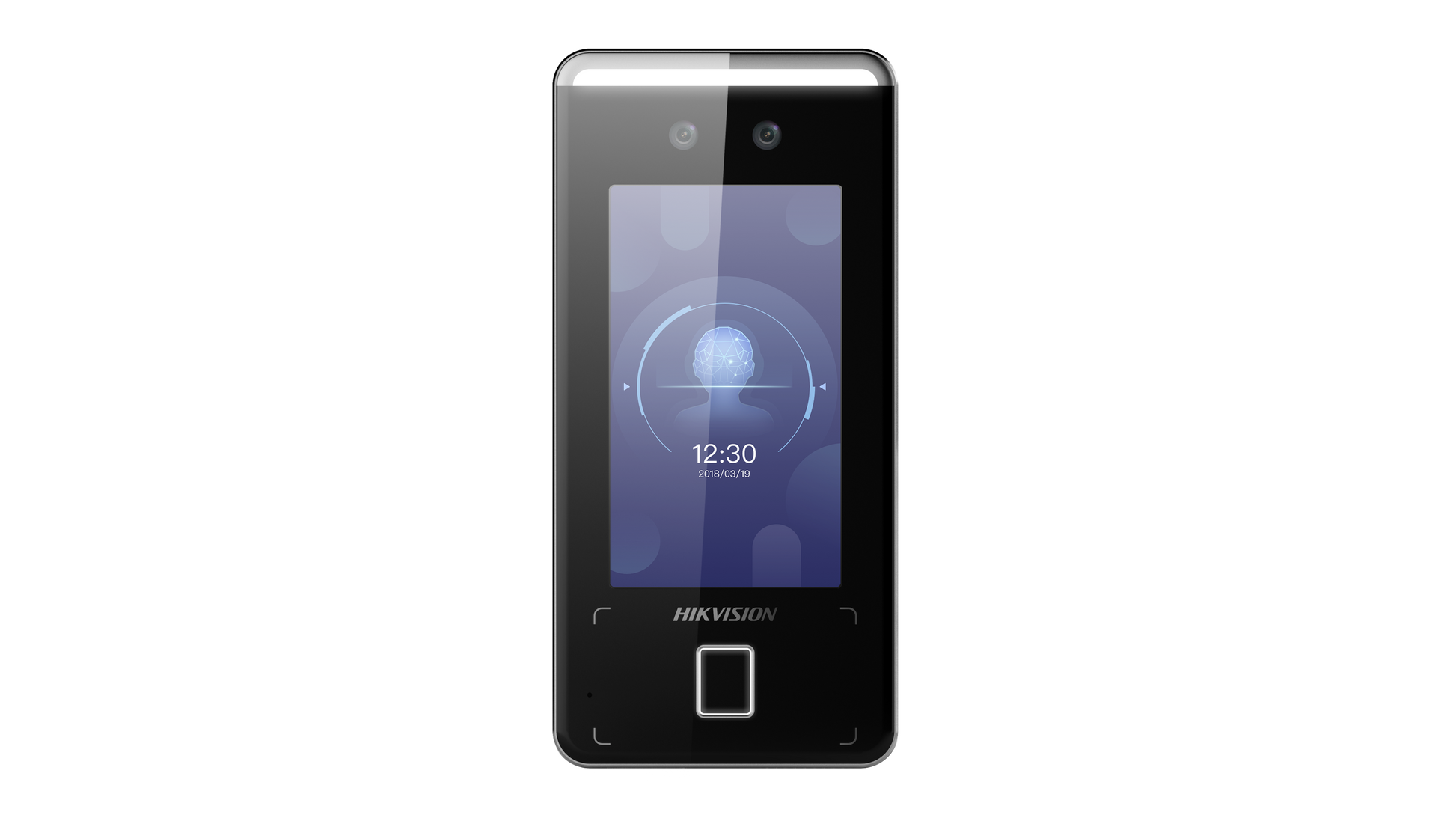

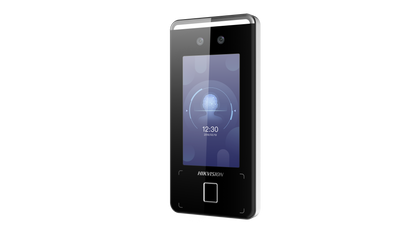

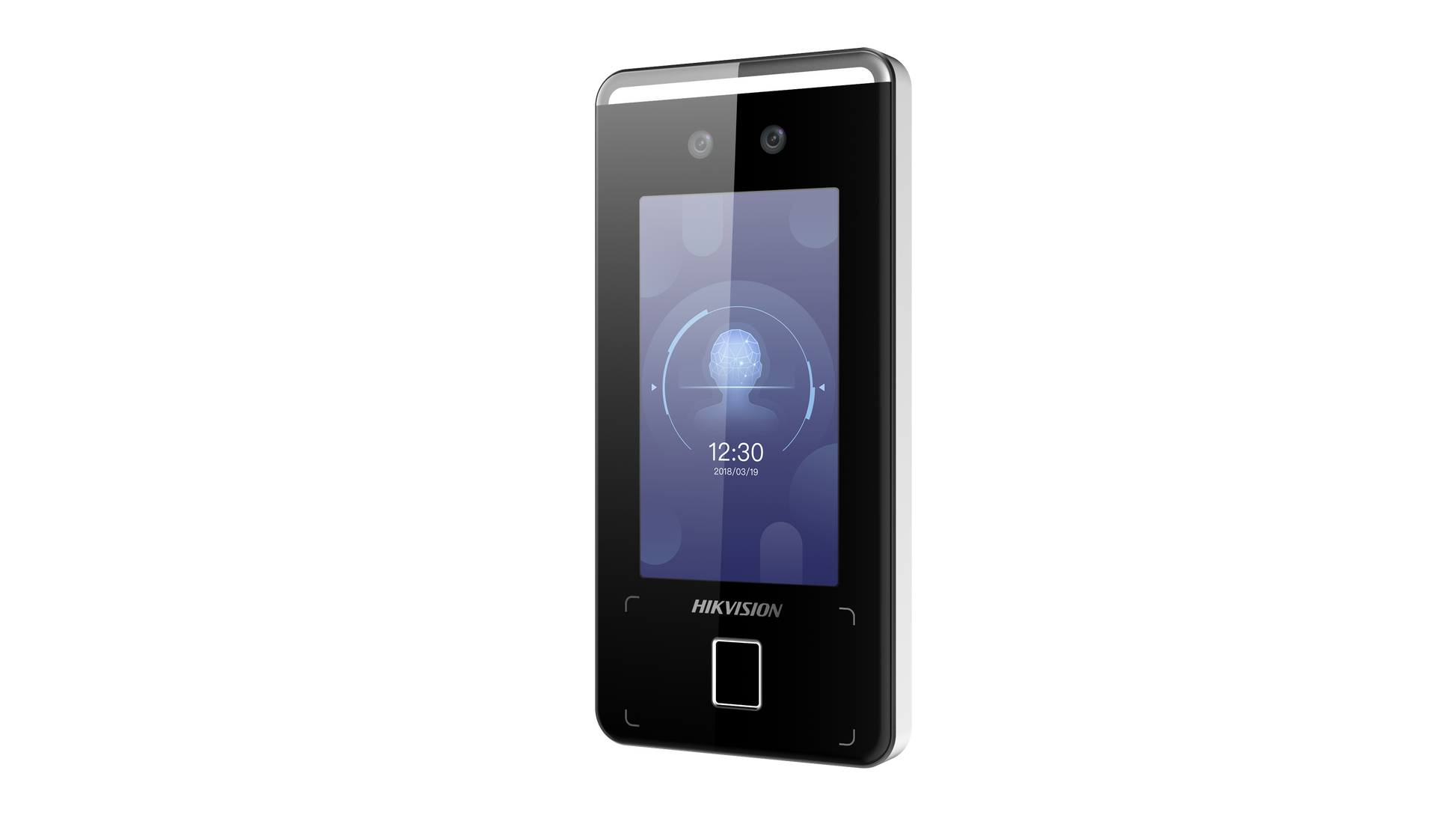

Hikvision DS-K1T341CMFW | Facial Recognition Terminal
Hikvision DS-K1T341CMFW | Facial Recognition Terminal
- Access Control
- Face Recognition Terminals
- Value Series
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module;
Max.3000 faces capacity and Max.3000 fingerprints capacity, Max.3000 cards;
Face recognition in dark environment
Two-way audio with client software, indoor station, and master station
Supports TCP/IP, WiFi, DC 12V/2A
Supports ISUP5.0, ISAPI
Configuration via the web client
Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
multiple languages: English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese Brazil and Korean
IP65
Face Recognition Accuracy Rate > 99%
Face Recognition Duration 1:N ≤0.2s
Face Recognition Distance: 0.3m ~ 1.5m
Fingerprint devices are recommended for using in indoor environment
Power adapter included in the package European Standard
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- Operating system: Linux
- ROM: 4 GB
- RAM: 1 GB
- CPU: 1 GHz
- Screen size: 4.3 inch
- Operation method: Capacitive touch screen
- Type: IPS
- Resolution: 272 × 480
- Lens: 2
- Resolution: 2 MP (video stream: 720P)
- FOV: HFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
- Wide Dynamic Range (WDR): ≥ 120 DB
- Video standard: PAL (Default) and NTSC
- Focal length: 4 mm
- Aperture: F 2.0
- Audio compression standard: G.711U
- Audio compression bitrate: 64 Kbps
- Audio input: Build-in omnidirectional microphone
- Audio output: Build-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjust via device or client
- Power output: 1 W
- Network protocol: IPV4: SADP, SIP, RTSP, ISAPI (80\443 Interface), ISAPI, ISUP5.0; IPV6: RTSP, ISAPI (80\443 Interface), ISAPI
- Wired network: Support
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
- Network interface: 1 RJ-45, 10/100 M self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- TAMPER: 1
- RS-485: 1,RS-485 (Half duplex,HIKVISION）
- Wiegand: 1,Wiegand （Hik 26bit,Hik 34bit）
- USB: 1
- Face capacity: 3,000
- Fingerprint capacity: 3,000
- Card capacity: 3,000
- Event capacity: 150,000
- Face recognition distance: > 2 m
- Face recognition duration: < 0.2 s
- Fingerprint recognition duration: < 1 s
- Card type: M1 card
- Card reading distance: 0 to 3 cm
- Card reading duration: < 1 s
- Built-in access controller: Support
- Supplement light: White light and IR light
- Power supply: 12 VDC to 24 VDC, 2 A
- Power consumption: ≤ 10 W
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Protective level: IP65
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
- Hik-Connect: Support
- Live view: Support
- Multi-factor authentication: Support
- QR code recognition: Support
- Face anti-spoofing: Support
- Audio prompt: Support
