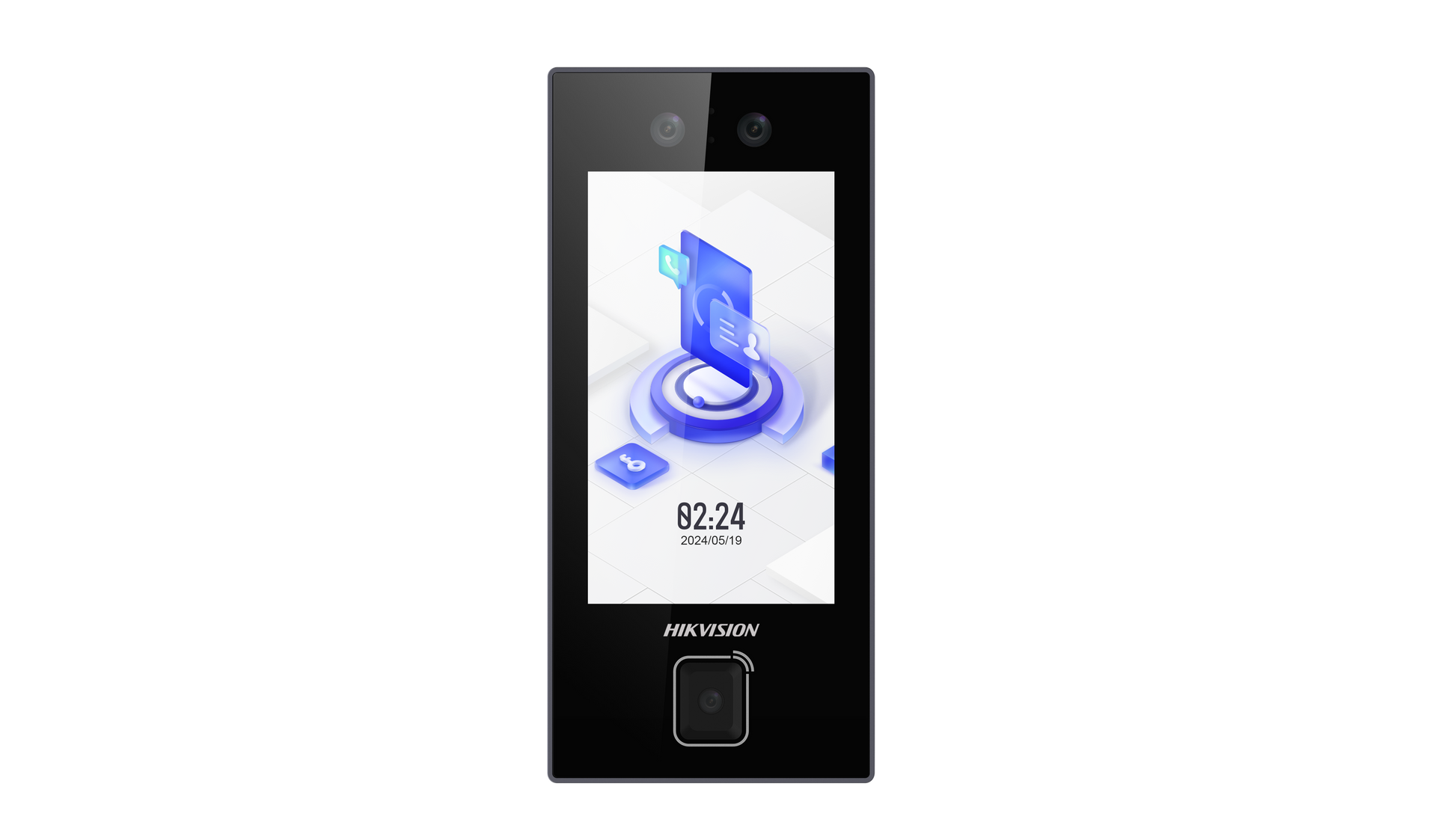

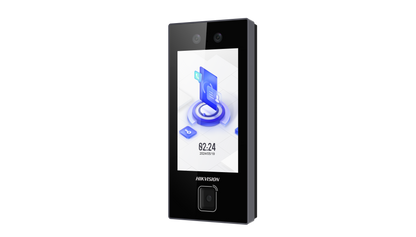

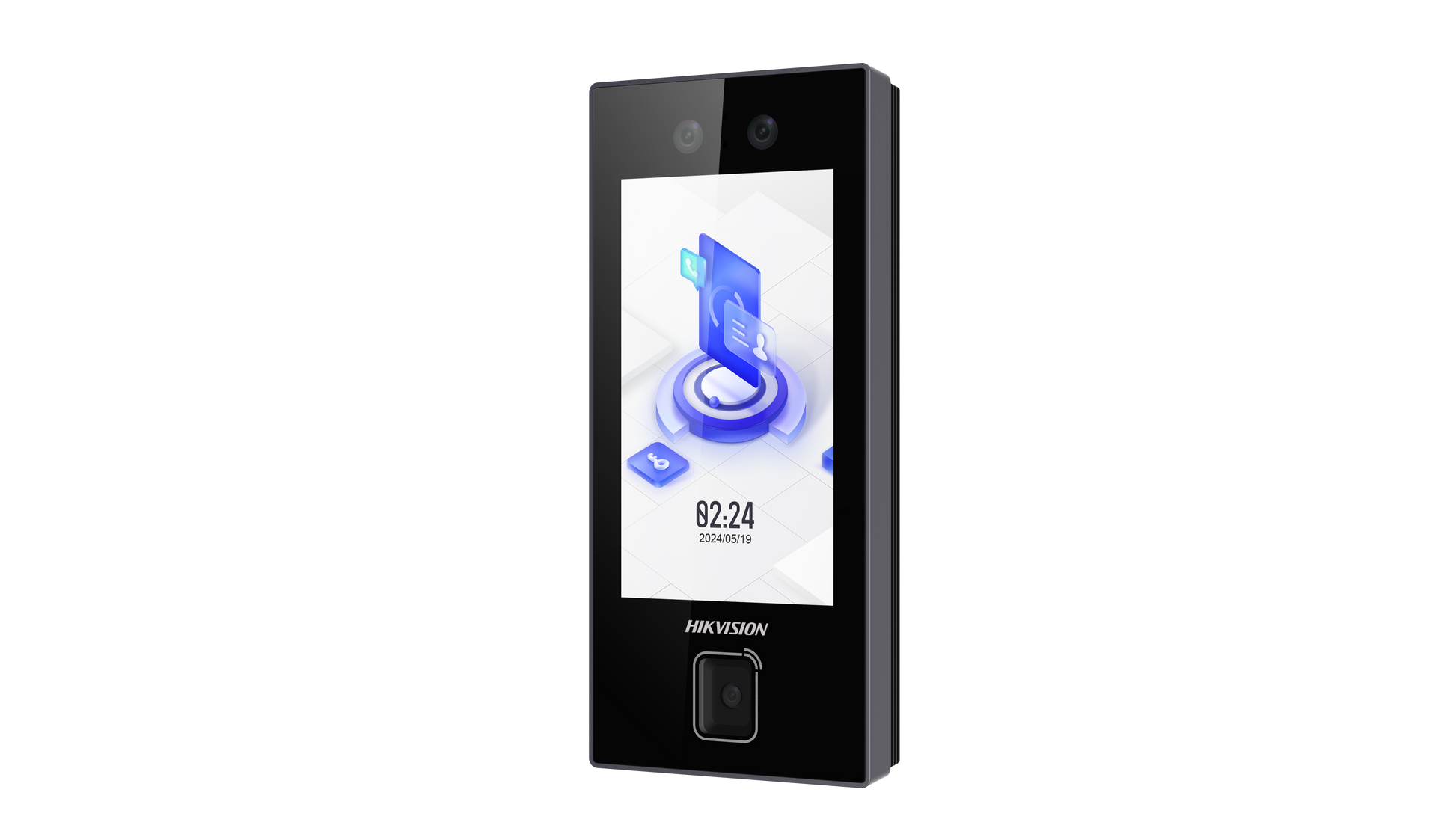

Hikvision DS-K1T344MBWX-QRE1 | Facial Recognition Terminal
Hikvision DS-K1T344MBWX-QRE1 | Facial Recognition Terminal
- Access Control
- Face Recognition Terminals
- Value Series
Supports 4.5-inch LCD touch screen, 2 Mega pixel wide-angle lens, and built-in M1 card reading module
Max.3000 faces capacity, and Max.3000 cards
Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
Supports face, card, PIN, and QR code authentication
Two-way audio with client software, indoor station, and main station. Physical button and touch button are supported
WiFi, Bluetooth
Supports mobile web and PC web for configuration
Supports powered by 12 VDC or PoE and supports powering for device and door lock.
IP65
Power adapter included in the package European Standard
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- CPU: 900 MHz
- RAM: DDR3:512M
- ROM: 4 GB
- Operating system: Linux
- Screen size: 4.5-inch
- Resolution: 480 × 854
- Type: LCD
- Operation method: Touchable
- Lumens: 250cd
- Resolution: 1920*1080
- Lens: × 2
- Focal length: 4 mm
- Wide Dynamic Range (WDR): Not support
- Aperture: F2.0
- HOV: HFOV: 75.5°, VFOV: 41.5°, DFOV: 87°
- Video standard: PAL (Default) and NTSC
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Volume adjustment: Adjust via device or client
- Power output: 8 Ω, 1.5 W
- Audio compression standard: G.711U
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Bluetooth: Support
- Wired network: 10/100 Mbps self adaptive
- Wi-Fi: Support
- Network protocol: ISAPI;Hik-Connect;ISUP5.0
- Alarm input: 2
- Alarm output: 1
- PoE: IEEE802.3at, standard PoE
- Network interface: 1
- RS-485: 1
- Wiegand: 1, supports Wiegand input, single direction
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- TAMPER: 1
- USB: 1
- User capacity: 3000
- Card capacity: 3000
- Face capacity: 3000
- Event capacity: 150000
- Card type: M1 card;M1 card content
- Card reading frequency: 13.56 MHz
- Card reading distance: 0 to 5 cm (Normal Card); 0 to 3 cm (Card with Different Shapes)
- Card reading duration: ＜ 1 s
- Face recognition duration: ＜ 0.2 s
- Face recognition accuracy rate: ＞99%
- Face recognition distance: 0.3 to 1.5 m
- Button: No physical call button
- Supplement light: IR light
- Power supply: 12 VDC, 1 A, standard PoE
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 10 to 90% (No condensing)
- Dimensions: 165.2 mm × 75.7 mm × 25 mm (6.5" × 2.98" × 0.98")
- Installation: Wall mounting
- Protective level: IP65
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese, Kazakh, Uzbek
- Weight: Gross weight: 0.60 kg (1.33 lbs) Net weight: 0.30 kg (0.66 lbs)
- Platform: Hik-ProConnect and HikCentral Professional
- QR code recognition: Support scan QR code via QR code module or camera
- Multiple faces detection: Not support
- Face anti-spoofing: Support
- Live view: Support
- Two-way audio: Support
- Advertisement: Support
- Audio prompt: Support
- M1 card encryption: Support
- Anti-passback: Support
- First person in: Support
- Multi-factor authentication: Support
- Time synchronization: Support
