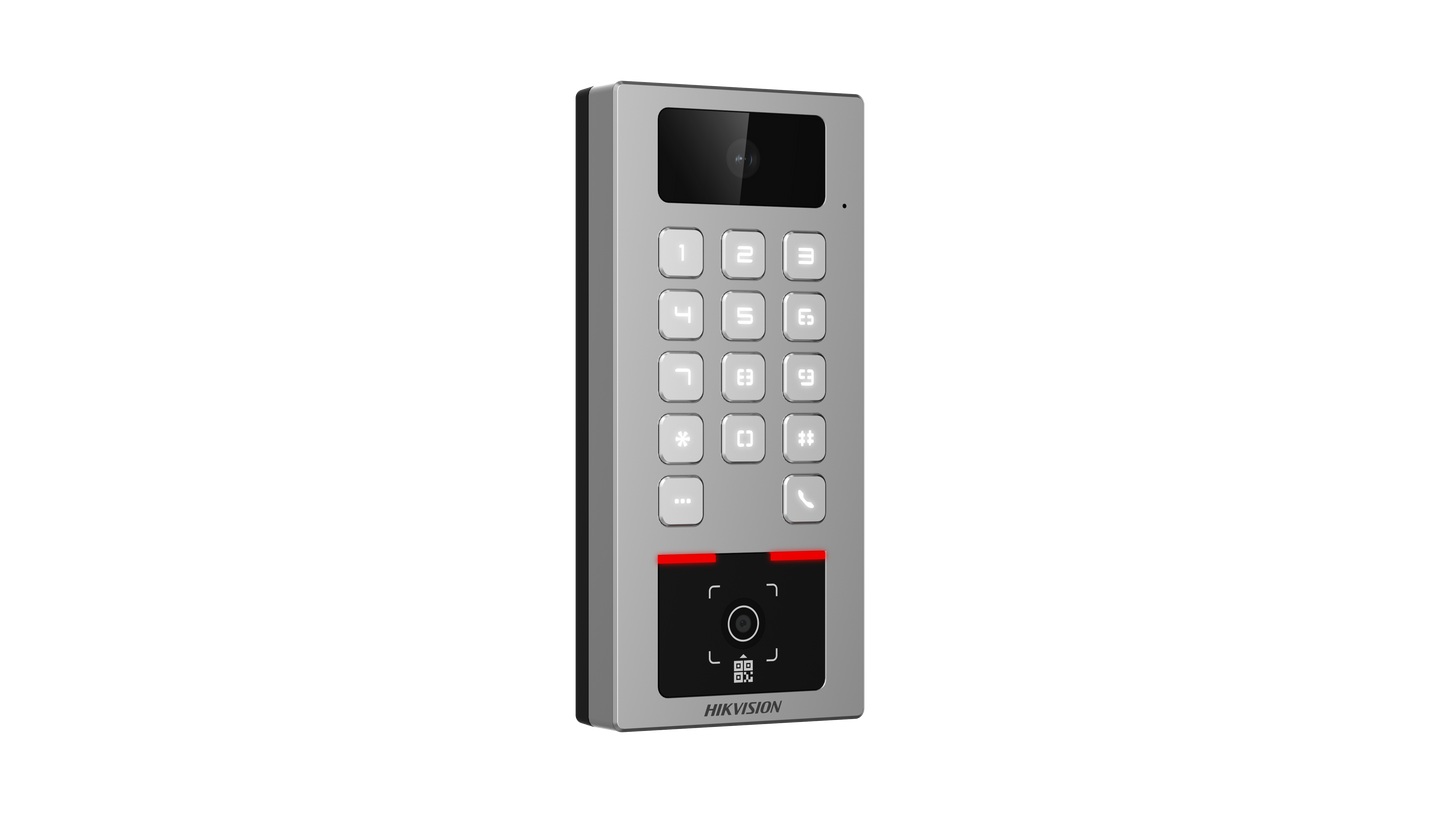

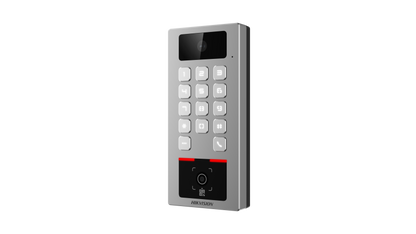

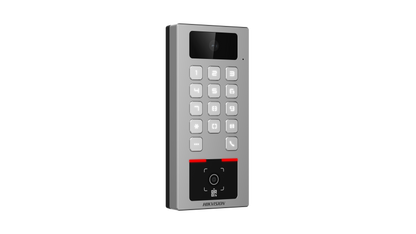

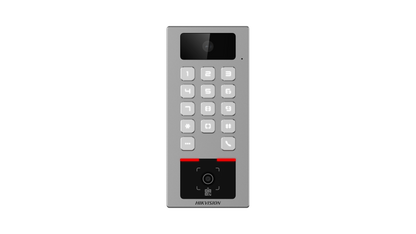

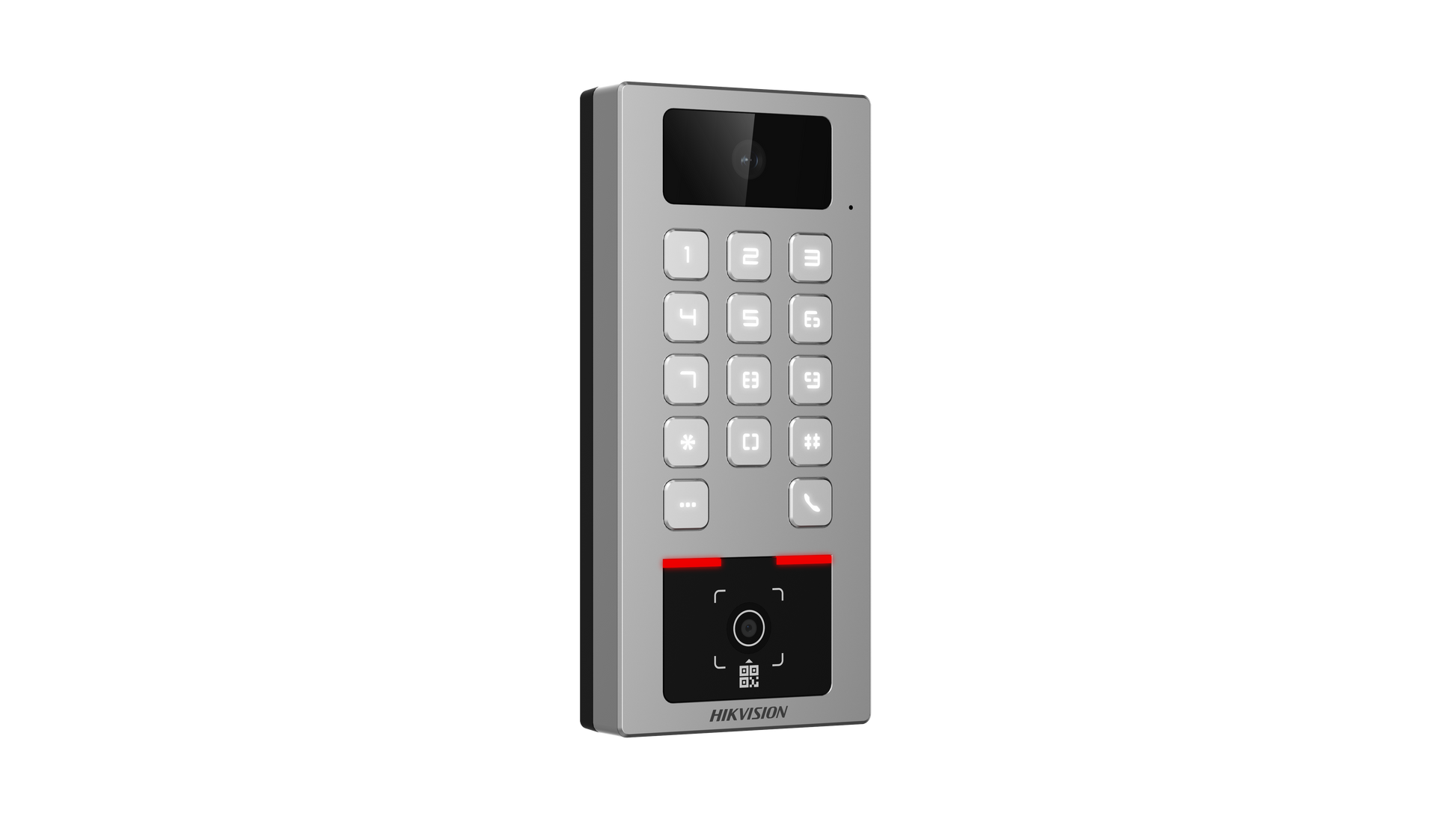

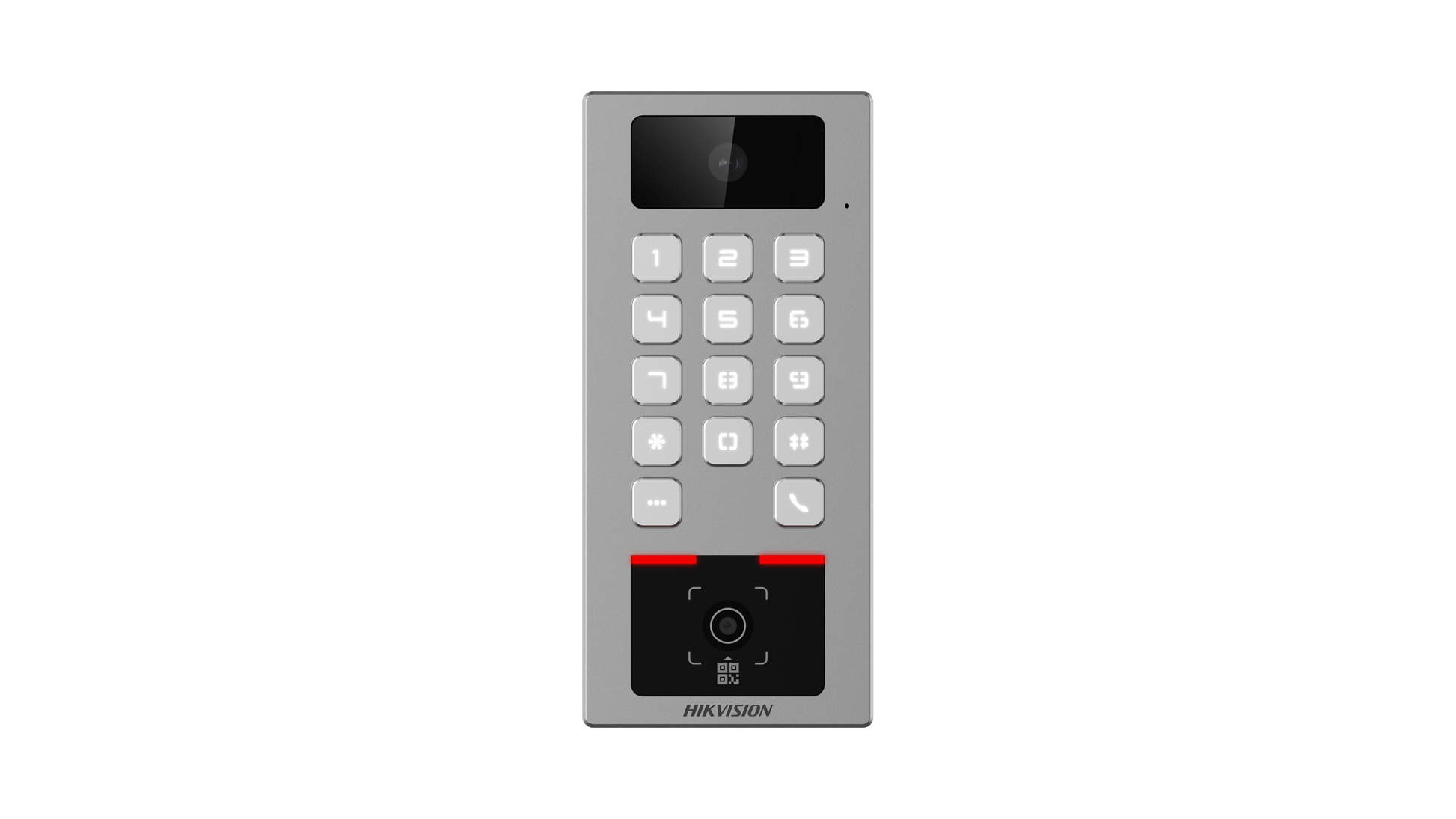

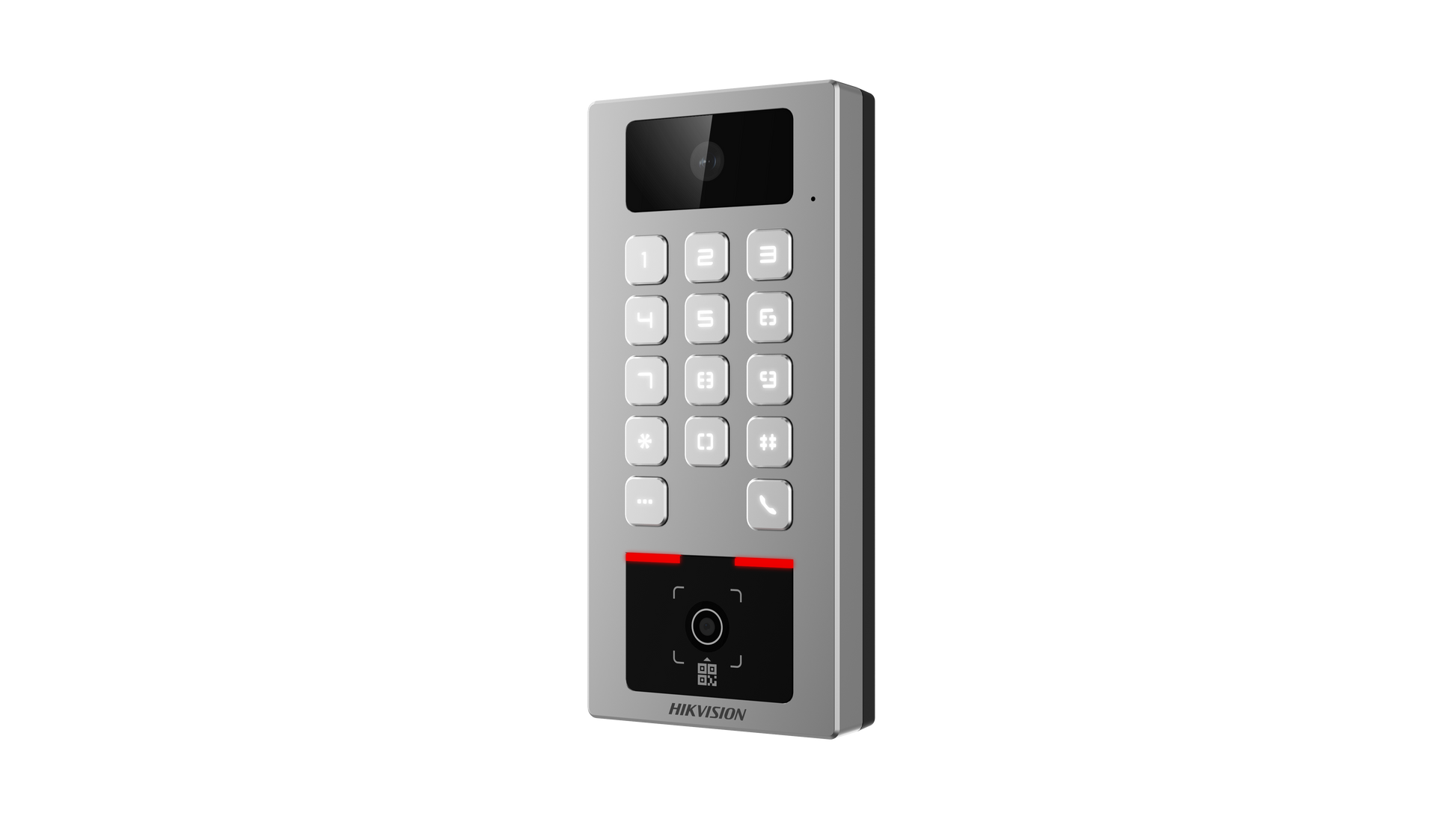

Hikvision DS-K1T502DBWX-CQR | Access Control Terminal
Hikvision DS-K1T502DBWX-CQR | Access Control Terminal
- Access Control
- Card Terminals
- Pro Series
Access Control Terminal, Built-in Mifare card, Felica card,DESfire card reading module and Bluetooth module;
Supports installing QR code peripheral, which helps device supporting dynamic QR code authentication
AP mode for mobile web configuration
access control, video intercoms, and video all in one
IP65, IK09，increased stability with zinc alloy materials
Storage with 100,000 cards, 10,000 fingerprints and 300,000 events;
support mobile APP hikconnect
Supports two-way audio intercom, remote live view, video recording through NVR, capacitive Fingerprint Module;
Uplink Communication: TCP/IP, WIFI; Downlink Communication: RS-485;
Supports SD card
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K1T502DBWX-CQR | Access Control Terminal
Specifications
- Operating system: Linux
- ROM: 4 GB
- RAM: 256 MB
- CPU: 960 MHz
- Lens: 1
- Video compression standard: H.264 and H.265
- Resolution: 2 MP
- FOV: HFOV = 110°; VFOV = 81°; DFOV = 122°
- Video standard: PAL (Default) and NTSC
- Aperture: F 2.0
- Audio input: Build-in omnidirectional microphone
- Audio output: Build-in loudspeaker
- Volume adjustment: Adjust via web or client
- Network protocol: ISAPI;Hik-Connect;ISUP5.0
- Wired network: 10/100 Mbps self adaptive
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
- Bluetooth: Support
- Network interface: 1 RJ-45 10/100 Mbps self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 1
- Alarm output: 1
- TAMPER: 1
- RS-485: 1,RS-485 (Half duplex,HIKVISION）
- Wiegand: 1, Wiegand (Hik 26bit,Hik 34bit)
- SD card slot: null
- Card capacity: 100000
- Event capacity: 300000
- Card type: CPU card No.;M1 card content;M1 card;DESfire card;Felica card
- Card reading distance: 0 to 3 cm
- Card reading duration: < 1 s
- Built-in access controller: Support
- Supplement light: IR light
- Power supply: 12 VDC to 24 VDC, 1 A
- Power consumption: ≤ 12 W
- Working temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Protective level: IK09, IP65
- Language: Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
- Hik-Connect: Support
- Video intercom: Support
- Live view: Support
- Two-way audio: Support
- Multi-factor authentication: Support
