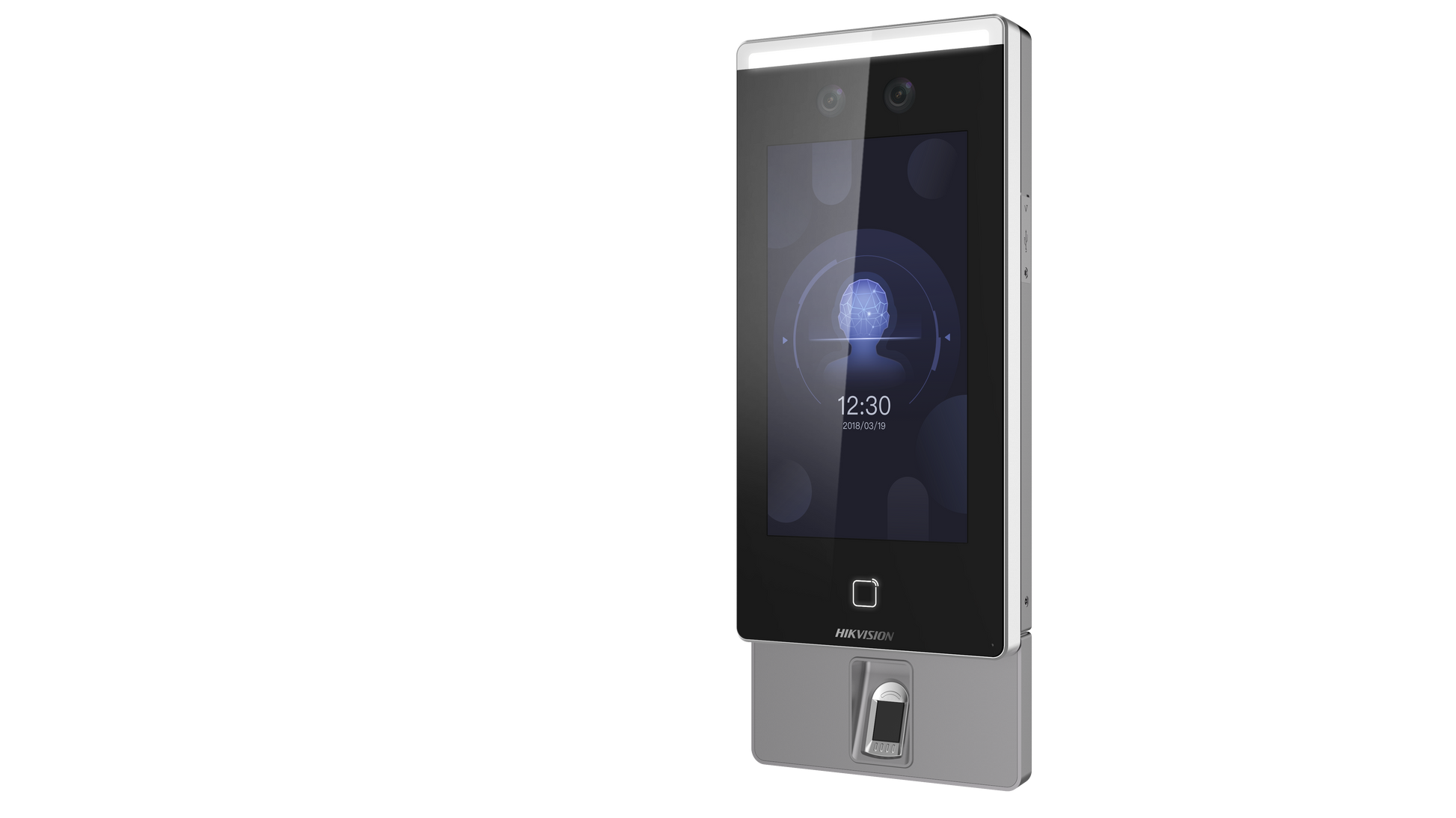

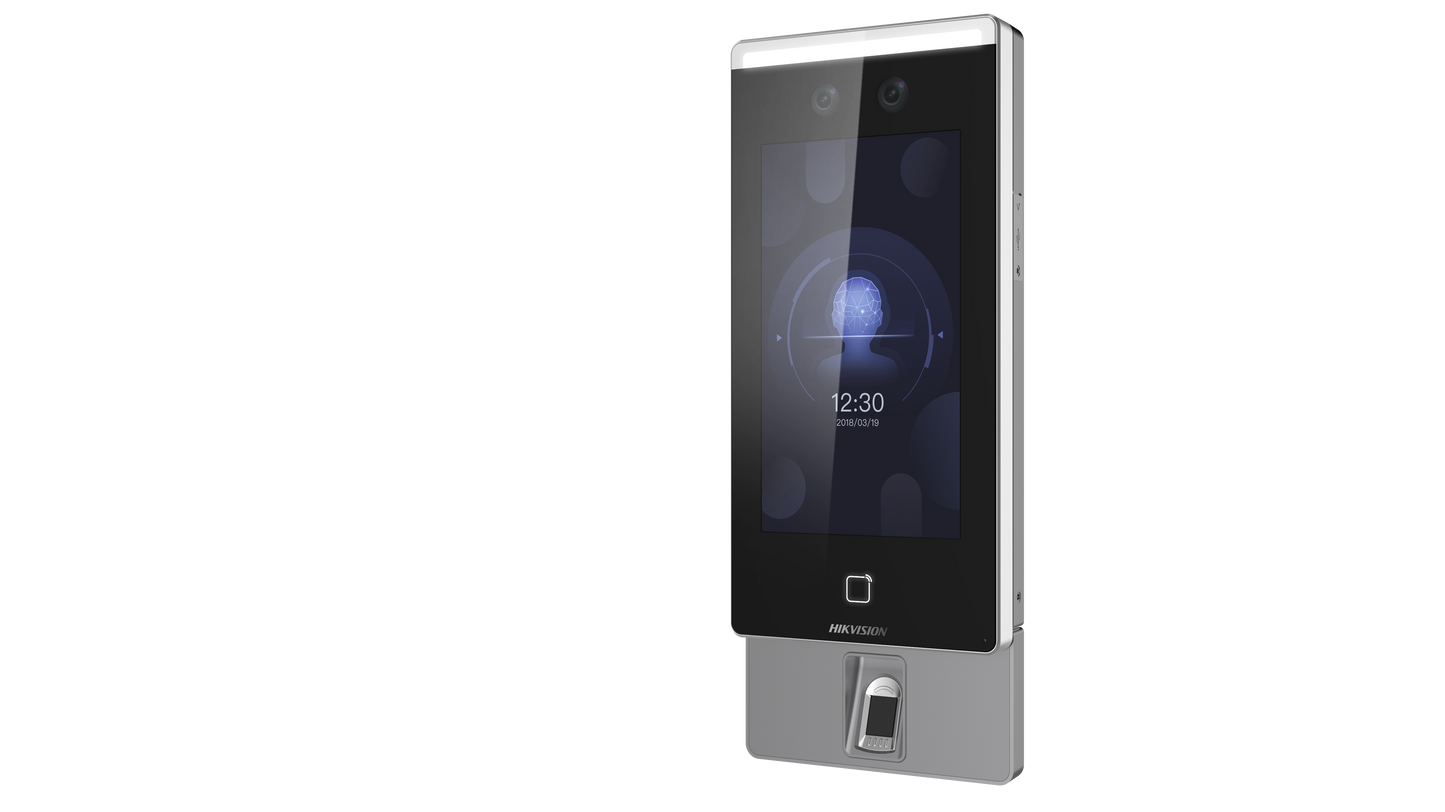

Hikvision DS-K1T671TMFW | Access Control Terminal
Hikvision DS-K1T671TMFW | Access Control Terminal
- Access Control
- Face Recognition Terminals
- Ultra Series
Face Recognition Terminal, 7-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module;
Max.50000 faces capacity and Max.5000 fingerprints capacity, Max.50000 cards;
Face recognition in dark environment
Two-way audio with client software, indoor station, and master station
Supports TCP/IP,WIFI,DC 12V/3A
Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
IP65
Face Recognition Accuracy Rate > 99%
Face Recognition Duration 1:N ≤0.2s
Face Recognition Distance: 0.3m ~ 3m
Fingerprint devices are recommended for using in indoor environment
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- CPU: 800MHz
- Memory: 1GB
- Flash: 8G
- Operation system: Linux
- FOV: HFOV= 46°；VFOV=87°
- Dimensions: 7-inch
- Resolution: 1024 × 600
- Type: LCD
- Operation method: Capacitive touch screen
- Lumens: ≥ 350 cd
- Pixel: 2 MP
- Lens: 2
- Focal length: 4 mm
- WDR: ≥ 120 DB
- Aperture: F 1.6
- Video standard: PAL (Default) and NTSC
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Volume adjustment: Adjust via device or client
- Power output: 2 W
- Audio compression standard: G.711U
- Audio compression bitrate: 64 Kbps
- Tone quality: Noise suppression and echo cancellation
- Wi-Fi: 支持
- Wired network: 10 M/100 M/1000 M self-adaptive
- 3G/4G: Not support
- Bluetooth: Not support
- Communication protocol: SDK; ISUP5.0; ISAPI; HikCentral Pro OpenAPI; Hik-ProConnect OpenAPI
- Network interface: 1
- RS-485: 1
- Wiegand: 1
- Lock output: 1
- Exit button: 1
- Door contact input: 1
- IO input: 2
- IO output: 1
- Power interface: 2-pin
- TAMPER: 1
- USB: 2
- PSAM card: Reserved
- Fingerprint capacity: 5000
- Card capacity: 50,000
- Face capacity: 50,000
- Event capacity: 100,000
- Schedule template: 255
- Weekly plan: 128
- Holiday schedule: 1024
- Holiday group: 64
- Card type: M1 card
- Card reading frequency: 13.56 MHz
- Card reading distance: 0 to 5 cm
- Card reading duration: ＜ 1 s
- Face recognition duration: ＜ 0.2 s per person
- Face recognition accuracy rate: ≥ 99%
- Face recognition distance: 0.3 to 3 m (Without face mask)
- Fingerprint recognition duration: ≤1s
- Fingerprint False Acceptance Rate (FAR): ≤ 0.001%
- Fingerprint False Rejection Rate (FRR): ≤ 0.1%
- Supplement light: White light and IR light
- Power supply method: 2 pin connecter
- Power supply: 12 VDC/ 2 A
- Working temperature: -30 ℃ to 60 ℃ (-22 °F to 140 °F)
- Working humidity: 10 to 90％ (No condensing)
- Dimensions: 290 mm × 116.5 mm × 33 mm (11.4" × 4.6" × 1.3")
- Application environment: Indoor
- Protective level: IP65
- Installation: Wall mounting
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
- Platform: Hik-ProConnect and HikCentral Professional
- QR code recognition: Support
- Multiple faces detection: Not support
- Face anti-spoofing: Support
- Live view: Support
- Two-way audio: Support
- Advertisement: Support
- Doorbell: Not support
- Audio prompt: Support
- M1 card encryption: Support
- CPU card encryption: Support
- Anti-passback: Support
- First person in: Support
- Multi-factor authentication: Support
- Time synchronization: Support
