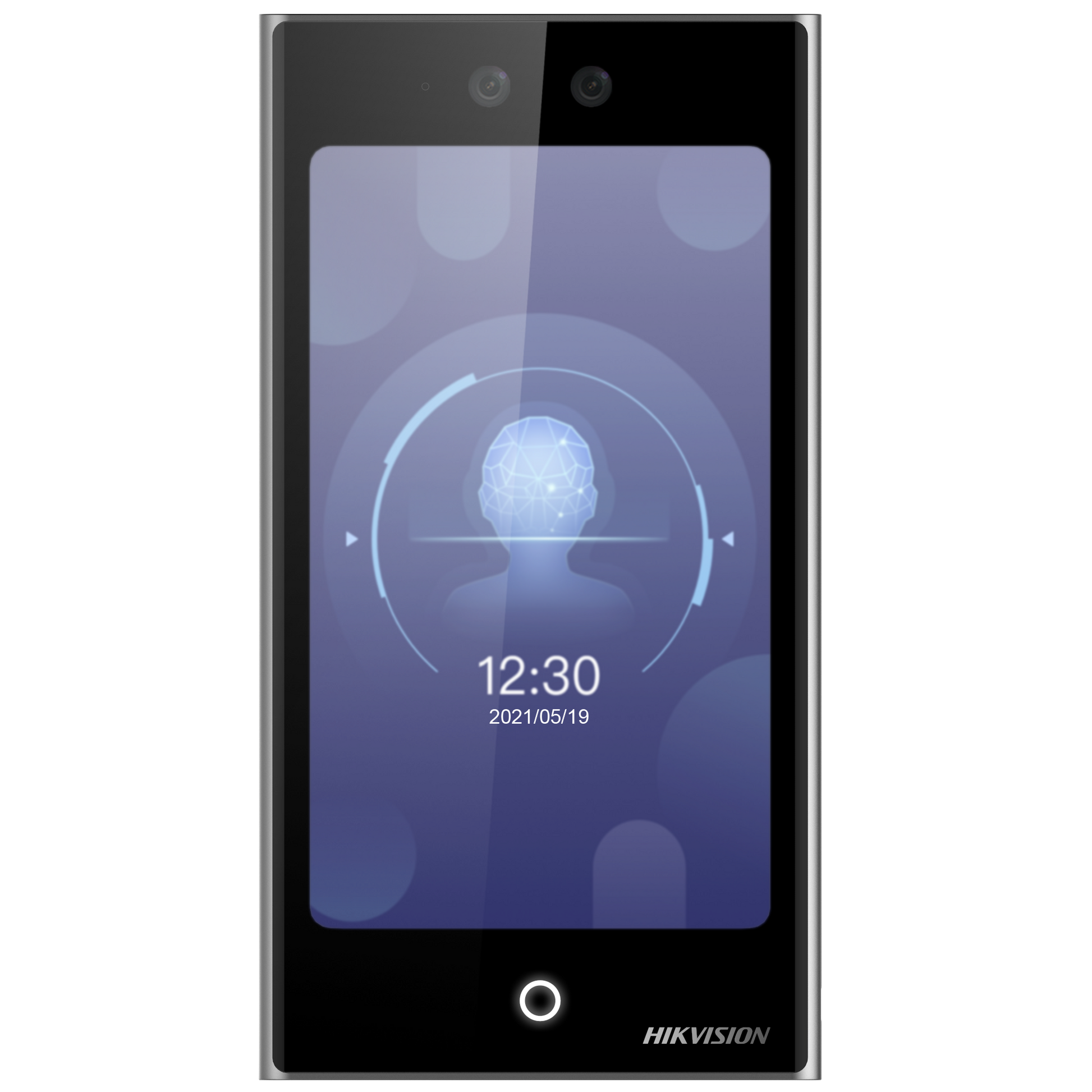

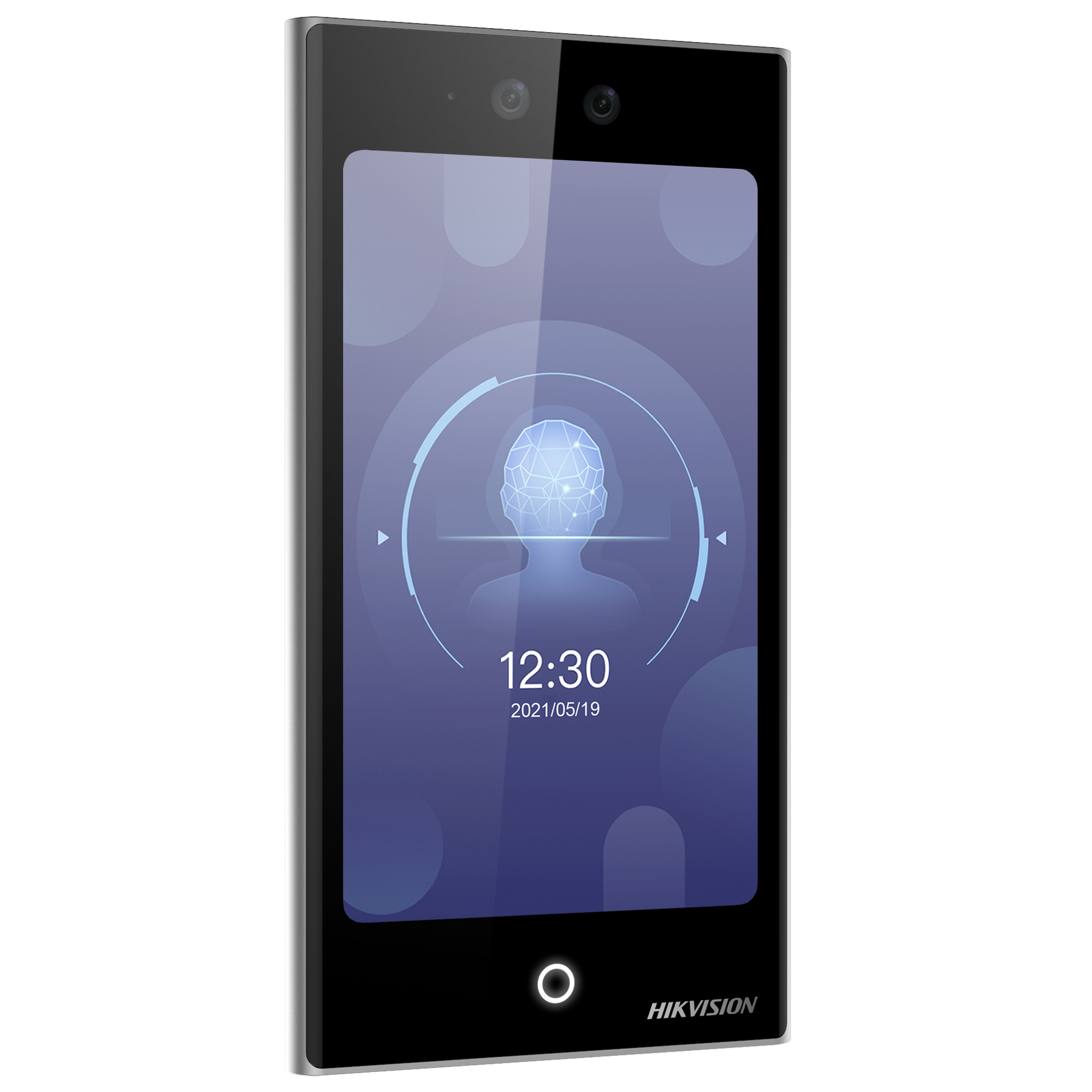

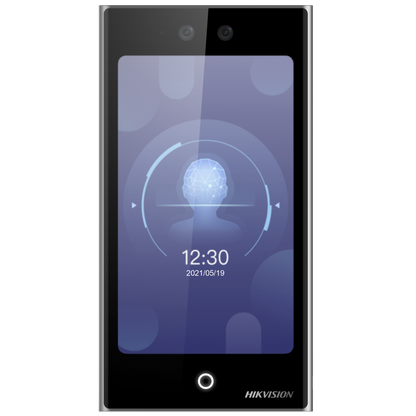

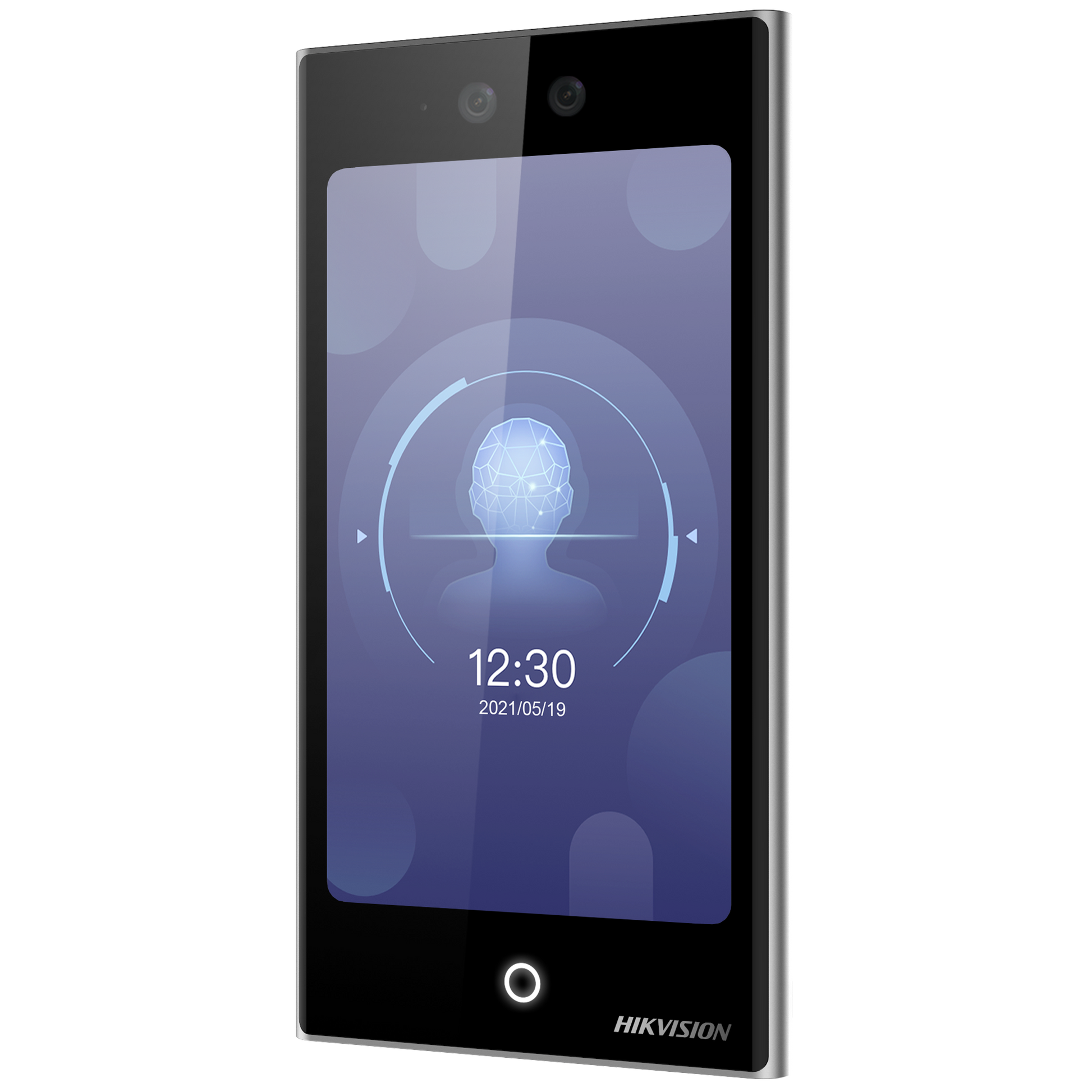

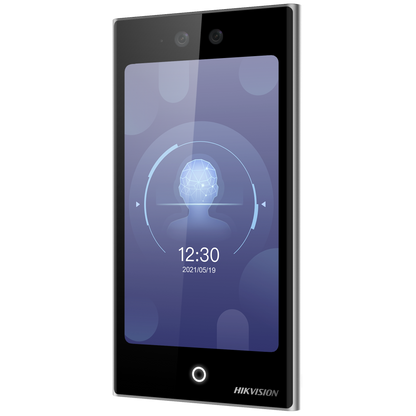

Hikvision DS-K1T673DWX | Facial Recognition Terminal
Hikvision DS-K1T673DWX | Facial Recognition Terminal
- Access Control
- Face Recognition Terminals
- Pro Series
Face Recognition Terminal, 7-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card, Felica card,DESfire card reading module;
Max.10,000 faces capacity , Max.50,000 cards;
Two-way audio with client software, indoor station, and master station
Supports TCP/IP,WIFI, DC 12-24V/2A
Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
multiple languages: English, Spanish South America , Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese Brazil , Japanese, Korean
Face mask detection
Supports Peripheral Module: DS-KAB673-B, DS-KAB673-BQR, DS-KAB673-FB, DS-KAB673-FBQR B：Bluetooth; QR：QR Code; F：fingerprint
Supports single person and multiple people Up to 5 people recognition
Face Recognition Accuracy Rate > 99%
Face Recognition Duration 1:N ≤0.2s
Face Recognition Distance: 0.3m ~ 3m
IP65
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- Operating system: Linux
- ROM: 4 GB
- RAM: 1 GB
- Screen size: 7 inch
- Operation method: Capacitive touch screen
- Type: IPS
- Resolution: 600 × 1024
- Lens: 2
- Resolution: 2 MP
- FOV: HFOV = 75.5°; VFOV = 41.5°; DFOV = 87°
- Wide Dynamic Range (WDR): Support
- Video standard: PAL (Default)/NTSC
- Focal length: 4 mm
- Aperture: F 1.1
- Audio compression standard: G.711U
- Audio compression bitrate: 64 Kbps
- Audio quality: Built-in omnidirectional microphone
- Volume adjustment: Support
- Power output: 1.5 W
- Network protocol: IPV4: SADP, SIP, RTSP, ISAPI, ISUP 5.0 IPV6: RTSP, ISAPI
- Wired network: Support
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
- Network interface: 1 RJ-45, 10/100/1000 M self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- TAMPER: 1
- RS-485: 1 RS-485 (Half duplex, HIKVISION)
- Wiegand: 1 Wiegand(Hik 26bit,Hik 34bit)
- USB: 1 (For Module)
- Audio output interface: 1 (3.5 mm)
- Face capacity: 10,000
- Fingerprint capacity: 10,000 (With fingerprint module)
- Card capacity: 50,000
- Event capacity: 150,000
- Face recognition distance: 0.3 to 3 m
- Face recognition accuracy rate: ≥ 99%
- Face recognition duration: ＜ 0.2 s per person
- Card type: M1 card;Felica card;DESfire card
- Card reading distance: 0 to 3 cm
- Card reading duration: ＜ 1 s
- Power supply: 12 VDC to 24 VDC, 2 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0 to 90% (no condensing)
- Protective level: IP65
- Dimensions: 110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
- Weight: Gross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb)
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French and Turkish
- Advertisement: Support
- Live view: Support
- Two-way audio: Support
- Multi-factor authentication: Support
- Face anti-spoofing: Support
- Anti-passback: Support
- First person in: Support
