• DS-K1T680DF-E1

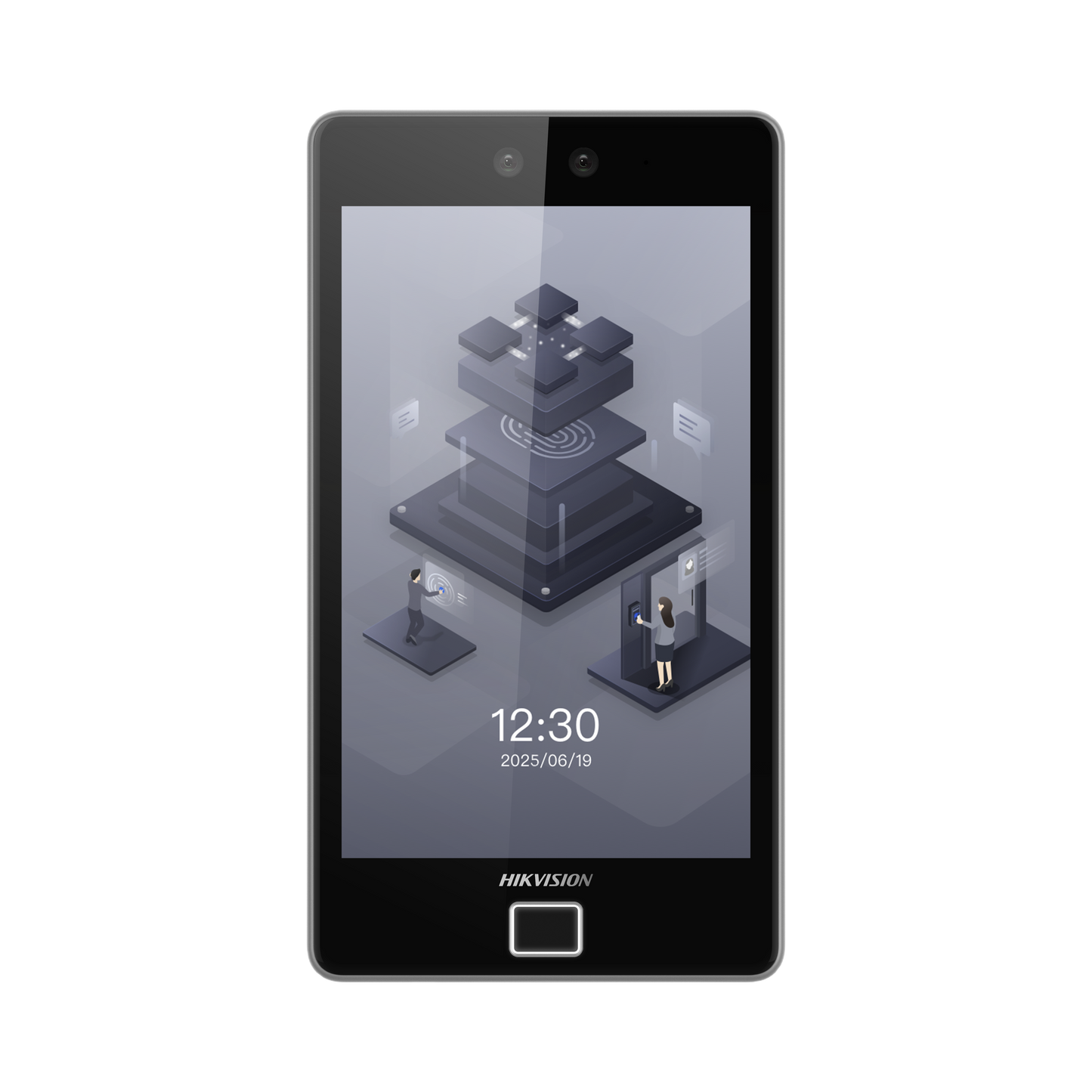

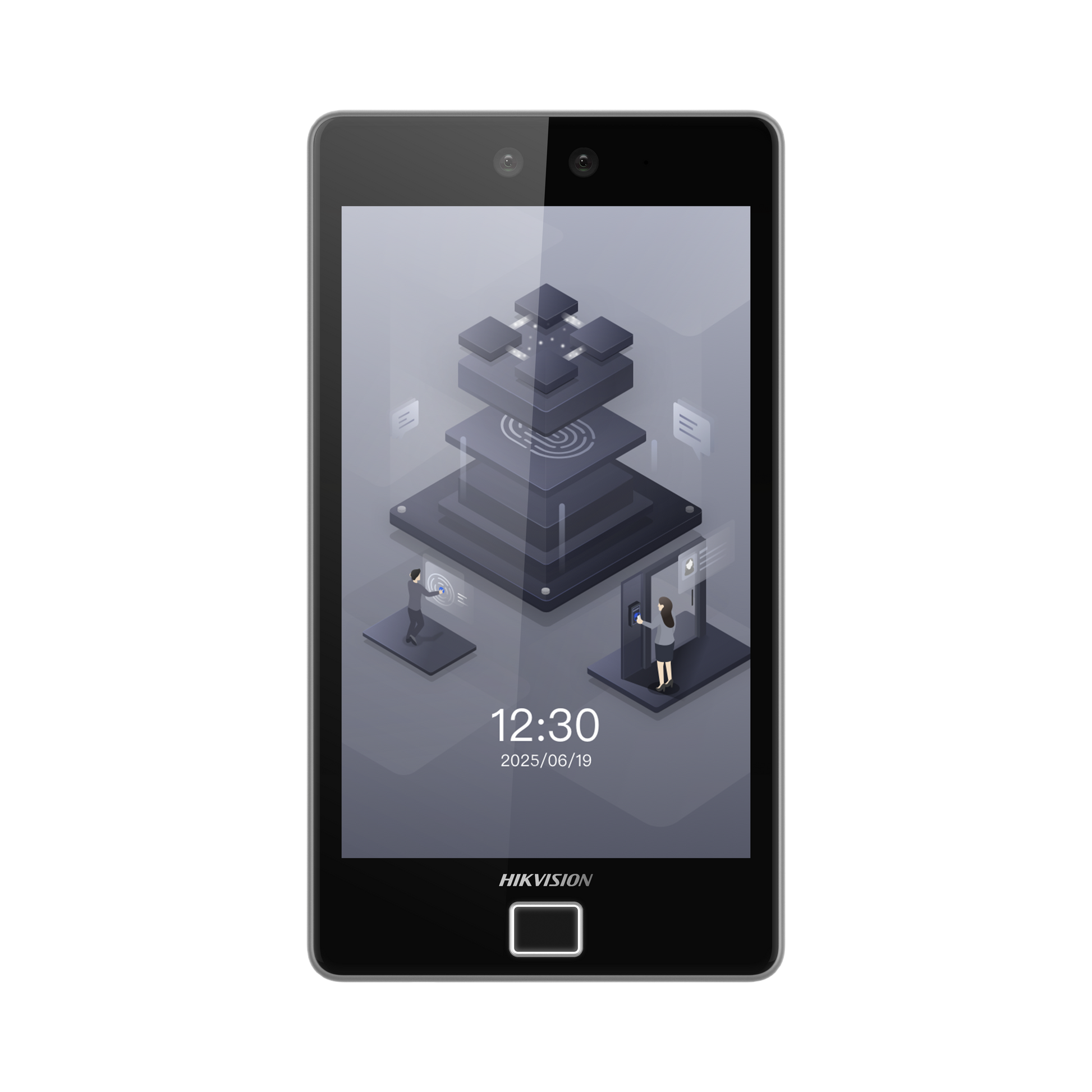

Hikvision DS-K1T680DF-E1 | Facial Recognition Terminal

Hikvision DS-K1T680DF-E1 | Facial Recognition Terminal

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Face Recognition Terminals
  • Ultra Series

Face Recognition Terminal, 8-inch bezel-less touch screen,2 Mega pixel wide-angle lens
Max.100,000 faces capacity , and Max.10,000 fingerprints capacity, Max.100,000 cards; Presents card on the screen to authentication Felica, DESfire, M1
Two-way audio with client software, indoor station, and master station
Configuration via the web client
Supports TCP/IP,POE, DC 12-24V/3A
Supports 6 attendance status, Customizes attendance status name
multiple languages: English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
Supports ISAPI and ISUP5.0 protocol
Face Recognition Accuracy Rate > 99%
Face Recognition Duration 1:N ≤0.2s
Face Recognition Distance: 0.3m ~ 3m
IP65
Fingerprint devices are recommended for using in indoor environment

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K1T680DF-E1 | Facial Recognition Terminal
Login to View Price

Specifications

  • Operating system: Linux
  • Screen size: 8 inch
  • Operation method: Capacitive touch screen
  • Type: LCD
  • Resolution: 1280 × 800
  • Lens: 2
  • Resolution: 2 MP
  • FOV: HFOV = 88°; VFOV = 44°; DFOV = 108°
  • Wide Dynamic Range (WDR): ≥ 120DB
  • Video standard: PAL (Default) and NTSC
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker
  • Volume adjustment: Support
  • Network protocol: TCP/IP, SIP, RTSP, ISAPI (Port 80/433), ISAPI (unvarnished transmission), ISUP 5.0
  • Wired network: Support
  • RF Frequency: 13.56 MHz
  • Network interface: 1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control: 1
  • Exit button: 1
  • Door contact input: 1
  • Alarm input: 2
  • Alarm output: 1
  • TAMPER: 1
  • RS-485: 1 RS-485 (Half duplex, HIKVISION)
  • Wiegand: 1 Wiegand(Hik 26bit,Hik 34bit)
  • USB: 1
  • Face capacity: 100000
  • Fingerprint capacity: 10000
  • Card capacity: 100000
  • Event capacity: 150000
  • Face recognition distance: 0.3 to 3 m
  • Face recognition accuracy rate: ≥ 99%
  • Face recognition duration: ＜ 0.2 s
  • Fingerprint recognition duration: ＜ 1 s
  • Card type: DESfire card;Felica card
  • Card reading distance: 0 to 5 cm
  • Card reading duration: ＜ 1 s
  • Power supply: 12 to 24 VDC, 3 A, Standard PoE
  • Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity: 0 to 90% (No condensing)
  • Protective level: IP65
  • Dimensions: 127.3 mm × 232.1 mm × 23.5 mm (5.0'' × 9.1'' × 0.9'' )
  • Hik-Connect: Support
  • Language: English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
  • Two-way audio: Two-way audio with indoor station and master station
  • QR code recognition: Support. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm.
  • Face anti-spoofing: Support

System
  • Operating system: Linux

Display
  • Screen size: 8 inch
  • Operation method: Capacitive touch screen
  • Type: LCD
  • Resolution: 1280 × 800

Video
  • Lens: 2
  • Resolution: 2 MP
  • FOV: HFOV = 88°; VFOV = 44°; DFOV = 108°
  • Wide Dynamic Range (WDR): ≥ 120DB
  • Video standard: PAL (Default) and NTSC

Audio
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker
  • Volume adjustment: Support

Network
  • Network protocol: TCP/IP, SIP, RTSP, ISAPI (Port 80/433), ISAPI (unvarnished transmission), ISUP 5.0
  • Wired network: Support
  • RF Frequency: 13.56 MHz

Interface
  • Network interface: 1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control: 1
  • Exit button: 1
  • Door contact input: 1
  • Alarm input: 2
  • Alarm output: 1
  • TAMPER: 1
  • RS-485: 1 RS-485 (Half duplex, HIKVISION)
  • Wiegand: 1 Wiegand(Hik 26bit,Hik 34bit)
  • USB: 1

Capacity
  • Face capacity: 100000
  • Fingerprint capacity: 10000
  • Card capacity: 100000
  • Event capacity: 150000

Authentication
  • Face recognition distance: 0.3 to 3 m
  • Face recognition accuracy rate: ≥ 99%
  • Face recognition duration: ＜ 0.2 s
  • Fingerprint recognition duration: ＜ 1 s
  • Card type: DESfire card;Felica card
  • Card reading distance: 0 to 5 cm
  • Card reading duration: ＜ 1 s

General
  • Power supply: 12 to 24 VDC, 3 A, Standard PoE
  • Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity: 0 to 90% (No condensing)
  • Protective level: IP65
  • Dimensions: 127.3 mm × 232.1 mm × 23.5 mm (5.0'' × 9.1'' × 0.9'' )

Function
  • Hik-Connect: Support
  • Language: English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
  • Two-way audio: Two-way audio with indoor station and master station
  • QR code recognition: Support. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm.
  • Face anti-spoofing: Support
