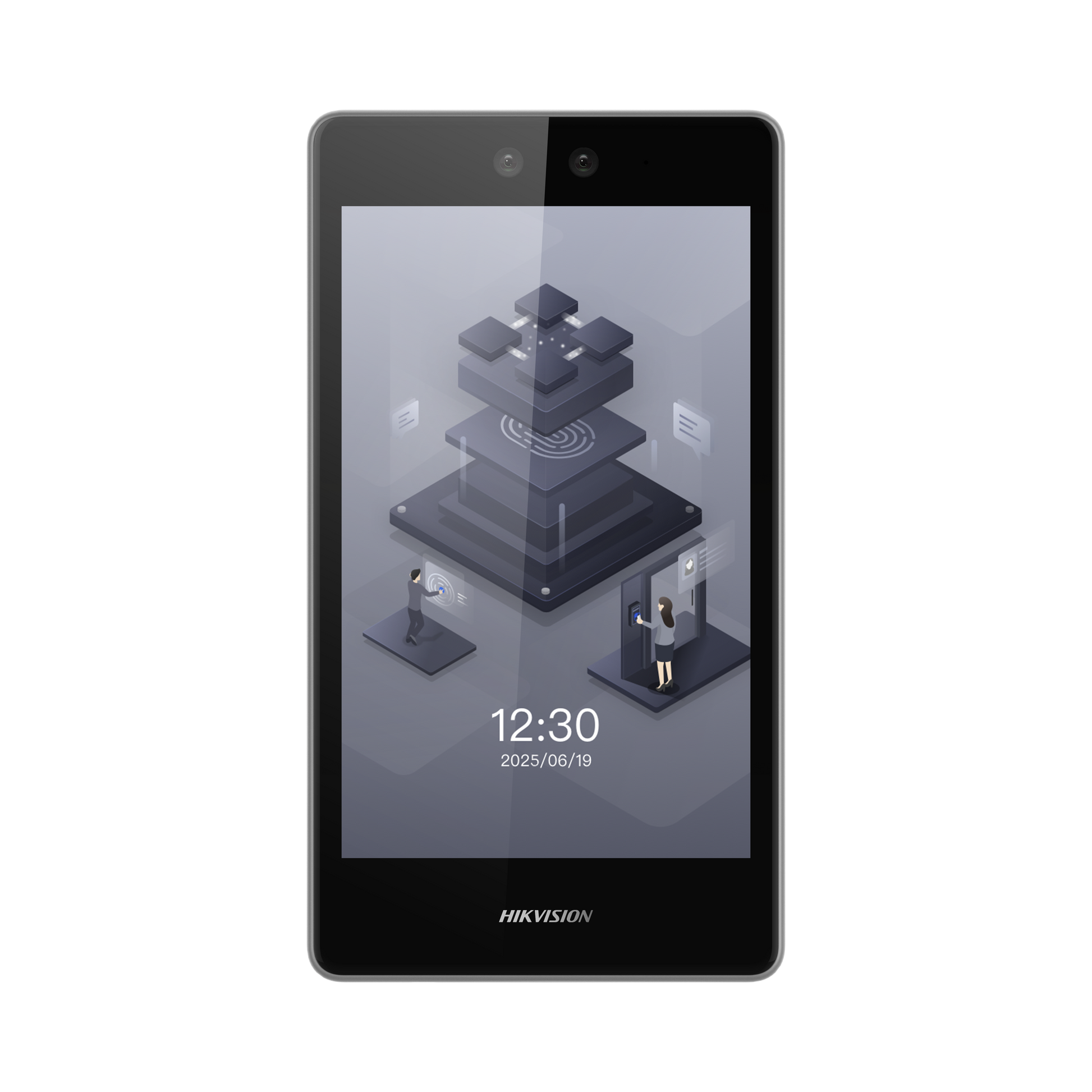

Hikvision DS-K1T680DW | Facial Recognition Terminal
Hikvision DS-K1T680DW | Facial Recognition Terminal
- Access Control
- Face Recognition Terminals
- Ultra Series
Face Recognition Terminal, 8-inch bezel-less touch screen,2 Mega pixel wide-angle lens
Max.100,000 faces capacity , Max.100,000 cards; Presents card on the screen to authentication Felica, DESfire, M1
Two-way audio with client software, indoor station, and master station
Configuration via the web client
Supports TCP/IP,WiFi, DC 12-24V/3A
Supports 6 attendance status, Customizes attendance status name
multiple languages: English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
Supports ISAPI and ISUP5.0 protocol
Face Recognition Accuracy Rate > 99%
Face Recognition Duration 1:N ≤0.2s
Face Recognition Distance: 0.3m ~ 3m
IP65
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- Operating system: Linux
- Screen size: 8 inch
- Operation method: Capacitive touch screen
- Type: LCD
- Resolution: 1280 × 800
- Lens: 2
- Resolution: 2 MP
- FOV: HFOV = 88°; VFOV = 44°; DFOV =108°
- Wide Dynamic Range (WDR): ≥ 120DB
- Video standard: PAL (Default) and NTSC
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Volume adjustment: Support
- Network protocol: TCP/IP, SIP, RTSP, ISAPI (Port 80/433), ISAPI (unvarnished transmission), ISUP 5.0
- Wired network: Support
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
- Network interface: 1 RJ-45, 10/100/1000 M self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- TAMPER: 1
- RS-485: 1 RS-485 (Half duplex, HIKVISION)
- Wiegand: 1 Wiegand(Hik 26bit,Hik 34bit)
- USB: 1
- Face capacity: 100,000
- Card capacity: 100,000
- Event capacity: 150,000
- Face recognition distance: 0.3 to 3 m
- Face recognition accuracy rate: ≥ 99%
- Face recognition duration: ＜ 0.2 s
- Fingerprint recognition duration: ＜ 1 s
- Card type: M1 card;DESfire card;Felica card
- Card reading distance: 0 to 5 cm
- Card reading duration: ＜ 1 s
- Power supply: 12 VDC to 24 VDC, 3 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0 to 90% (No condensing)
- Protective level: IP65
- Dimensions: 127.3 mm × 232.1 mm × 23.5 mm (5.0'' × 9.1'' × 0.9'' )
- Hik-Connect: Support
- Language: English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
- Live view: Support
- Two-way audio: Two-way audio with indoor station and master station
- Multi-factor authentication: Support
- QR code recognition: Support. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm.
- Face anti-spoofing: Support
- Anti-passback: Support
- First person in: Support
