• DS-K1T804BMF

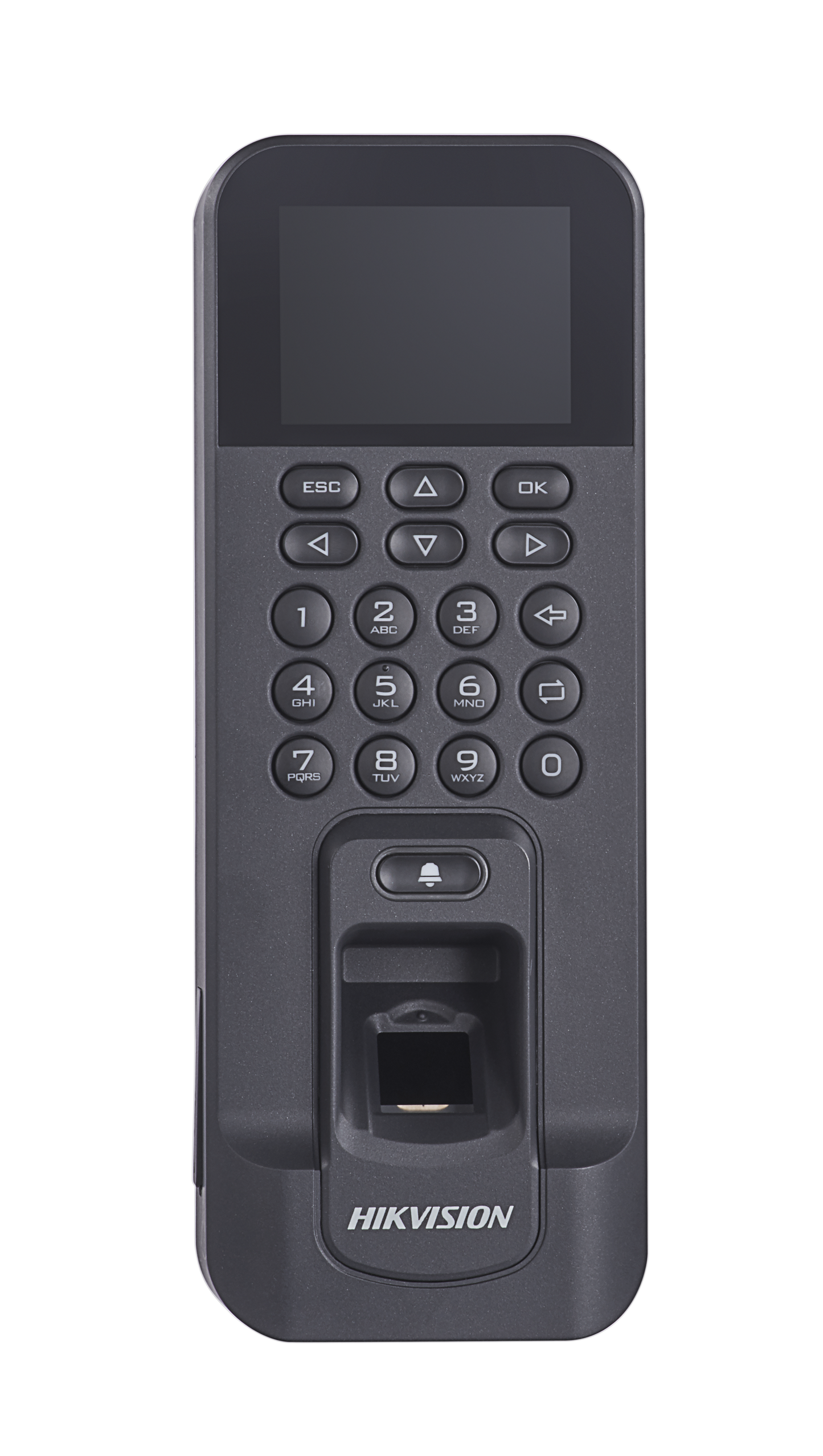

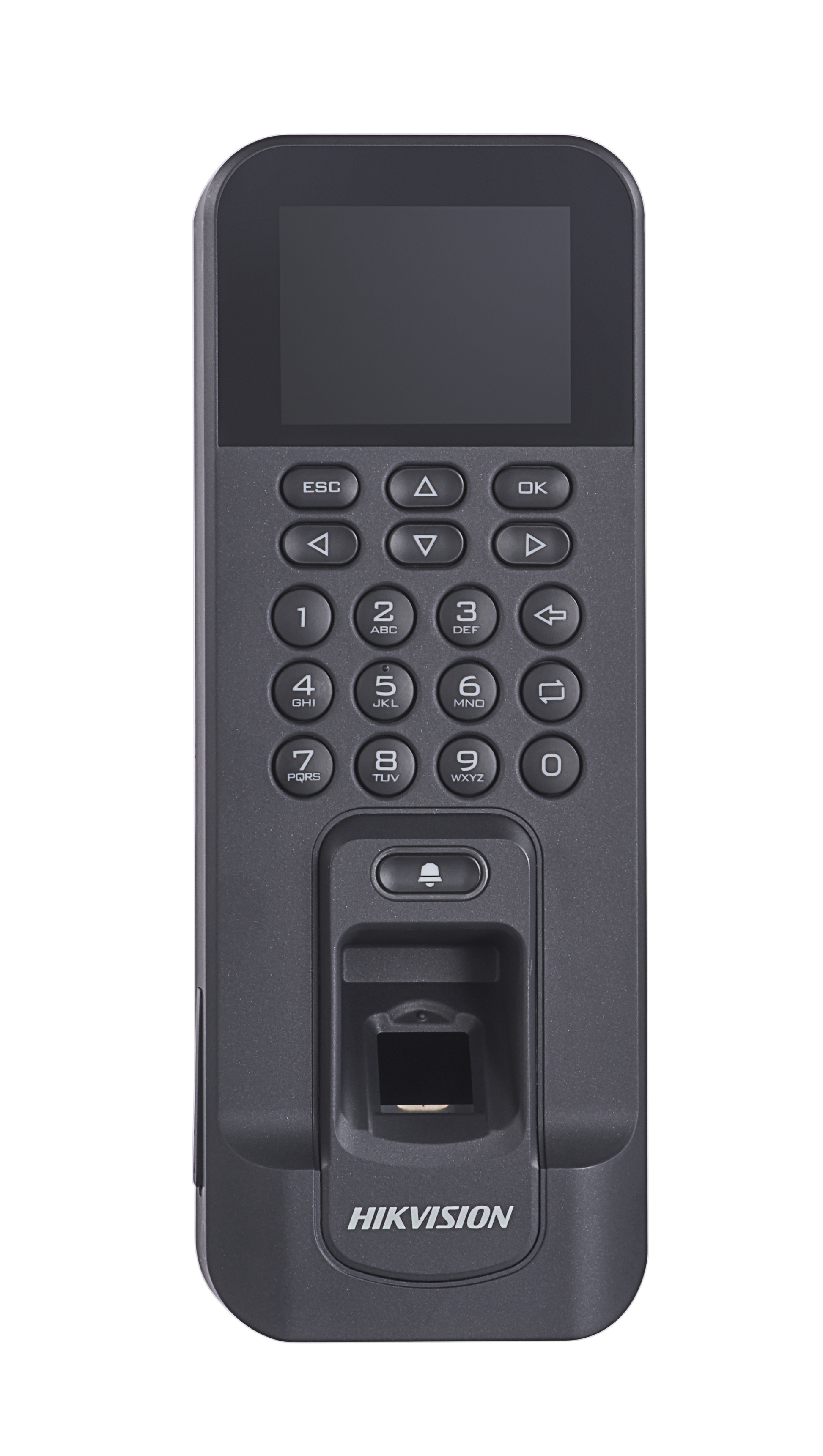

Hikvision DS-K1T804BMF | Access Control Terminal

Hikvision DS-K1T804BMF | Access Control Terminal

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • FingerPrint Terminals
  • Pro Series

2.4 inch LCD Display Standalone Access Control Terminal, Built-in M1 card reading module,
Storage with 3,000 cards, 3,000 fingerprints and 100,000 access control events;
Support Access Control and Time Attendance Function, Optical Fingerprint Module;
Uplink Communication: TCP-IP, WIFI;
Supports Wiegand out W26/W34 and Wiegand in W26/W34 .
Supports ISUP5.0, ISAPI
multiple languages: English, Spanish, Italian, French, Portuguese Brazilian , Vietnamese, Arabic, Thai, Turkish, Indonesian, Ukrainian
Power adapter included in the package European Standard

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K1T804BMF | Access Control Terminal
Login to View Price

Specifications

  • Operation system: Linux
  • Size: 2.4-inch
  • Resolution: 320 × 240
  • Type: LCD-TFT display screen
  • Audio output: 1 loudspeaker, 1 buzzer
  • Wired network: TCP/IP, 10/100Mbps, self-adaptive
  • Wi-Fi: Support
  • Network interface: 1
  • Wiegand: 1
  • Lock output: 1
  • Exit button: 1
  • Door contact input: 1
  • IO input: 1
  • IO output: 1
  • TAMPER: 1
  • USB: 1
  • Card capacity: 3000
  • Fingerprint capacity: 3000
  • Event capacity: 100,000
  • Card type: M1 card
  • Card reading distance: 0 to 4.5 cm
  • Card reading duration: ＜ 1 s
  • Fingerprint module: Optical fingerprint module
  • Fingerprint comparing mode: 1:1 and 1:N
  • Fingerprint recognition duration: ＜ 1 s
  • Fingerprint False Acceptance Rate (FAR): ≤ 0.001 %
  • Fingerprint False Rejection Rate (FRR): ≤ 0.01 %
  • Indicator: Power/status (red/green)
  • Power supply: 12 VDC/1 A
  • Working temperature: -10 °C to +55 °C (14 °F to +131 °F)
  • Working humidity: 10% to 90% (no condensing)
  • Color: Black (included), gold (optional), silver (optional), white (optional)
  • Dimensions: 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
  • Installation: Surface mounting
  • Language: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian

System
  • Operation system: Linux

Display
  • Size: 2.4-inch
  • Resolution: 320 × 240
  • Type: LCD-TFT display screen

Audio
  • Audio output: 1 loudspeaker, 1 buzzer

Network
  • Wired network: TCP/IP, 10/100Mbps, self-adaptive
  • Wi-Fi: Support

Interface
  • Network interface: 1
  • Wiegand: 1
  • Lock output: 1
  • Exit button: 1
  • Door contact input: 1
  • IO input: 1
  • IO output: 1
  • TAMPER: 1
  • USB: 1

Capacity
  • Card capacity: 3000
  • Fingerprint capacity: 3000
  • Event capacity: 100,000

Authentication
  • Card type: M1 card
  • Card reading distance: 0 to 4.5 cm
  • Card reading duration: ＜ 1 s
  • Fingerprint module: Optical fingerprint module
  • Fingerprint comparing mode: 1:1 and 1:N
  • Fingerprint recognition duration: ＜ 1 s
  • Fingerprint False Acceptance Rate (FAR): ≤ 0.001 %
  • Fingerprint False Rejection Rate (FRR): ≤ 0.01 %

General
  • Indicator: Power/status (red/green)
  • Power supply: 12 VDC/1 A
  • Working temperature: -10 °C to +55 °C (14 °F to +131 °F)
  • Working humidity: 10% to 90% (no condensing)
  • Color: Black (included), gold (optional), silver (optional), white (optional)
  • Dimensions: 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
  • Installation: Surface mounting
  • Language: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
